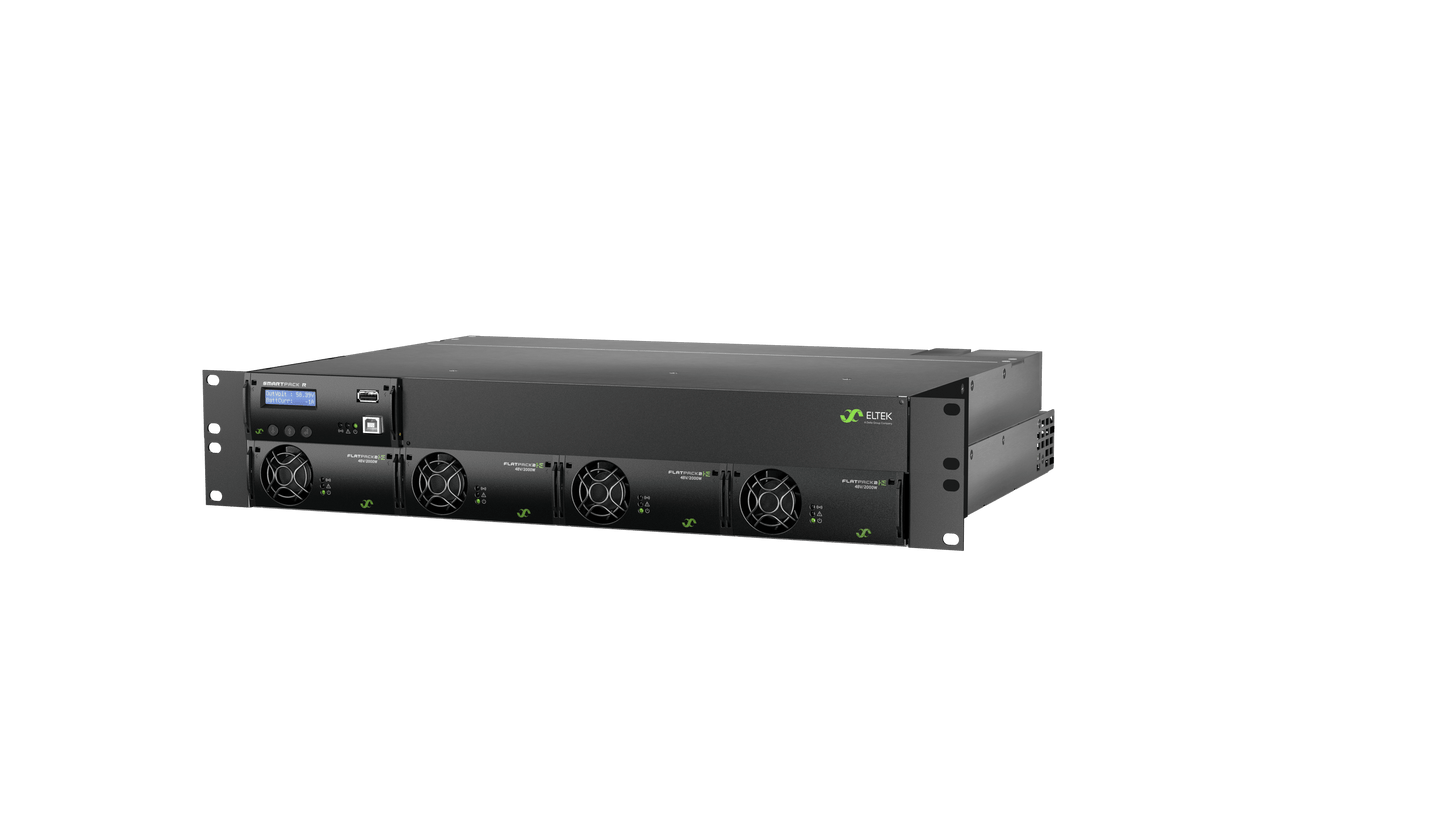

Delta Eltek Flatpack2 2U Integrated DC Power System (150A)
The Delta Eltek Flatpack2 2U Integrated DC Power System is a compact, high-density solution engineered for telecom and industrial applications where space, reliability, and serviceability are critical. Designed to deliver up to 150A at -48Vdc within a compact 2U footprint, the system combines Flatpack2 high-efficiency rectifiers, a Smartpack R c...
Read MoreThe Delta Eltek Flatpack2 2U Integrated DC Power System is a compact, high-density solution engineered for telecom and industrial applications where space, reliability, and serviceability are critical. Designed to deliver up to 150A at -48Vdc within a compact 2U footprint, the system combines Flatpack2 high-efficiency rectifiers, a Smartpack R controller with advanced monitoring and control capabilities, and integrated rear-access battery and load distribution.
Typical application scenarios include mobile radio base stations, LTE/4G/WiMAX small cells, distributed antenna systems (DAS), microwave backhaul links, broadband infrastructure, and fibre optics/FTTx networks requiring reliable and space-optimised DC backup.
Hot-swappable rectifiers ensure minimal service disruption during maintenance, while optional low-voltage battery disconnect (LVBD) and low-voltage load disconnect (LVLD) functions enhance battery protection and system resilience.
Designed to meet global telecommunications, safety, and EMC standards, the Flatpack2 2U Integrated system delivers a robust, scalable power platform optimised for space-constrained telecom and industrial sites.
Show Less
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
