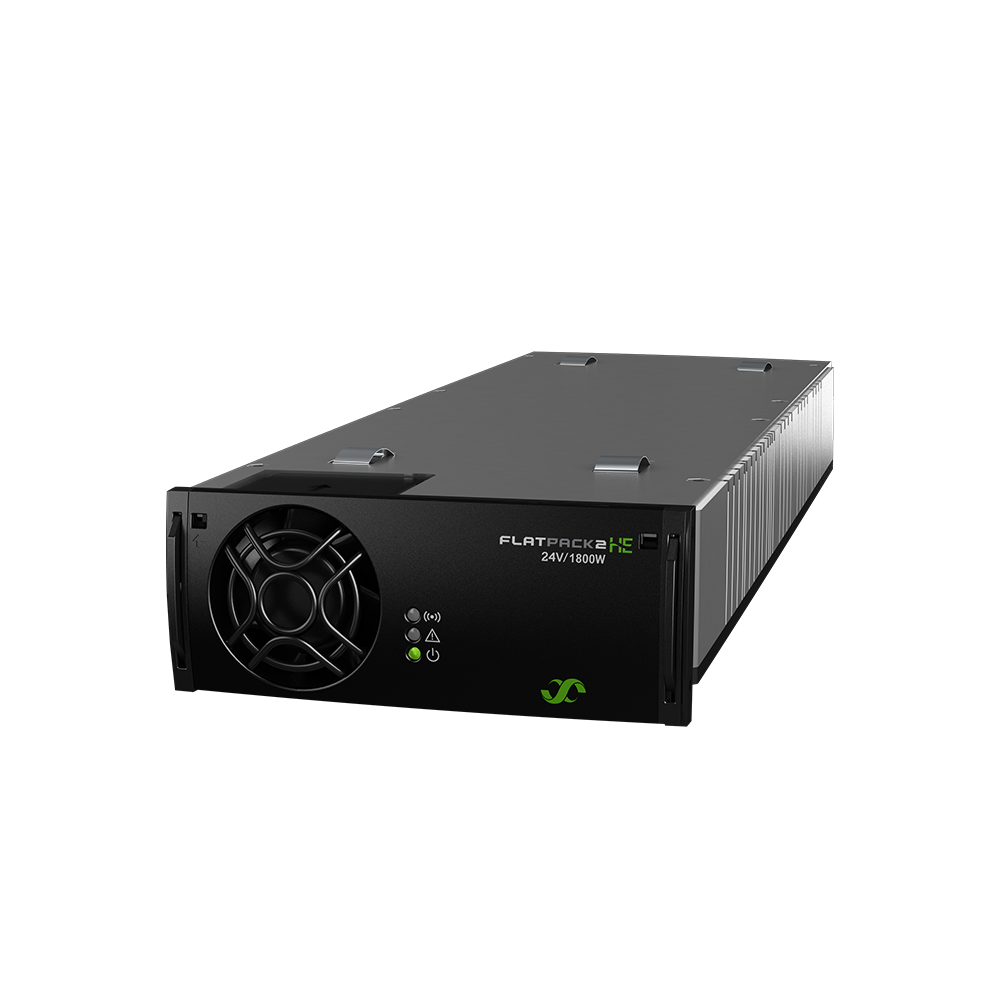

Delta Eltek Flatpack2 24Vdc HE Rectifier Module (1800W)
High Efficiency Power Conversion for 24VDC Backup Systems. The Eltek Flatpack2 24V HE Rectifier Module delivers exceptional performance and reliability in a compact, high-density form factor. With a power output of 1800W and industry-leading 95% peak efficiency, this rectifier is purpose-built for 24V lead-acid battery systems in critical infrastructure applications such as railway, metro, and power utilities.
Read More
Features
- Adjustable Output Range (21.75V – 28.8V): Fine-tune output to match a wide variety of 24VDC system requirements with precision.
- Low Ripple and Noise: Ripple <250mV peak-to-peak and psophometric noise <2mVRMS ensures clean, stable DC output ideal for sensitive equipment.
- Wide Input Compatibility: Accepts AC or DC input from 85–300V, including operation at 0 Hz, providing maximum flexibility in diverse infrastructure setups.
- Hot-Pluggable Design: Enables fast replacement or scaling with no interruption to live systems—ideal for critical uptime environments.
- Advanced Protective Features: Includes overvoltage shutdown, short-circuit proofing, inrush current limiting, and high temperature shutdown to protect equipment and batteries.
- LED Status & CAN Bus Monitoring: Integrated status LEDs and CAN communication provide real-time fault monitoring and system integration with Smartpack controllers.
Specifications
Downloads
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Flatpack2 24V / 1800W HE |
| Manufacturer Part Number | 241115.205 |
| INPUT DATA | |
|---|---|
| Voltage (Nominal) | 185...275Vac / 185...300Vdc |
| Voltage (Range) | 85...300Vac / 85...300Vdc |
| Frequency | 45...66Hz, 15...18.5Hz¹ / 0Hz |
| Maximum Current (@Nominal Input, Full Load) | 11.25Arms |
| Protection | Fuse in both lines, varistor for transient protection, shutdown when Vin is out of range |
| Note | ¹ Maximum power de-rated to 1000W @230Vac & 16 2/3Hz input |
| OUTPUT DATA | |
|---|---|
| Output Voltage (Default) | 26.75Vdc |
| Output Voltage (Adjustable Range) | 21.75...28.8Vdc |
| Power (Maximum) | 1800W |
| Power @ 85Vdc | 750W |
| Maximum Current (@Vout ≤ 24Vdc) | 75A |
| Hold-Up Time (Default voltage + 1000W Load) | 20ms, Vout >21Vdc |
| Current Sharing | ± 5% of maximum current from 10 to 100% load |
| Static voltage regulation (10-100% load) | ±0.5% from 10 - 100% load and supplied power not limited by PV panels |
| Dynamic voltage regulation | |
| Ripple (30MHz bandwidth) | < 250 mVPP, 30MHz bandwidth |
| Psophometric Noise | < 2 mVrms |
| Static Voltage regulation | ±0.5% for 10 - 100% load |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Protection | Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting |
| Peak Efficiency (@Nom. Input) | 95% |
| DISPLAY / ALARMS | |
|---|---|
| Alarms: | Via Red LED: Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings: | Via Yellow LED: Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal Operation (Input/Output OK): | Indicated Via Green LED |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Fan Assisted |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >300 000 (@ T ambient: 25 °C) |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C |
|
Operating Temperature (°C)
|
0...45°C: 100% Rated Power (1800W) > 45°C: D-Rated to 1200W @ 75°C |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | |
|---|---|
| Isolation | 4.2 kVDC – input and output, 2.5 kVDC – input earth, 0.5 kVDC – output earth |
| Electrical safety | EN 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC 60950-1:2005+A2:2013 UL 62368-1:2019 , CSA C22.2 No.62368-1:2019 |
| EMC | EN IEC 61000-6-1:2019, -6-2:2019, -6-4:2019, IEC 61000-6-5:2015 EN 61000-6-3:2007 + A1:2011/AC:2012, ETSI EN 300 386:2020 EN 60945 : 2002 + Cor.1:2008, FCC CFR 47 Part 15 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS), 2012/19/EU (WEEE), IEC 63000:2018, EN IEC 62474:2019 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised |
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Flatpack2 24V / 1800W HE |
| Manufacturer Part Number | 241115.205 |
| INPUT DATA | |
|---|---|
| Voltage (Nominal) | 185...275Vac / 185...300Vdc |
| Voltage (Range) | 85...300Vac / 85...300Vdc |
| Frequency | 45...66Hz, 15...18.5Hz¹ / 0Hz |
| Maximum Current (@Nominal Input, Full Load) | 11.25Arms |
| Protection | Fuse in both lines, varistor for transient protection, shutdown when Vin is out of range |
| Note | ¹ Maximum power de-rated to 1000W @230Vac & 16 2/3Hz input |
| OUTPUT DATA | |
|---|---|
| Output Voltage (Default) | 26.75Vdc |
| Output Voltage (Adjustable Range) | 21.75...28.8Vdc |
| Power (Maximum) | 1800W |
| Power @ 85Vdc | 750W |
| Maximum Current (@Vout ≤ 24Vdc) | 75A |
| Hold-Up Time (Default voltage + 1000W Load) | 20ms, Vout >21Vdc |
| Current Sharing | ± 5% of maximum current from 10 to 100% load |
| Static voltage regulation (10-100% load) | ±0.5% from 10 - 100% load and supplied power not limited by PV panels |
| Dynamic voltage regulation | |
| Ripple (30MHz bandwidth) | < 250 mVPP, 30MHz bandwidth |
| Psophometric Noise | < 2 mVrms |
| Static Voltage regulation | ±0.5% for 10 - 100% load |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Protection | Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting |
| Peak Efficiency (@Nom. Input) | 95% |
| DISPLAY / ALARMS | |
|---|---|
| Alarms: | Via Red LED: Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings: | Via Yellow LED: Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal Operation (Input/Output OK): | Indicated Via Green LED |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Fan Assisted |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >300 000 (@ T ambient: 25 °C) |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C |
|
Operating Temperature (°C)
|
0...45°C: 100% Rated Power (1800W) > 45°C: D-Rated to 1200W @ 75°C |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | |
|---|---|
| Isolation | 4.2 kVDC – input and output, 2.5 kVDC – input earth, 0.5 kVDC – output earth |
| Electrical safety | EN 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC 60950-1:2005+A2:2013 UL 62368-1:2019 , CSA C22.2 No.62368-1:2019 |
| EMC | EN IEC 61000-6-1:2019, -6-2:2019, -6-4:2019, IEC 61000-6-5:2015 EN 61000-6-3:2007 + A1:2011/AC:2012, ETSI EN 300 386:2020 EN 60945 : 2002 + Cor.1:2008, FCC CFR 47 Part 15 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS), 2012/19/EU (WEEE), IEC 63000:2018, EN IEC 62474:2019 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
Flatpack2 24V / 1800W HE | Nom. 185...275Vac / 185...300Vdc | 27.6Vdc (Adj. 21.75...28.8Vdc) | 1800W |
