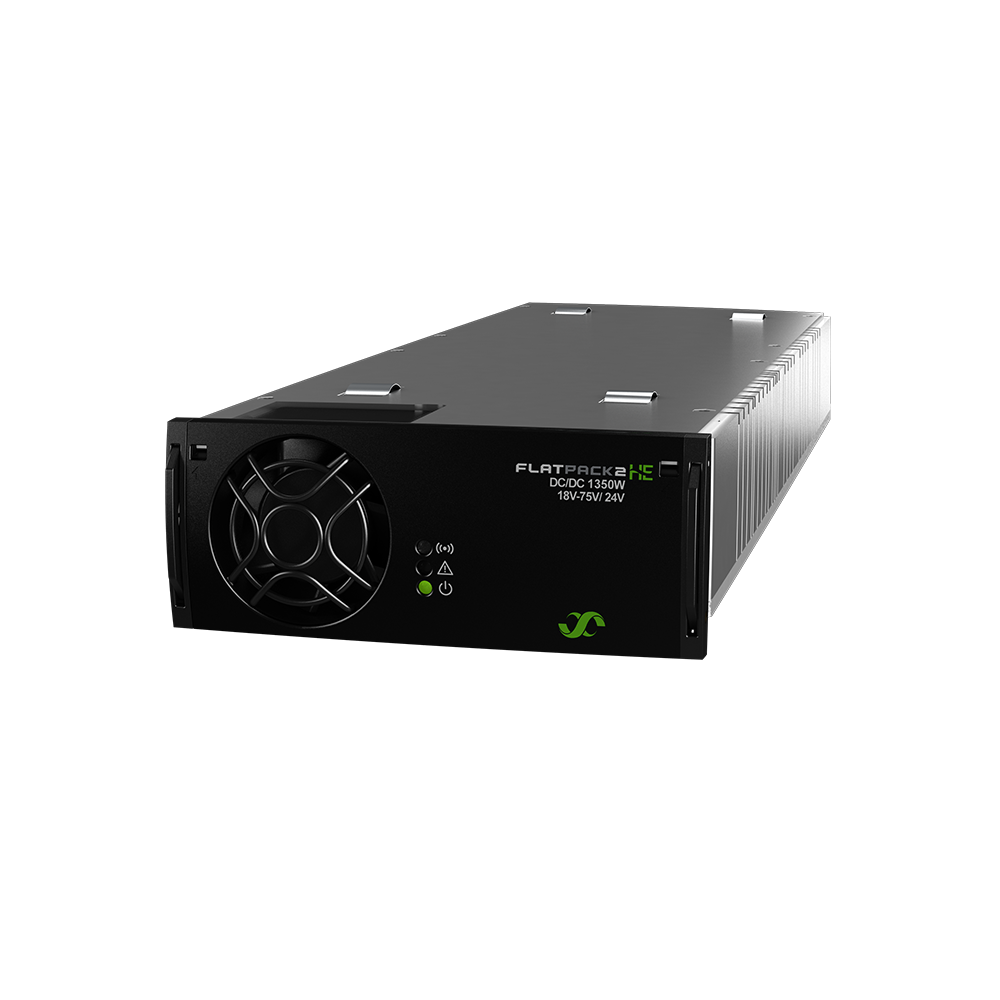

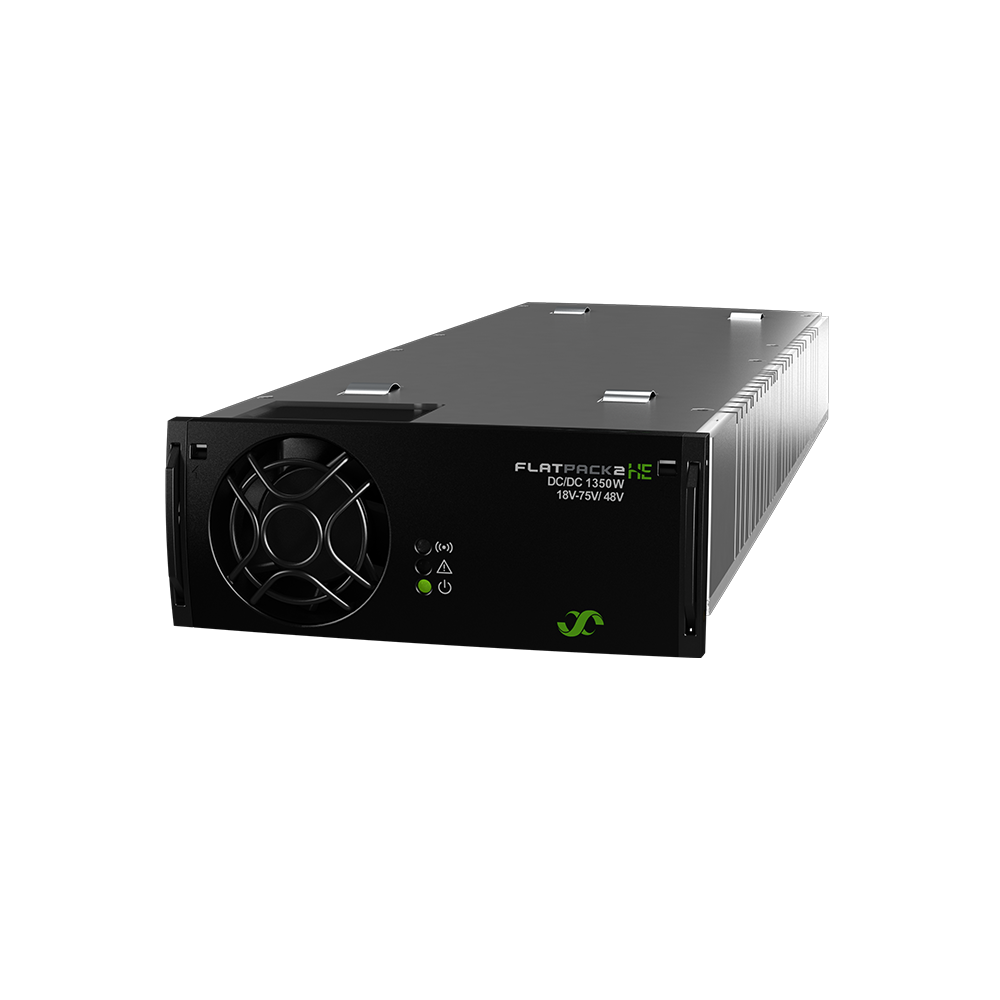

Delta Eltek Flatpack2 DC-DC Converters (1350W)
High-Efficiency, Wide-Input Converters for Reliable Secondary DC Output. The Eltek Flatpack2 DC-DC Converter 1350W offers a flexible and compact solution for providing galvanically isolated 24V or 48VDC outputs from an 18–75Vdc source. Ideal for telecom, railway, and utility applications, this converter integrates seamlessly with Eltek’s Flatpack2 systems and Smartpack control architecture—delivering clean, stable power with high efficiency and intelligent control.
Read More
Features
- Quick Trip Pulse Functionality: Enables rapid shutdown of connected loads in the event of a fault—protecting sensitive downstream equipment.
- High Efficiency (Up to 93.8%): Reduces heat generation and energy waste, especially important in compact enclosures with limited airflow.
- CAN Bus Galvanic Isolation: Ensures safe and interference-free communication between converter and control systems across separate voltage domains.
- High Output Current Capability: Delivers up to 84A at 24V and 42A at 48V in boost mode, supporting heavy-load applications with ease.
- Compact & Lightweight Form Factor: At just 327mm deep and under 2kg, it's optimised for high-density rack installations or field-deployed cabinets.
- Status LEDs for Local Diagnostics: Tri-colour LEDs indicate system health, warnings, and alarms—providing instant visual feedback for maintenance teams.
Specifications
Downloads
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Manufacturer Part Number | 241115.600 | 241115.602 |
| INPUT DATA | ||
|---|---|---|
| Voltage range | 20 - 75 VDC (shutdown < 16.5Vdc) | |
| Current (maximum) | 70 ADC (85 ADC during boost) | |
| Protection | Fuse and reversed polarity protection | |
| OUTPUT DATA | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Voltage (default) | 26Vdc | 53Vdc |
| Voltage (adjustable range) | 24 - 28Vdc | 48 - 58.5Vdc |
| Power (maximum) @ VIN > 26 VDC / VIN = 18 VDC Power boost 15s / 10min recovery (VIN > 25VDC) |
1350 W / 910 W 2000W |
|
| Current (maximum) Current boost 15s / 10min recovery (VIN > 25VDC) |
56 A 84 A |
28 A 42 A |
| Static Voltage regulation (0 - 100% load) | ±1% | ±0.5% |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 30ms | |
| Ripple, 20MHz bandwidth | < 200 mVpp | |
| Protection | Short circuit proof , OR-ing diode, High temperature protection, Hot plug-in inrush current limiting, Over voltage Shutdown |
|
| DISPLAY & ALARMS | ||
|---|---|---|
| Alarms: Red LED 'on' | Low and high input voltage shutdown, High and low temperature shutdown, Converter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm |
|
| Warnings: Yellow LED 'on' | Converter in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller |
|
| Normal (module running): Green LED 'on' | ||
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Operating temperature | -40 to +75°C (-40 to +185°F), humidity 5 - 95% RH non-condensing | |
| Temperature de-rating above 55°C (131°F) | 1350W to 1250W @ 65°C (149°F) and 800W @ 75°C (167°F) | |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >315 000 (@ Tambient : 25 °C) | >315 000 (@ Tambient : 25 °C) |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS & CERTIFICATIONS | ||
|---|---|---|
| Electrical safety | UL 60950-1, EN 60950-1 | |
| EMC | EN 61000-6-1 / -2 / -3 / -4 ETSI EN 300 386 V.1.4.1 |
|
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant |
|
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Manufacturer Part Number | 241115.600 | 241115.602 |
| INPUT DATA | ||
|---|---|---|
| Voltage range | 20 - 75 VDC (shutdown < 16.5Vdc) | |
| Current (maximum) | 70 ADC (85 ADC during boost) | |
| Protection | Fuse and reversed polarity protection | |
| OUTPUT DATA | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Voltage (default) | 26Vdc | 53Vdc |
| Voltage (adjustable range) | 24 - 28Vdc | 48 - 58.5Vdc |
| Power (maximum) @ VIN > 26 VDC / VIN = 18 VDC Power boost 15s / 10min recovery (VIN > 25VDC) |
1350 W / 910 W 2000W |
|
| Current (maximum) Current boost 15s / 10min recovery (VIN > 25VDC) |
56 A 84 A |
28 A 42 A |
| Static Voltage regulation (0 - 100% load) | ±1% | ±0.5% |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 30ms | |
| Ripple, 20MHz bandwidth | < 200 mVpp | |
| Protection | Short circuit proof , OR-ing diode, High temperature protection, Hot plug-in inrush current limiting, Over voltage Shutdown |
|
| DISPLAY & ALARMS | ||
|---|---|---|
| Alarms: Red LED 'on' | Low and high input voltage shutdown, High and low temperature shutdown, Converter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm |
|
| Warnings: Yellow LED 'on' | Converter in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller |
|
| Normal (module running): Green LED 'on' | ||
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Flatpack2 1350W 18-75/24V | Flatpack2 1350W 18-75/48V |
| Operating temperature | -40 to +75°C (-40 to +185°F), humidity 5 - 95% RH non-condensing | |
| Temperature de-rating above 55°C (131°F) | 1350W to 1250W @ 65°C (149°F) and 800W @ 75°C (167°F) | |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >315 000 (@ Tambient : 25 °C) | >315 000 (@ Tambient : 25 °C) |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS & CERTIFICATIONS | ||
|---|---|---|
| Electrical safety | UL 60950-1, EN 60950-1 | |
| EMC | EN 61000-6-1 / -2 / -3 / -4 ETSI EN 300 386 V.1.4.1 |
|
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant |
|
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
Flatpack2 1350W 18-75/24V | 20 - 75Vdc (shutdown < 16.5Vdc) | 26Vdc (Adj. 24...28Vdc) | 1350 W / 910 W (@ VIN > 26Vdc / VIN = 18Vdc) | |
|
|
Flatpack2 1350W 18-75/48V | 20 - 75Vdc (shutdown < 16.5Vdc) | 53Vdc (Adj. 48...58.5Vdc | 1350 W / 910 W (@ VIN > 26Vdc / VIN = 18Vdc) |
