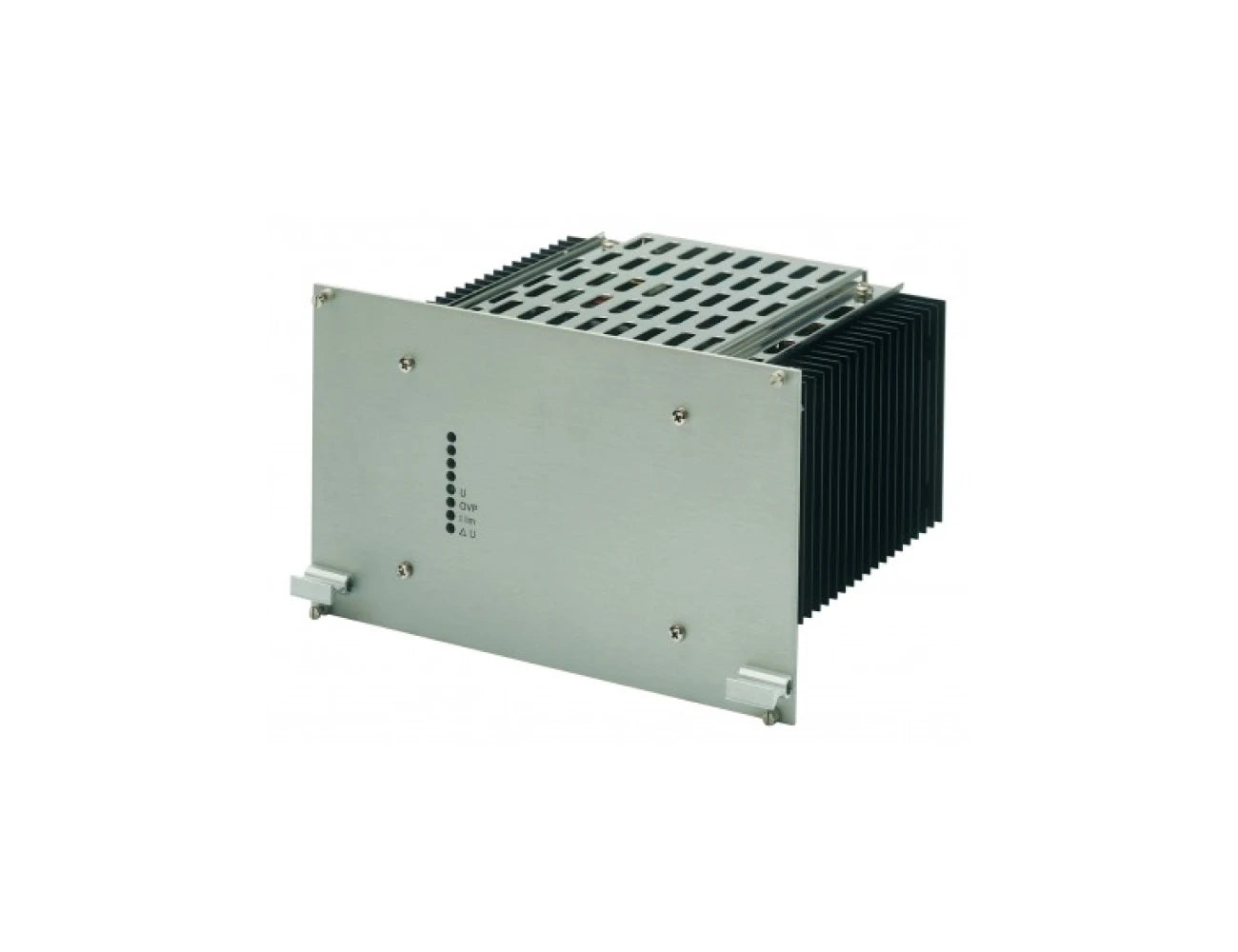

Schaefer C600D SERIES DC/DC Converter

The Schaefer C600D Series is a highly versatile industrial DC/DC converter designed to deliver reliable performance in demanding applications. Employing natural convection cooling, it ensures dependable operation even in challenging environments. Supporting DC input voltages from 10Vdc to 380Vdc and output voltages ranging from 5Vdc to 400Vdc, the series offers both step-up and step-down configurations for maximum flexibility. Flexible mounting options, including wall, chassis, or 19" rackmount via a 3U subrack, simplify integration. Optional features, such as redundancy, monitoring, control, and enhanced environmental protection, further enhance its adaptability and durability. Ideal for railway, mining, power utilities (generation, transmission, and distribution), and other industrial sectors, the C600D Series is a trusted solution for critical power conversion needs.

View Models

Features

Output Power Range: 300W to 500W
Wide range of DC Input / Output Voltage Configurations, including high-voltage models.
Natural Convection Cooling, suitable for demanding environments.
Flexible Mounting Options: Wall, chassis, or 19" rackmount (via 3U Subrack)
Optional Features: Redundancy, monitoring, control and enhanced environmental protection.
Applications: Railway, Mining, Power Utilities (Generation, Transmission & Distribution) and Industrial systems.

Specifications

INPUT
Input voltage	DC Input voltage: 10 - 800Vdc See selection table Units will turn off with under or over input voltage.
No-load input power	5-6W model (series dependent)
Switch on time	1-2 seconds.

OUTPUT
Output voltage	Voltage range; 4.5 - 400Vdc See selection table
Output current	See selection table.
Ripple & noise	1% + 30mVpp
Line regulation	0.1% (±10%)
Load regulation	0.2% typical, load step 10-90%
Load transient	6% typical, load step 10-90%
Response time	2-3ms typical ±1%
Temperature coefficient	0.02% per °C typical.
Holdup time	10mS at 220VAC typical
Turn on rise time	100mS typical (soft start)
Remote sensing	Standard for all series
Efficiency	80%-92% typical
Output Options	Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts

PROTECTION
Overload protection	Current limited at 105%–110% of full load.
Overvoltage protection	OVP switches off module with automatic return to operation
Protection Options	Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF	100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)

ENVIRONMENTAL
Operating temperature	-20°C to +75°C (optional -40 to 75C)
Load derating	Derate 2.5% per °C, from +55°C to 75°C
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Environment Options	Option c: Extended temperature range to -40°C
Storage temperature	-40°C to +85°C
Humidity	Up to 95% RH, non-condensing

STANDARDS
EMI standards	acc. to EN61000-6-4 class A, optionally class B
Immunity standards	acc. to EN61000-6-2
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction	acc. to EN60950-1 / EN50178
Protection category	IP20 acc. to EN60529 NEMA or others on request

MECHANICAL
Mounting	See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting Option cha: Chassis Mounting Option din: DIN Rail Mounting
Dimensions	See Technical illustration
Connector	H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options	Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

Selection Table

INPUT 10-16V	OUTPUT AMPS	INPUT 18-36V	OUTPUT AMPS	INPUT 36-75V	INPUT 45-90V	INPUT 80-160V	INPUT 160-320V	INPUT 320-380V	OUTPUT AMPS	COOLING	OUTPUT VDC	OUTPUT RANGE
C600	50	C620	70	C630	C640	C650	C670	C680Z	80	H	5	4.5-5.5
C601	30	C621	45	C631	C641	C651	C671	C681Z	50	H	9	8-10
C602	25	C622	35	C632	C642	C652	C672	C682Z	40	H	12	11-13
C603	20	C623	28	C633	C643	C653	C673	C683Z	32	H	15	14-16
C604	12	C624	18	C634	C644	C654	C674	C684Z	20	H	24	23-26
C605	10	C625	15	C635	C645	C655	C675	C685Z	17	H	28	26-30
C609	6	C629	8	C639	C649	C659	C679	C689Z	9	H	48	45-55
C606	5	C626	7	C636	C646	C656	C676	C686Z	7.5	H	60	58-68
C607	2.5	C627	3.5	C637	C647	C657	C677	C687Z	4	H	110	100-130
C608	1.2	C628	1.8	C638	C648	C658	C678	C688Z	2	H	220	200-250

Cooling

H: Heatsink - natural convection

F: Fan - increased airflow recommended

TF: Temperature controlled Fan included

See selection table

Model configuration options:	Add the options to the model number, eg. C658-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

OPTIONS INPUT
Option “i”	(inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie”	electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd”	(series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad”	(anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au”	(auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p”	(power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r”	(relay): A relay instead of a logic signal is provided for failure indication.

output
Option “dd”	(decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs”	(active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi”	(current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1”	(inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2”	(inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco”	(reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d”	(DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m”	(DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac”	(AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y"	(sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r"	(relay): A relay instead of a logic signal is provided for failure indication.

environment
Option "t"	(tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c"	(extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms"	(increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.

mechanics
Standard mounting	"Eurocassette" pluggable module for 19" sub-racks 8
Option "w"	(wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha"	(chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din"	(DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

Technical Illustrations

Downloads

Schaefer_cb600-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
