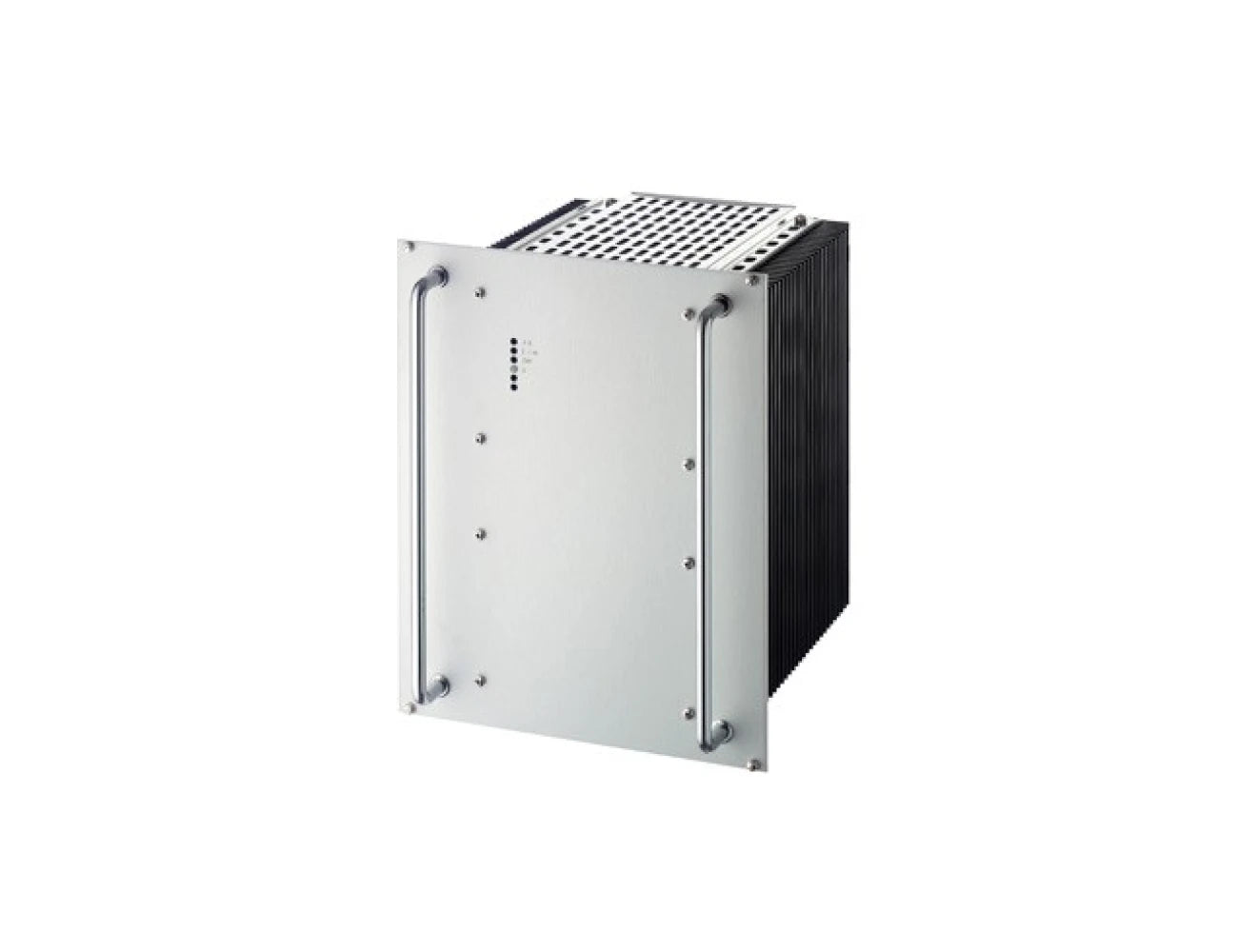

Schaefer C3600D SERIES DC/DC Converter

The Schaefer C3600D Series Industrial Grade DC/DC Converter provides 1,400 W to 1,700 W of dependable power, tailored for demanding industrial and energy applications. Supporting a wide DC input range from 18Vdc to 800Vdc and delivering output voltages from 5Vdc to 400Vdc, it is suitable for both step-up and step-down configurations. Designed for stand-alone use or scalable systems via parallel connection, this series is versatile and robust. Natural convection cooling ensures reliable operation across most configurations, with active cooling required only for 5Vdc outputs. Flexible mounting options include wall mount or 19" rackmount via a separate 6U subrack. With optional features such as monitoring, control, and enhanced environmental protection, the C3600D is ideal for applications in Railway (ARTC Type Approval NESA-S061), Power Utilities (Generation, Transmission & Distribution), Renewable Energy, and Mining sectors where reliability is critical.

View Models
Schaefer C3600D SERIES DC/DC Converter

Features

  • Power Rating: 1,400 W to 1,700 W.
  • DC Input/Output: Input range 18Vdc to 800Vdc; output range 5Vdc to 400Vdc.
  • Cooling: Natural convection, with active cooling for 5Vdc output models.
  • Mounting: Wall mount or 19" rackmount via a 6U subrack.
  • Optional Features: Monitoring, control, mechanical strength, and enhanced environmental protection.
  • Applications: ARTC-approved for railway use (NESA-S061), Power Utilities, Renewable Energy, and Mining industries.
Specifications
INPUT
Input voltage

DC Input voltage: 10 - 800Vdc
See selection table
Units will turn off with under or over input voltage.
No-load input
power		 5-6W model (series dependent)
Switch on time 1-2 seconds.



OUTPUT
Output voltage

Voltage range; 4.5 - 400Vdc
See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options

Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts



PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options

Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF

100Khrs to 140Khrs at 40°C
acc. to MIL-HDBK-217E (notice 1)



ENVIRONMENTAL
Operating temperature

-20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling

H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options

Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing



STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category

IP20 acc. to EN60529
NEMA or others on request



MECHANICAL
Mounting

See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector

H15 acc. to DIN 41612 H15
and high current connectors for I > 50A,
or terminals / bolts / bars
Mechanical Options

Option ms: Increased Mechanical Strength
Option t: Tropical protection

19" Rack Mounting

Options

Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration



Selection Table

INPUT

18-36V

OUTPUT

AMPS

INPUT

36-75V

INPUT

45-90V

INPUT

80-160V

INPUT

160-320V

INPUT

320-380V

INPUT

320-640V

INPUT

450-800V

OUTPUT

AMPS

 COOLING

OUTPUT

VDC

OUTPUT

RANGE
C3620 180 C3630 C3640 C3650 C3670 C3680Z C3670G C3670K  200  F 5 4.5-5.5
C3621 120 C3631 C3641 C3651 C3671 C3681Z C3671G C3671K  130  H 9 8-10
C3622 100 C3632 C3642 C3652 C3672 C3682Z C3672G C3672K  115  H 12 11-13
C3623 80 C3633 C3643 C3653 C3673 C3683Z C3673G C3673K  90  H 15 14-16
C3624 55 C3634 C3644 C3654 C3674 C3684Z C3674G C3674K  65  H 24 23-26
C3625 48 C3635 C3645 C3655 C3675 C3685Z C3675G C3675K  55  H 28 26-30
C3629 26 C3639 C3649 C3659 C3679 C3689Z C3679G C3679K  30  H 48 45-55
C3626 21 C3636 C3646 C3656 C3676 C3686Z C3676G C3676K  25  H 60 58-68
C3627 11 C3637 C3647 C3657 C3677 C3687Z C3677G C3677K  14  H 110 100-130
C3627 J 7 C3637J C3647J C3657J C3677 J C3687ZJ C3677GJ C3677KJ  8.5  H 200 190-200
C3628 5.5 C3638 C3648 C3658 C3678 C3688Z C3678G C3678K  7  H 220 200-250
C3628 J 3.5 C3638J C3648J C3658J C3678 J C3688ZJ C3678GJ C3678KJ  4.3  H 400 380-400



Cooling

H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table

Model designation options:

Add the designation of options to the model number, eg. C3620-dd-dr-cs
Options for Input, output, Environmental and Mechanical follow
19" Rack Mounting Options

Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration



INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the
input lines which changes its resistance from high to low when it gets hot. It does
not reduce the current surge if the input power is interrupted for a short period of
time not allowing the thermistor to cool down. Thermistors are fitted as standard
to all mains input models except for 1-phase input of models > 2.5kW.
Thermistors are available up to 45A. For higher input current an electronic inrush
current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush
current.
Option “sd” (series diode): A series diode protects the module against input
voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is
provided with opposite polarity in parallel to the input blowing an internal or external
fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of
115/230Vac is to be selected by connecting the input line to different pins on the
connector. With auto-ranging the unit senses the input voltage and provides
automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or
DC) drops below the specified limit. In AC input units we sense the rectified input
voltage so that a power fail alarm will not be triggered if at light loads mains
power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.



output options
Option “dd” (decoupling diode): For redundant operation the outputs of two or
more units are paralleled behind de-coupling diodes so that an internal fault of
one module does not affect the operation of the others. These diodes cause power
losses.
Option “cs” (active current sharing): An additional control circuit provides active
current sharing via an interconnecting wire between converters that operate in
parallel. Active current sharing should be used for multi-output units operating in
parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the
"cs" signal. Should there be an instance where a unit is not supplying the load,
then the effect of its "cs" signal is removed, and the load voltage is unaffected by
this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the
converter. This can also be used in conjunction with a thermal trip which shuts the unit
down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal
(5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the
current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main
output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided
if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the
output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok
as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure
indication.



environmental options
Option "t" (tropical protection):The unit is given additional protection by a heavy
coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for
operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and
heavy components are fastened by ties and/or glue. Modules with the "ms" option
meet the standard EN61373 regarding shock and vibration.



mechanical options
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for
installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or
within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a
structure or within Cabinet. Screw type connectors are supplied with the module.



Technical Illustrations
Downloads
Schaefer_cb3600-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
