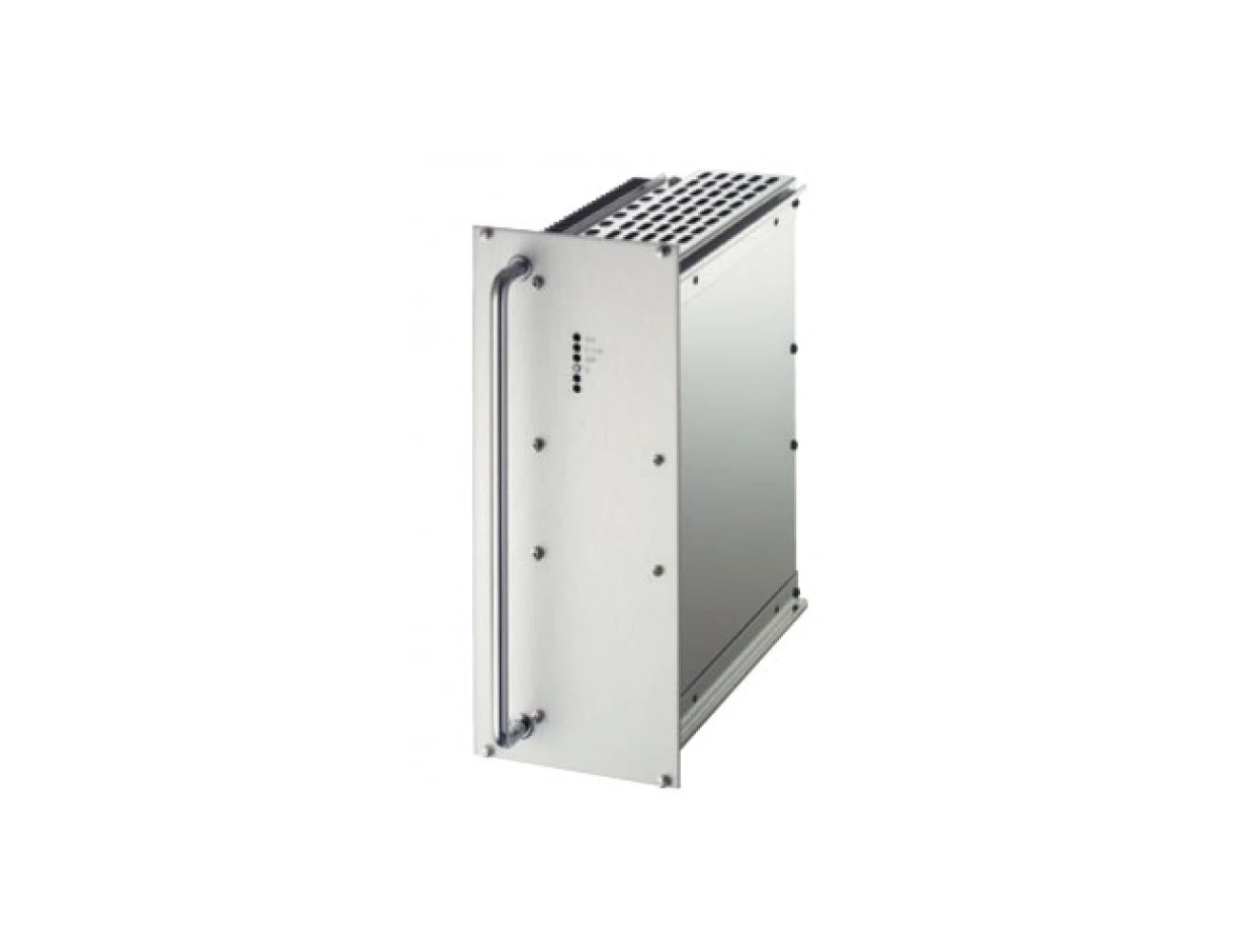

Schaefer C4500D SERIES DC/DC Converter

The Schaefer C4500D Series Industrial Grade DC/DC Converter delivers 900 W to 1,600 W of reliable power, making it an excellent choice for demanding industrial applications. Supporting a broad DC input voltage range from 10Vdc to 800Vdc and output voltages from 9Vdc to 400Vdc, this versatile series is available in both step-up and step-down configurations.

Read More

Features

  • Power Rating: 900 W to 1,600 W.
  • DC Input/Output: Input range 10Vdc to 800Vdc; output range 9Vdc to 400Vdc.
  • Cooling: External fan over heatsink for consistent performance.
  • Mounting: Wall mount, chassis mount, or 19" rackmount via a 6U subrack.
  • Optional Features: Monitoring, control, mechanical strength, and enhanced environmental protection.
  • Applications: Railway, Power Utilities (Generation, Transmission & Distribution), Renewable Energy, and Mining industries.
Specifications
INPUT
Input voltage DC Input voltage: 10 - 800Vdc
See selection table
Units will turn off with under or over input voltage.
No-load input power 5-6W model (series dependent)
Switch on time 1-2 seconds.
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
Selection Table
INPUT 10-16V OUTPUT AMPS INPUT 20 -32V OUTPUT AMPS INPUT 40-64V INPUT 50 - 80V INPUT 80 -160V INPUT 160 - 320V INPUT 320 - 380V INPUT 320-640V INPUT 450- 800V OUTPUT AMPS COOLING OUTPUT VDC OUTPUT RANGE
C4501 60 C4521 90 C4531 C4541 C4551 C4571 C4581Z C4571G C4571K 110 F 9 8 - 10
C4502 50 C4522 80 C4532 C4542 C4552 C4572 C4582Z C4572G C4572K 96 F 12 11 - 13
C4503 42 C4523 65 C4533 C4543 C4553 C4573 C4583Z C4573G C4573K 80 F 15 14 - 16
C4504 32 C4524 45 C4534 C4544 C4554 C4574 C4584Z C4574G C4574K 56 F 24 23 - 26
C4505 28 C4525 40 C4535 C4545 C4555 C4575 C4585Z C4575G C4575K 50 F 28 26 - 30
C4509 16 C4529 22 C4539 C4549 C4559 C4579 C4589Z C4579G C4579K 30 F 48 45 - 55
C4506 14 C4526 18 C4536 C4546 C4556 C4576 C4586Z C4576G C4576K 24 F 60 58 - 68
C4507 7.2 C4527 10 C4537 C4547 C4557 C4577 C4587Z C4577G C4577K 13 F 110 100 - 130
C4507J 4.4 C4527J 6 C4537J C4547J C4557J C4577J C4587ZJ C4577GJ C4577KJ 8 F 200 190 - 200
C4508 3.6 C4528 5 C4538 C4548 C4558 C4578 C4588Z C4578G C4578K 6.5 F 220 200 - 250
C4508J 2.2 C4528J 3 C4538J C4548J C4558J C4578J C4588ZJ C4578GJ C4578KJ 4 F 400 380 - 400
Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model configuration options: Add the options to the model number, eg. C4538J-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
OPTIONS INPUT
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
Output
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
Environment
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
Mechanics
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Technical Illustrations
Downloads
Schaefer_cb4500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
INPUT
Input voltage DC Input voltage: 10 - 800Vdc
See selection table
Units will turn off with under or over input voltage.
No-load input power 5-6W model (series dependent)
Switch on time 1-2 seconds.
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
INPUT 10-16V OUTPUT AMPS INPUT 20 -32V OUTPUT AMPS INPUT 40-64V INPUT 50 - 80V INPUT 80 -160V INPUT 160 - 320V INPUT 320 - 380V INPUT 320-640V INPUT 450- 800V OUTPUT AMPS COOLING OUTPUT VDC OUTPUT RANGE
C4501 60 C4521 90 C4531 C4541 C4551 C4571 C4581Z C4571G C4571K 110 F 9 8 - 10
C4502 50 C4522 80 C4532 C4542 C4552 C4572 C4582Z C4572G C4572K 96 F 12 11 - 13
C4503 42 C4523 65 C4533 C4543 C4553 C4573 C4583Z C4573G C4573K 80 F 15 14 - 16
C4504 32 C4524 45 C4534 C4544 C4554 C4574 C4584Z C4574G C4574K 56 F 24 23 - 26
C4505 28 C4525 40 C4535 C4545 C4555 C4575 C4585Z C4575G C4575K 50 F 28 26 - 30
C4509 16 C4529 22 C4539 C4549 C4559 C4579 C4589Z C4579G C4579K 30 F 48 45 - 55
C4506 14 C4526 18 C4536 C4546 C4556 C4576 C4586Z C4576G C4576K 24 F 60 58 - 68
C4507 7.2 C4527 10 C4537 C4547 C4557 C4577 C4587Z C4577G C4577K 13 F 110 100 - 130
C4507J 4.4 C4527J 6 C4537J C4547J C4557J C4577J C4587ZJ C4577GJ C4577KJ 8 F 200 190 - 200
C4508 3.6 C4528 5 C4538 C4548 C4558 C4578 C4588Z C4578G C4578K 6.5 F 220 200 - 250
C4508J 2.2 C4528J 3 C4538J C4548J C4558J C4578J C4588ZJ C4578GJ C4578KJ 4 F 400 380 - 400
Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model configuration options: Add the options to the model number, eg. C4538J-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
OPTIONS INPUT
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
Output
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
Environment
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
Mechanics
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Schaefer_cb4500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant C4501 10...16Vdc 9Vdc (Adj. 8 - 10Vdc) 60A
product variant C4502 10...16Vdc 12Vdc (Adj. 11 - 13Vdc) 50A
product variant C4503 10...16Vdc 15Vdc (Adj. 14 - 16Vdc) 42A
product variant C4504 10...16Vdc 24Vdc (Adj. 23 - 26Vdc) 32A
product variant C4505 10...16Vdc 28Vdc (Adj. 26 - 30Vdc) 28A
product variant C4509 10...16Vdc 48Vdc (Adj. 45 - 55Vdc) 16A
product variant C4506 10...16Vdc 60Vdc (Adj. 58 - 68Vdc) 14A
product variant C4507 10...16Vdc 110Vdc (Adj. 100 - 130Vdc) 7.2A
product variant C4507J 10...16Vdc 200Vdc (Adj. 190 - 200Vdc) 4.4A
product variant C4508 10...16Vdc 220Vdc (Adj. 200 - 250Vdc) 3.6A
product variant C4508J 10...16Vdc 400Vdc (Adj. 380 - 400Vdc) 2.2A
product variant C4521 20...32Vdc 9Vdc (Adj. 8 - 10Vdc) 90A
product variant C4522 20...32Vdc 12Vdc (Adj. 11 - 13Vdc) 80A
product variant C4523 20...32Vdc 15Vdc (Adj. 14 - 16Vdc) 65A
product variant C4524 20...32Vdc 24Vdc (Adj. 23 - 26Vdc) 45A
product variant C4525 20...32Vdc 28Vdc (Adj. 26 - 30Vdc) 40A
product variant C4529 20...32Vdc 48Vdc (Adj. 45 - 55Vdc) 22A
product variant C4526 20...32Vdc 60Vdc (Adj. 58 - 68Vdc) 18A
product variant C4527 20...32Vdc 110Vdc (Adj. 100 - 130Vdc) 10A
product variant C4527J 20...32Vdc 200Vdc (Adj. 190 - 200Vdc) 6A
product variant C4528 20...32Vdc 220Vdc (Adj. 200 - 250Vdc) 5A
product variant C4528J 20...32Vdc 400Vdc (Adj. 380 - 400Vdc) 3A
product variant C4531 40...64Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4532 40...64Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4533 40...64Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4534 40...64Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4535 40...64Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4539 40...64Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4536 40...64Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4537 40...64Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4537J 40...64Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4538 40...64Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4538J 40...64Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4541 50...80Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4542 50...80Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4543 50...80Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4544 50...80Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4545 50...80Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4549 50...80Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4546 50...80Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4547 50...80Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4547J 50...80Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4548 50...80Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4548J 50...80Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4551 80...160Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4552 80...160Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4553 80...160Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4554 80...160Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4555 80...160Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4559 80...160Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4556 80...160Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4557 80...160Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4557J 80...160Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4558 80...160Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4558J 80...160Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4571 160...320Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4572 160...320Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4573 160...320Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4574 160...320Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4575 160...320Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4579 160...320Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4576 160...320Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4577 160...320Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4577J 160...320Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4578 160...320Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4578J 160...320Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4581Z 320...380Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4582Z 320...380Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4583Z 320...380Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4584Z 320...380Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4585Z 320...380Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4589Z 320...380Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4586Z 320...380Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4587Z 320...380Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4587ZJ 320...380Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4588Z 320...380Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4588ZJ 320...380Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4571G 320...640Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4572G 320...640Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4573G 320...640Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4574G 320...640Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4575G 320...640Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4579G 320...640Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4576G 320...640Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4577G 320...640Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4577GJ 320...640Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4578G 320...640Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4578GJ 320...640Vdc 400Vdc (Adj. 380 - 400Vdc) 4A
product variant C4571K 450...800Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4572K 450...800Vdc 12Vdc (Adj. 11 - 13Vdc) 96A
product variant C4573K 450...800Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4574K 450...800Vdc 24Vdc (Adj. 23 - 26Vdc) 56A
product variant C4575K 450...800Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4579K 450...800Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C4576K 450...800Vdc 60Vdc (Adj. 58 - 68Vdc) 24A
product variant C4577K 450...800Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4577KJ 450...800Vdc 200Vdc (Adj. 190 - 200Vdc) 8A
product variant C4578K 450...800Vdc 220Vdc (Adj. 200 - 250Vdc) 6.5A
product variant C4578KJ 450...800Vdc 400Vdc (Adj. 380 - 400Vdc) 4A

Need help finding the right product model?
