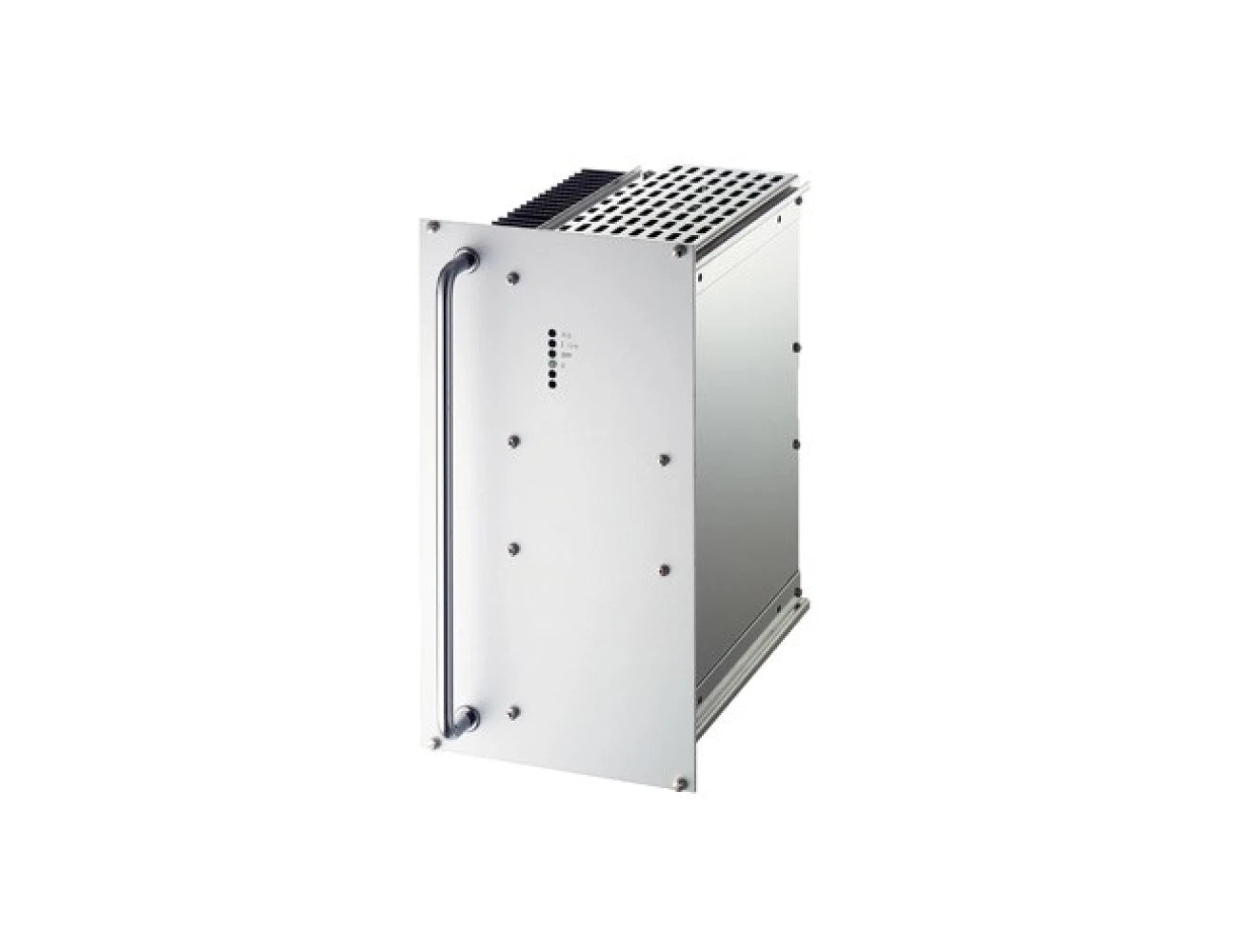

Schaefer C4700D SERIES DC/DC Converter

The Schaefer C4700D Series Industrial Grade DC/DC Converter delivers a power range of 1.2 kW to 2.5 kW, offering a dependable solution for critical industrial applications. Supporting DC input voltages from 10Vdc to 800Vdc and output voltages from 5Vdc to 400Vdc, this converter is available in both step-up and step-down configurations. The Series is designed for stand-alone operation or parallel connection, enabling scalability for larger or redundant systems. Cooling is achieved through external fans directed over the heatsink, ensuring reliable performance even in demanding environments.

Read More

Features

  • Power Rating: 1.2 kW to 2.5 kW.
  • DC Input/Output: Input range 10Vdc to 800Vdc; output range 5Vdc to 400Vdc.
  • Cooling: External fan over heatsink for reliable operation.
  • Mounting: Wall mount, chassis mount, or 19" rackmount via 6U subrack.
  • Optional Features: Monitoring, control, mechanical strength, and enhanced environmental protection.
  • Applications: Railway, Power Utilities (Generation, Transmission & Distribution), Renewable Energy, and Mining industries.
Specifications
INPUT
Input voltage DC Input voltage: 10 - 800Vdc See selection table Units will turn off with under or over input voltage.
No-load input power 5-6W model (series dependent)
Switch on time 1-2 seconds.
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting Option cha:
Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
Selection Table
INPUT 10 -16V OUTPUT AMPS INPUT 20 -32V OUTPUT AMPS INPUT 40 - 64V INPUT 50 - 80V OUTPUT AMPS INPUT 80-160V INPUT 160-320V INPUT 320 - 380V INPUT 320 - 640V INPUT 450-800V OUTPUT AMPS COOLING OUTPUT VDC OUTPUT RANGE
C4700 100 C4720 160 C4730 C4740 180 C4750 C4770 C4780Z C4770G C4770K 180 F 5 4.5-5.5
C4701 80 C4721 110 C4731 C4741 140 C4751 C4771 C4781Z C4771G C4771K 150 F 9 8-10
C4702 68 C4722 95 C4732 C4742 120 C4752 C4772 C4782Z C4772G C4772K 130 F 12 11-13
C4703 58 C4723 80 C4733 C4743 100 C4753 C4773 C4783Z C4773G C4773K 110 F 15 14-16
C4704 46 C4724 60 C4734 C4744 75 C4754 C4774 C4784Z C4774G C4774K 80 F 24 23-26
C4705 40 C4725 50 C4735 C4745 65 C4755 C4775 C4785Z C4775G C4775K 70 F 28 26-30
C4709 22 C4729 30 C4739 C4749 38 C4759 C4779 C4789Z C4779G C4779K 40 F 48 45-55
C 4706 18 C4726 25 C4736 C4746 31 C4756 C4776 C4786Z C4776G C4776K 33 F 60 58-68
C4707 10 C4727 13 C4737 C4747 18 C4757 C4777 C4787Z C4777G C4777K 20 F 110 100-130
C4707J 6 C4727J 7 C4737J C4747J 10 C4757J C4777J C4787ZJ C4777GJ C4777KJ 10 F 200 190-200
C4708 5 C4728 7 C4738 C4748 10 C4758 C4778 C4788 Z C4778G C4778K 10 F 220 200-250
C4708J 3 C4728J 3.5 C4738J C4748J 5 C4758J C4778J C4788ZJ C4778GJ C4778KJ 5 F 400 380-400
Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model configuration options: Add the options to the model number, eg. C4708-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
OPTIONS INPUT
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
output
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
environment
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
mechanics
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Technical Illustrations
Downloads
Schaefer_ccpbbp4700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
INPUT
Input voltage DC Input voltage: 10 - 800Vdc See selection table Units will turn off with under or over input voltage.
No-load input power 5-6W model (series dependent)
Switch on time 1-2 seconds.
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting Option cha:
Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
INPUT 10 -16V OUTPUT AMPS INPUT 20 -32V OUTPUT AMPS INPUT 40 - 64V INPUT 50 - 80V OUTPUT AMPS INPUT 80-160V INPUT 160-320V INPUT 320 - 380V INPUT 320 - 640V INPUT 450-800V OUTPUT AMPS COOLING OUTPUT VDC OUTPUT RANGE
C4700 100 C4720 160 C4730 C4740 180 C4750 C4770 C4780Z C4770G C4770K 180 F 5 4.5-5.5
C4701 80 C4721 110 C4731 C4741 140 C4751 C4771 C4781Z C4771G C4771K 150 F 9 8-10
C4702 68 C4722 95 C4732 C4742 120 C4752 C4772 C4782Z C4772G C4772K 130 F 12 11-13
C4703 58 C4723 80 C4733 C4743 100 C4753 C4773 C4783Z C4773G C4773K 110 F 15 14-16
C4704 46 C4724 60 C4734 C4744 75 C4754 C4774 C4784Z C4774G C4774K 80 F 24 23-26
C4705 40 C4725 50 C4735 C4745 65 C4755 C4775 C4785Z C4775G C4775K 70 F 28 26-30
C4709 22 C4729 30 C4739 C4749 38 C4759 C4779 C4789Z C4779G C4779K 40 F 48 45-55
C 4706 18 C4726 25 C4736 C4746 31 C4756 C4776 C4786Z C4776G C4776K 33 F 60 58-68
C4707 10 C4727 13 C4737 C4747 18 C4757 C4777 C4787Z C4777G C4777K 20 F 110 100-130
C4707J 6 C4727J 7 C4737J C4747J 10 C4757J C4777J C4787ZJ C4777GJ C4777KJ 10 F 200 190-200
C4708 5 C4728 7 C4738 C4748 10 C4758 C4778 C4788 Z C4778G C4778K 10 F 220 200-250
C4708J 3 C4728J 3.5 C4738J C4748J 5 C4758J C4778J C4788ZJ C4778GJ C4778KJ 5 F 400 380-400
Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model configuration options: Add the options to the model number, eg. C4708-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
OPTIONS INPUT
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
output
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
environment
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
mechanics
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Schaefer_ccpbbp4700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant C4700 10...16Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C4701 10...16Vdc 9Vdc (Adj. 8 - 10Vdc) 80A
product variant C4702 10...16Vdc 12Vdc (Adj. 11 - 13Vdc) 68A
product variant C4703 10...16Vdc 15Vdc (Adj. 14 - 16Vdc) 58A
product variant C4704 10...16Vdc 24Vdc (Adj. 23 - 26Vdc) 46A
product variant C4705 10...16Vdc 28Vdc (Adj. 26 - 30Vdc) 40A
product variant C4709 10...16Vdc 48Vdc (Adj. 45 - 55Vdc) 22A
product variant C 4706 10...16Vdc 60Vdc (Adj. 58 - 68Vdc) 18A
product variant C4707 10...16Vdc 110Vdc (Adj. 100 - 130Vdc) 10A
product variant C4707J 10...16Vdc 200Vdc (Adj. 190 - 200Vdc) 6A
product variant C4708 10...16Vdc 220Vdc (Adj. 200 - 250Vdc) 5A
product variant C4708J 10...16Vdc 400Vdc (Adj. 380 - 400Vdc) 3A
product variant C4720 20...32Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 160A
product variant C4721 20...32Vdc 9Vdc (Adj. 8 - 10Vdc) 110A
product variant C4722 20...32Vdc 12Vdc (Adj. 11 - 13Vdc) 95A
product variant C4723 20...32Vdc 15Vdc (Adj. 14 - 16Vdc) 80A
product variant C4724 20...32Vdc 24Vdc (Adj. 23 - 26Vdc) 60A
product variant C4725 20...32Vdc 28Vdc (Adj. 26 - 30Vdc) 50A
product variant C4729 20...32Vdc 48Vdc (Adj. 45 - 55Vdc) 30A
product variant C 4726 20...32Vdc 60Vdc (Adj. 58 - 68Vdc) 25A
product variant C4727 20...32Vdc 110Vdc (Adj. 100 - 130Vdc) 13A
product variant C4727J 20...32Vdc 200Vdc (Adj. 190 - 200Vdc) 7A
product variant C4728 20...32Vdc 220Vdc (Adj. 200 - 250Vdc) 7A
product variant C4728J 20...32Vdc 400Vdc (Adj. 380 - 400Vdc) 3.5A
product variant C4730 40...64Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4731 40...64Vdc 9Vdc (Adj. 8 - 10Vdc) 140A
product variant C4732 40...64Vdc 12Vdc (Adj. 11 - 13Vdc) 120A
product variant C4733 40...64Vdc 15Vdc (Adj. 14 - 16Vdc) 100A
product variant C4734 40...64Vdc 24Vdc (Adj. 23 - 26Vdc) 75A
product variant C4735 40...64Vdc 28Vdc (Adj. 26 - 30Vdc) 65A
product variant C4739 40...64Vdc 48Vdc (Adj. 45 - 55Vdc) 38A
product variant C 4736 40...64Vdc 60Vdc (Adj. 58 - 68Vdc) 31A
product variant C4737 40...64Vdc 110Vdc (Adj. 100 - 130Vdc) 18A
product variant C4737J 40...64Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4738 40...64Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4738J 40...64Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4740 50...80Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4741 50...80Vdc 9Vdc (Adj. 8 - 10Vdc) 140A
product variant C4742 50...80Vdc 12Vdc (Adj. 11 - 13Vdc) 120A
product variant C4743 50...80Vdc 15Vdc (Adj. 14 - 16Vdc) 100A
product variant C4744 50...80Vdc 24Vdc (Adj. 23 - 26Vdc) 75A
product variant C4745 50...80Vdc 28Vdc (Adj. 26 - 30Vdc) 65A
product variant C4749 50...80Vdc 48Vdc (Adj. 45 - 55Vdc) 38A
product variant C 4746 50...80Vdc 60Vdc (Adj. 58 - 68Vdc) 31A
product variant C4747 50...80Vdc 110Vdc (Adj. 100 - 130Vdc) 18A
product variant C4747J 50...80Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4748 50...80Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4748J 50...80Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4750 80...160Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4751 80...160Vdc 9Vdc (Adj. 8 - 10Vdc) 150A
product variant C4752 80...160Vdc 12Vdc (Adj. 11 - 13Vdc) 130A
product variant C4753 80...160Vdc 15Vdc (Adj. 14 - 16Vdc) 110A
product variant C4754 80...160Vdc 24Vdc (Adj. 23 - 26Vdc) 80A
product variant C4755 80...160Vdc 28Vdc (Adj. 26 - 30Vdc) 70A
product variant C4759 80...160Vdc 48Vdc (Adj. 45 - 55Vdc) 40A
product variant C 4756 80...160Vdc 60Vdc (Adj. 58 - 68Vdc) 33A
product variant C4757 80...160Vdc 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C4757J 80...160Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4758 80...160Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4758J 80...160Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4770 160...320Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4771 160...320Vdc 9Vdc (Adj. 8 - 10Vdc) 150A
product variant C4772 160...320Vdc 12Vdc (Adj. 11 - 13Vdc) 130A
product variant C4773 160...320Vdc 15Vdc (Adj. 14 - 16Vdc) 110A
product variant C4774 160...320Vdc 24Vdc (Adj. 23 - 26Vdc) 80A
product variant C4775 160...320Vdc 28Vdc (Adj. 26 - 30Vdc) 70A
product variant C4779 160...320Vdc 48Vdc (Adj. 45 - 55Vdc) 40A
product variant C 4776 160...320Vdc 60Vdc (Adj. 58 - 68Vdc) 33A
product variant C4777 160...320Vdc 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C4777J 160...320Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4778 160...320Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4778J 160...320Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4780Z 320...380Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4781Z 320...380Vdc 9Vdc (Adj. 8 - 10Vdc) 150A
product variant C4782Z 320...380Vdc 12Vdc (Adj. 11 - 13Vdc) 130A
product variant C4783Z 320...380Vdc 15Vdc (Adj. 14 - 16Vdc) 110A
product variant C4784Z 320...380Vdc 24Vdc (Adj. 23 - 26Vdc) 80A
product variant C4785Z 320...380Vdc 28Vdc (Adj. 26 - 30Vdc) 70A
product variant C4789Z 320...380Vdc 48Vdc (Adj. 45 - 55Vdc) 40A
product variant C 4786Z 320...380Vdc 60Vdc (Adj. 58 - 68Vdc) 33A
product variant C4787Z 320...380Vdc 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C4787ZJ 320...380Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4788Z 320...380Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4788ZJ 320...380Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4770G 320...640Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4771G 320...640Vdc 9Vdc (Adj. 8 - 10Vdc) 150A
product variant C4772G 320...640Vdc 12Vdc (Adj. 11 - 13Vdc) 130A
product variant C4773G 320...640Vdc 15Vdc (Adj. 14 - 16Vdc) 110A
product variant C4774G 320...640Vdc 24Vdc (Adj. 23 - 26Vdc) 80A
product variant C4775G 320...640Vdc 28Vdc (Adj. 26 - 30Vdc) 70A
product variant C4779G 320...640Vdc 48Vdc (Adj. 45 - 55Vdc) 40A
product variant C 4776G 320...640Vdc 60Vdc (Adj. 58 - 68Vdc) 33A
product variant C4777G 320...640Vdc 110Vdc (Adj. 100 - 130Vdc) 20A
product variant C4777GJ 320...640Vdc 200Vdc (Adj. 190 - 200Vdc) 10A
product variant C4778G 320...640Vdc 220Vdc (Adj. 200 - 250Vdc) 10A
product variant C4778GJ 320...640Vdc 400Vdc (Adj. 380 - 400Vdc) 5A
product variant C4770K 450...800Vdc 5Vdc (Adj. 4.5 - 5.5Vdc) 180A
product variant C4771K 450...800Vdc 9Vdc (Adj. 8 - 10Vdc) 150A
product variant C4772K 450...800Vdc 12Vdc (Adj. 11 - 13Vdc) 130A
product variant C4773K 450...800Vdc 15Vdc (Adj. 14 - 16Vdc) 110A

Need help finding the right product model?
