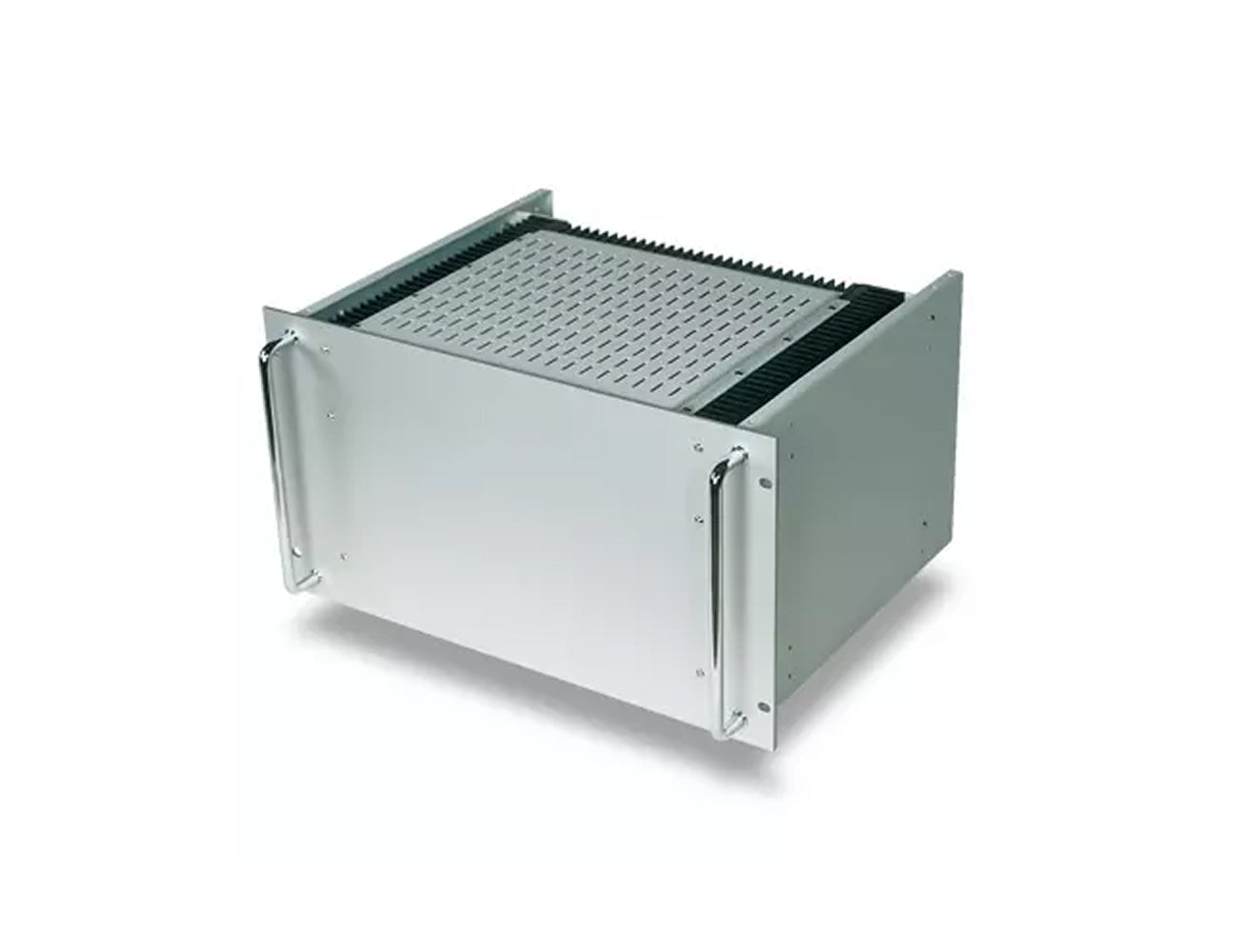

Schaefer C5800D-SERIES DC/DC Converter

The Schaefer C5800D Series is a robust industrial-grade DC/DC converter designed for high-power applications demanding exceptional reliability. With a power rating of 12 kW, the C5800D supports a wide range of DC input voltages from 80Vdc to 800Vdc and provides output voltages from 24Vdc to 400Vdc, accommodating both step-up and step-down configurations. Designed for stand-alone use or parallel operation for larger or redundant systems, it offers true scalability. The C5800D features fan-assisted cooling to ensure reliable performance under heavy load or temperature conditions. Available in wall-mount or 19" plug-in module configurations (6U or 9U), it provides flexible mounting options to meet most system requirements. Optional features, such as monitoring, control, and enhanced environmental protection, add further adaptability. Ideal for industrial and renewable energy markets, the C5800D excels in powering equipment from high-voltage battery banks and other demanding applications.

View Models
Schaefer C5800D-SERIES DC/DC Converter

Features

  • High-power DC/DC converter with a 12 kW output rating.
  • Supports DC input voltages from 80Vdc to 800Vdc and output voltages from 24Vdc to 400Vdc.
  • Configurable for stand-alone use or parallel operation for large-scale or redundant systems.
  • Flexible mounting options: wall-mount or 19" plug-in module (6U or 9U configurations).
  • Fan-assisted cooling for reliable operation in demanding environments.
  • Optional features include monitoring, control, and enhanced environmental protection for increased versatility.
Specifications
INPUT
Input voltage

From 80 - 800Vdc
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Switch on time <1s typical.
Input Options

See selection table for details

Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd:Reverse polarity protection for DC input by input by series diode
Option ad:Reverse polarity protection for DC input by anti parallel diode



OUTPUT
Output voltage

Voltage range; 4.5 - 400Vdc
See selection table
Output power

4.5kW to 6kW
See selection table
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VD
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options

See selection table for details

Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options

See selection table for details

Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts



PROGRAMMING

Programming of output voltage

from 0 to 100 %

eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer

Programming of output current

from 0 to 100 %

ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer

Isolating amplifier

for programming

lso: Programming signal is galvanically isolated from any potentials of the power supply.

Programming via

rs: RS232 (external)
can: CAN Bus (external)



MONITORING

Monitoring of output voltage

from 0 to 100 %

mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA

Monitoring of output current

from 0 to 100 %

mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA

Isolating amplifier

for monitoring

Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.

Monitoring via

rs: RS232 (external)
can: CAN Bus (external)



ENVIRONMENTAL
Operating temperature

-20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling

F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options

See selection table for details

Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength



STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category

IP20 acc. to EN60529
NEMA or others on request
MTBF

approx 700Khrs at 40°C
acc. to MIL-HDBK-217E (notice 1)



MECHANICAL
Mechanics

High power modules are constructed in 19" format>/p>
Dimensions See Technical illustration
Mechanical Options

Option w: Wall Mounting



Selection Table

INPUT

80-160

Vdc

INPUT

160 - 320

Vdc

INPUT

320 - 380

Vdc

INPUT

320 - 640

Vdc

INPUT

450 - 800

Vdc

OUTPUT

AMPS

 COOLING



OUTPUT

VOLTAGE

VOLTAGE

ADJUSTMENT
C5854 C5874 C5884 Z C5874 G C5874 K 400 F 24 23-26
C5855 C5875 C5885 Z C5875 G C5875 K 400 F 28 26-30
C5859 C5879 C5889 Z C5879 G C5879 K 220 F 48 45 - 55
C5856 C5876 C5886 Z C5876 G C5876 K 180 F 60 58 - 68
C5857 C5877 C5887 Z C5877 G C5877 K 92 F 110 100-130
C5857 J C5877 J C5887 Z C5877 GJ C5877 KJ 60 F 200 190-200
C5858 C5878 C5888 Z C5878 G C5878 K 48 F 220 200-250
C5858 J  C5878 J C5888 ZJ  C5878 GJ  C5878 KJ  30 F 400 380-400



Cooling

F: Fan - increased airflow

INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting : An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.



OUTPUT OPTIONS
Option “dd” Decoupling diode:A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing:An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.



SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts:A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts:A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts:A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication



ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range:The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.



MECHANICAL OPTIONS
Option "w" Wall mounting:Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.



Technical Illustrations
Downloads
Schaefer_cb5800-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

INPUT
Input voltage

From 80 - 800Vdc
See selection table
Units will turn off with under or over input voltage.
No-load input 30W typical
Switch on time <1s typical.
Input Options

See selection table for details

Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd:Reverse polarity protection for DC input by input by series diode
Option ad:Reverse polarity protection for DC input by anti parallel diode



OUTPUT
Output voltage

Voltage range; 4.5 - 400Vdc
See selection table
Output power

4.5kW to 6kW
See selection table
Ripple & noise <1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 10ms typical ±1%
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 300mS typical (soft start)
Remote sense standard for all series up to 150 V output, except for battery chargers; up to 10 % of Unom for output < 60 VDC, up to 6 V for output > 60 VD
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation; after 5 seconds, the unit will remain latched off
Efficiency 80 - 95% typical
Output Options

See selection table for details

Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options

See selection table for details

Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts



PROGRAMMING

Programming of output voltage

from 0 to 100 %

eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer

Programming of output current

from 0 to 100 %

ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer

Isolating amplifier

for programming

lso: Programming signal is galvanically isolated from any potentials of the power supply.

Programming via

rs: RS232 (external)
can: CAN Bus (external)



MONITORING

Monitoring of output voltage

from 0 to 100 %

mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA

Monitoring of output current

from 0 to 100 %

mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA

Isolating amplifier

for monitoring

Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.

Monitoring via

rs: RS232 (external)
can: CAN Bus (external)



ENVIRONMENTAL
Operating temperature

-20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling

F: Fan - for increased airflow
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options

See selection table for details

Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength



STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
Safety / Construction acc. to EN60950-1 / EN50178
Protection category

IP20 acc. to EN60529
NEMA or others on request
MTBF

approx 700Khrs at 40°C
acc. to MIL-HDBK-217E (notice 1)



MECHANICAL
Mechanics

High power modules are constructed in 19" format>/p>
Dimensions See Technical illustration
Mechanical Options

Option w: Wall Mounting



INPUT

80-160

Vdc

INPUT

160 - 320

Vdc

INPUT

320 - 380

Vdc

INPUT

320 - 640

Vdc

INPUT

450 - 800

Vdc

OUTPUT

AMPS

 COOLING



OUTPUT

VOLTAGE

VOLTAGE

ADJUSTMENT
C5854 C5874 C5884 Z C5874 G C5874 K 400 F 24 23-26
C5855 C5875 C5885 Z C5875 G C5875 K 400 F 28 26-30
C5859 C5879 C5889 Z C5879 G C5879 K 220 F 48 45 - 55
C5856 C5876 C5886 Z C5876 G C5876 K 180 F 60 58 - 68
C5857 C5877 C5887 Z C5877 G C5877 K 92 F 110 100-130
C5857 J C5877 J C5887 Z C5877 GJ C5877 KJ 60 F 200 190-200
C5858 C5878 C5888 Z C5878 G C5878 K 48 F 220 200-250
C5858 J  C5878 J C5888 ZJ  C5878 GJ  C5878 KJ  30 F 400 380-400



Cooling

F: Fan - increased airflow

INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting : An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.



OUTPUT OPTIONS
Option “dd” Decoupling diode:A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing:An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.



SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts:A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts:A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts:A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication



ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range:The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.



MECHANICAL OPTIONS
Option "w" Wall mounting:Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.



Schaefer_cb5800-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant C5854 80...160Vdc 24Vdc (Adj. 23 - 26Vdc) 400A
product variant C5855 80...160Vdc 28Vdc: (Adj. 26 - 30Vdc) 400A
product variant C5859 80...160Vdc 48Vdc: (Adj. 45 - 55Vdc) 220A
product variant C5856 80...160Vdc 60Vdc (Adj. 58 - 68Vdc) 180
product variant C5857 80...160Vdc 110Vdc (Adj. 100 - 130Vdc) 92A
product variant C5857J 80...160Vdc 200Vdc (Adj. 190 - 200Vdc) 60A
product variant C5858 80...160Vdc 220Vdc (Adj. 200 - 250Vdc) 48A
product variant C5858J 80...160Vdc 400Vdc (Adj. 380 - 400Vdc) 30A
product variant C5857H 80...160Vdc 600Vdc (Adj. 570 - 600Vdc) 20A
product variant C5858H 80...160Vdc 800Vdc (Adj. 760 - 800Vdc) 15A
product variant C5874 160...320Vdc 24Vdc (Adj. 23 - 26Vdc) 400A
product variant C5875 160...320Vdc 28Vdc: (Adj. 26 - 30Vdc) 400A
product variant C5879 160...320Vdc 48Vdc: (Adj. 45 - 55Vdc) 220A
product variant C5876 160...320Vdc 60Vdc (Adj. 58 - 68Vdc) 180
product variant C5877 160...320Vdc 110Vdc (Adj. 100 - 130Vdc) 92A
product variant C5877J 160...320Vdc 200Vdc (Adj. 190 - 200Vdc) 60A
product variant C5878 160...320Vdc 220Vdc (Adj. 200 - 250Vdc) 48A
product variant C5878J 160...320Vdc 400Vdc (Adj. 380 - 400Vdc) 30A
product variant C5877H 160...320Vdc 600Vdc (Adj. 570 - 600Vdc) 20A
product variant C5878H 160...320Vdc 800Vdc (Adj. 760 - 800Vdc) 15A
product variant C5884Z 320...380Vdc 24Vdc (Adj. 23 - 26Vdc) 400A
product variant C5885Z 320...380Vdc 28Vdc: (Adj. 26 - 30Vdc) 400A
product variant C5889Z 320...380Vdc 48Vdc: (Adj. 45 - 55Vdc) 220A
product variant C5886Z 320...380Vdc 60Vdc (Adj. 58 - 68Vdc) 180
product variant C5887Z 320...380Vdc 110Vdc (Adj. 100 - 130Vdc) 92A
product variant C5887Z J 320...380Vdc 200Vdc (Adj. 190 - 200Vdc) 60A
product variant C5888Z 320...380Vdc 220Vdc (Adj. 200 - 250Vdc) 48A
product variant C5888Z J 320...380Vdc 400Vdc (Adj. 380 - 400Vdc) 30A
product variant C5887ZH 320...380Vdc 600Vdc (Adj. 570 - 600Vdc) 20A
product variant C5888ZH 320...380Vdc 800Vdc (Adj. 760 - 800Vdc) 15A
product variant C5874G 320...640Vdc 24Vdc (Adj. 23 - 26Vdc) 400A
product variant C5875G 320...640Vdc 28Vdc: (Adj. 26 - 30Vdc) 400A
product variant C5879G 320...640Vdc 48Vdc: (Adj. 45 - 55Vdc) 220A
product variant C5876G 320...640Vdc 60Vdc (Adj. 58 - 68Vdc) 180
product variant C5877G 320...640Vdc 110Vdc (Adj. 100 - 130Vdc) 92A
product variant C5877G J 320...640Vdc 200Vdc (Adj. 190 - 200Vdc) 60A
product variant C5878G 320...640Vdc 220Vdc (Adj. 200 - 250Vdc) 48A
product variant C5878G J 320...640Vdc 400Vdc (Adj. 380 - 400Vdc) 30A
product variant C5877GH 320...640Vdc 600Vdc (Adj. 570 - 600Vdc) 20A
product variant C5878GH 320...640Vdc 800Vdc (Adj. 760 - 800Vdc) 15A
product variant C5874K 450...800Vdc 24Vdc (Adj. 23 - 26Vdc) 400A
product variant C5875K 450...800Vdc 28Vdc: (Adj. 26 - 30Vdc) 400A
product variant C5879K 450...800Vdc 48Vdc: (Adj. 45 - 55Vdc) 220A
product variant C5876K 450...800Vdc 60Vdc (Adj. 58 - 68Vdc) 180
product variant C5877K 450...800Vdc 110Vdc (Adj. 100 - 130Vdc) 92A
product variant C5877K J 450...800Vdc 200Vdc (Adj. 190 - 200Vdc) 60A
product variant C5878K 450...800Vdc 220Vdc (Adj. 200 - 250Vdc) 48A
product variant C5878K J 450...800Vdc 400Vdc (Adj. 380 - 400Vdc) 30A
product variant C5877KH 450...800Vdc 600Vdc (Adj. 570 - 600Vdc) 20A
product variant C5878KH 450...800Vdc 800Vdc (Adj. 760 - 800Vdc) 15A
