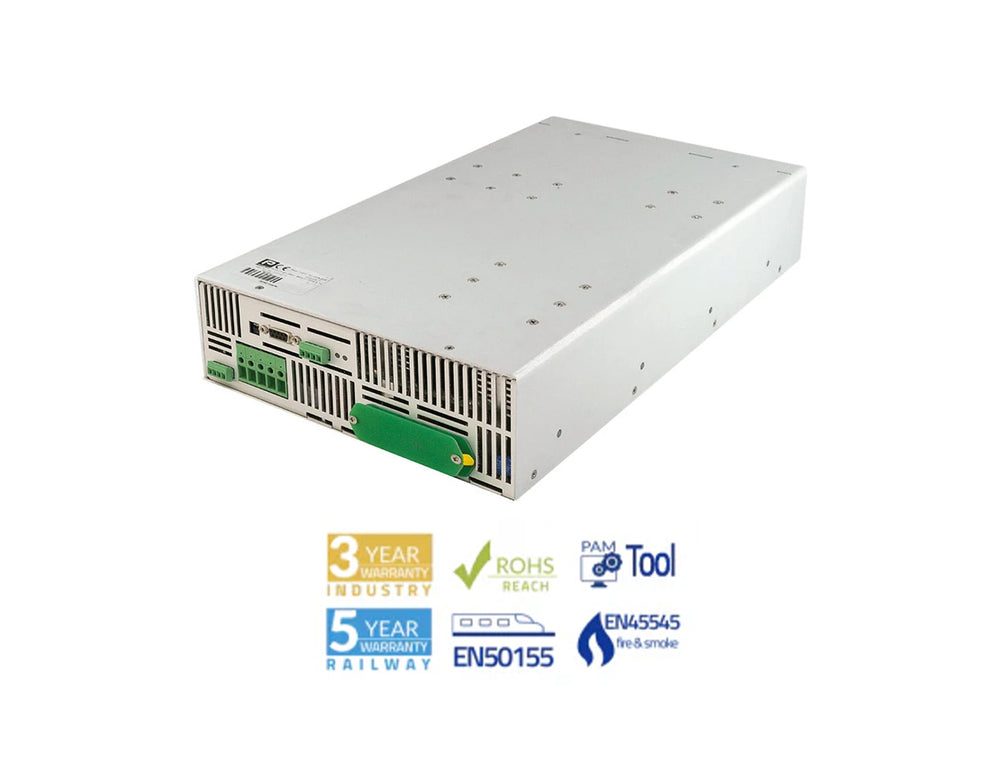

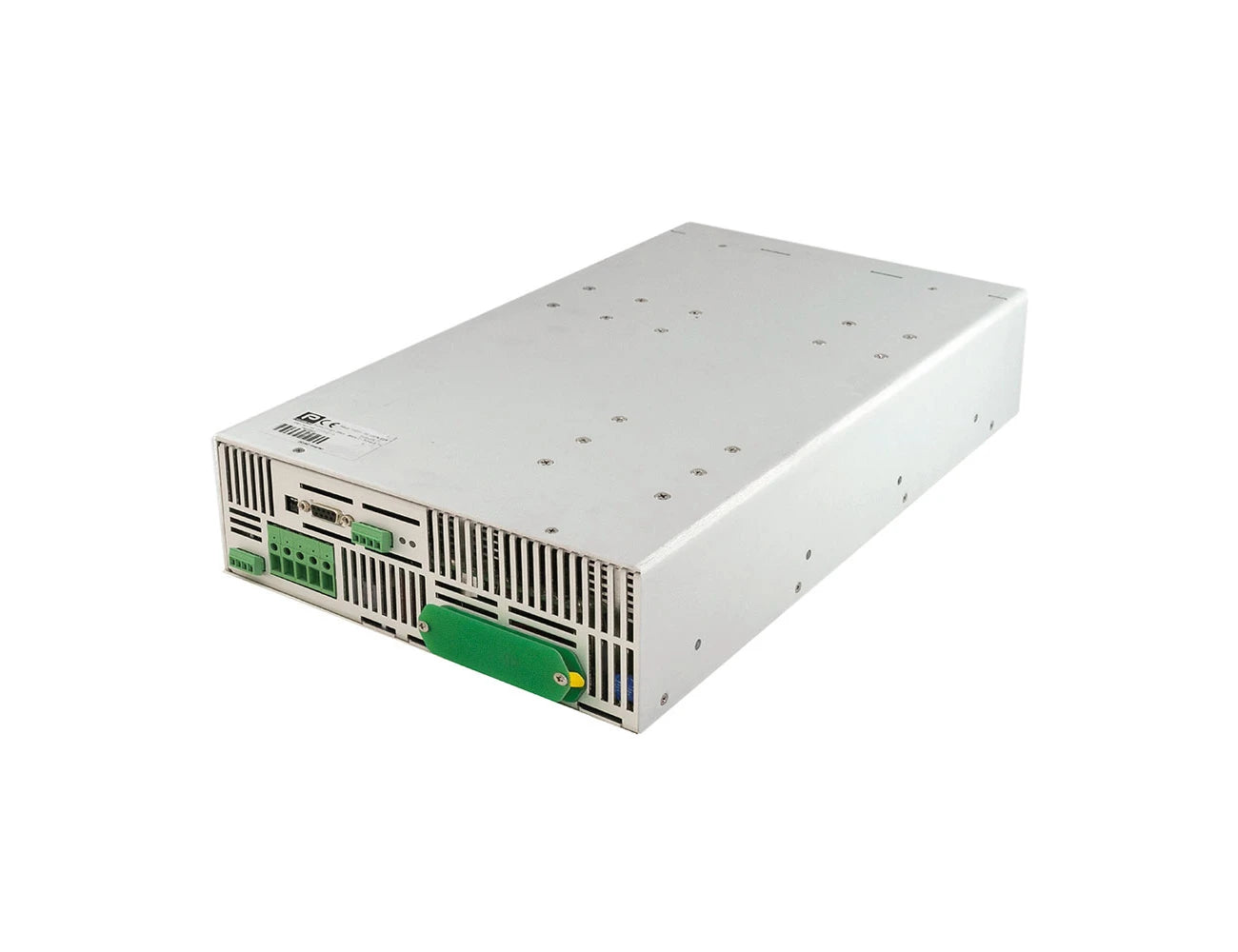

Premium ODX-4500 SERIES DC/AC Inverter

DC/AC Inverters

Premium ODX-4500 SERIES DC/AC Inverter

The Premium ODX-4500 Series DC/AC Inverter is a powerful and adaptable solution designed to meet the rigorous demands of industrial and railway applications. With a robust 4500VA output and advanced features, this inverter ensures reliable performance in even the harshest environments.

View Models

Features

Sine wave output voltage
Suitable for motors control
Selectable output frequency: 50/60Hz
Adjustable output voltage
High input-output isolation 3000Vrms
Remote inhibit

Specifications

INPUT
Input Voltage range	-30, +25% Vin nom
Max input ripple	5% Vin nom (Vrms, 100Hz)

SAFETY
Dielectric strength: Input /output	3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground	1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground	500 Vrms / 50Hz / 1min
Safety according to	EN60950-1, EN62368-1
Fire and smoke	EN45545-2 (only for T railway versions)

OUTPUT
Nominal Output Voltage	400 Vac
Output voltage range:	50...440Vac via RS-232
Output frequency	50 / 60Hz via DIP-switch, 5...75Hz via RS-232
Load regulation	< 4 %
Line regulation	< 2% Vin -25% ... +25%, < 10% Vin -30% ... +30%
Output wave distortion THD	< 2% (average of 16 samples)
Output HF ripple	< 2.5%

MECHANICAL
Approximate weight	<7240 g
Shock and Vibrations according to	EN61393:2011 Category 1 Class B

ENVIRONMENTAL
StorageTemperature	-25 ... 80°C
Operating temperature at Full load	-25 ... 55°C (EN50155 OT1)
Operating temperature at 62.5% load	-25 ... 70°C (EN50155 OT3)
Operating temperature at 25% load	-25 ... 85°C (EN50155 OT5)
Relative humidity	5 ... 95%
Cooling	Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C)	100.000 h

CONTROL
Output OK LED	Green
Input OK LED	Green
Input alarm	Open when alarm. Maximum rating: 0.16A at 160Vdc
Output alarm	Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input	OFF: applying 15 ... 143Vdc, Impedance>35kΩ
Configurable input (reverse or mid-power)	ON: applying 15 ... 143Vdc, Impedance>35kΩ

EMC
Emission according	EN61000-6-4, EN50121-3-2
Immunity according	EN61000-6-2, EN50121-3-2

PROTECTIONS
Against overloads	Current and I²T limited (see overload protection)
Against over temperature	Shutdown with auto-recovery

Selection Table

MODEL	INPUT VOLTAGE DC (V)	INPUT VOLTAGE RANGE (V)	OUTPUT VOLTAGE AC (V)	OUTPUT CURRENT (A)	ACTIVE OUTPUT POWER (W)	APPAR. OUTPUT POWER (VA)	OUTPUT PEAK CURR. 5 S (rms) (A)	OUTPUT PEAK CURR. 10MS (Iopk) (A)	EFFICIENCY (%)	NO LOAD INPUT CURRENT (A)
ODX~4500~7425	72	50.4 - 90	400	6.50	4000	4500	9.5	15	92	< 0.67
ODX-4500-7426	100	70 - 125	400	6.50	4000	4500	9.5	15	93	< 0.49
ODX-4500-7427	110	77 - 138	400	6.50	4000	4500	9.5	15	93	< 0.44

Technical Illustrations

Technical drawing showing dimensions of electrical box.

Wiring diagram and power derating chart.

Electrical circuit diagram with input, output, and control components.

Diagrams of rackmount brackets and trays for computer gear.

Downloads

ODX-4500_Datasheet.pdf

INPUT
Input Voltage range	-30, +25% Vin nom
Max input ripple	5% Vin nom (Vrms, 100Hz)

SAFETY
Dielectric strength: Input /output	3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground	1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground	500 Vrms / 50Hz / 1min
Safety according to	EN60950-1, EN62368-1
Fire and smoke	EN45545-2 (only for T railway versions)

OUTPUT
Nominal Output Voltage	400 Vac
Output voltage range:	50...440Vac via RS-232
Output frequency	50 / 60Hz via DIP-switch, 5...75Hz via RS-232
Load regulation	< 4 %
Line regulation	< 2% Vin -25% ... +25%, < 10% Vin -30% ... +30%
Output wave distortion THD	< 2% (average of 16 samples)
Output HF ripple	< 2.5%

MECHANICAL
Approximate weight	<7240 g
Shock and Vibrations according to	EN61393:2011 Category 1 Class B

ENVIRONMENTAL
StorageTemperature	-25 ... 80°C
Operating temperature at Full load	-25 ... 55°C (EN50155 OT1)
Operating temperature at 62.5% load	-25 ... 70°C (EN50155 OT3)
Operating temperature at 25% load	-25 ... 85°C (EN50155 OT5)
Relative humidity	5 ... 95%
Cooling	Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C)	100.000 h

CONTROL
Output OK LED	Green
Input OK LED	Green
Input alarm	Open when alarm. Maximum rating: 0.16A at 160Vdc
Output alarm	Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input	OFF: applying 15 ... 143Vdc, Impedance>35kΩ
Configurable input (reverse or mid-power)	ON: applying 15 ... 143Vdc, Impedance>35kΩ

EMC
Emission according	EN61000-6-4, EN50121-3-2
Immunity according	EN61000-6-2, EN50121-3-2

PROTECTIONS
Against overloads	Current and I²T limited (see overload protection)
Against over temperature	Shutdown with auto-recovery

MODEL	INPUT VOLTAGE DC (V)	INPUT VOLTAGE RANGE (V)	OUTPUT VOLTAGE AC (V)	OUTPUT CURRENT (A)	ACTIVE OUTPUT POWER (W)	APPAR. OUTPUT POWER (VA)	OUTPUT PEAK CURR. 5 S (rms) (A)	OUTPUT PEAK CURR. 10MS (Iopk) (A)	EFFICIENCY (%)	NO LOAD INPUT CURRENT (A)
ODX~4500~7425	72	50.4 - 90	400	6.50	4000	4500	9.5	15	92	< 0.67
ODX-4500-7426	100	70 - 125	400	6.50	4000	4500	9.5	15	93	< 0.49
ODX-4500-7427	110	77 - 138	400	6.50	4000	4500	9.5	15	93	< 0.44
