DC/AC Inverters

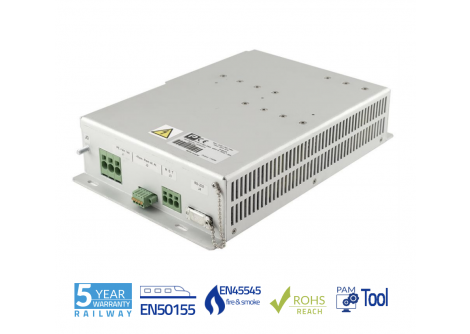

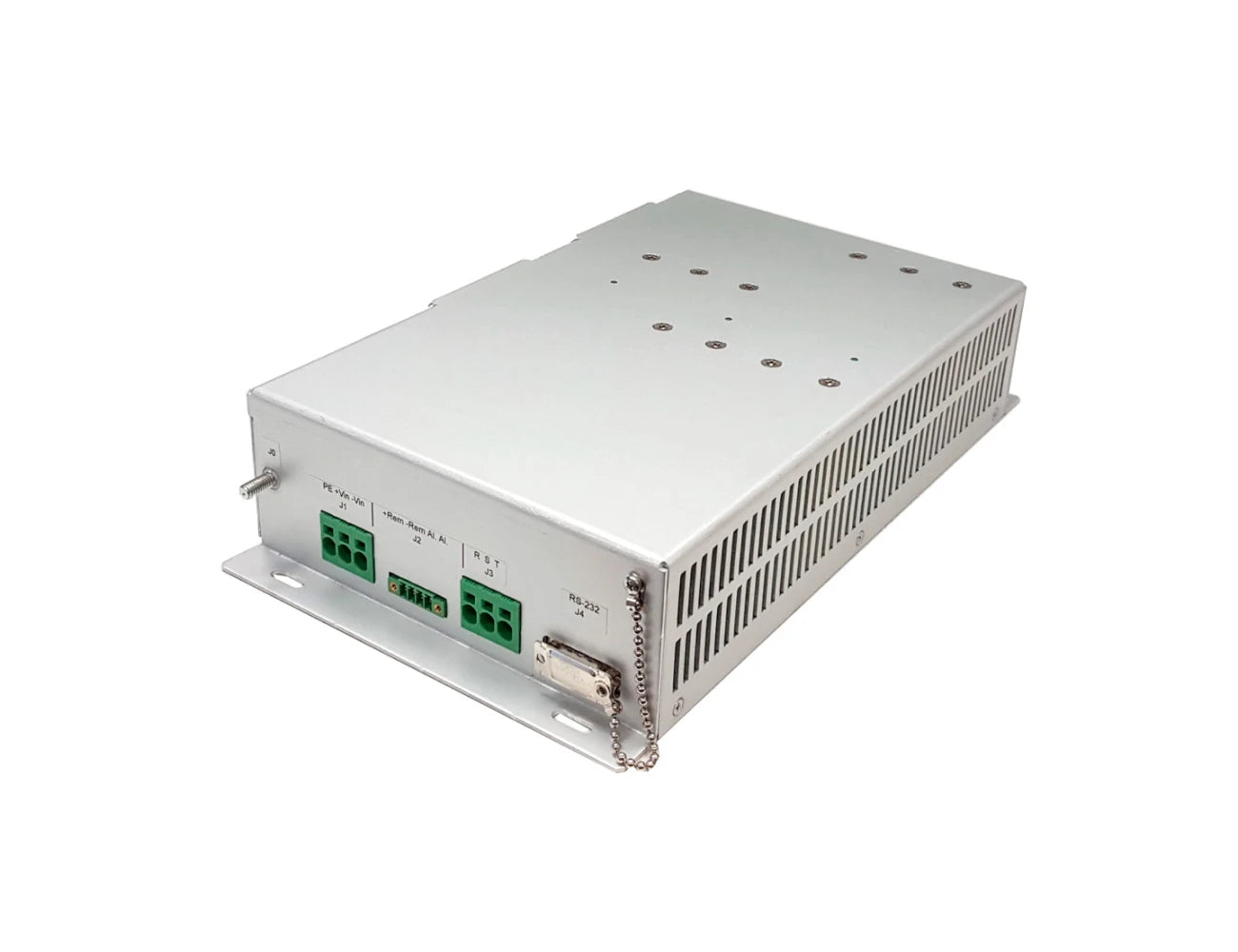

Premium ODX-1300 SERIES DC/AC Inverter

The Premium ODX-1300 Series DC/AC Inverter is a reliable and high-performing solution designed for industrial and railway applications. Delivering up to 1300VA with advanced monitoring and control capabilities, it ensures efficient and safe power conversion in challenging environments.

Read More

View Models
  • premium-odx-1300-series
  • Premium ODX-1300 SERIES DC/AC Inverter

Features

  • Sine wave output voltage
  • Suitable for motors control
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote control via RS232
  • Alarm by isolated relay contacts
Specifications
INPUT
Input voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
Inrush current <25A
Polarity protection By diode
SAFETY
Dielectric strength: Input /output  3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 1500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2
OUTPUT
Nominal Output Voltage (Von) See selection table
Output voltage range 150 … 250V (models of 250V output) via RS-232
200 … 400V (models of 400V output) via RS-232
Output frequency range 5…60Hz via RS-232
Load regulation  < 4%
Line regulation  < 2% Vin -25% … +25%, < 10% Vin -30% … +30%
Output wave distortion THD < 3% (average of 16 samples)
Output HF ripple < 2.5%
MECHANICAL
Approximate weight <3200g
ENVIRONMENTAL
StorageTemperature -25 … 85°C

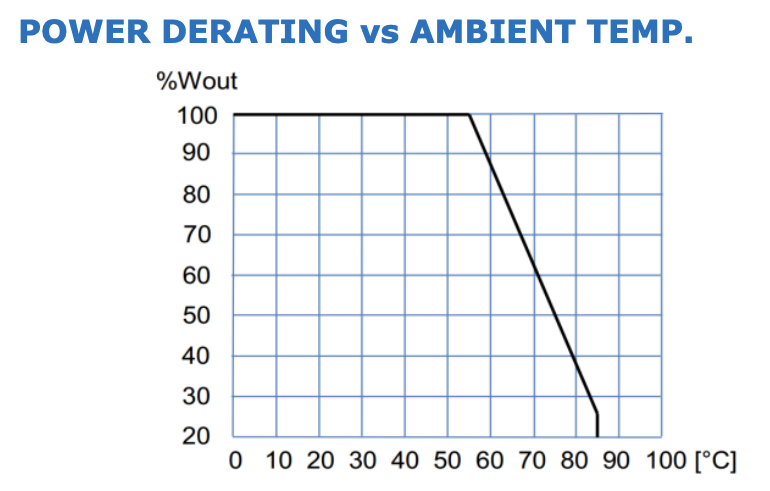

Operating temperature at Full load -25 … 55°C (EN50155 OT1)
Operating temperature at 62.5% load --25 … 70°C (EN50155 OT3)
Operating temperature at 25% load  --25 … 85°C (EN50155 OT5)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C)  100.000 h
CONTROL
Output  alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input Off applying 15…143Vdc, Impedance>18kΩ
EMC
Immunity according EN61000-6-2, EN50121-3-2
Emissions according  EN61000-6-4, EN50121-3-2
PROTECTIONS
Against overloads and short-circuits Shutdown with auto-recovery (see working parameters)
Against over-temperature Shutdown with auto-recovery
Selection Table
MODEL INPUT VOLTAGE DC (V) INPUT VOLTAGE RANGE (V) OUTPUT VOLTAGE AC (V) OUTPUT CURRENT (A) ACTIVE OUTPUT POWER (W) APPAR. OUTPUT POWER (VA) OUTPUT PEAK CURR. 10MS (Iopk) (A) EFFICIENCY (%) NO LOAD INPUT CURRENT (A) SIZE

ODX-1300-7442*

 24 16.8 - 30 250 3.10 1100

1300

6.6

89

 < 1.58 2

ODX-1300-7445*

 72 50.4 - 90 250 3.10 1100

1300

6.6

90

 < 0.52 1

ODX-1300-7447*

 110 77 - 138 250 3.10 1100

1300

6.6

90

 < 0.34 1

ODX-1300-7452

 24 16.8 - 30 400 1.88 1100

1300

3.4

89

 < 1.58 2

ODX-1300-7455*

 72 50.4 - 90 400 1.88 1100

1300

3.4

90

 < 0.52 1

ODX-1300-7457

 110 77 - 138 400 1.88 1100

1300

3.4

91

 < 0.34 1

*References subject to special MOQ's and lead times.

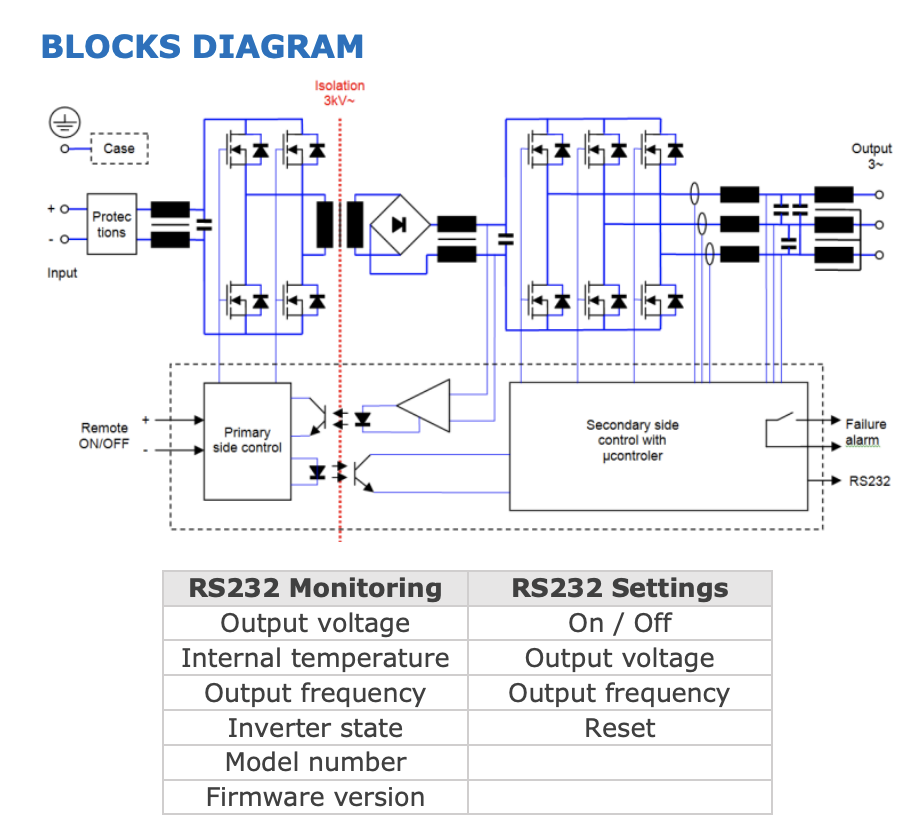

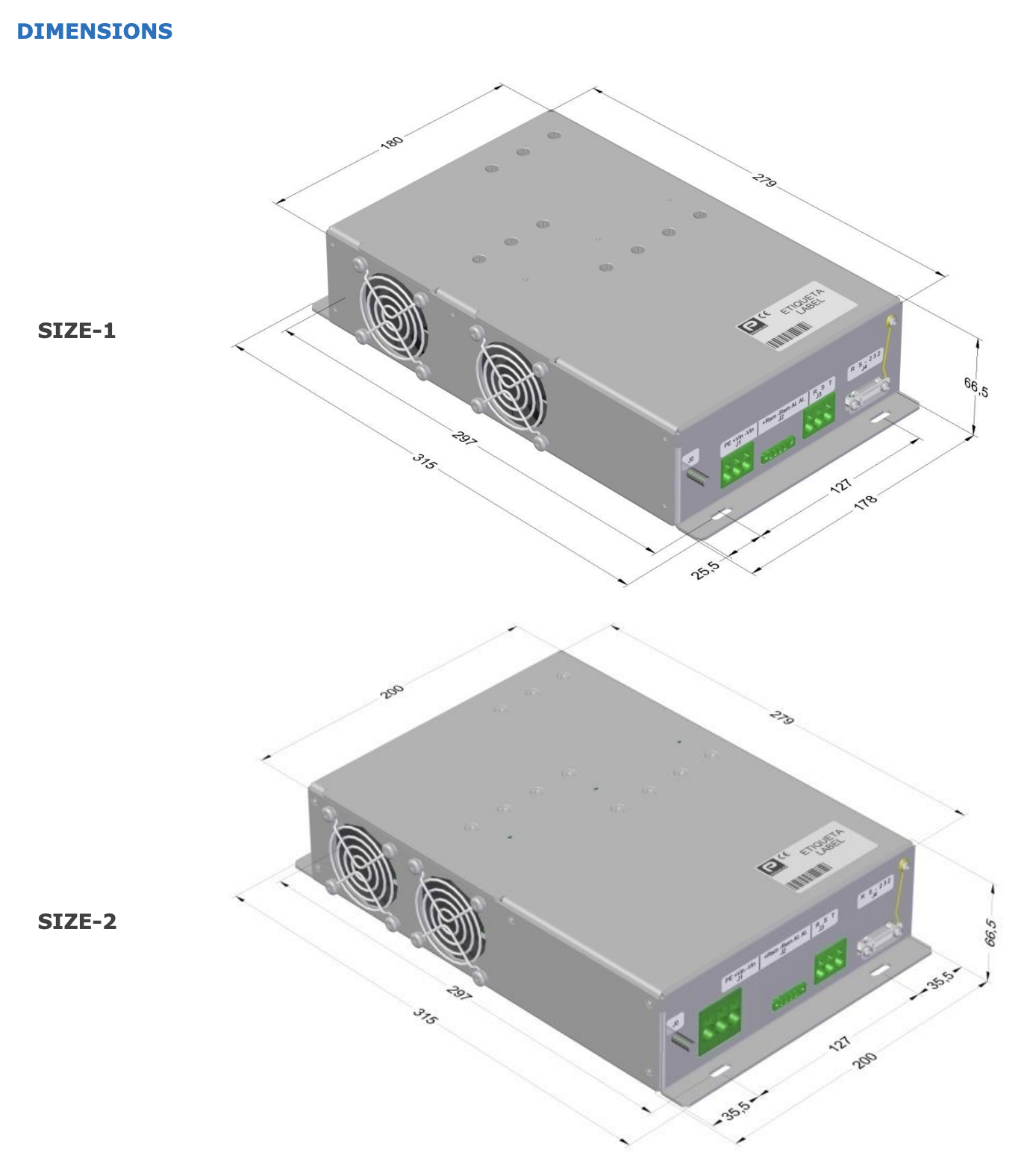

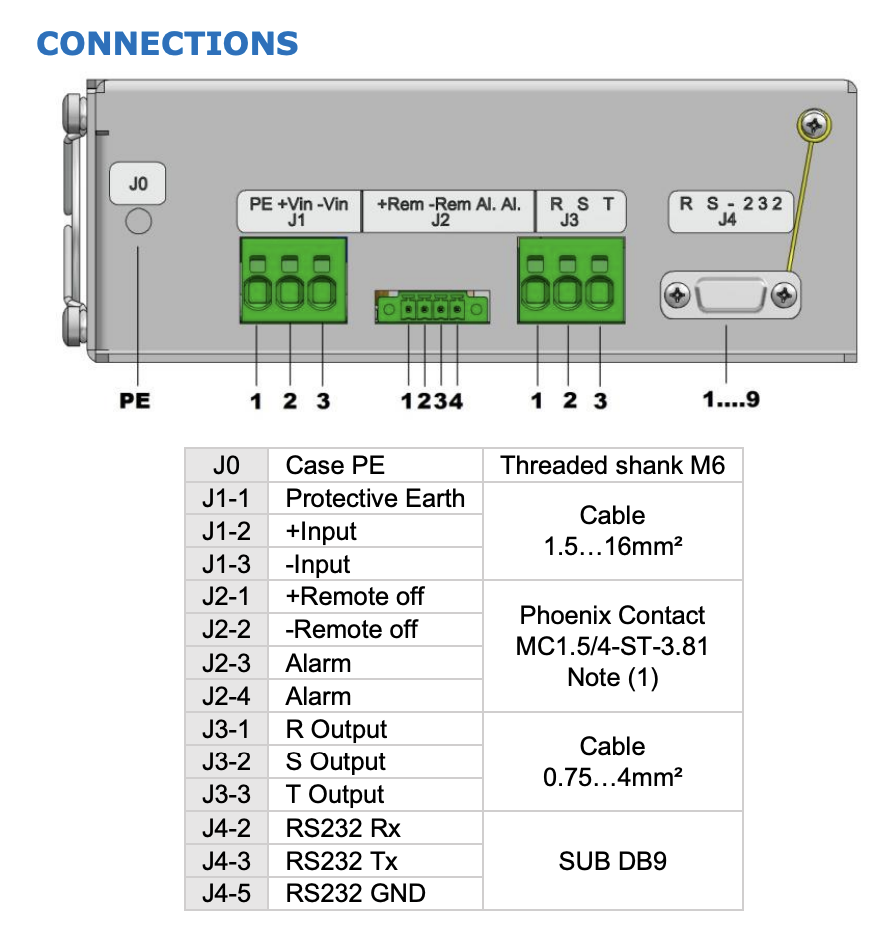

Technical Illustrations
Downloads
ODX-1300_Datasheet.pdf
INPUT
Input voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
Inrush current <25A
Polarity protection By diode
SAFETY
Dielectric strength: Input /output  3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 1500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2
OUTPUT
Nominal Output Voltage (Von) See selection table
Output voltage range 150 … 250V (models of 250V output) via RS-232
200 … 400V (models of 400V output) via RS-232
Output frequency range 5…60Hz via RS-232
Load regulation  < 4%
Line regulation  < 2% Vin -25% … +25%, < 10% Vin -30% … +30%
Output wave distortion THD < 3% (average of 16 samples)
Output HF ripple < 2.5%
MECHANICAL
Approximate weight <3200g
ENVIRONMENTAL
StorageTemperature -25 … 85°C
Operating temperature at Full load -25 … 55°C (EN50155 OT1)
Operating temperature at 62.5% load --25 … 70°C (EN50155 OT3)
Operating temperature at 25% load  --25 … 85°C (EN50155 OT5)
Relative humidity without condensation 5 … 95%
Cooling Controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C)  100.000 h
CONTROL
Output  alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input Off applying 15…143Vdc, Impedance>18kΩ
EMC
Immunity according EN61000-6-2, EN50121-3-2
Emissions according  EN61000-6-4, EN50121-3-2
PROTECTIONS
Against overloads and short-circuits Shutdown with auto-recovery (see working parameters)
Against over-temperature Shutdown with auto-recovery
MODEL INPUT VOLTAGE DC (V) INPUT VOLTAGE RANGE (V) OUTPUT VOLTAGE AC (V) OUTPUT CURRENT (A) ACTIVE OUTPUT POWER (W) APPAR. OUTPUT POWER (VA) OUTPUT PEAK CURR. 10MS (Iopk) (A) EFFICIENCY (%) NO LOAD INPUT CURRENT (A) SIZE

ODX-1300-7442*

 24 16.8 - 30 250 3.10 1100

1300

6.6

89

 < 1.58 2

ODX-1300-7445*

 72 50.4 - 90 250 3.10 1100

1300

6.6

90

 < 0.52 1

ODX-1300-7447*

 110 77 - 138 250 3.10 1100

1300

6.6

90

 < 0.34 1

ODX-1300-7452

 24 16.8 - 30 400 1.88 1100

1300

3.4

89

 < 1.58 2

ODX-1300-7455*

 72 50.4 - 90 400 1.88 1100

1300

3.4

90

 < 0.52 1

ODX-1300-7457

 110 77 - 138 400 1.88 1100

1300

3.4

91

 < 0.34 1

*References subject to special MOQ's and lead times.
ODX-1300_Datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vac) Output Power (Va / kVA)
product variant ODX-1300-7442* 24Vdc: 16.8 - 30Vdc 250Vac, 50Hz / 60Hz 1300 VA
product variant ODX-1300-7445* 72Vdc: 50.4 - 90Vdc 250Vac, 50Hz / 60Hz 1300 VA
product variant ODX-1300-7447* 110Vdc: 77 - 138Vdc 250Vac, 50Hz / 60Hz 1300 VA
product variant ODX-1300-7452 24Vdc: 16.8 - 30Vdc 400Vac, 50Hz / 60Hz 1300 VA
product variant ODX-1300-7455* 72Vdc: 50.4 - 90Vdc 400Vac, 50Hz / 60Hz 1300 VA
product variant ODX-1300-7457 110Vdc: 77 - 138Vdc 400Vac, 50Hz / 60Hz 1300 VA

Need help finding the right product model?
