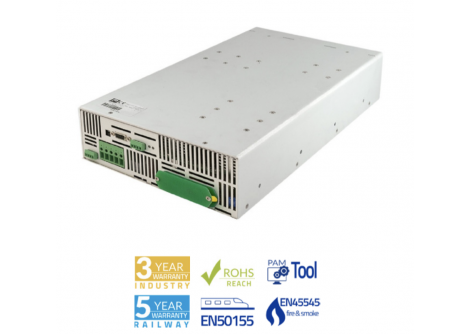

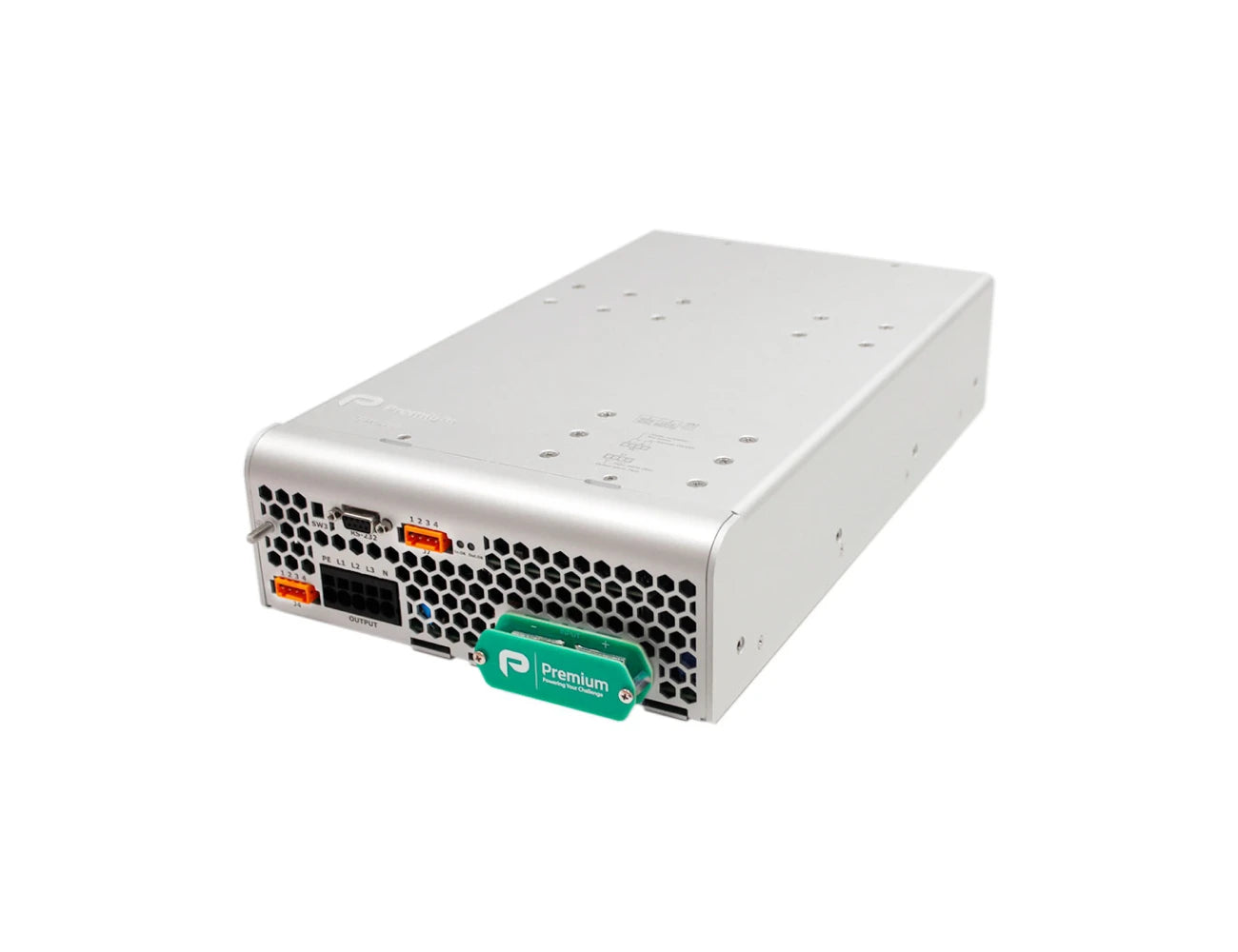

Premium ODX-3000 SERIES DC/AC Inverter
The Premium ODX-3000 Series DC/AC Inverter is a high-performance power conversion solution tailored for demanding industrial and railway applications. With a robust output capacity of up to 3000VA, it combines advanced functionality with reliable performance, ensuring consistent power delivery in harsh environments.
Read More
Features
- Sine wave output voltage
- Suitable for motors control
- Selectable output frequency: 50/60 Hz
- Adjustable output voltage
- High input-output isolation 3000 Vrms
- Remote inhibit
Specifications
Selection Table
Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input Voltage range | -30, +25 % Vin nom |
| Max input ripple | 5% Vin nom (Vrms, 100 Hz) |
| SAFETY | |
|---|---|
| Dielectric strength: Input / Output | 3000 Vrms / 50 Hz / 1 min |
| Dielectric strength: Output / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Input / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Signals* / (Input+Output+PE) | 1500 Vrms / 50 Hz / 1 min |
| Safety according to | EN60950-1, EN62368-1 |
| Fire and smoke according to | EN45545-2 (only for T railway versions) |
| OUTPUT | |
|---|---|
| Nominal Output Voltage (Von) | See selection table. |
| Output voltage range: | 50 ... 230 Vac (models of 230 Vac output) via RS232 50 ... 400 Vac (models of 400 Vac output) via RS232 |
| Output frequency | 50 / 60 Hz via DIP-switch, 5 ... 75 Hz via RS-232 |
| Load regulation | < 4 % |
| Line Regulation | < 2 % Vin -25 % ... +25 %; < 10 % Vin -30 % ... +30 % |
| Output wave distortion THD | < 2 % (average of 16 samples) |
| Output HF ripple | < 2.5 % |
| MECHANICAL | |
|---|---|
| Weight | < 7150 g |
| Shock and Vibrations according to | EN61393:2011 Category 1 Class B |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -25 ... 80 °C |
| Operating temperature at Full load | -25 ... 55 °C (EN50155 OT1) |
| Operating temperature at 62.5% load | -25 ... 70 °C (EN50155 OT3) |
| Operating temperature at 25% load | -25 ... 85 °C (EN50155 OT5) |
| Relative humidity without condensation | 5 ... 95 % |
| Cooling | Controlled internal fan |
| MTBF | 100.000 h |
| CONTROL | |
|---|---|
| Output OK LED | Green |
| Input OK LED | Green |
| Input alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Output alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Remote OFF input | OFF: applying 15 ... 143 Vdc, Impedance >35kΩ |
| Configurable input (reverse or mid-power) | ON: applying 15 ... 143 Vdc, Impedance >35kΩ |
| EMC | |
|---|---|
| Emission according | EN61000-6-4, EN50121-3-2 |
| Immunity according | EN61000-6-2, EN50121-3-2 |
| PROTECTIONS | |
|---|---|
| Against overloads | Current and I²T limited (see overload protection) |
| Against over-temperature | Shutdown with auto-recovery |
| MODEL | INPUT VOLTAGE DC (V) | INPUT VOLTAGE RANGE (V) | OUTPUT VOLTAGE AC (V) | OUTPUT CURRENT (A) | ACTIVE OUTPUT POWER (W) | APPAR. OUTPUT POWER (VA) | OUTPUT PEAK CURR. 5 S (RMS) (A) | OUTPUT PEAK CURR. 10MS (IOPK) (A) | EFFICIENCY (%) | NO LOAD INPUT CURRENT (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| ODX-3000-7403 | 24 | 16.8 - 30 | 400 | 3.46 | 2400 | 2400 | 5.25 | 11 | 89 | < 1.58 |
| ODX-3000-7404 | 36 | 25.2 - 45 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 90 | < 1.05 |
| ODX-3000-7405 | 48 | 33.6 - 60 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7406 | 72 | 50.4 - 90 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7407 | 110 | 77 - 138 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.34 |
| ODX-3000-7413 | 24 | 16.8 - 30 | 230 | 6.00 | 2400 | 2400 | 9.0 | 19 | 89 | < 1.58 |
| ODX-3000-7417 | 110 | 77 - 138 | 230 | 7.55 | 3000 | 3000 | 11.3 | 19 | 91 | < 0.34 |
| INPUT | |
|---|---|
| Input Voltage range | -30, +25 % Vin nom |
| Max input ripple | 5% Vin nom (Vrms, 100 Hz) |
| SAFETY | |
|---|---|
| Dielectric strength: Input / Output | 3000 Vrms / 50 Hz / 1 min |
| Dielectric strength: Output / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Input / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Signals* / (Input+Output+PE) | 1500 Vrms / 50 Hz / 1 min |
| Safety according to | EN60950-1, EN62368-1 |
| Fire and smoke according to | EN45545-2 (only for T railway versions) |
| OUTPUT | |
|---|---|
| Nominal Output Voltage (Von) | See selection table. |
| Output voltage range: | 50 ... 230 Vac (models of 230 Vac output) via RS232 50 ... 400 Vac (models of 400 Vac output) via RS232 |
| Output frequency | 50 / 60 Hz via DIP-switch, 5 ... 75 Hz via RS-232 |
| Load regulation | < 4 % |
| Line Regulation | < 2 % Vin -25 % ... +25 %; < 10 % Vin -30 % ... +30 % |
| Output wave distortion THD | < 2 % (average of 16 samples) |
| Output HF ripple | < 2.5 % |
| MECHANICAL | |
|---|---|
| Weight | < 7150 g |
| Shock and Vibrations according to | EN61393:2011 Category 1 Class B |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -25 ... 80 °C |
| Operating temperature at Full load | -25 ... 55 °C (EN50155 OT1) |
| Operating temperature at 62.5% load | -25 ... 70 °C (EN50155 OT3) |
| Operating temperature at 25% load | -25 ... 85 °C (EN50155 OT5) |
| Relative humidity without condensation | 5 ... 95 % |
| Cooling | Controlled internal fan |
| MTBF | 100.000 h |
| CONTROL | |
|---|---|
| Output OK LED | Green |
| Input OK LED | Green |
| Input alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Output alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Remote OFF input | OFF: applying 15 ... 143 Vdc, Impedance >35kΩ |
| Configurable input (reverse or mid-power) | ON: applying 15 ... 143 Vdc, Impedance >35kΩ |
| EMC | |
|---|---|
| Emission according | EN61000-6-4, EN50121-3-2 |
| Immunity according | EN61000-6-2, EN50121-3-2 |
| PROTECTIONS | |
|---|---|
| Against overloads | Current and I²T limited (see overload protection) |
| Against over-temperature | Shutdown with auto-recovery |
| MODEL | INPUT VOLTAGE DC (V) | INPUT VOLTAGE RANGE (V) | OUTPUT VOLTAGE AC (V) | OUTPUT CURRENT (A) | ACTIVE OUTPUT POWER (W) | APPAR. OUTPUT POWER (VA) | OUTPUT PEAK CURR. 5 S (RMS) (A) | OUTPUT PEAK CURR. 10MS (IOPK) (A) | EFFICIENCY (%) | NO LOAD INPUT CURRENT (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| ODX-3000-7403 | 24 | 16.8 - 30 | 400 | 3.46 | 2400 | 2400 | 5.25 | 11 | 89 | < 1.58 |
| ODX-3000-7404 | 36 | 25.2 - 45 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 90 | < 1.05 |
| ODX-3000-7405 | 48 | 33.6 - 60 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7406 | 72 | 50.4 - 90 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7407 | 110 | 77 - 138 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.34 |
| ODX-3000-7413 | 24 | 16.8 - 30 | 230 | 6.00 | 2400 | 2400 | 9.0 | 19 | 89 | < 1.58 |
| ODX-3000-7417 | 110 | 77 - 138 | 230 | 7.55 | 3000 | 3000 | 11.3 | 19 | 91 | < 0.34 |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vac) | Output Power (Va / kVA) | ||
|---|---|---|---|---|---|
|
ODX-3000-7403 | 24Vdc: 16.8 - 30Vdc | 400Vac, 50Hz / 60Hz | 2,400 VA | |
|
|
ODX-3000-7405 | 48Vdc: 33.6 - 60Vdc | 400Vac, 50Hz / 60Hz | 3,000 VA | |
|
|
ODX-3000-7406 | 72Vdc: 50.4 - 90Vdc | 400Vac, 50Hz / 60Hz | 3,000 VA | |
|
|
ODX-3000-7407 | 110Vdc: 77 - 138Vdc | 400Vac, 50Hz / 60Hz | 3,000 VA | |
|
|
ODX-3000-7413 | 24Vdc: 16.8 - 30Vdc | 230Vac, 50Hz / 60Hz | 2,400 VA | |
|
|
ODX-3000-7417 | 110Vdc: 77 - 138Vdc | 230Vac, 50Hz / 60Hz | 3,000 VA |
