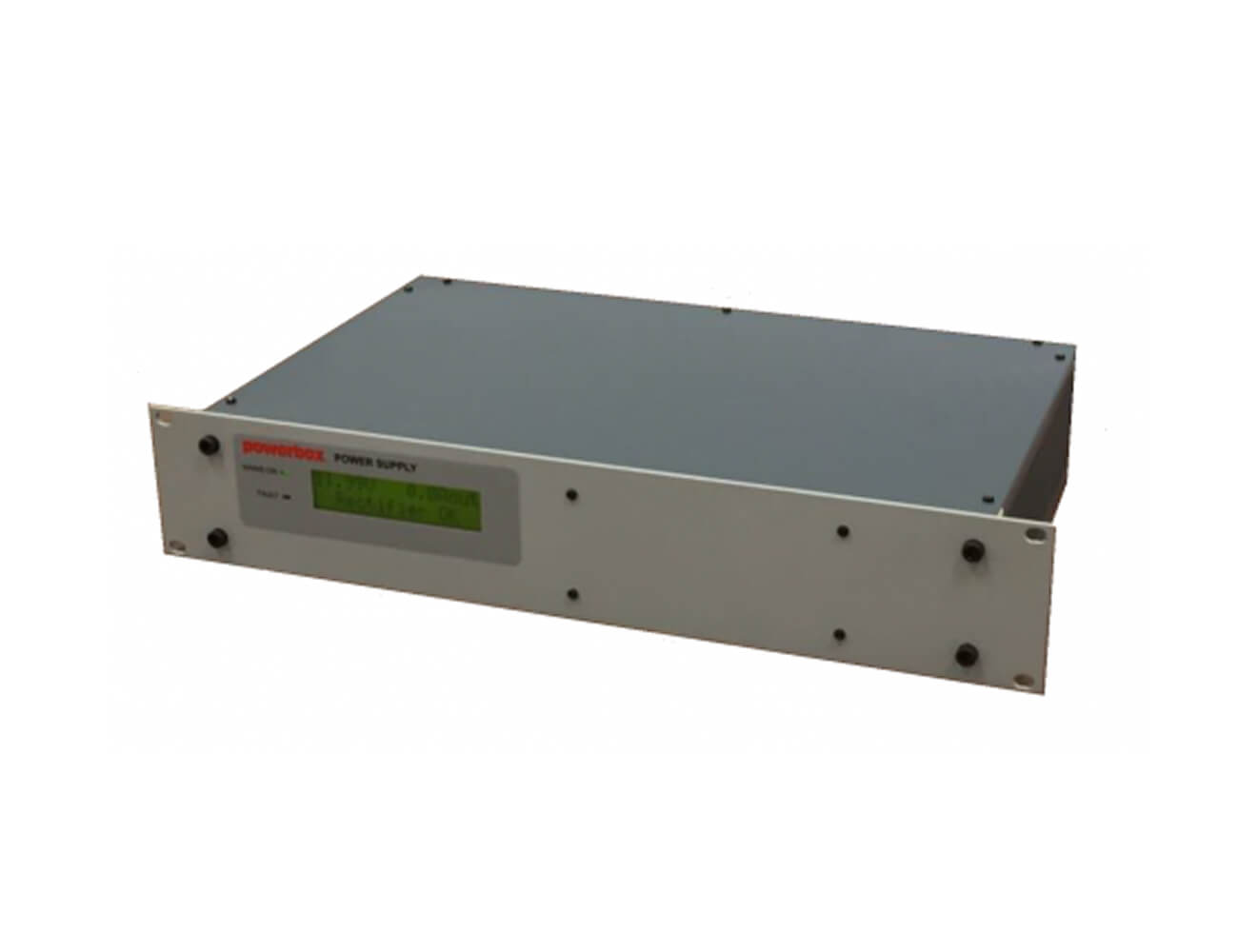

Powerbox PB362 19" Rack Mount AC/DC Power Supply
The Powerbox PB362 is a 19" rack mount AC/DC power supply designed and manufactured in Australia for telecommunications, industrial, security and power utility systems that need high-power DC from a centralised rack installation. It is available in 600W and 1000W ratings with 12Vdc, 24Vdc or 48Vdc outputs, running from a universal 100 to 240Vac ...
Read MoreThe Powerbox PB362 is a 19" rack mount AC/DC power supply designed and manufactured in Australia for telecommunications, industrial, security and power utility systems that need high-power DC from a centralised rack installation. It is available in 600W and 1000W ratings with 12Vdc, 24Vdc or 48Vdc outputs, running from a universal 100 to 240Vac input.
Six models cover the range: 12Vdc at 53A or 88A, 24Vdc at 27A or 44A, and 48Vdc at 13A or 22A. Each unit sits in a 2RU enclosure with forced-air cooling and an IEC C14 AC inlet, operates from -20°C to 71°C, and reaches efficiency of up to 86%.
A front-panel LCD shows output voltage, output current and AC/DC status, so technicians can check the supply at the rack without a meter. Options include an Ethernet interface with web server and SNMP for remote monitoring, AC Mains OK and Rectifier OK alarm relays for signalling to a site controller, and an alternate output voltage setting.
The Powerbox PB362 has built-in constant current limiting, output short circuit, output overvoltage and overtemperature protection, with low output noise for sensitive communications loads. It complies with AS/NZS 60950 safety and AS/NZS CISPR22 Class B EMC standards.
Because the PB362 is made locally, Australian engineering support is available for model selection, configuration and system integration. For other input and output combinations, browse our full range of AC/DC power supplies.
Show Less
Features
- 12Vdc. 24Vdc and 48Vdc
- 600W and 1000W AC/DC power supplies
- High reliability and high efficiency
- Industrial grade switching power converter
- Universal AC input range 100Vac - 240Vac
- 2RU Rack mounted enclosure
- Liquid crystal display
- Low output noise
- Output overvoltage protection - constant current limit
- Output short circuit protection
- Output overvoltage protection
- Overtemperature protection
- Optional alarm relays: AC Mains OK & Rectifier OK
- Optional Ethernet interface
- Optional alternate output voltage setting
Specifications
| INPUT | |
|---|---|
| Nominal Voltage | 100-240Vac |
| Nominal Frequency | 50-60Hz |
| Input Current ¹ ² | 600W models: 4.1A typ 1000W models: 7A typ |
| Efficiency ¹ ² | 600W models: 82-83% typ 1000W models: 84-86%typ |
| Power Factor ¹ ² | 0.95 typ |
| Inrush Current ¹ ² | 40A |
| Note 1 & 2 | Vin = 200Vac Io = I rated |
| DISPLAYS AND ALARMS | |
|---|---|
| LCD Display | 2 line x 16 character LCD Output voltage Output current AC Mains status Rectifier status |
| OUTPUT | |
|---|---|
| Output Voltage | 12Vdc, 24Vdc, 48Vdc See selection table |
| Output Current | See selection table |
| Output Power | See selection table |
| Ripple & noise | See selection table (BW = 20MHz) |
| Overcurrent Protection | Constant current limit See selection table |
| Short Circuit Protection | Indefinite (Auto resetting) |
| Overvoltage Shutdown | 12V Models: Vo +2.4 - 4.8Vdc 24V Models: Vo +4.8 - 9.6Vdc 48V Models: Vo +4.8 - 12.0Vdc |
| OPTIONS | |
|---|---|
| Rectifier OK (DC OK) (-P) | Voltage-free changeover contact (32Vdc, 1A Alarms on failure of AC/DC Converter, over temperature protection or cooling fan failure/td> |
| AC OK (-P) | Voltage-free changeover contact (32Vdc, 1A Alarms on mains failure |
| Ethernet Interface (-N) | Internal interface card provides remote monitoring via SNMP V1 and an embedded HTML webpage |
| ENVIRONMENT | |
|---|---|
| Operating temperature | -20 to 71°C ambient Derating linearly above 50°C to 50% at 71°C |
| Humidity | 20 to 90% RH non-condensing |
| Cooling | Forced air - int'l fan (R->L) |
| STANDARDS | |
|---|---|
| Safety | AS/NZS60950, Class 1 |
| Isolation | I/P to Output: 3.0kVac, 1min I/P to Ground: 2.0kVac, 1min O/P to Ground: 500Vac, 1min |
| EMC | AS/NZS CISPR22 Class B |
| MECHANICAL | |
|---|---|
| AC Input | IEC60320-1 C14 inlet, fused ON/OFF switch |
| DC Output Terminals | 76A Cage clamp terminals 12V 88A: 101A Cage clamp |
| Enclosure | 2RU x 19" x 270mm (HxWxD) |
| Weight | 7.2kg typ. |
Selection Table
| MODEL NUMBER | OUTPUT VOLTAGE | RATED OUTPUT CURRENT | OUTPUT CURRENT LIMIT | MAXIMUM OUTPUT POWER | OUTPUT RIPPLE & NOISE |
|---|---|---|---|---|---|
| PB362-12-53-C-u-xx.xV | 12.0Vdc | 53A | 54.5A | 636W | <180mVp-p |
| PB362-12-88-C-u-xx.xV | 12.0Vdc | 88A | 90A | 1056W | <180mVp-p |
| PB362-24-27-C-u-xx.xV | 24.0Vdc | 27A | 28A | 648W | <180mVp-p |
| PB362-24-44-C-u-xx.xV | 24.0Vdc | 44A | 45.5A | 1056W | <180mVp-p |
| PB362-48-13-C-u-xx.xV | 48.0Vdc | 13A | 14A | 624W | <500mVp-p |
| PB362-48-22-C-u-xx.xV | 48.0Vdc | 22A | 23A | 1056W | <500mVp-p |
| Options |
|---|
| Options - "u" -N: Ethernet interface Options - "u" -P: Screw terminal alarm contacts Option - "xx.xV": Alternate output voltage setting if different from above (xx.x - Output voltage setpoint in Volts) Rated output current = Po max / xx.x or above Irated whichever is lower |

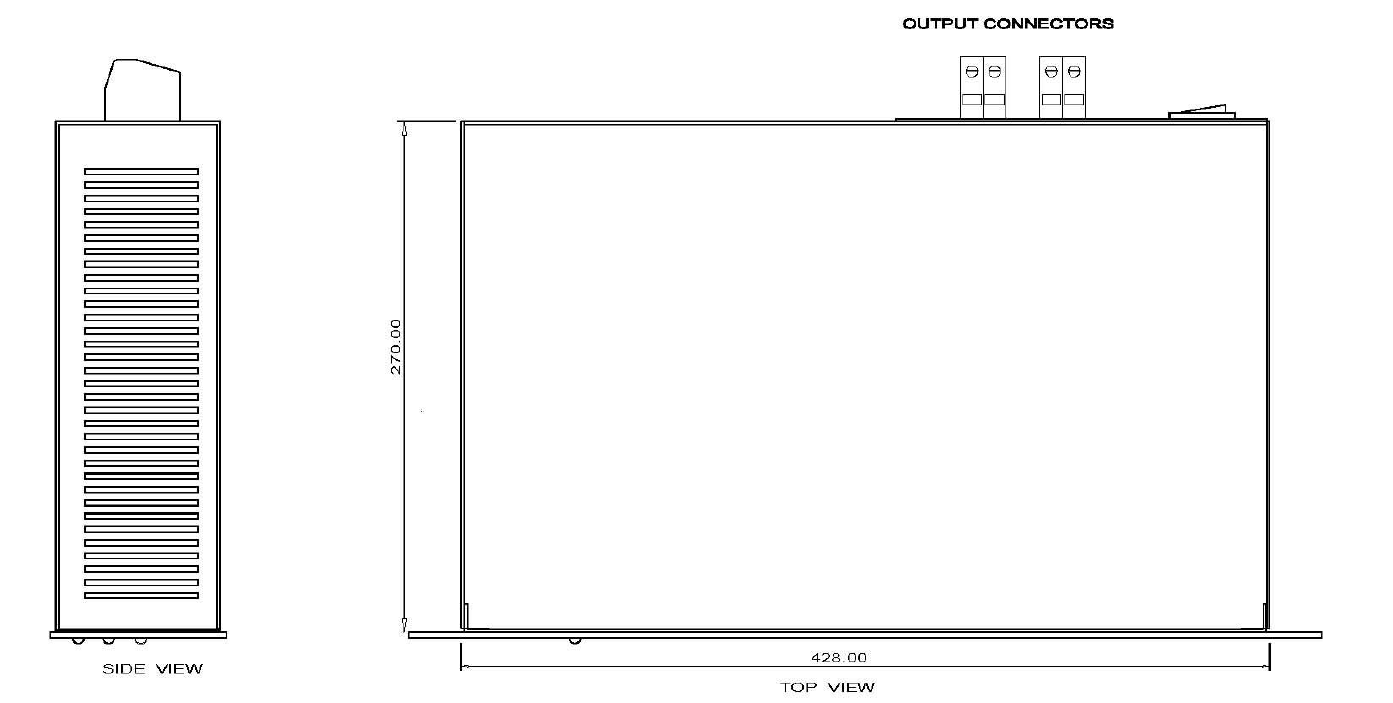

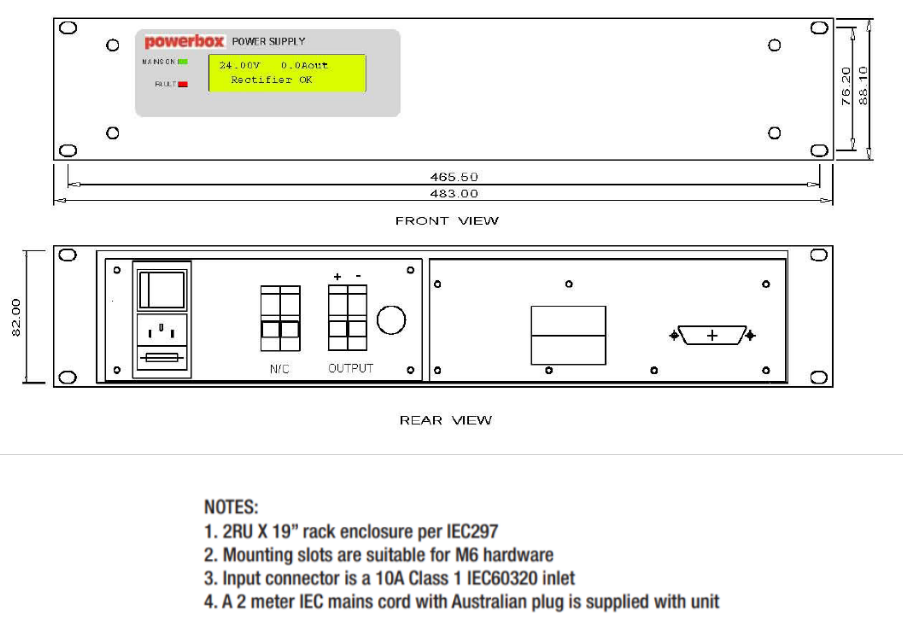

Technical Drawings
