Powerbox PBB2P 120W Series AC/DC Power Supply

AC/DC Power Supplies

Powerbox PBB2P 120W Series AC/DC Power Supply

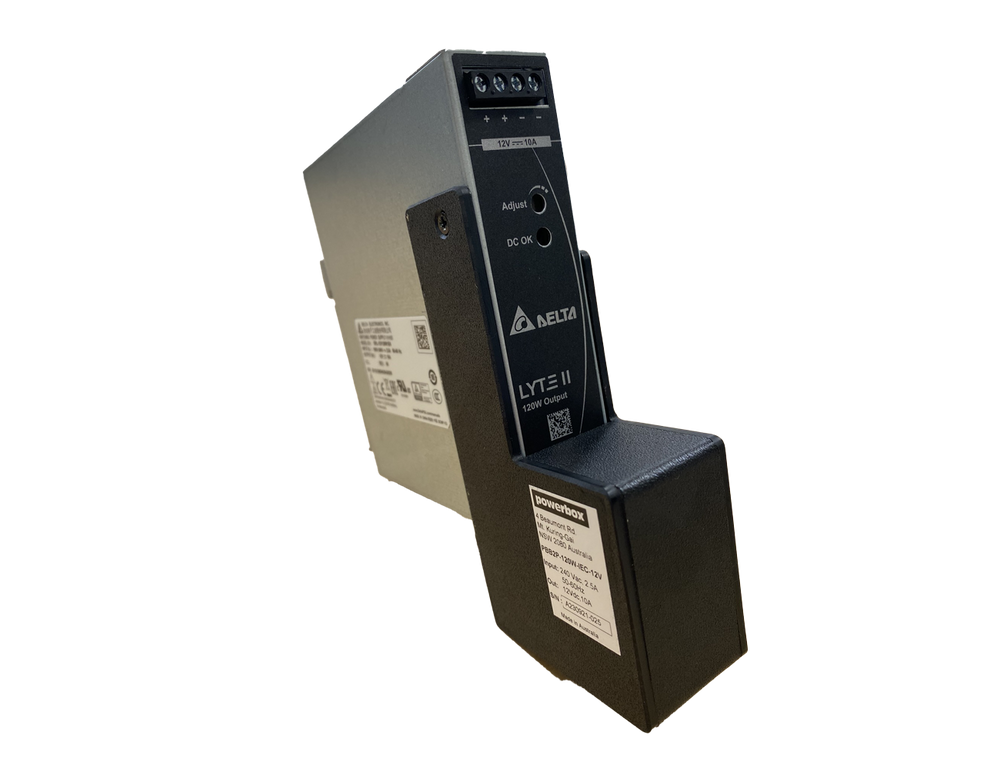

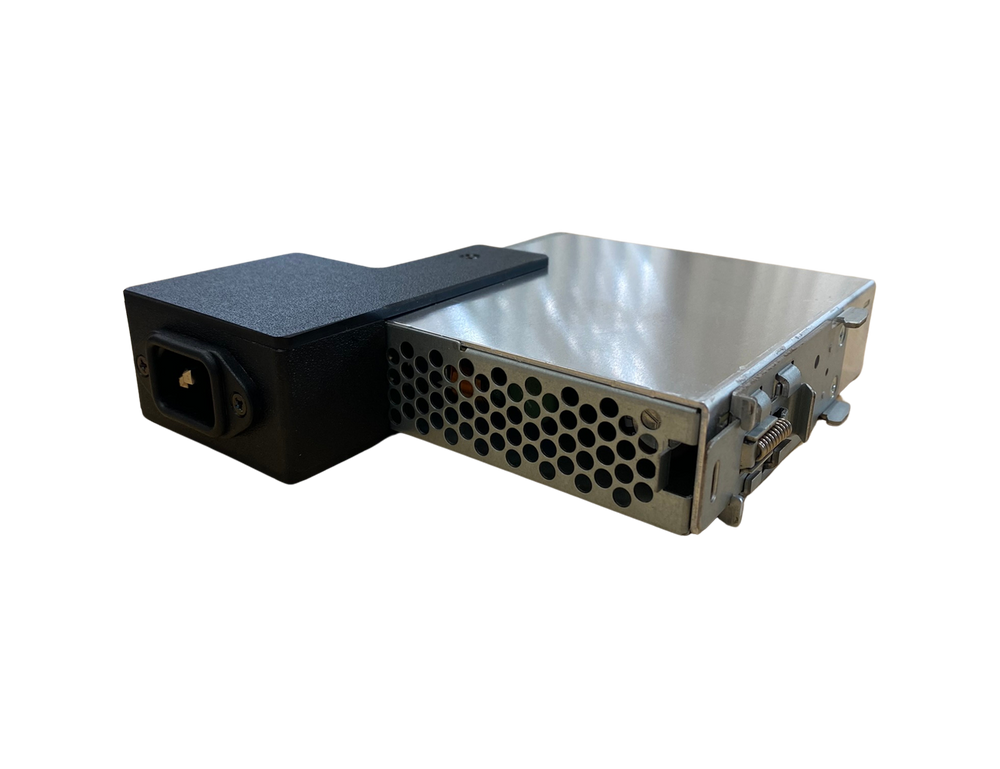

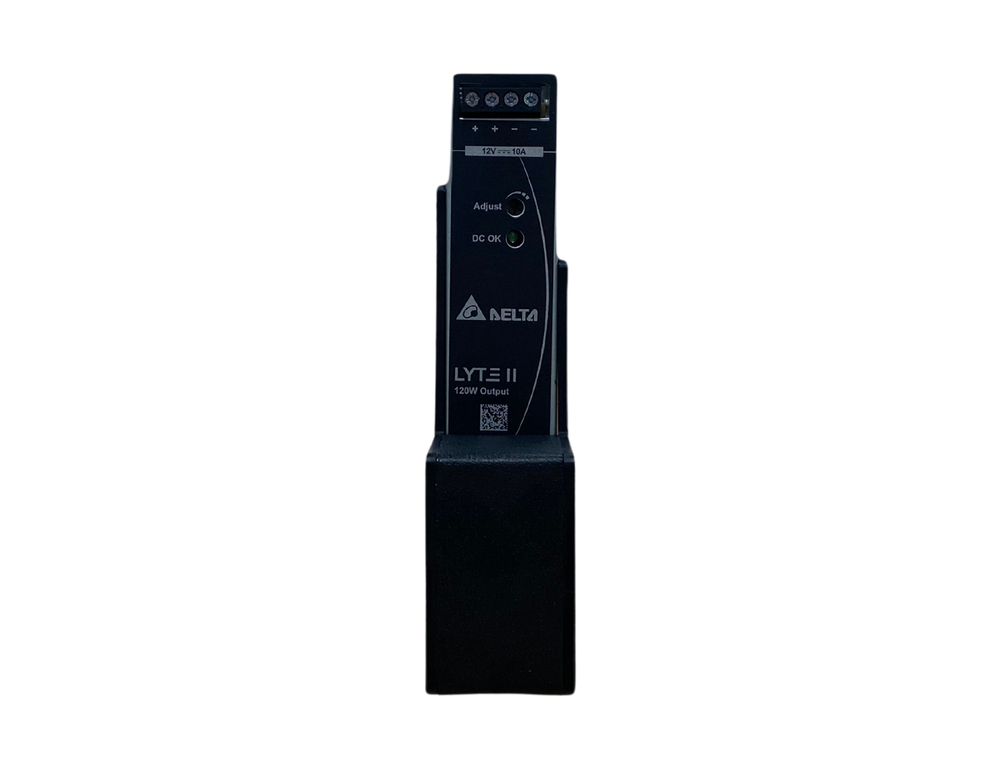

Powerbox’s PBB2P 120W Series DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability.

The convection-cooled PBB2P 120W Series will operate full power from -30°C to +50°C, then de-rating up to +70°C at 230 Vac. It can operate in constant current mode, making it suitable for inductive and capacitive loads.

View Models

Features

120W output power
12/24/48 Vdc output voltages
Universal AC input voltage range
Built-in constant current circuit for reactive loads
Operate from -30°C to +70°C with -40°C Cold Start
Reduced no-load power consumption

Specifications

INPUT
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Input Voltage Range	90-264 Vac
Nominal Input Frequency	50-60 Hz
Input Current	2.1 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac
Efficiency at 100% Load	86% typ. @ 230 Vac	88.5% typ. @ 230 Vac	89.5% typ. @ 230 Vac
Leakage Current	< 0.5 mA @ 240 Vac

OUTPUT
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Output Voltage	12 Vdc	24 Vdc	48 Vdc
Output Voltage Adjustment Range	10.8 - 13.2 Vdc	21.6 - 26.4 Vdc	43.2 - 52.8 Vdc
Output Current	10.0 A	5.0 A	2.5 A
Output Power	120 W max
Line Regulation	± 0.5% @ 115 Vac & 230 Vac
PARD (20MHz)	< 120mVpp @ 0°C to +70°C < 360mVpp @ -30°C to 0°C	< 150mVpp @ 0°C to+70°C < 450mVpp @ -30°C to 0°C	< 200mVpp @ 0°C to+70°C < 600mVpp @ -30°C to 0°C
Hold-up Time	10 ms typ. @ 115 Vac (100% load) 16 ms typ. @ 230 Vac (100% load)

MECHANICAL
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Case Cover / Chassis	SGCC / Aluminum
Dimensions (H x W x D)	151 x 46 x 159 mm (5.94 x 1.81 x 6.26 inch)
Mounting Rail	Standard TS35 DIN Rail in accordance with EN 60715
Input Connector	IEC Socket (with 2M IEC power cable)
Output Connector	4 Pins (Rated 300 V / 20 A)
Wire Output	AWG 18-12 (Current rating can refer to “AWG Wire Table”)
Unit Weight	0.53 kg (1.17 lb)

ENVIRONMENTAL
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Operating Temperature	-30°C to +70°C (-40°C Cold Start)
Storage Temperature	-40°C to +85°C
Power De-rating	> 40°C de-rate power by 1.67 % / °C @ 115 Vac > 50°C de-rate power by 2.5 % / °C @ 230 Vac
Cooling System	Convection
Operating Humidity	20 to 90% RH (Non-Condensing)
Operating Altitude	0 to 5,000 Metres (16,400 ft.)

PROTECTIONS
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Overvoltage	< 17.4 V, SELV Output, Latch Mode	< 33.6 V, SELV Output, Latch Mode	< 64.8 V, SELV Output, Latch Mode
Overload / Overcurrent	105 - 150% of rated load current, Auto-recovery Continuous current limit Mode (Vo > 80%)
Over Temperature	Latch Mode
Short Circuit	Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Protection Against Shock	Class I with PE connection
Galvanic Isolation	Input to Output - 3.0 KVac Input to Ground - 2.0KVac Output to Ground - 1.0KVac

RELIABILITY DATA
MTBF		Telcordia > 700,000 hrs \| SR-332 I/P: 115 Vac & 230 Vac, O/P: 100% load, Ta: 25°C
Expected Cap Life Time		10 years (230 Vac, 50% load @ 40°C)

STANDARDS
EMC		AS/NZS CISPR32
Electrical Safety		IEC 62368-1, IEC 61010-1 & -2 -201
CE		In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

SELECTION TABLE
Model Number	Output	IEC Socket	Delta Power Supply
PBB2P-120W-IEC-12V	12V / 10A	Y	DRL-12V120W1EN
PBB2P-120W-IEC-24V	24V / 5A	Y	DRL-24V120W1EN
PBB2P-120W-IEC-48V	48V / 2.5A	Y	DRL-48V120W1EN

Downloads

PBB2P_120W_Series_Spec_Sheet.pdf

INPUT
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Input Voltage Range	90-264 Vac
Nominal Input Frequency	50-60 Hz
Input Current	2.1 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac
Efficiency at 100% Load	86% typ. @ 230 Vac	88.5% typ. @ 230 Vac	89.5% typ. @ 230 Vac
Leakage Current	< 0.5 mA @ 240 Vac

OUTPUT
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Output Voltage	12 Vdc	24 Vdc	48 Vdc
Output Voltage Adjustment Range	10.8 - 13.2 Vdc	21.6 - 26.4 Vdc	43.2 - 52.8 Vdc
Output Current	10.0 A	5.0 A	2.5 A
Output Power	120 W max
Line Regulation	± 0.5% @ 115 Vac & 230 Vac
PARD (20MHz)	< 120mVpp @ 0°C to +70°C < 360mVpp @ -30°C to 0°C	< 150mVpp @ 0°C to+70°C < 450mVpp @ -30°C to 0°C	< 200mVpp @ 0°C to+70°C < 600mVpp @ -30°C to 0°C
Hold-up Time	10 ms typ. @ 115 Vac (100% load) 16 ms typ. @ 230 Vac (100% load)

MECHANICAL
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Case Cover / Chassis	SGCC / Aluminum
Dimensions (H x W x D)	151 x 46 x 159 mm (5.94 x 1.81 x 6.26 inch)
Mounting Rail	Standard TS35 DIN Rail in accordance with EN 60715
Input Connector	IEC Socket (with 2M IEC power cable)
Output Connector	4 Pins (Rated 300 V / 20 A)
Wire Output	AWG 18-12 (Current rating can refer to “AWG Wire Table”)
Unit Weight	0.53 kg (1.17 lb)

ENVIRONMENTAL
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Operating Temperature	-30°C to +70°C (-40°C Cold Start)
Storage Temperature	-40°C to +85°C
Power De-rating	> 40°C de-rate power by 1.67 % / °C @ 115 Vac > 50°C de-rate power by 2.5 % / °C @ 230 Vac
Cooling System	Convection
Operating Humidity	20 to 90% RH (Non-Condensing)
Operating Altitude	0 to 5,000 Metres (16,400 ft.)

PROTECTIONS
Model Number	PBB2P-120W-IEC-12V	PBB2P-120W-IEC-24V	PBB2P-120W-IEC-48V
Overvoltage	< 17.4 V, SELV Output, Latch Mode	< 33.6 V, SELV Output, Latch Mode	< 64.8 V, SELV Output, Latch Mode
Overload / Overcurrent	105 - 150% of rated load current, Auto-recovery Continuous current limit Mode (Vo > 80%)
Over Temperature	Latch Mode
Short Circuit	Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Protection Against Shock	Class I with PE connection
Galvanic Isolation	Input to Output - 3.0 KVac Input to Ground - 2.0KVac Output to Ground - 1.0KVac

RELIABILITY DATA
MTBF		Telcordia > 700,000 hrs \| SR-332 I/P: 115 Vac & 230 Vac, O/P: 100% load, Ta: 25°C
Expected Cap Life Time		10 years (230 Vac, 50% load @ 40°C)

STANDARDS
EMC		AS/NZS CISPR32
Electrical Safety		IEC 62368-1, IEC 61010-1 & -2 -201
CE		In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

SELECTION TABLE
Model Number	Output	IEC Socket	Delta Power Supply
PBB2P-120W-IEC-12V	12V / 10A	Y	DRL-12V120W1EN
PBB2P-120W-IEC-24V	24V / 5A	Y	DRL-24V120W1EN
PBB2P-120W-IEC-48V	48V / 2.5A	Y	DRL-48V120W1EN
