Polyamp PSC 80-240 SERIES DC/DC Converter

DC/DC Converters

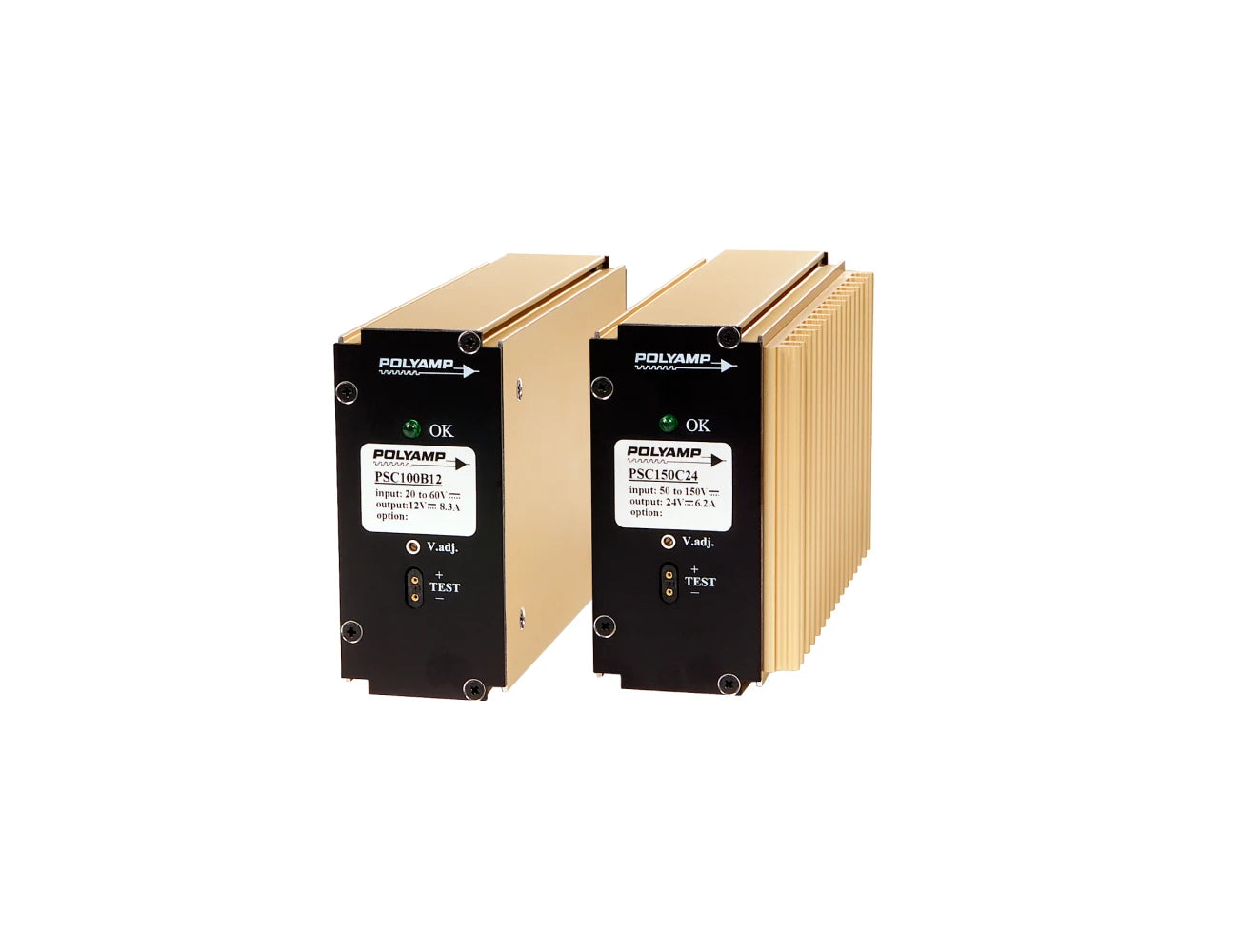

Polyamp PSC 80-240 SERIES DC/DC Converter

The Polyamp PSC 80-240 Series DC/DC Converter is a compact and versatile solution for industrial, railway, and telecommunications applications. Designed for reliability, it ensures efficient power delivery with advanced protection features.

View Models

Polyamp PSC 100-150 SERIES DC/DC Converter

Features

80W - 240W
Industrial Grade
Robust Design
Wide Inputs 10 to 550Vdc Input
5 to 48Vdc Output
Up to 3 outputs

Specifications

INPUT
Input voltage	See Selection Table
Current at no load	3W–5W max
Softstart	Yes within rush current limit

OUTPUT
Voltage adjustment	-10% to +10%
Output Current	See Selection Table
Current limit	105%
Ripple & Noise pk-pk	10mV pk - pk typical
Regulation	Line:0.2% L1 to H1; Load:0.2% NLtoFL
Temperature Coefficient	0.02% per°C
Transient Response	10% up to100% typical <2mS

PROTECTIOIN
Overvoltage Protection	Parallel diode.
Shortcircuit protection	Yes
Reverse Voltage protection	Option
Overload Protection	Yes
Protection	Fuse on board, reverse voltage protection
Isolation	Input to output case,2000Vdc, 24/48V input case 2500Vdc,100V, 200Vinput

OPERATING
Efficiency	Single outputs 79% – 95% typical Multi outputs 75%–85% typical
Parallel Operation	Single outputs only (derate power by 10%)
Series Operation	Yes

ENVIRONMENTAL
Operating Temperature	-20°C to +70°C (PSC50/80–5V only +55°C)
Storage Temperature	-40°C to +85°C
Derating	No Full load to 70C
Cooling	Convection

STANDARDS
Safety Standards	IEC60950
C-Tick	AS/NZSCISPR11:2002Group1ClassA
Immunity Standards	EN61000-6-2 EN/IEC61000-4-4 EN/IEC61000-4-5Level2&3

OPTIONS
A	Over voltage protection (OVP) A built in SCR thyristor short circuits the output when an overvoltage occurs. The trigger voltages 15% higher than the nominal output voltage.
C	Series diode on output For parallel redundant applications built in series diodes can be provided. The output power may be derated depending upon the model.
E1	2.5kVAC isolation between input/output and input/case. On 24 & 48V inputs.The emission level increases to level A.
E2	Same as E1 but also 2.5kVAC between output/case.
L	Front panel for eurorack 10,12,14TE
K1	Input diode in series
K2	Built in glass fuse on PSC80, PSC100 and PSC150
N	Wall mounting brackets
H15-S	H15 female screw connector
O	Rear Euro rack mounting brackets
S	Remote sense
NTC	Inrush current limit with NTC
INPUT	Mobile application, consult sales

MECHANICAL
Case	Euro cassette
Dimensions	See drawing examples. Consult sales office for full details
Connectors	15 Pole DIN standard 41612H15
Mounting	Consult Powerbox for mounting options

Selection Table

SINGLE OUTPUTS
MODEL NUMBER	INPUT	OUTPUT		CASE	OUTPUT POWER
PSC100A5	10-30V	5V	20A	10TE	100W
PSC150A5	10-30V	5V	30A	12TE	150W
PSC100A12	10-30V	12V	8.3A	10TE	100W
PSC150A12	10-30V	12V	12.5A	10TE	150W
PSC100A13.2	10-30V	13.6V	7.4A	10TE	100W
PSC150A13.2	10-30V	13.6V	11A	10TE	150W
PSC100A15	10-30V	15V	6.7A	10TE	100W
PSC150A15	10-30V	15V	10A	10TE	150W
PSC100A24	10-30V	24V	4.2A	10TE	100W
PSC150A24	10-30V	24V	6.3A	10TE	150W
PSC100A48	10-30V	48V	2.1A	10TE	100W
PSC150A48	10-30V	48V	3.1A	10TE	150W
PSC100B5	20-60V	5V	20A	10TE	100W
PSC150B5	20-60V	5V	30A	10TE	150W
PSC100B12	20-60V	12V	8.3A	10TE	100W
PSC150B12	20-60V	12V	12.5A	10TE	150W
PSC100B13.2	20-60V	13.6V	7.4A	10TE	100W
PSC150B13.2	20-60V	13.6V	11A	10TE	150W
PSC100B15	20-60V	15V	6.7A	10TE	100W
PSC150B15	20-60V	15V	10A	10TE	150W
PSC100B24	20-60V	24V	4.2A	10TE	100W
PSC150B24	20-60V	24V	6.3A	10TE	150W
PSC100B48	20-60V	48V	2.1A	10TE	100W
PSC150B48	20-60V	48V	3.1A	10TE	150W
PSC100CT5	40-100V	5V	20A	10TE	100W
PSC150CT5	40-100V	5V	30A	10TE	150W
PSC100CT12	40-100V	12V	8.3A	10TE	100W
PSC150CT12	40-100V	12V	12.5A	10TE	150W
PSC100CT13.2	40-100V	13.6V	7.4A	10TE	100W
PSC150CT13.2	40-100V	13.6V	11A	10TE	150W
PSC100CT15	40-100V	15V	6.7A	10TE	100W
PSC150CT15	40-100V	15V	10A	10TE	150W
PSC100CT24	40-100V	24V	4.2A	10TE	100W
PSC150CT24	40-100V	24V	6.3A	12TE	150W
PSC100CT48	40-100V	48V	2.1A	10TE	100W
PSC150CT48	40-100V	48V	3.1A	10TE	150W
PSC100C5	50-150V	5V	20A	10TE	100W
PSC150C5	50-150V	5V	30A	10TE	150W
PSC100C12	50-150V	12V	8.3A	10TE	100W
PSC150C12	50-150V	12V	12.5A	10TE	150W
PSC100C13.2	50-150V	13.6V	7.4A	10TE	100W
PSC150C13.2	50-150V	13.6V	11A	10TE	150W
PSC100C15	50-150V	15V	6.7A	10TE	100W
PSC150C15	50-150V	15V	10A	10TE	150W
PSC100C24	50-150V	24V	4.2A	10TE	100W
PSC150C24	50-150V	24V	6.3A	10TE	150W
PSC100C48	50-150V	48V	2.1A	10TE	100W
PSC150C48	50-150V	48V	3.1A	10TE	150W
PSC100D5	90-270V	5V	20A	10TE	100W
PSC150D5	90-270V	5V	30A	10TE	150W
PSC100D12	90-270V	12V	8.3A	10TE	100W
PSC150D12	90-270V	12V	12.5A	10TE	150W
PSC100D13.2	90-270V	13.6V	7.4A	10TE	100W
PSC150D13.2	90-270V	13.6V	11A	10TE	150W
PSC100D15	90-270V	15V	6.7A	10TE	100W
PSC150D15	90-270V	15V	10A	10TE	150W
PSC100D24	90-270V	24V	4.2A	10TE	100W
PSC150D24	90-270V	24V	6.3A	10TE	150W
PSC100D48	90-270V	48V	2.1A	10TE	100W
PSC150D48	90-270V	48V	3.1A	10TE	150W
PSC100E24	250-500V	24V	4.2A	10TE	100W
PSC150E24	250-500V	24V	6.3A	10TE	150W
PSC100E48	250-500V	48V	2.1A	10TE	100W
PSC150E48	250-500V	48V	3.1A	10TE	150W

DUAL OUTPUTS
MODEL NUMBER	INPUT	MAIN OUTPUT		AUX OUTPUT		CASE	OUTPUT POWER
PSC100A5S12	10-30V	5V	17A	12V	1.2A	10TE	100W
PSC150A5S12	10-30V	5V	20A	12V	2A	12TE	124W
PSC100A5S15	10-30V	5V	17A	15V	1.2A	10TE	100W
PSC150A5S15	10-30V	5V	20A	15V	2A	12TE	130W
PSC100A12S5	10-30V	12V	7.3A	5V	2.5A	10TE	100W
PSC150A12S5	10-30V	12V	11.5A	5V	2.5A	12TE	150W
PSC100A12S12	10-30V	12V	7A	12V	1.2A	10TE	100W
PSC150A12S12	10-30V	12V	10.5A	12V	2A	12TE	150W
PSC100A15S15	10-30V	15V	5.5A	15V	1.2A	10TE	100W
PSC150A15S15	10-30V	15V	8A	15V	2A	12TE	150W
PSC100A24S24	10-30V	24V	3A	24V	1.2A	10TE	100W
PSC150A24S24	10-30V	24V	4.2A	24V	2A	12TE	150W
PSC100B5S12	20-60V	5V	17A	12V	1.2A	10TE	100W
PSC150B5S12	20-60V	5V	20A	12V	2A	12TE	124W
PSC100B5S15	20-60V	5V	17A	15V	1.2A	10TE	100W
PSC150B5S15	20-60V	5V	20A	15V	2A	12TE	130W
PSC100B12S5	20-60V	12V	7.3A	5V	2.5A	10TE	100W
PSC150B12S5	20-60V	12V	11.5A	5V	2.5A	12TE	150W
PSC100B12S12	20-60V	12V	7A	12V	1.2A	10TE	100W
PSC150B12S12	20-60V	12V	10.5A	12V	2A	12TE	150W
PSC100B15S15	20-60V	15V	5.5A	15V	1.2A	10TE	100W
PSC150B15S15	20-60V	15V	8A	15V	2A	12TE	150W
PSC100B24S24	20-60V	24V	3A	24V	1.2A	10TE	100W
PSC150B24S24	20-60V	24V	4.2A	24V	2A	12TE	150W
PSC100CT5S12	40-100V	5V	17A	12V	1.2A	10TE	100W
PSC150CT5S12	40-100V	5V	20A	12V	2A	12TE	124W
PSC100CT5S15	40-100V	5V	17A	15V	1.2A	10TE	100W
PSC150CT5S15	40-100V	5V	20A	15V	2A	12TE	130W
PSC100CT12S5	40-100V	12V	7.3A	5V	2.5A	10TE	100W
PSC150CT12S5	40-100V	12V	11.5A	5V	2.5A	12TE	150W
PSC100CT12S12	40-100V	12V	7A	12V	1.2A	10TE	100W
PSC150CT12S12	40-100V	12V	10.5A	12V	2A	12TE	150W
PSC100CT15S15	40-100V	15V	5.5A	15V	1.2A	10TE	100W
PSC150CT15S15	40-100V	15V	8A	15V	2A	12TE	150W
PSC100CT24S24	40-100V	24V	3A	24V	1.2A	10TE	100W
PSC150CT24S24	40-100V	24V	4.2A	24V	2A	12TE	150W
PSC100C5S12	50-150V	5V	17A	12V	1.2A	10TE	100W
PSC150C5S12	50-150V	5V	20A	12V	2A	12TE	124W
PSC100C5S15	50-150V	5V	17A	15V	1.2A	10TE	100W
PSC150C5S15	50-150V	5V	20A	15V	2A	12TE	130W
PSC100C12S5	50-150V	12V	7.3A	5V	2.5A	10TE	100W
PSC150C12S5	50-150V	12V	11.5A	5V	2.5A	12TE	150W
PSC100C12S12	50-150V	12V	7A	12V	1.2A	10TE	100W
PSC150C12S12	50-150V	12V	10.5A	12V	2A	12TE	150W
PSC100C15S15	50-150V	15V	5.5A	15V	1.2A	10TE	100W
PSC150C15S15	50-150V	15V	8A	15V	2A	12TE	150W
PSC100C24S24	50-150V	24V	3A	24V	1.2A	10TE	100W
PSC150C24S24	50-150V	24V	4.2A	24V	2A	12TE	150W
PSC100D5S12	90-270V	5V	17A	12V	1.2A	10TE	100W
PSC150D5S12	90-270V	5V	20A	12V	2A	12TE	150W
PSC100D5S15	90-270V	5V	17A	15V	1.2A	10TE	100W
PSC150D5S15	90-270V	5V	20A	15V	2A	12TE	150W
PSC100D12S5	90-270V	12V	7.3A	5V	2.5A	10TE	100W
PSC150D12S5	90-270V	12V	11.5A	5V	2.5A	12TE	150W
PSC100D12S12	90-270V	12V	7A	12V	1.2A	10TE	100W
PSC150D12S12	90-270V	12V	10.5A	12V	2A	12TE	150W
PSC100D15S15	90-270V	15V	5.5A	15V	1.2A	10TE	100W
PSC150D15S15	90-270V	15V	8A	15V	2A	12TE	150W
PSC100D24S24	90-270V	24V	3A	24V	1.2A	10TE	100W
PSC150D24S24	90-270V	24V	4.2A	24V	2A	12TE	150W
NOTE	2. Common zero on the output The secondary output voltages are only factory adjustable. Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W.

TRIPLE OUTPUTS - 24, 48 VOLT INPUT
MODEL NUMBER	INPUT	MAIN OUTPUT		AUX OUTPUT		CASE	OUTPUT POWER
PSC100A5S12	10-30V	5V	14A	12V	1.2A	10TE	100W
PSC150A5S12	10-30V	5V	20A	12V	2A	12TE	150W
PSC100A5S15	10-30V	5V	13A	15V	1.2A	10TE	100W
PSC150A5S15	10-30V	5V	20A	15V	1.7A	12TE	150W
PSC100B5S12	20-60V	5V	14A	12V	1.2A	10TE	100W
PSC150B5S12	20-60V	5V	20A	12V	2A	12TE	150W
PSC100B5S15	20-60V	5V	13A	15V	1.2A	10TE	100W
PSC150B5S15	20-60V	5V	20A	15V	1.7A	12TE	150W
NOTE	Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable

TRIPLE OUTPUTS - 110, 220 VOLT INPUT
MODEL NUMBER	INPUT	MASTER OUTPUT		AUX OUTPUT		CASE	OUTPUT POWER
PSC100CT5S12-12	40-100V	5V	14A	±12V	1.2A	10TE	100W
PSC150CT5S12-12	40-100V	5V	20A	±12V	2A	12TE	150W
PSC100CT5S15-15	40-100V	5V	13A	±15V	1.2A	10TE	100W
PSC150CT5S15-15	40-100V	5V	20A	±15V	1.7A	12TE	150W
PSC100C5S12-12	50-150V	5V	14A	±12V	1.2A	10TE	100W
PSC150C5S12-12	50-150V	5V	20A	±12V	2A	12TE	150W
PSC100C5S15-15	50-150V	5V	13A	±15V	1.2A	10TE	150W
PSC100D5S12-12	90-270V	5V	14A	±12V	1.2A	10TE	100W
PSC150D5S12-12	90-270V	5V	20A	±12V	2A	12TE	150W
PSC150D5S12-12	90-270V	5V	20A	±15V	1.2A	12TE	150W
PSC150D5S15-15	90-270V	5V	20A	±15V	1.7A	12TE	150W
NOTE	Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable

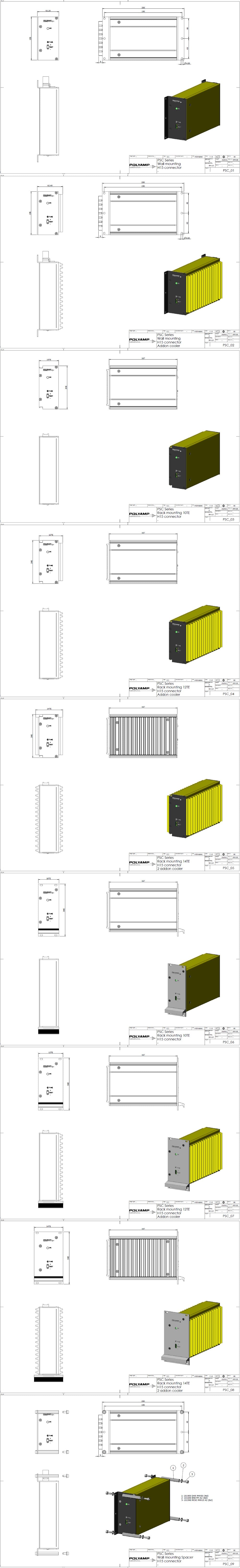

Technical Illustrations
