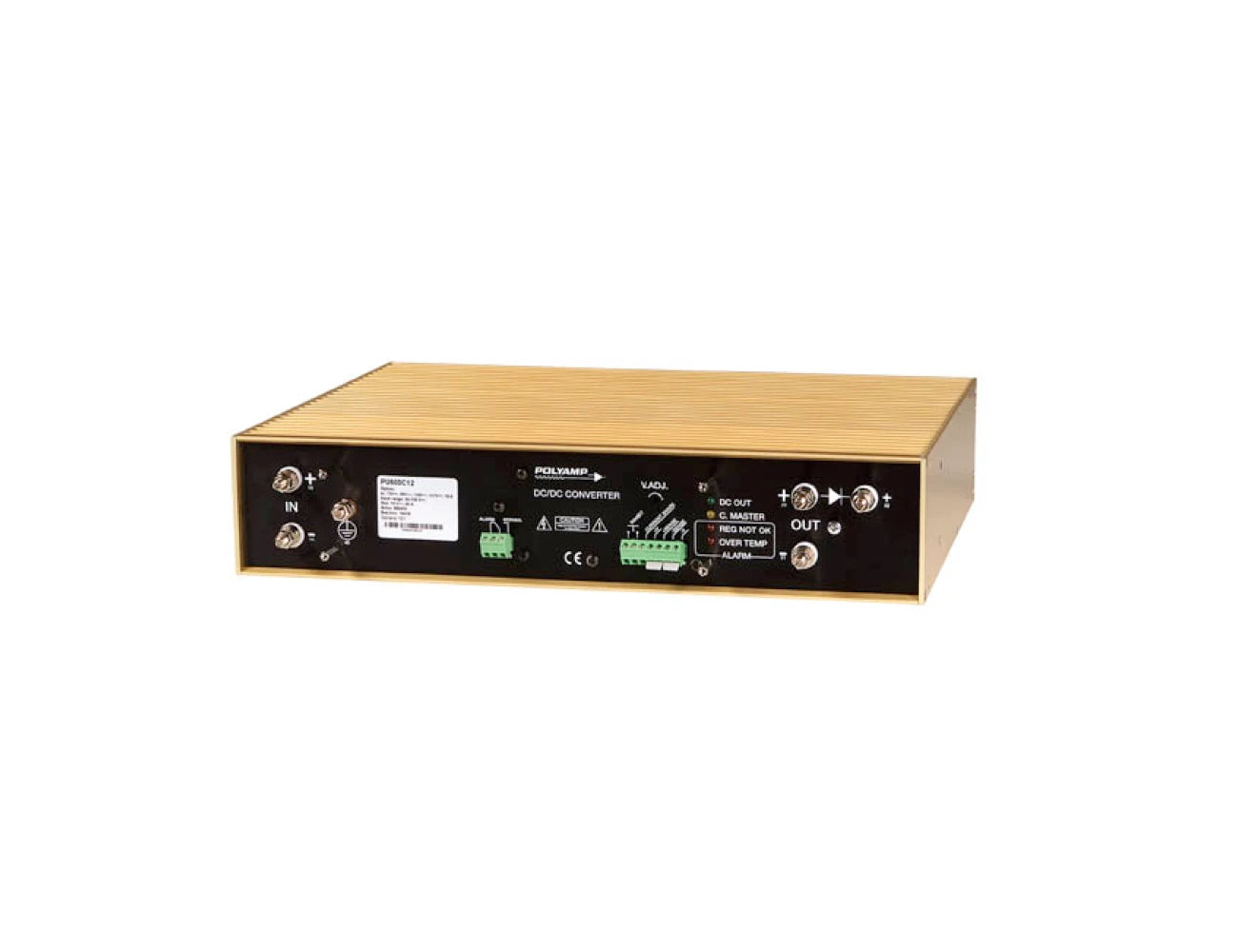

Polyamp PU600 SERIES DC/DC Converter

The Polyamp PU600 Series DC/DC Converter is a robust and versatile solution for industrial, railway, and telecommunications applications. Designed to deliver efficient and reliable power, it meets the demands of critical systems in harsh environments.

Read More

View Models
Polyamp PU600 SERIES DC/DC Converter

Features

  • 480W - 600W Industrial Grade
  • Robust Design High Reliability
  • Operating Temperature -25C to 55C
  • Convection Cooled High Efficiency
  • Output voltage alarm
  • Series diode on output
Specifications
INPUT
Input voltages (B): 20-60Vdc
(C): 50-150Vdc
(D): 90-270Vdc
Input power no load 15W max
Inrush current limit Input Code B - No
Input Code C, D - Yes, <6 x Inom.
OUTPUT
Output voltages See Selection Table
Source regulation 0.001
Load regulation 0.003
Transient recovery <3ms. Load step, to within 3% of nominal output voltage
Output ripple 30mVp-p, 60kHz
Input ripple attenuation 150:1, on Output (50-400Hz)
Temperature coefficient 0.02% per °C
Output adjustment range 95%-110% with 15 Turn potentiometer
Remote sense Yes
Soft start Yes
Startup time 1 Sec
Holdup time 2-25mS.
OPERATING
Design topology Push-Pull
Switching frequency 30kHz
Efficiency 85%-92%
PROTECTION
Current limit 105% rectangular
Overvoltage protection Yes, 115% of nominal voltage
Reverse Input voltage protection Yes. input code B, 24, 48 with a parallel diode, other input use a input series thyristor
Isolation
STANDARDS AND APPROVALS
Safety standards IEC60950, Low Voltage Directive
C-Tick AS/NZS CISPR11 Group 1, Class A
EMC standards EN55011-B, EN55022-B, IEC61000-6-2, IEC61000-4-2, -3, -4, -5, -6, -8,-10, EN50155 Figure 4
ENVIRONMENTAL
Operating temperate -25°C to +55°C at 100% load
Conduction cooling With derating, +70°C
Storage temperature range -40°C to +85°C
MECHANICAL
Dimensions 86 x 420 x 337mm
See Technical Illustrations
Weight 10kg
Mounting Brackets Supplied with L89-1 mounting brackets
Mounting Options See Technical Illustrations
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT POWER
PU600B12 20-60V 12V 40A 480W
PU600B13.8 20-60V 13.8V 40A 552W
PU600B15 20-60V 15V 40A 600W
PU600B24 20-60V 24V 25A 600W
PU600B48 20-60V 48V 12.5A 600W
PU600C12 50-150V 12V 40A 480W
PU600C13.8 50-150V 13.8V 40A 552W
PU600C15 50-150V 15V 40A 600W
PU600C24 50-150V 24V 25A 600W
PU600C48 50-150V 48V 12.5A 600W
PU600D12 90-270V 12V 40A 480W
PU600D13.8 90-270V 13.8V 40A 552W
PU600D15 90-270V 15V 40A 600W
PU600D24 90-270V 24V 25A 600W
PU600D48 90-270V 48V 12.5A 600W

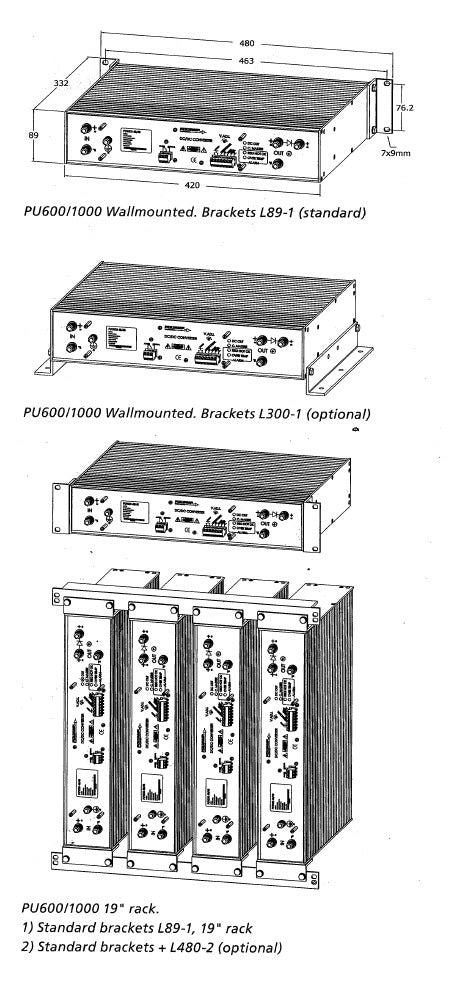

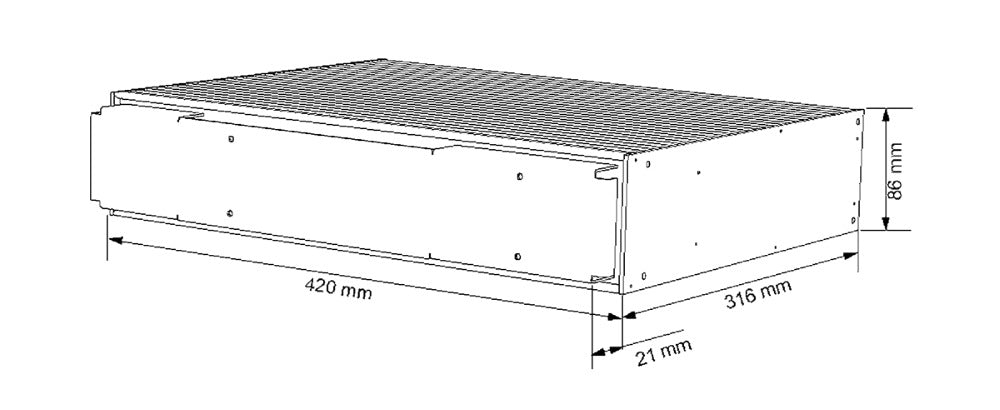

Technical Illustrations
Downloads
pu600-series-datasheet.pdf
INPUT
Input voltages (B): 20-60Vdc
(C): 50-150Vdc
(D): 90-270Vdc
Input power no load 15W max
Inrush current limit Input Code B - No
Input Code C, D - Yes, <6 x Inom.
OUTPUT
Output voltages See Selection Table
Source regulation 0.001
Load regulation 0.003
Transient recovery <3ms. Load step, to within 3% of nominal output voltage
Output ripple 30mVp-p, 60kHz
Input ripple attenuation 150:1, on Output (50-400Hz)
Temperature coefficient 0.02% per °C
Output adjustment range 95%-110% with 15 Turn potentiometer
Remote sense Yes
Soft start Yes
Startup time 1 Sec
Holdup time 2-25mS.
OPERATING
Design topology Push-Pull
Switching frequency 30kHz
Efficiency 85%-92%
PROTECTION
Current limit 105% rectangular
Overvoltage protection Yes, 115% of nominal voltage
Reverse Input voltage protection Yes. input code B, 24, 48 with a parallel diode, other input use a input series thyristor
Isolation
STANDARDS AND APPROVALS
Safety standards IEC60950, Low Voltage Directive
C-Tick AS/NZS CISPR11 Group 1, Class A
EMC standards EN55011-B, EN55022-B, IEC61000-6-2, IEC61000-4-2, -3, -4, -5, -6, -8,-10, EN50155 Figure 4
ENVIRONMENTAL
Operating temperate -25°C to +55°C at 100% load
Conduction cooling With derating, +70°C
Storage temperature range -40°C to +85°C
MECHANICAL
Dimensions 86 x 420 x 337mm
See Technical Illustrations
Weight 10kg
Mounting Brackets Supplied with L89-1 mounting brackets
Mounting Options See Technical Illustrations
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT POWER
PU600B12 20-60V 12V 40A 480W
PU600B13.8 20-60V 13.8V 40A 552W
PU600B15 20-60V 15V 40A 600W
PU600B24 20-60V 24V 25A 600W
PU600B48 20-60V 48V 12.5A 600W
PU600C12 50-150V 12V 40A 480W
PU600C13.8 50-150V 13.8V 40A 552W
PU600C15 50-150V 15V 40A 600W
PU600C24 50-150V 24V 25A 600W
PU600C48 50-150V 48V 12.5A 600W
PU600D12 90-270V 12V 40A 480W
PU600D13.8 90-270V 13.8V 40A 552W
PU600D15 90-270V 15V 40A 600W
PU600D24 90-270V 24V 25A 600W
PU600D48 90-270V 48V 12.5A 600W
pu600-series-datasheet.pdf
