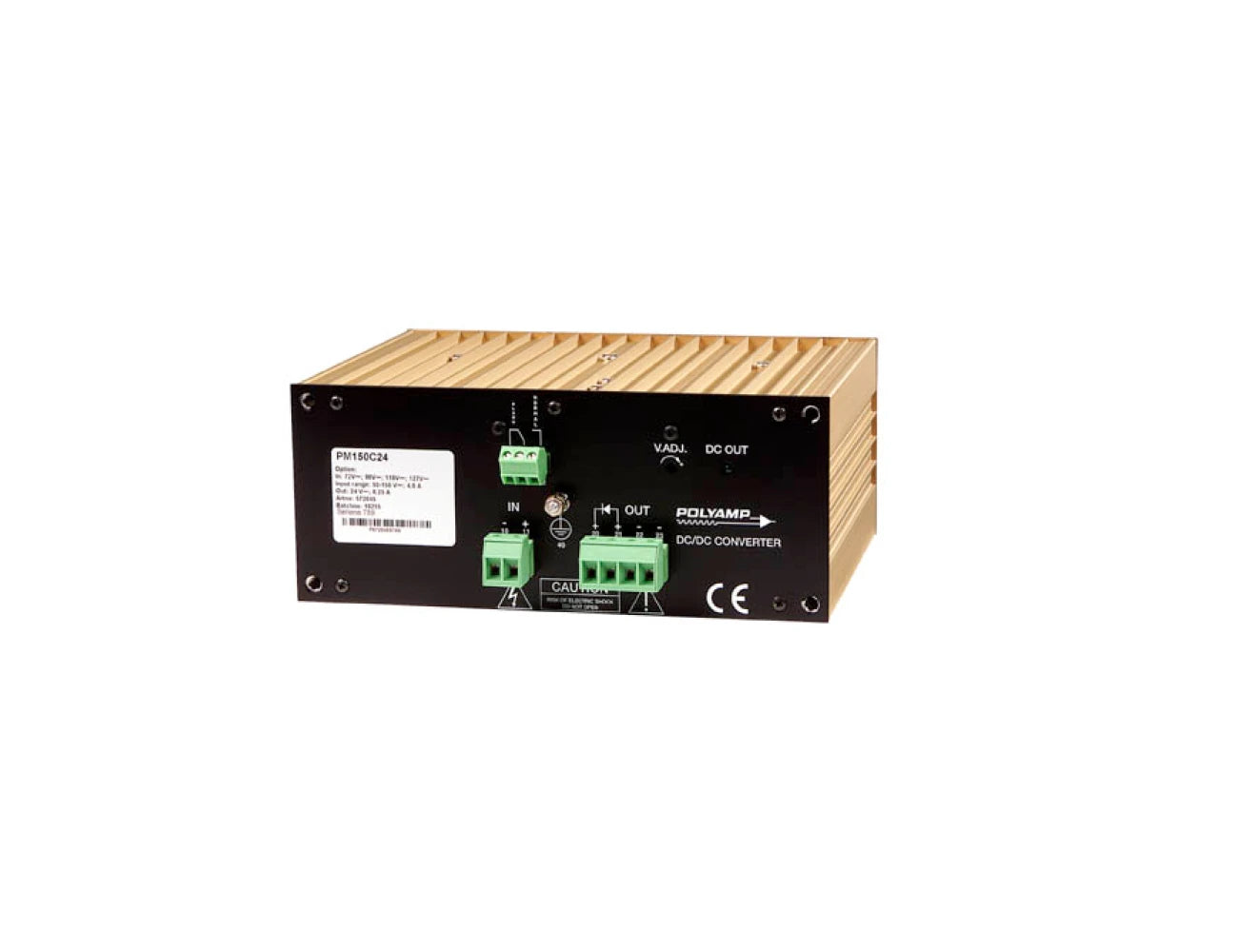

Polyamp PM150 SERIES DC/DC Converter
The Polyamp PM150 Series DC/DC Converter is a compact, reliable, and efficient power solution for industrial, railway, and telecommunications applications. Designed to deliver consistent performance, it ensures power reliability in demanding environments. Key features include a wide input voltage range (10–270 V DC) and single output options fro...
Read MoreThe Polyamp PM150 Series DC/DC Converter is a compact, reliable, and efficient power solution for industrial, railway, and telecommunications applications. Designed to deliver consistent performance, it ensures power reliability in demanding environments.
Key features include a wide input voltage range (10–270 V DC) and single output options from 12V to 48V DC, with power outputs ranging from 120W to 150W. The PM150 Series offers reverse input voltage protection, overvoltage protection (OVP), and an adjustable output voltage for precise control. Additional features include over/undervoltage alarm relays and optional inrush current limit for enhanced functionality.
The PM150 Series is fully encapsulated to meet IP20 standards and operates efficiently at up to 88%, with an operating temperature range of -25°C to +70°C (with derating). Versatile mounting options include wall, DIN rail, and 19” rack configurations, ensuring easy integration into a variety of systems.
The Polyamp PM150 Series is an ideal choice for dependable, efficient, and versatile power solutions.
Show Less
Features
- 120 to 150W Industrial Grade Converter
- Optimized input voltage ranges
- Input ranges from 10 to 270Vdc
- Single outputs from 12 to 48Vdc
- Reverse input voltage protection
- Overvoltage Protection OVP
- Extra output with series diode
- Over/under voltage alarm with relay output
- Output voltage adjustable on front panel
- 19' Rack Mount or DIN Mount or Wall Mount
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage |
A: 10-30Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current | Add suffix “N” to model number | ||||||||||||||||||||||||||||||||||||||||||||||||
| Soft start | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage adjustment | -5% to +10% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output current | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output power | 120W - 150W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple & noise | 15–30mV pk-pk typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Line regulation | 0.1% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation | 0.3%, 0%–100% load | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature coefficient | 0.02% per °C | ||||||||||||||||||||||||||||||||||||||||||||||||
| No load power | 9W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Transient response | <1ms for 10/90% load step to within 3% of nominal |
||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reverse polarity protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Overcurrent protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Overvoltage protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation |
Input- Output: 2kVdc (input code A,B) |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature | -25°C to 55°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature | -40°C to 85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| OPERATING | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Efficiency | 80%–88%, | ||||||||||||||||||||||||||||||||||||||||||||||||
| Switching frequency | 30kHz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm facilities | Contacts for undervoltage, overvoltage | ||||||||||||||||||||||||||||||||||||||||||||||||
| Indicators | DC on LED | ||||||||||||||||||||||||||||||||||||||||||||||||
| Series operation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Parallel operation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Series diode | Provided as standard on output | ||||||||||||||||||||||||||||||||||||||||||||||||
| FEATURES | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series Diode | Extra output with series diode, when the output is connected in parallel with other power supplies to achieve redundancy | ||||||||||||||||||||||||||||||||||||||||||||||||
| Over voltage protection | The output voltage is limited to 15% over nominal output voltage by an extra regulation circuit | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Alarm | Over / Under voltage alarm built in relay changes state if converter output voltage is not with 90% to 115% of nominal output. User selects NO or NC relay function. The relay is rated 30V 0.5A | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety standards | IEC60950, EN60950, EN/IEC61204-3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| C-Tick | AS/NZS CISPR11 Group 1, Class A | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC standards | EN1000-6-1-2 EN/IEC61000-4-2 EN/IEC61000-4-3 EN/IEC61000-4-4 EN/IEC61000-4-5 EN/IEC61000-4-6 |
||||||||||||||||||||||||||||||||||||||||||||||||
| EMI standards | EN61000-6-3,EN61000-6-4, EN55011/EN55022 Level B |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | PM150: 88x214x160mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.5kg | ||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting brackets | See Technical Illustrations for mounting options | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | Fully encapsulated, Meets IP20 as standard | ||||||||||||||||||||||||||||||||||||||||||||||||
| Conformal coating | Available as option. Add suffix “I” | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Convection cooling | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
POWER |
|---|---|---|---|---|
| PM150A12 | 10-30V | 12V | 10A | 120W |
| PM150A13.8 | 10-30V | 13.8V | 8.7A | 120W |
| PM150A15 | 10-30V | 15V | 8A | 120W |
| PM150A24 | 10-30V | 24V | 5A | 120W |
| PM150A48 | 10-30V | 48V | 2.5A | 120W |
| PM150B12 | 20-60V | 12V | 12.5A | 150W |
| PM150B13.8 | 20-60V | 13.8V | 10.9A | 150W |
| PM150B15 | 20-60V | 15V | 10A | 150W |
| PM150B24 | 20-60V | 24V | 6.25A | 150W |
| PM150B28 | 20-60V | 28V | 5.36A | 150W |
| PM150B36 | 20-60V | 36V | 4.17A | 150W |
| PM150B48 | 20-60V | 48V | 3.13A | 150W |
| PM150C12 | 50-150V | 12V | 12.5A | 150W |
| PM150C13.8 | 50-150V | 13.8V | 10.9A | 150W |
| PM150C15 | 50-150V | 15V | 10A | 150W |
| PM150C24 | 50-150V | 24V | 6.25A | 150W |
| PM150C28 | 50-150V | 28V | 5.36A | 150W |
| PM150C48 | 50-150V | 48V | 3.13A | 150W |
| PM150D12 | 90-270V | 12V | 12.5A | 150W |
| PM150D13.8 | 90-270V | 13.8V | 10.9A | 150W |
| PM150D15 | 90-270V | 15V | 10A | 150W |
| PM150D24 | 90-270V | 24V | 6.25A | 150W |
| PM150D28 | 90-270V | 28V | 5.36A | 150W |
| PM150D48 | 90-270V | 48V | 3.13A | 150W |

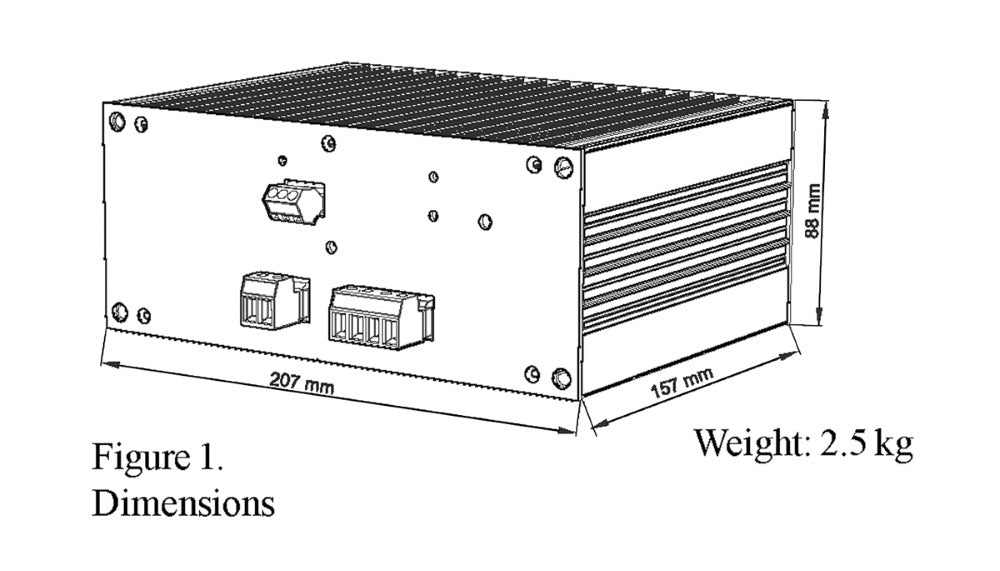

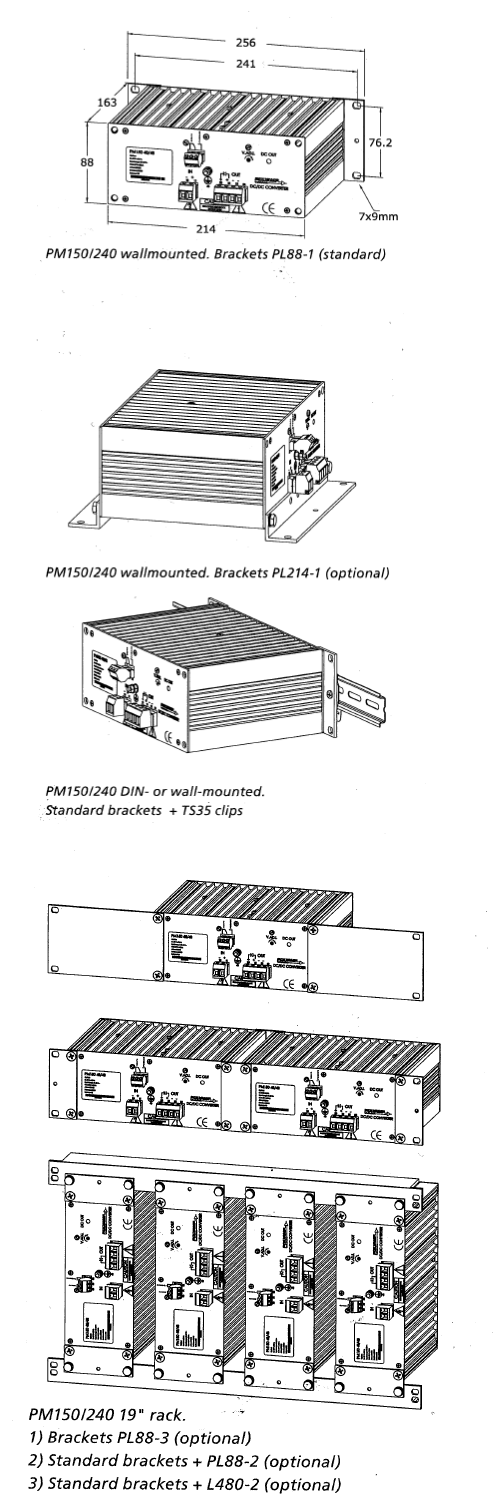

Technical Drawings
