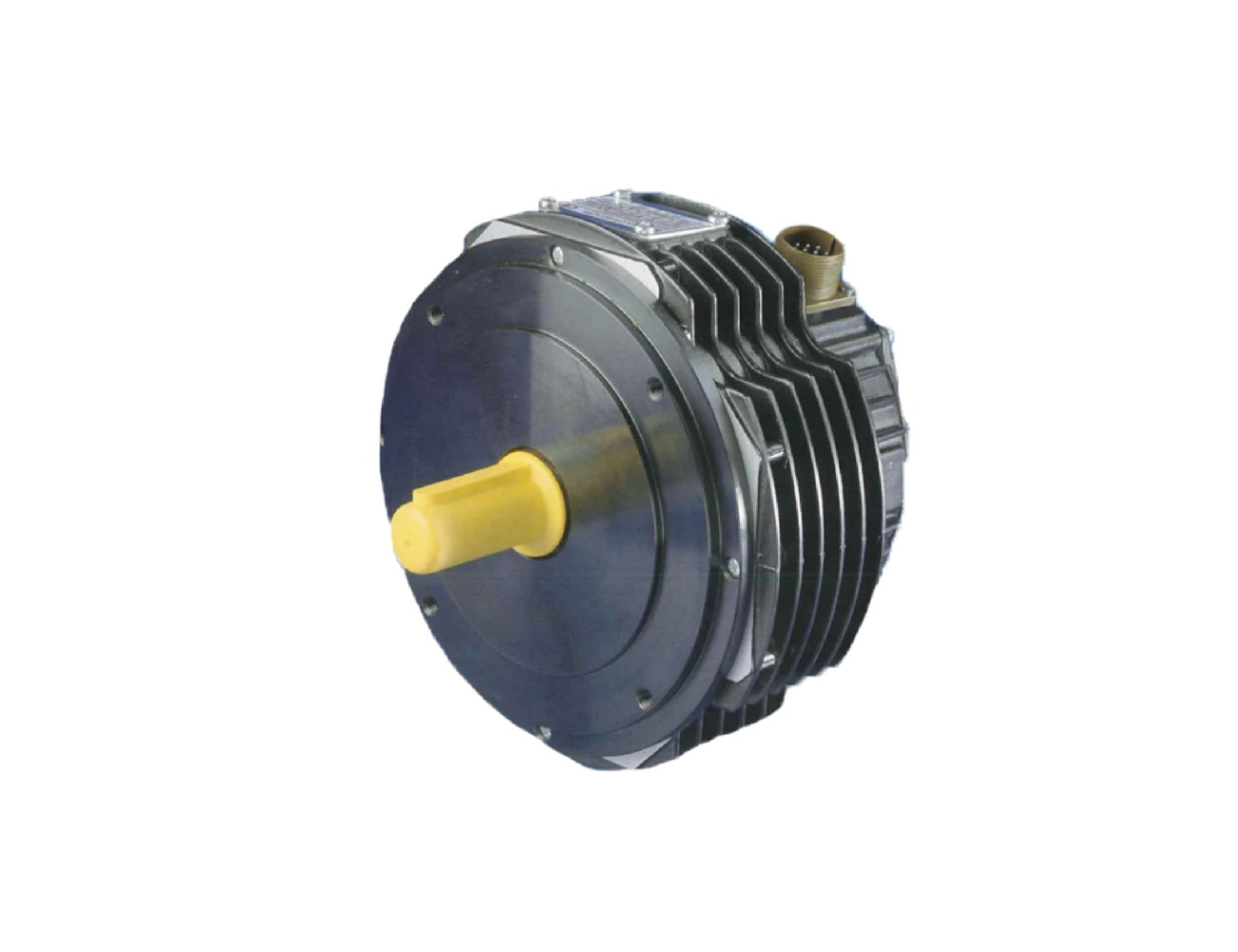

Mavilor MSA-45 SERIES AC Servo Motor
The Mavilor MSA-45 Series AC Servo Motor is an axial motor designed for high-torque industrial applications requiring precision and reliability. Built with advanced brushless technology, the MSA-45 Series provides outstanding performance, efficiency, and durability in demanding environments.
Read More
Features
- Voltage: 400 VAC
- Stall Current: 26.19A
- Stall Torque: 44Nm
- Speed: to 4,500rpm
Selection Table
Downloads
| ALL CHARACTERISTICS MEASURED AT 25°C AMBIENT TEMPERATURE | SYMBOLS | UNITS | MSA-45 |
|---|---|---|---|
| 400 VAC | |||
| MAX MECHANICAL SPEED | n | rpm | 4500 |
| STALL TORQUE ±10% | M | Nm | 44 |
| STALL CURRENT | A | A | 26.19 |
| PEAK TORQUE ±10% | M | Nm | 176 |
| TORQUE-WEIGHT RATIO | T | Nm/kg | 1.63 |
| EMIF CONSTANT ±5% | K | Vs/rad | 0.97 |
| TORQUE CONSTANT ±5% | K | Nm/A | 1.68 |
| RELUCTANCE TORQUE (Respect to the Stall Torque) | T | Nm | <1.5% |
| WINDING RESISTANCE ±5% | R | Ω | 0.41 |
| WINDING INDUCTANCE ±5% | L | mH | 10.90 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 4 |
| MECHANICAL TIME CONSTANT | T | ms | 1.01 |
| ELECTRICAL TIME CONSTANT | T | ms | 26.59 |
| MASS (Motor with resolver) | M | kg | 22 |
| RADIAL LOAD | F | N | 700 |
| AXIAL LOAD | Fa | N | 400 |
| INSULATION | CLASS-F | ||
| PROTECTION | IP-65 | ||
| (1) With an aluminium heat sink plate. |
| ALL CHARACTERISTICS MEASURED AT 25°C AMBIENT TEMPERATURE | SYMBOLS | UNITS | MSA-45 |
|---|---|---|---|
| 400 VAC | |||
| MAX MECHANICAL SPEED | n | rpm | 4500 |
| STALL TORQUE ±10% | M | Nm | 44 |
| STALL CURRENT | A | A | 26.19 |
| PEAK TORQUE ±10% | M | Nm | 176 |
| TORQUE-WEIGHT RATIO | T | Nm/kg | 1.63 |
| EMIF CONSTANT ±5% | K | Vs/rad | 0.97 |
| TORQUE CONSTANT ±5% | K | Nm/A | 1.68 |
| RELUCTANCE TORQUE (Respect to the Stall Torque) | T | Nm | <1.5% |
| WINDING RESISTANCE ±5% | R | Ω | 0.41 |
| WINDING INDUCTANCE ±5% | L | mH | 10.90 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 4 |
| MECHANICAL TIME CONSTANT | T | ms | 1.01 |
| ELECTRICAL TIME CONSTANT | T | ms | 26.59 |
| MASS (Motor with resolver) | M | kg | 22 |
| RADIAL LOAD | F | N | 700 |
| AXIAL LOAD | Fa | N | 400 |
| INSULATION | CLASS-F | ||
| PROTECTION | IP-65 | ||
| (1) With an aluminium heat sink plate. |
Find the Right Model
| Model Number | Stall Torque (Nm) | Max Speed (RPM) | Torque Constant (Nm/A) | ||
|---|---|---|---|---|---|
|
MSA-45-400VAC | 44Nm | 4500RPM | 1.68Nm |
