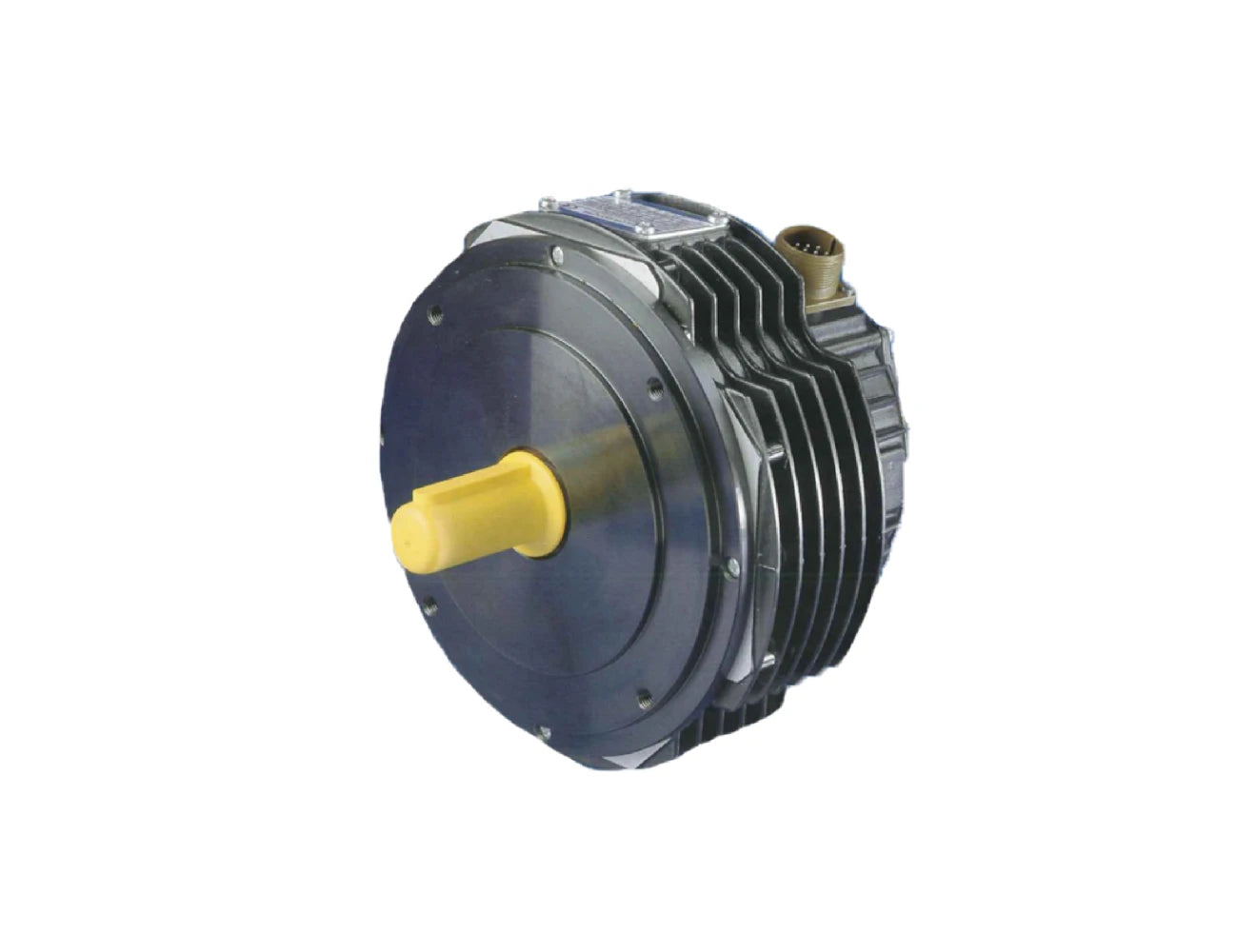

Mavilor MSA-8 SERIES AC Servo Motor
The Mavilor MSA-8 Series AC Servo Motor is a high-performance axial motor engineered for precision-driven industrial applications. Combining advanced brushless technology with a compact axial design, this motor delivers exceptional torque, efficiency, and reliability in demanding environments. With a stall torque of up to 9.0 Nm and a peak torqu...
Read MoreThe Mavilor MSA-8 Series AC Servo Motor is a high-performance axial motor engineered for precision-driven industrial applications. Combining advanced brushless technology with a compact axial design, this motor delivers exceptional torque, efficiency, and reliability in demanding environments.
With a stall torque of up to 9.0 Nm and a peak torque of up to 36 Nm, the MSA-8 Series provides robust performance for heavy-duty operations. It operates at a maximum speed of 6,500 rpm, ensuring smooth and efficient motion control in high-speed applications. Designed for versatility, the MSA-8 Series is compatible with sinusoidal and trapezoidal current waveforms, making integration seamless across diverse motion control systems.
This motor incorporates resolver-based feedback for precise speed and position control, making it ideal for accuracy-critical tasks. Optional Hall Effect sensors enhance synchronisation capabilities, offering flexibility for various industrial automation requirements.
Applications include robotics, CNC machinery, automated material handling, and precision-driven assembly lines where consistent performance and high torque are essential.
The Mavilor MSA-8 Series AC Servo Motor is a reliable solution for engineers and system integrators, combining the benefits of an axial motor design with advanced feedback systems and robust performance. Optimise your operations with this powerful and adaptable servo motor.
Show Less
Features
- Voltage: 400 VDC to 220 - 400 VAC
- Stall Current 9.12 A
- Stall Torque: 9Nm
- Speed: to 6,500rpm
Selection Table
| ALL CHARACTERISTICS MEASURED AT 25°C AMBIENT TEMPERATURE | SYMBOLS | UNITS | MSA-8 | MSA-8 |
|---|---|---|---|---|
| 220VAC | 400 VAC | |||
| MAX MECHANICAL SPEED | n | rpm | 6500 | 6500 |
| STALL TORQUE ±10% | M | Nm | 9 | 9 |
| STALL CURRENT | A | A | 9.12 | 9.12 |
| PEAK TORQUE ±10% | M | Nm | 36 | 36 |
| TORQUE-WEIGHT RATIO | T | Nm/kg | 1.125 | 1.125 |
| EMIF CONSTANT ±5% | K | Vs/rad | 0.57 | 0.57 |
| TORQUE CONSTANT ±5% | K | Nm/A | 0.99 | 0.99 |
| RELUCTANCE TORQUE (Respect to the Stall Torque) | T | Nm | <1.5% | <1.5% |
| WINDING RESISTANCE ±5% | R | Ω | 1.50 | 1.50 |
| WINDING INDUCTANCE ±5% | L | mH | 15.00 | 15.00 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 0.45 | 0.45 |
| MECHANICAL TIME CONSTANT | T | ms | 1.20 | 1.20 |
| ELECTRICAL TIME CONSTANT | T | ms | 10.00 | 10.00 |
| MASS (Motor with resolver) | M | kg | 9 | 9 |
| RADIAL LOAD | F | N | 410 | 410 |
| AXIAL LOAD | Fa | N | 225 | 225 |
| INSULATION | CLASS-F | CLASS-F | ||
| PROTECTION | IP-65 | IP-65 | ||
| (1) With an aluminium heat sink plate. | 400x400x10 |
