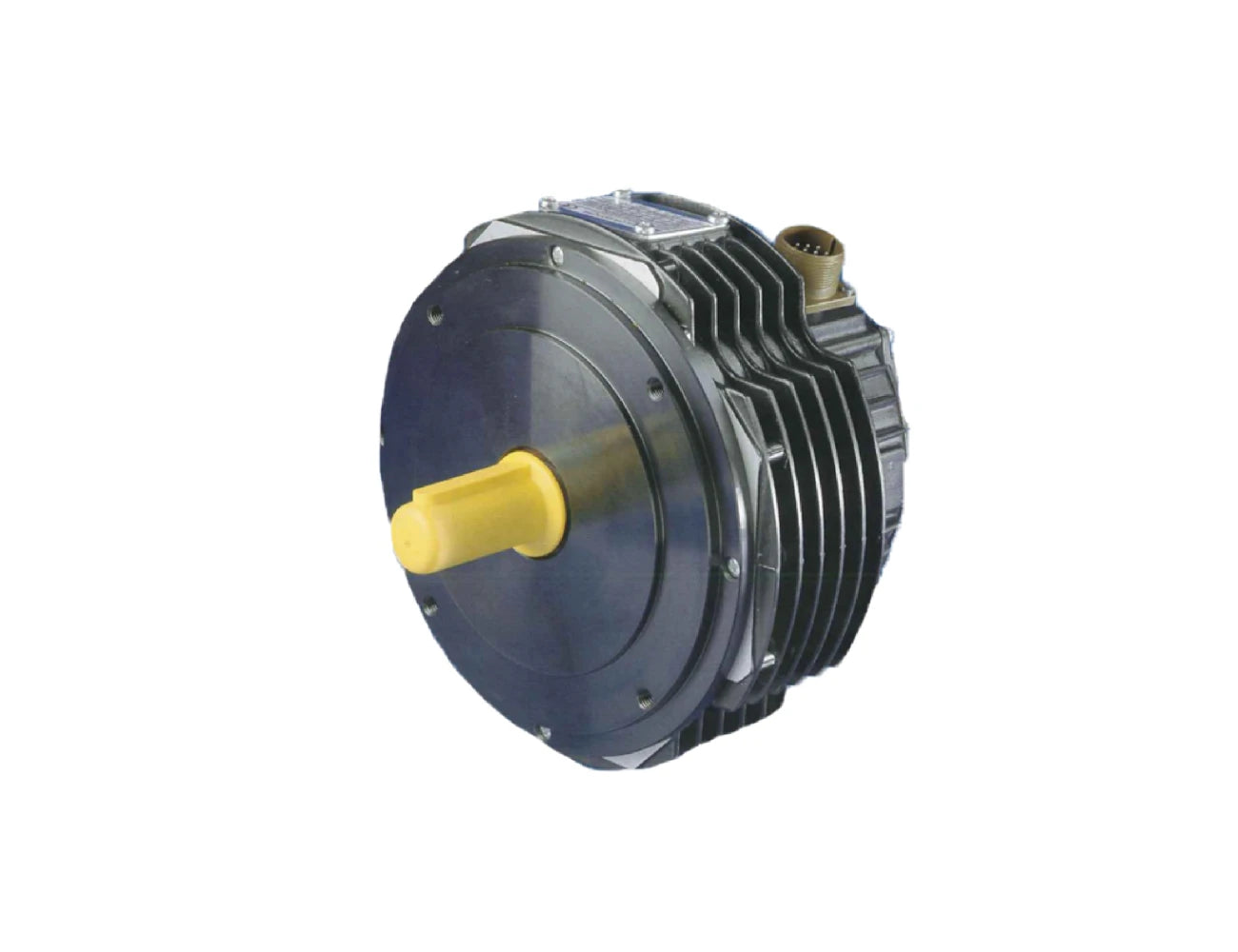

Mavilor MSA-2 SERIES AC Servo Motor
The Mavilor MSA-2 Series AC Servo Motor is a compact axial motor designed for applications requiring precision, reliability, and efficiency. With its advanced brushless technology and high-performance feedback systems, the MSA-2 Series provides exceptional motion control for a wide range of industrial environments. With a stall torque of up to 1...
Read MoreThe Mavilor MSA-2 Series AC Servo Motor is a compact axial motor designed for applications requiring precision, reliability, and efficiency. With its advanced brushless technology and high-performance feedback systems, the MSA-2 Series provides exceptional motion control for a wide range of industrial environments.
With a stall torque of up to 1.9 Nm and a peak torque of up to 7.6 Nm, the MSA-2 Series delivers consistent power for demanding tasks. Operating at a maximum speed of 10,000 rpm, this motor ensures smooth and responsive performance even in high-speed applications. Its compatibility with sinusoidal and trapezoidal current waveforms allows seamless integration into diverse motion control systems.
The MSA-2 Series features resolver-based feedback for precise speed and position control, making it ideal for accuracy-critical applications. Optional Hall Effect sensors provide efficient synchronisation, enhancing versatility across various control setups.
Perfect for robotics, CNC machinery, automated assembly lines, and material handling systems, the MSA-2 Series is designed to meet the challenges of modern industrial automation with ease.
The Mavilor MSA-2 Series AC Servo Motor combines the benefits of an axial motor design with robust torque, precision control, and adaptability, making it a dependable choice for engineers seeking advanced motion control solutions.
Show Less
Features
- Voltage: 220 / 400 VAC
- Stall Current: 3.54 - 5.48A
- Stall Torque: 1.9Nm
- Speed: to 10,000rpm
- Peak Torque +/- 10% - 7.6 Nm
- Torque-Weight Ratio - 0.70 Nm/kg
Selection Table
| ALL CHARACTERISTICS MEASURED AT 25°C AMBIENT TEMPERATURE | SYMBOLS | UNITS | MSA-2 | MSA-2 |
|---|---|---|---|---|
| 220 VAC | 400VAC | |||
| MAX MECHANICAL SPEED | n | rpm | 10000 | 10000 |
| STALL TORQUE ±10% | M | Nm | 1.9 | 1.9 |
| STALL CURRENT | A | A | 5.48 | 3.54 |
| PEAK TORQUE ±10% | M | Nm | 7.6 | 7.6 |
| TORQUE-WEIGHT RATIO | T | Nm/kg | 0.70 | 0.70 |
| EMIF CONSTANT ±5% | K | Vs/rad | 0.20 | 0.31 |
| TORQUE CONSTANT ±5% | K | Nm/A | 0.35 | 0.54 |
| RELUCTANCE TORQUE (Respect to the Stall Torque) | T | Nm | <1.5% | <1.5% |
| WINDING RESISTANCE ±5% | R | Ω | 2.90 | 7.07 |
| WINDING INDUCTANCE ±5% | L | mH | 11.50 | 28.00 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 0.05 | 0.05 |
| MECHANICAL TIME CONSTANT | T | ms | 2.09 | 2.12 |
| ELECTRICAL TIME CONSTANT | T | ms | 3.97 | 3.96 |
| MASS (Motor with resolver) | M | kg | 3 | 3 |
| RADIAL LOAD | F | N | 218 | 218 |
| AXIAL LOAD | Fa | N | 218 | 218 |
| INSULATION | CLASS-F | CLASS-F | ||
| PROTECTION | IP-65 | IP-65 | ||
| (1) With an aluminium heat sink plate. | 300x300x10 |
