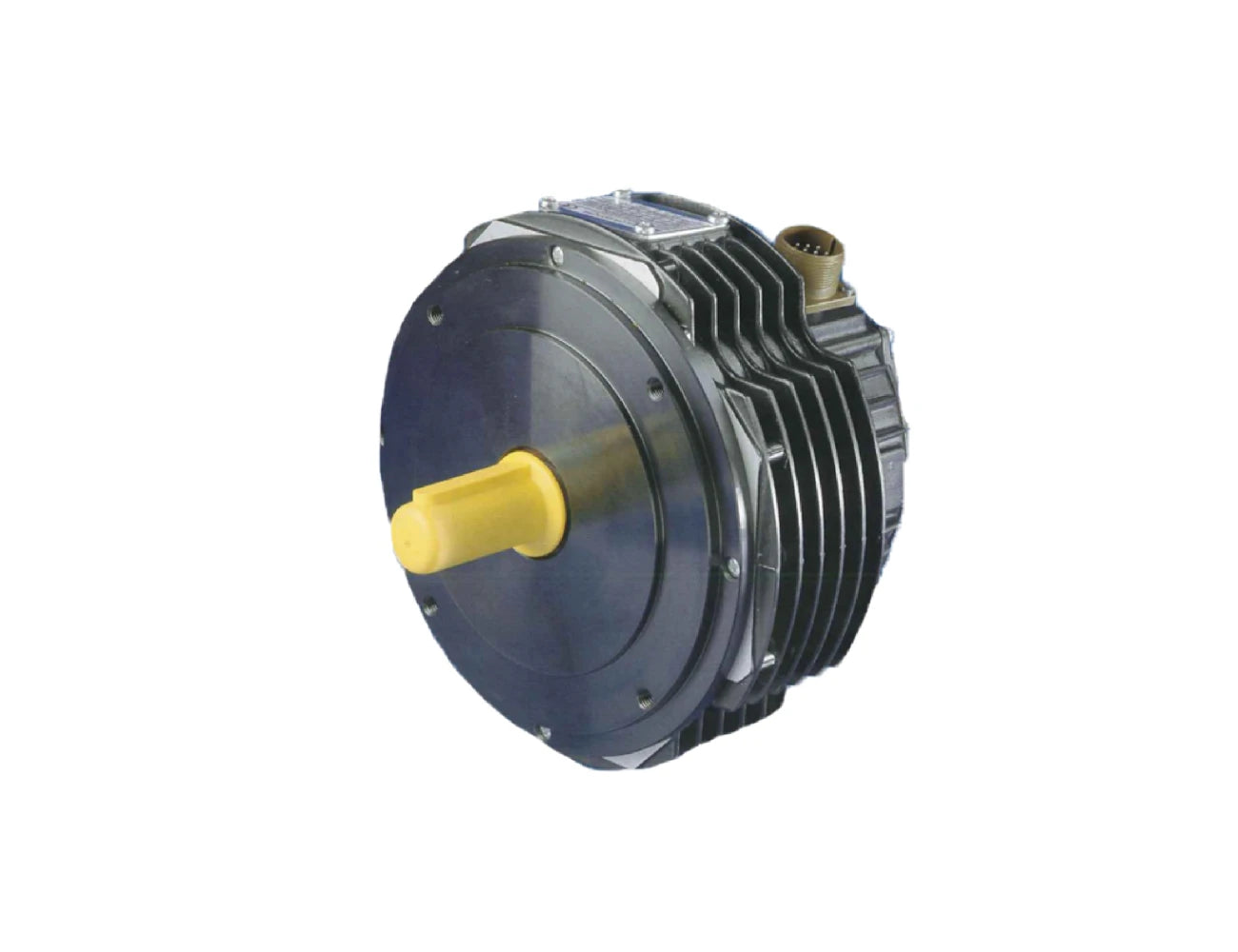

Mavilor MSA-22 SERIES AC Servo Motor
The Mavilor MSA-22 Series AC Servo Motor is a powerful axial motor designed to deliver exceptional torque and reliability for heavy-duty industrial applications. With its advanced brushless design and precision feedback systems, the MSA-22 Series excels in demanding environments requiring high performance and adaptability. This motor features a ...
Read MoreThe Mavilor MSA-22 Series AC Servo Motor is a powerful axial motor designed to deliver exceptional torque and reliability for heavy-duty industrial applications. With its advanced brushless design and precision feedback systems, the MSA-22 Series excels in demanding environments requiring high performance and adaptability.
This motor features a stall torque of up to 22 Nm and a peak torque of up to 26 Nm, making it ideal for handling large loads with ease. Operating at a maximum speed of 6,000 rpm, it ensures smooth, consistent motion control for high-speed tasks. Compatibility with sinusoidal and trapezoidal current waveforms provides seamless integration into diverse automation systems.
The MSA-22 Series incorporates resolver technology for precise speed and position feedback, ensuring high accuracy in critical applications. Optional Hall Effect sensors enhance synchronisation capabilities, offering flexibility for various industrial setups.
Applications include robotics, large-scale CNC machinery, automated material handling systems, and other industrial processes where reliable high-torque performance is required.
The Mavilor MSA-22 Series AC Servo Motor combines robust power, precision control, and the unique benefits of an axial motor design, making it a trusted solution for engineers and system integrators looking for dependable motion control solutions.
Show Less
Features
- Voltages: 220 / 400 VAC
- Stall Current: 15.97 - 27.85A
- Stall Torque: 26Nm
- Speed: to 6,000rpm
Selection Table
| ALL CHARACTERISTICS MEASURED AT 25°C AMBIENT TEMPERATURE | SYMBOLS | UNITS | MSA-22 | MSA-22 |
|---|---|---|---|---|
| 220VAC | 400 VAC | |||
| MAX MECHANICAL SPEED | n | rpm | 6000 | 6000 |
| STALL TORQUE ±10% | M | Nm | 26 | 26 |
| STALL CURRENT | A | A | 27.85 | 15.97 |
| PEAK TORQUE ±10% | M | Nm | 104 | 104 |
| TORQUE-WEIGHT RATIO | T | Nm/kg | 1.48 | 1.48 |
| EMIF CONSTANT ±5% | K | Vs/rad | 0.54 | 0.94 |
| TORQUE CONSTANT ±5% | K | Nm/A | 0.93 | 1.63 |
| RELUCTANCE TORQUE (Respect to the Stall Torque) | T | Nm | <1.5% | <1.5% |
| WINDING RESISTANCE ±5% | R | Ω | 0.26 | 0.78 |
| WINDING INDUCTANCE ±5% | L | mH | 5.56 | 14.00 |
| ROTOR INERTIA | J | kg m² 10⁻³ | 2.3 | 2.3 |
| MECHANICAL TIME CONSTANT | T | ms | 1.19 | 1.17 |
| ELECTRICAL TIME CONSTANT | T | ms | 21.38 | 17.55 |
| MASS (Motor with resolver) | M | kg | 18 | 18 |
| RADIAL LOAD | F | N | 600 | 600 |
| AXIAL LOAD | Fa | N | 400 | 400 |
| INSULATION | CLASS-F | CLASS-F | ||
| PROTECTION | IP-65 | IP-65 | ||
| (1) With an aluminium heat sink plate. | 700x700x20 |
