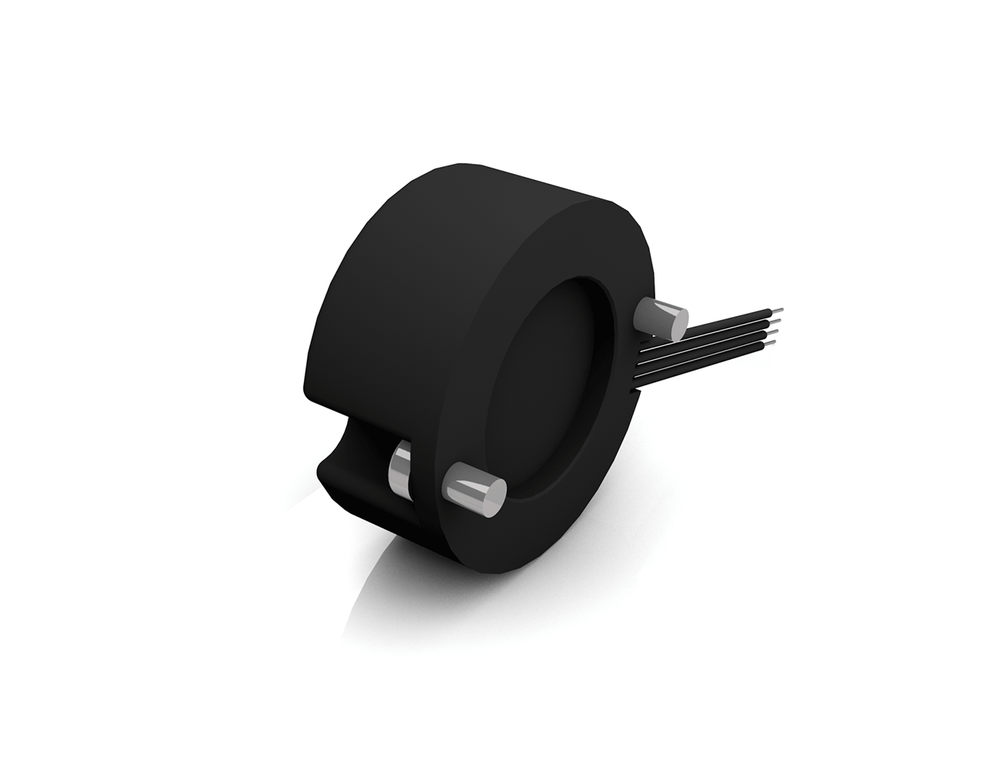

Dunkermotoren ME52 Magnetic Pulse Generator
The Dunkermotoren ME 52 is a magnetic pulse generator that works contact-free and wear-free using Hall sensors and a magnetic ring. It provides 2 ppr or 12 ppr (8 or 48 cpr) depending on version, with open collector plus pull-up output and two square-wave signals 90° phase shifted. The ME 52 is compatible with the GR 42, GR 53, GR 63 and BG 62 d...
Read MoreThe Dunkermotoren ME 52 is a magnetic pulse generator that works contact-free and wear-free using Hall sensors and a magnetic ring. It provides 2 ppr or 12 ppr (8 or 48 cpr) depending on version, with open collector plus pull-up output and two square-wave signals 90° phase shifted. The ME 52 is compatible with the GR 42, GR 53, GR 63 and BG 62 dCore motor series.
Supply voltage ranges from 5 Vdc to 26.5 Vdc, with a minimum of 7.5 Vdc required below 0°C. The ME 52 RR variant meets the requirements of EN 50155 for railway rolling stock. Protective hoods in IP 54 or higher are available on request.
Show Less
Features
- Hall-sensor and magnetic-ring sensing runs contact-free, so there are no wear surfaces to service on high-cycle machinery
- Choose 2 ppr or 12 ppr (8 or 48 cpr) to match the feedback resolution to the axis instead of over-specifying the controller
- Two square-wave channels 90° apart resolve direction as well as speed, so reversing loads are tracked correctly
- Open collector with pull-up already fitted connects straight to controller inputs — no external resistor network to add
- 5–26.5 Vdc supply spans common 12 V and 24 V control rails, with a 7.5 Vdc minimum below 0°C for cold-start installations
- ME 52 RR variant meets EN 50155, opening the same feedback design up to railway rolling-stock projects
Specifications
| Dunkermotoren ME 52 Magnetic Pulse Generator Specifications | |
|---|---|
| Encoder Type | Magnetic Pulse Generator |
| Compatible Motor Series | GR 42, GR 53, GR 63, BG 62 dCore |
| Resolution | |
| Pulses per Channel (GR 42 / GR 53) | 2 ppr or 12 ppr |
| Counts per Revolution (GR 42 / GR 53) | 8 cpr or 48 cpr |
| Output Signal | 2 square wave signals, 90° phase shift |
| Electrical | |
| Nominal Voltage | 24 Vdc |
| Supply Voltage Min. | 5 Vdc (7.5 Vdc minimum below 0°C) |
| Supply Voltage Max. | 26.5 Vdc |
| Input Current | 20 mA |
| Output Type | Open collector + pull-up |
| Output Voltage (Low max.) | 0.5 Vdc |
| Rise Time | 1 µs (RL=1k2Ω, CL=20pF) |
| Fall Time | 1 µs (RL=1k2Ω, CL=20pF) |
| Signal Pulse Width (GR 42) | 180° ±15° |
| Signal Pulse Width (GR 53) | 180° ±30° |
| Signal Phase Shift (GR 42) | 90° ±15° |
| Signal Phase Shift (GR 53) | 90° ±40° |
| Environmental | |
| Operating Temperature | −25 to +85°C |
| Protection Class | IP 30 (IP 54 or higher on request) |
| Technology | |
| Sensing Method | Hall sensors and magnetic ring |
| Wear | Contact-free, wear-free |
| Rail Standard | ME 52 RR variant meets EN 50155 |
| Connection | |
| Lead-Out Wires | 4 leads, AWG24, 500 mm |
| Lead Assignment | Red = +5 Vdc to +24 Vdc | Yellow = A | Black = 0 V | Green = B |
| Dimensions | |
| Length (ME 52 + GR 42) | L = 23 mm, D = 42 mm |
| Length (ME 52 + GR 53/63) | L = 18 mm, D = 42 mm |
| Notes | ME 52 (GR 42) - For GR 42 motors. 2 ppr or 12 ppr. Open collector + pull-up. Without protective hood. ME 52 (GR 53) - For GR 53 motors. 2 ppr or 12 ppr. Open collector + pull-up. ME 52 (GR 63) - For GR 63 motors. 2 ppr or 12 ppr. Open collector + pull-up. ME 52 RR - Rail-certified variant. Meets EN 50155 requirements. GR 42 and GR 53/63 compatible. |

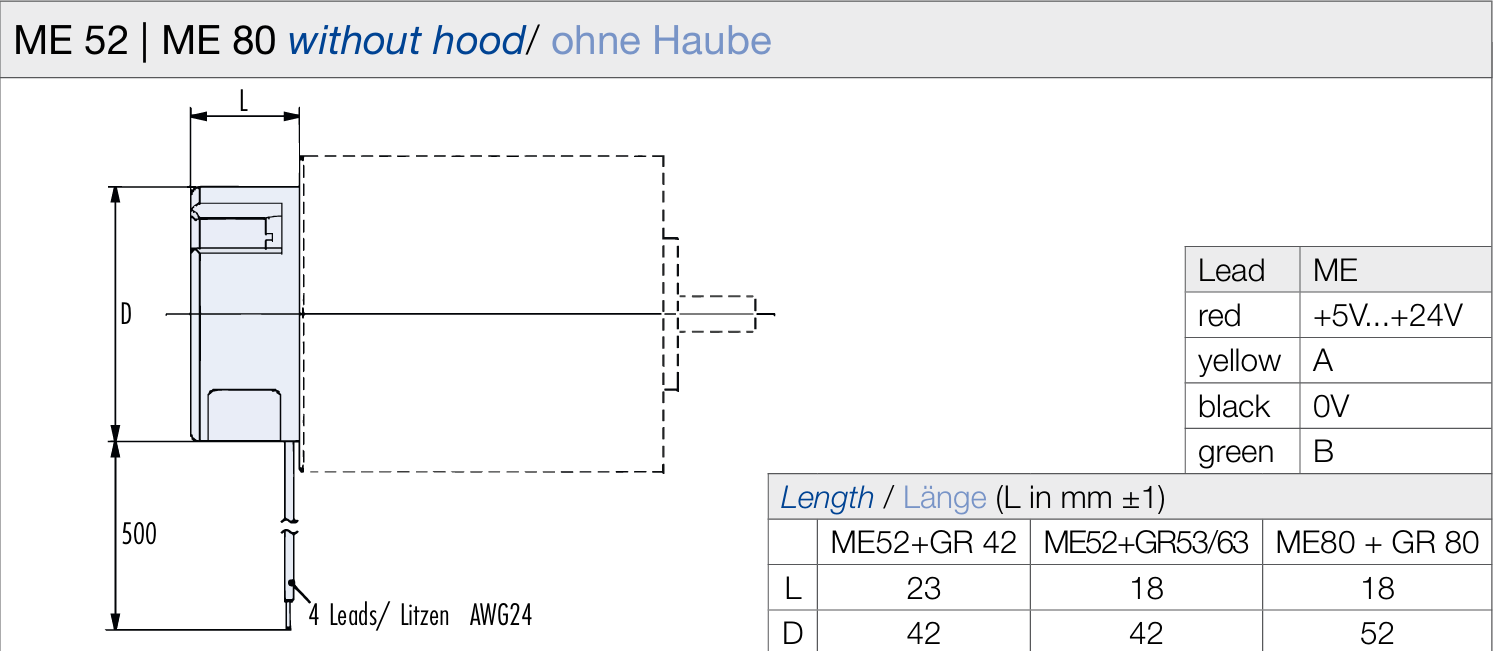

Technical Drawings
