Dunkermotoren BG 95 dPro PN/EC/EI Brushless DC Motor

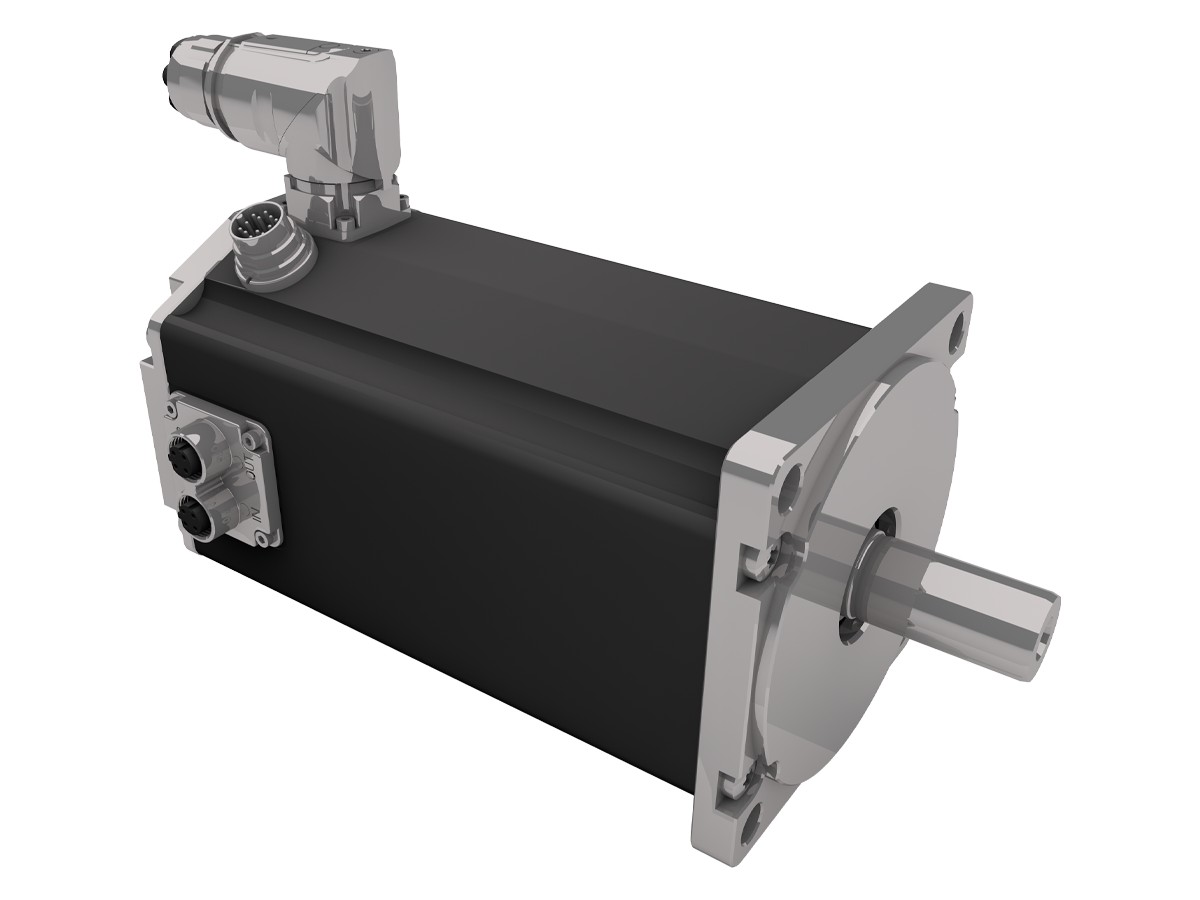

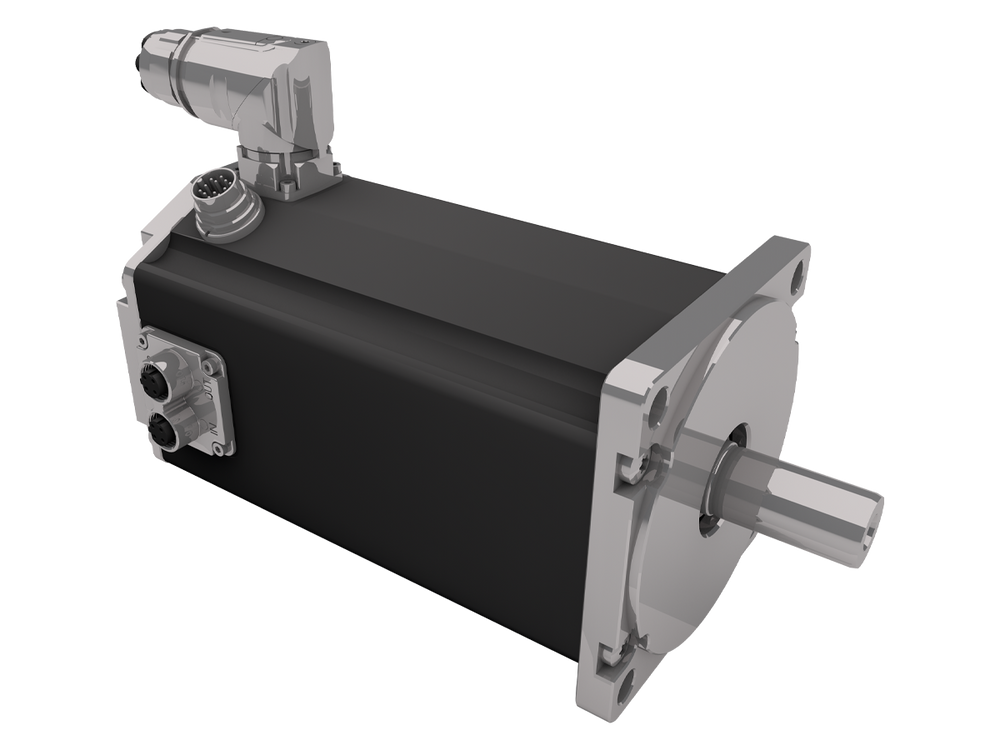

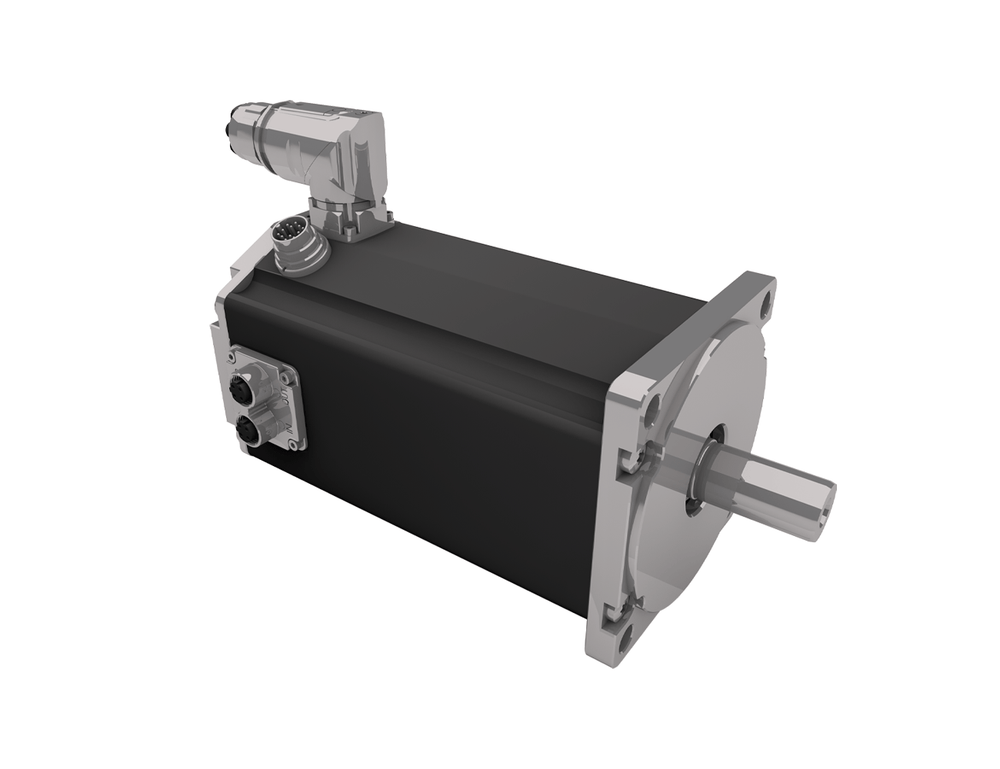

The Dunkermotoren BG 95 dPro PN/EC/EI is a high-power 3-phase EC motor with an integrated 4Q servo controller, high-resolution encoder system MR 1 (4096 cpr), and Safe Torque Off (STO). It is available in three industrial Ethernet variants: PROFINET (PN) — certified for application classes 1 and 4, IRT capable; EtherCAT (EC) — CoE (CAN over EtherCAT) with distributed clocks for real-time operation; and Ethernet/IP (EI) — for integration into ControlLogix Studio.

Read More

View Models
BG 95 dPro PN/EC/EI

Features

  • High-power 3-phase EC motor with integrated 4Q servo controller.
  • High-resolution encoder system MR 1 with 4096 cpr.
  • Safe Torque Off (STO) standard.
  • PROFINET variant (PN): certified, application classes 1 & 4, IRT capable.
  • EtherCAT variant (EC): CoE (CAN over EtherCAT), distributed clocks.
  • Ethernet/IP variant (EI): integration in ControlLogix Studio.
Specifications
BG 95 dPro PN/EC/EI Specifications
Parameter Units BG 95x40
12V		 BG 95x40
24V		 BG 95x40
48V		 BG 95x40
60V		 BG 95x80
24V		 BG 95x80
48V		 BG 95x80
60V		 BG 95x120
48V		 BG 95x120
60V
Nominal voltage VDC 12 24 48 60 24 48 60 48 60
Nominal current A* 50 40.5 20 15.7 48.5 25.7 20.5 31.4 25
Nominal torque Nm* 1.7 2.16 2.14 1.99 2.54 2.78 2.75 3.8 3.5
Nominal speed rpm* 3900 3810 3910 4120 3915 3870 3910 3740 3900
Maximum torque Nm** 6.5 7.9 8.13 8.05 9.24 10.37 11.75 10.6 14.5
No load speed rpm* 4400 3950 3960 4125 3900 3790 3810 4200 4200
Nominal output power W** 700 862 876 859 1040 1127 1126 1390 1370
Maximum output power W** 1700 2100 2268 2286 2920 3377 3865 4400 4400
Torque constant Nm A⁻¹*** 0.12 0.057 0.114 0.134 0.058 0.117 0.145 0.12 0.12
Peak current A** - 124 62 51 147 82 74 102 97
Voltage range (power) VDC 5…52 5…52 5...66 5...86 5…52 5...66 5...86 5…66 5…86
Rotor inertia gcm² 950 950 950 950 1890 1890 1890 2830 2830
Weight of motor kg 3.5 3.5 3.5 3.5 5.1 5.1 5.1 6.7 6.7
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point ****) limited by software
Downloads
Datasheet_BG95_dPro_PN-EC-EI.pdf
BG 95 dPro PN/EC/EI Specifications
Parameter Units BG 95x40
12V		 BG 95x40
24V		 BG 95x40
48V		 BG 95x40
60V		 BG 95x80
24V		 BG 95x80
48V		 BG 95x80
60V		 BG 95x120
48V		 BG 95x120
60V
Nominal voltage VDC 12 24 48 60 24 48 60 48 60
Nominal current A* 50 40.5 20 15.7 48.5 25.7 20.5 31.4 25
Nominal torque Nm* 1.7 2.16 2.14 1.99 2.54 2.78 2.75 3.8 3.5
Nominal speed rpm* 3900 3810 3910 4120 3915 3870 3910 3740 3900
Maximum torque Nm** 6.5 7.9 8.13 8.05 9.24 10.37 11.75 10.6 14.5
No load speed rpm* 4400 3950 3960 4125 3900 3790 3810 4200 4200
Nominal output power W** 700 862 876 859 1040 1127 1126 1390 1370
Maximum output power W** 1700 2100 2268 2286 2920 3377 3865 4400 4400
Torque constant Nm A⁻¹*** 0.12 0.057 0.114 0.134 0.058 0.117 0.145 0.12 0.12
Peak current A** - 124 62 51 147 82 74 102 97
Voltage range (power) VDC 5…52 5…52 5...66 5...86 5…52 5...66 5...86 5…66 5…86
Rotor inertia gcm² 950 950 950 950 1890 1890 1890 2830 2830
Weight of motor kg 3.5 3.5 3.5 3.5 5.1 5.1 5.1 6.7 6.7
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point ****) limited by software
Datasheet_BG95_dPro_PN-EC-EI.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG 95x40-12 dPro PN/EC/EI 12Vdc 1.7Nm 3900rpm
product variant BG 95x40-24 dPro PN/EC/EI 24Vdc 2.16Nm 3810rpm
product variant BG 95x40-48 dPro PN/EC/EI 48Vdc 2.14Nm 3910rpm
product variant BG 95x40-60 dPro PN/EC/EI 60Vdc 1.99Nm 4120rpm
product variant BG 95x80-24 dPro PN/EC/EI 24Vdc 2.54Nm 3915rpm
product variant BG 95x80-48 dPro PN/EC/EI 48Vdc 2.78Nm 3870rpm
product variant BG 95x80-60 dPro PN/EC/EI 60Vdc 2.75Nm 3910rpm
product variant BG 95x120-48 dPro PN/EC/EI 48Vdc 3.8Nm 3740rpm
product variant BG 95x120-60 dPro PN/EC/EI 60Vdc 3.5Nm 3900rpm
