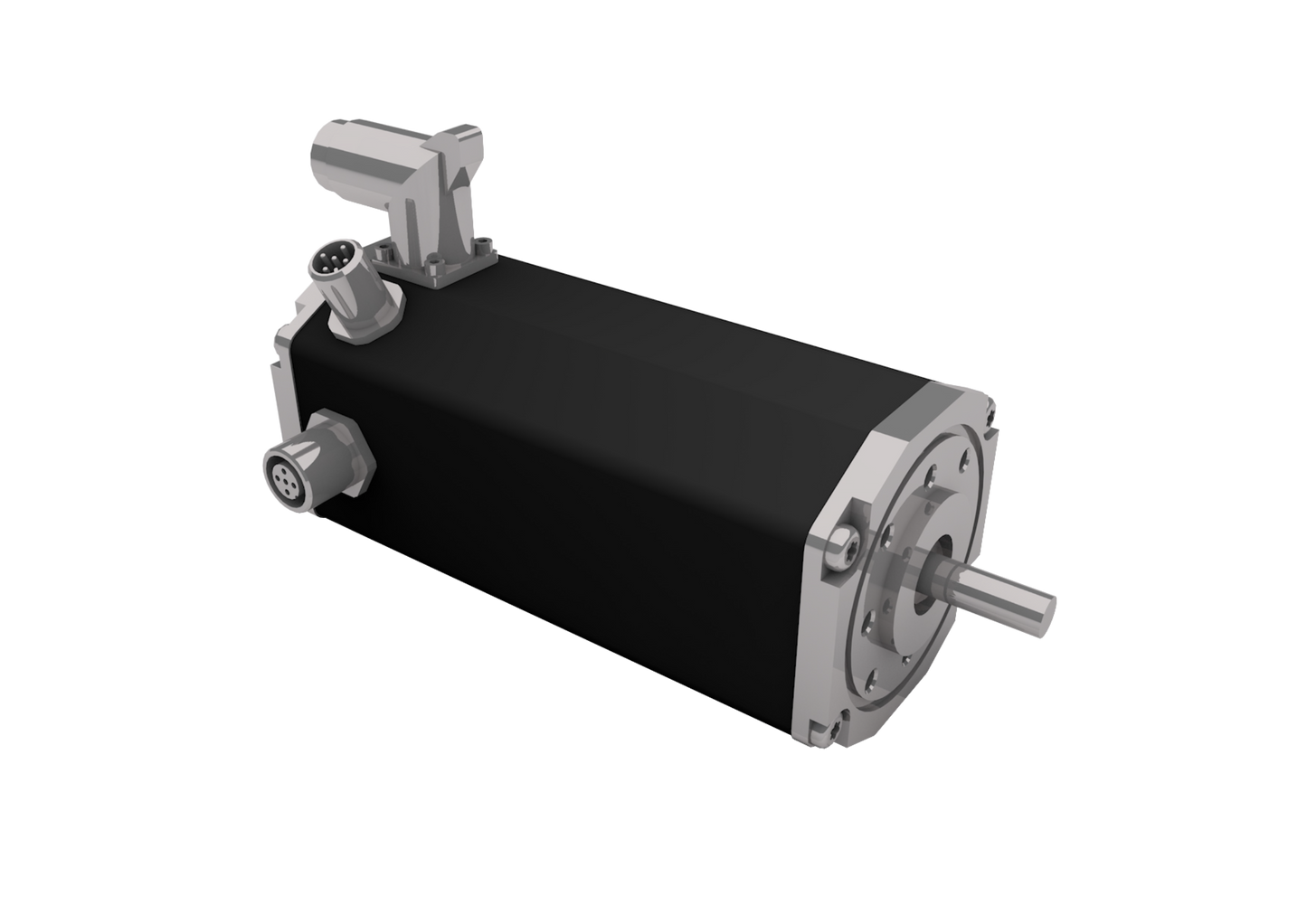

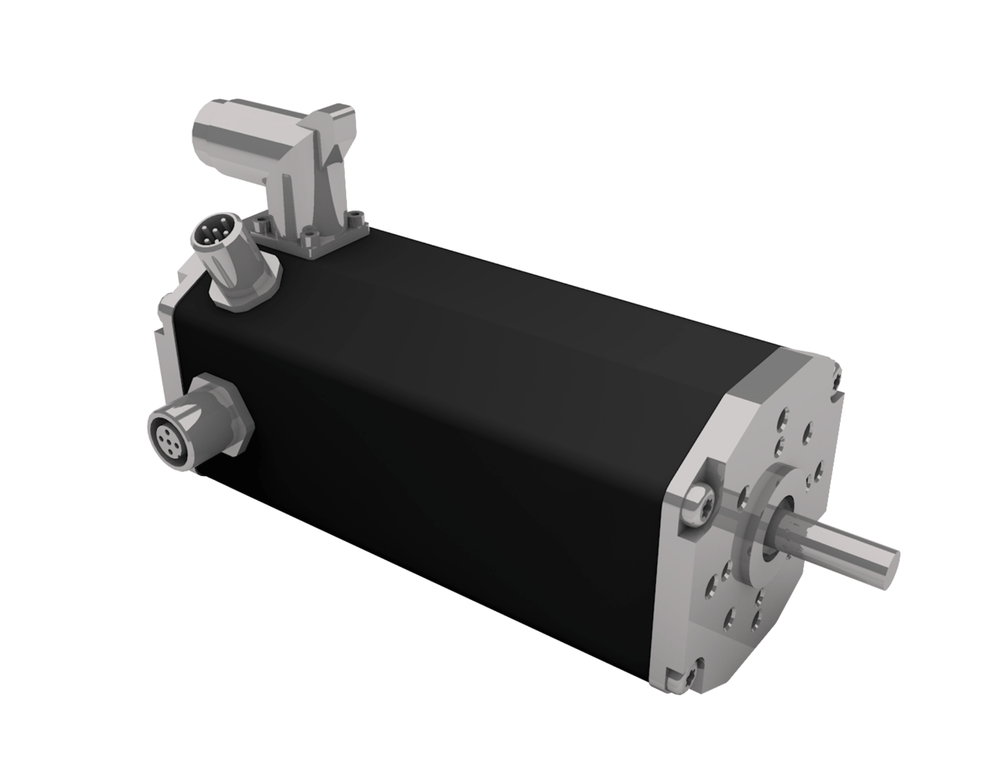

Dunkermotoren BG 66 dPro CO/IO Brushless DC Motor

The Dunkermotoren BG 66 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy, an extended usable speed range, and excellent control characteristics. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 482 W (thermally connected) and peak output power up to 732 W.

Read More

View Models
bg66x50_dpro_co_

Features

  • 3-phase EC motor with integrated 4Q servo controller.
  • Field-oriented control (FOC) with sinusoidal vector control.
  • Integrated magnetic encoder MR 1 with 4096 cpr for high positioning accuracy.
  • Control via CANopen (CO) or stand-alone IO mode.
  • Fully CiA 402 compatible.
  • 5 configurable digital inputs, 1 analogue input, 3 digital outputs.
Specifications
BG 66 dPro CO/IO Specifications
Parameter Units BG 66x25
12V		 BG 66x25
24V		 BG 66x25
48V		 BG 66x50
24V		 BG 66x50
48V		 BG 66x75
48V
Nominal voltage VDC 12 24 48 24 48 48
Nominal current
(thermally connected / insulated)		 A* 14.0 / 13.5 11.3 / 8.0 5.4 / 4 14.0 / 11.2 8.3 / 5.8 11.9 / 7.1
Nominal torque
(thermally connected / insulated)		 Nm* 0.33 / 0.31 0.62 / 0.40 0.62 / 0.42 0.83 / 0.61 1.04 / 0.65 1.46 / 0.77
Nominal speed
(thermally connected / insulated)		 rpm* 3900 / 4030 3300 / 3820 3170 / 3660 3200 / 3530 3030 / 3500 3160 / 3690
Maximum torque Nm** 0.77 1 1.03 1.85 2.05 3.06
No load speed rpm* 4700 4620 4380 3800 3780 3750
Nominal output power
(thermally connected / insulated)		 W** 135 / 129 213 / 159 206 / 159 277 / 226 330 / 238 482 / 296
Maximum output power W 224 269 277 446 485 732
Torque constant Nm A⁻¹*** 0.025 0.064 0.14 0.071 0.13 0.13
Peak current A** 27 16.5 7.75 26 13.6 20.1
Voltage range (power) VDC 3…58 3…58 3…58 3…58 3…58 3…58
Rotor inertia gcm² 70 70 70 129 129 188
Weight of motor kg 1.08 1.2 1.2 1.65 1.65 2.1
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
Downloads
bg_66_dpro_CO-IO.pdf
BG 66 dPro CO/IO Specifications
Parameter Units BG 66x25
12V		 BG 66x25
24V		 BG 66x25
48V		 BG 66x50
24V		 BG 66x50
48V		 BG 66x75
48V
Nominal voltage VDC 12 24 48 24 48 48
Nominal current
(thermally connected / insulated)		 A* 14.0 / 13.5 11.3 / 8.0 5.4 / 4 14.0 / 11.2 8.3 / 5.8 11.9 / 7.1
Nominal torque
(thermally connected / insulated)		 Nm* 0.33 / 0.31 0.62 / 0.40 0.62 / 0.42 0.83 / 0.61 1.04 / 0.65 1.46 / 0.77
Nominal speed
(thermally connected / insulated)		 rpm* 3900 / 4030 3300 / 3820 3170 / 3660 3200 / 3530 3030 / 3500 3160 / 3690
Maximum torque Nm** 0.77 1 1.03 1.85 2.05 3.06
No load speed rpm* 4700 4620 4380 3800 3780 3750
Nominal output power
(thermally connected / insulated)		 W** 135 / 129 213 / 159 206 / 159 277 / 226 330 / 238 482 / 296
Maximum output power W 224 269 277 446 485 732
Torque constant Nm A⁻¹*** 0.025 0.064 0.14 0.071 0.13 0.13
Peak current A** 27 16.5 7.75 26 13.6 20.1
Voltage range (power) VDC 3…58 3…58 3…58 3…58 3…58 3…58
Rotor inertia gcm² 70 70 70 129 129 188
Weight of motor kg 1.08 1.2 1.2 1.65 1.65 2.1
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point; 1) see thermally connected/insulated note
bg_66_dpro_CO-IO.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG 66x25-12 dPro CO/IO 12Vdc 0.33Nm 3900rpm
product variant BG 66x25-24 dPro CO/IO 24Vdc 0.62Nm 3300rpm
product variant BG 66x25-48 dPro CO/IO 48Vdc 0.62Nm 3170rpm
product variant BG 66x50-24 dPro CO/IO 24Vdc 0.83Nm 3200rpm
product variant BG 66x50-48 dPro CO/IO 48Vdc 1.04Nm 3030rpm
product variant BG 66x75-48 dPro CO/IO 48Vdc 1.46Nm 3160rpm
