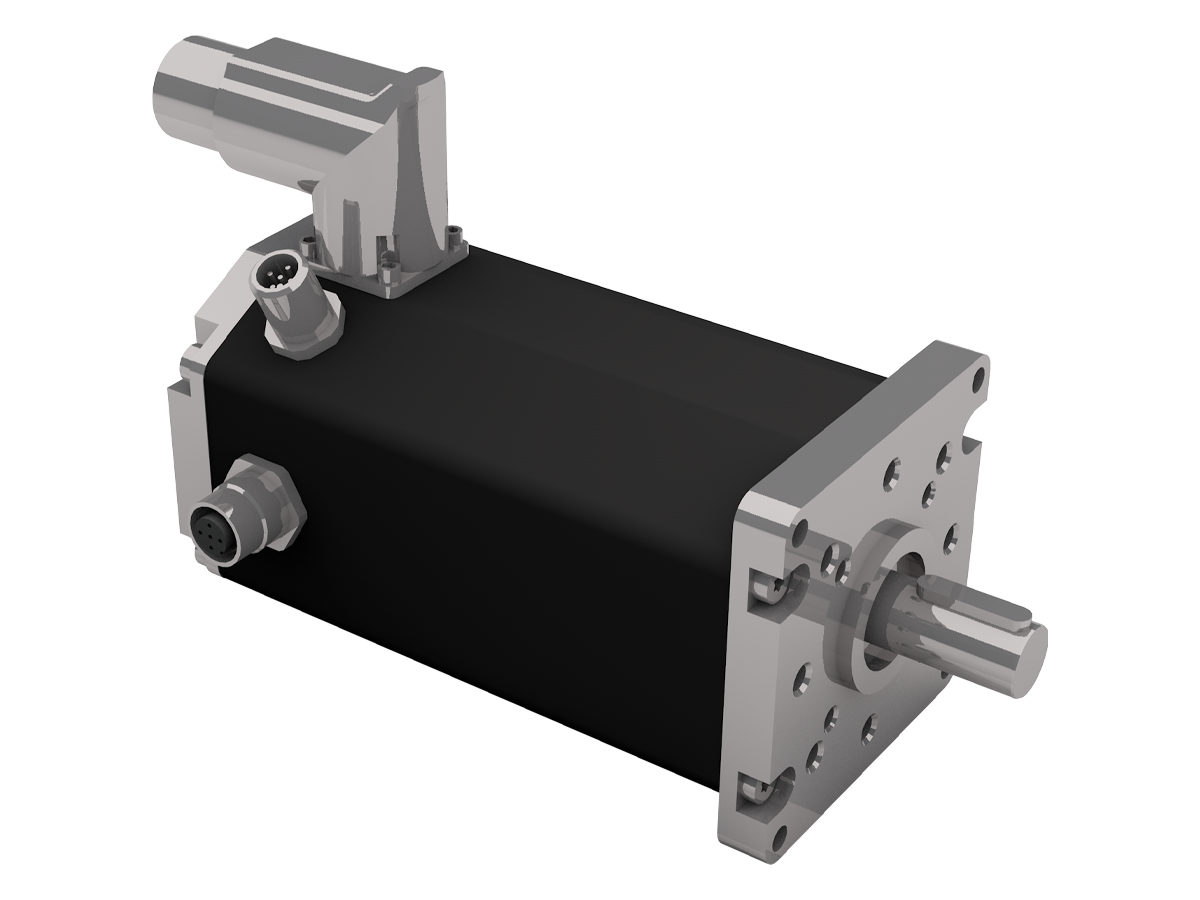

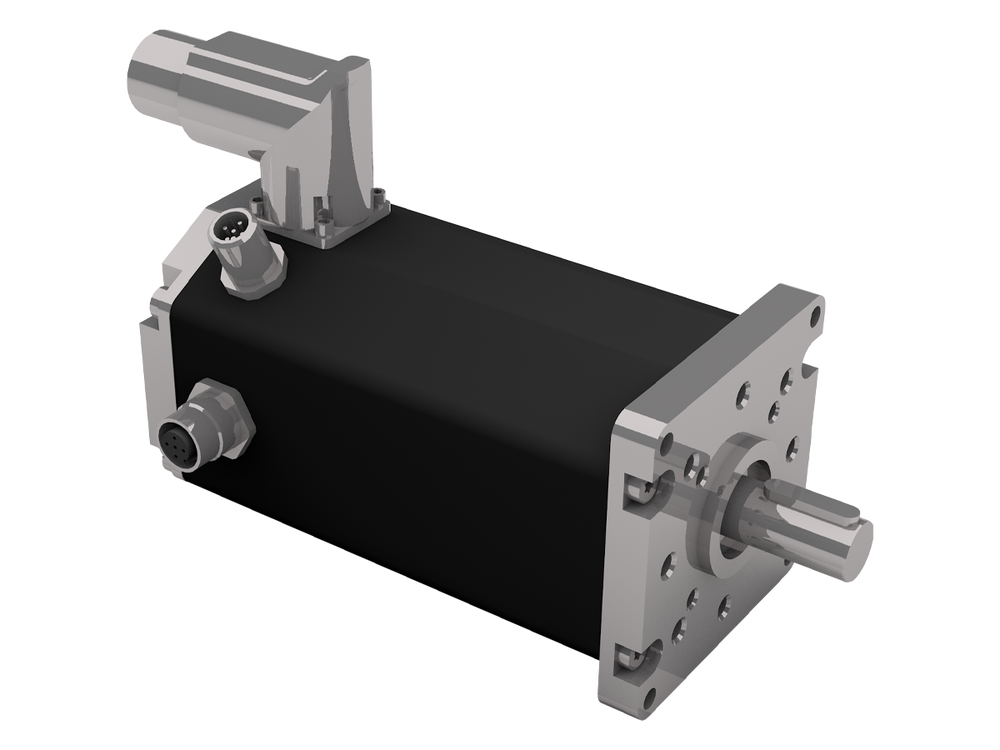

Dunkermotoren BG 75 dPro CO/IO Brushless DC Motor

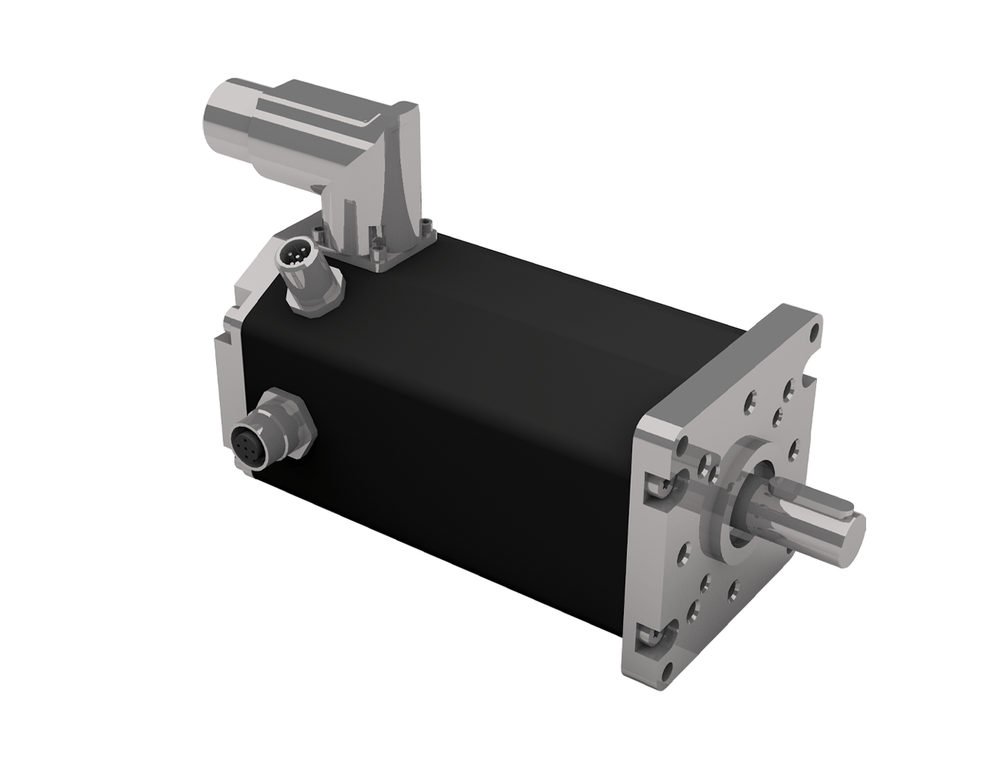

The Dunkermotoren BG 75 dPro CO/IO is a 3-phase EC motor with an integrated 4Q servo controller featuring field-oriented control (FOC) and sinusoidal vector control. The integrated magnetic encoder MR 1 with 4096 cpr enables high positioning accuracy and an extended usable speed range. Available in BG 75x25, BG 75x50, and BG 75x75 stack lengths with 12 Vdc, 24 Vdc, and 48 Vdc supply options, the series delivers continuous output power up to 807 W (thermally connected) and peak output power up to 1,317 W.

Read More

View Models
BG 75 dPro CO/IO

Features

  • 3-phase EC motor with integrated 4Q servo controller.
  • Field-oriented control (FOC) with sinusoidal vector control.
  • Integrated magnetic encoder MR 1 with 4096 cpr.
  • Control via CANopen (CO) or stand-alone IO mode.
  • Fully CiA 402 compatible.
  • 5 configurable digital inputs, 1 analogue input, 3 digital outputs.
Specifications
BG 75 dPro CO/IO Specifications
Parameter Units BG 75x25
12V		 BG 75x25
24V		 BG 75x25
48V		 BG 75x50
24V		 BG 75x50
48V		 BG 75x75
24V		 BG 75x75
48V
Nominal voltage VDC 12 24 48 24 48 24 48
Nominal current
(thermally connected / insulated)		 A* 32.6 / 25.1 17.9 / 14.0 9.2 / 7.2 29.9 / 22.1 15.6 / 11.5 36.3 / 22.0 18.9 / 13.0
Nominal torque
(thermally connected / insulated)		 Nm* 0.95 / 0.66 1.02 / 0.72 1.05 / 0.74 1.65 / 1.11 1.78 / 1.18 2.10 / 1.15 2.39 / 1.49
Nominal speed
(thermally connected / insulated)		 rpm* 3170 / 3640 3370 / 3850 3390 / 3950 3580 / 4040 3530 / 4020 3460 / 3900 3230 / 3650
Maximum torque Nm** 1.36 2.26 3.01 2.76 5.21 3.12 6.15
No load speed rpm* 4450 4680 4840 4460 4390 3990 3850
Nominal output power
(thermally connected / insulated)		 W** 314 / 251 360 / 290 371 / 304 620 / 468 658 / 497 760 / 470 807 / 570
Maximum output power W 363 501 528 812 1026 951 1317
Torque constant Nm A⁻¹*** 0.033 0.067 0.137 0.063 0.129 0.062 0.14
Peak current A** 40.9 32.6 33.6 41.7 35.9 46.8 36.7
Voltage range VDC 3...58 3...58 3...58 3...58 3...58 3...58 3...58
Rotor inertia gcm² 240 240 240 437 437 652 652
Weight of motor kg 1.6 1.6 1.6 2.5 2.5 2.8 2.8
*) Δϑw = 100 K; **) ϑR = 20°C; ***) at nominal point; ****) limited by software; 1) see thermally connected/insulated note
Downloads
Datasheet_BG75_dPro_CO-IO.pdf
BG 75 dPro CO/IO Specifications
Parameter Units BG 75x25
12V		 BG 75x25
24V		 BG 75x25
48V		 BG 75x50
24V		 BG 75x50
48V		 BG 75x75
24V		 BG 75x75
48V
Nominal voltage VDC 12 24 48 24 48 24 48
Nominal current
(thermally connected / insulated)		 A* 32.6 / 25.1 17.9 / 14.0 9.2 / 7.2 29.9 / 22.1 15.6 / 11.5 36.3 / 22.0 18.9 / 13.0
Nominal torque
(thermally connected / insulated)		 Nm* 0.95 / 0.66 1.02 / 0.72 1.05 / 0.74 1.65 / 1.11 1.78 / 1.18 2.10 / 1.15 2.39 / 1.49
Nominal speed
(thermally connected / insulated)		 rpm* 3170 / 3640 3370 / 3850 3390 / 3950 3580 / 4040 3530 / 4020 3460 / 3900 3230 / 3650
Maximum torque Nm** 1.36 2.26 3.01 2.76 5.21 3.12 6.15
No load speed rpm* 4450 4680 4840 4460 4390 3990 3850
Nominal output power
(thermally connected / insulated)		 W** 314 / 251 360 / 290 371 / 304 620 / 468 658 / 497 760 / 470 807 / 570
Maximum output power W 363 501 528 812 1026 951 1317
Torque constant Nm A⁻¹*** 0.033 0.067 0.137 0.063 0.129 0.062 0.14
Peak current A** 40.9 32.6 33.6 41.7 35.9 46.8 36.7
Voltage range VDC 3...58 3...58 3...58 3...58 3...58 3...58 3...58
Rotor inertia gcm² 240 240 240 437 437 652 652
Weight of motor kg 1.6 1.6 1.6 2.5 2.5 2.8 2.8
*) Δϑw = 100 K; **) ϑR = 20°C; ***) at nominal point; ****) limited by software; 1) see thermally connected/insulated note
Datasheet_BG75_dPro_CO-IO.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG 75x25-12 dPro CO/IO 12Vdc 0.95Nm 3170rpm
product variant BG 75x25-24 dPro CO/IO 24Vdc 1.02Nm 3370rpm
product variant BG 75x25-48 dPro CO/IO 48Vdc 1.05Nm 3390rpm
product variant BG 75x50-24 dPro CO/IO 24Vdc 1.65Nm 3580rpm
product variant BG 75x50-48 dPro CO/IO 48Vdc 1.78Nm 3530rpm
product variant BG 75x75-24 dPro CO/IO 24Vdc 2.1Nm 3460rpm
product variant BG 75x75-48 dPro CO/IO 48Vdc 2.39Nm 3230rpm
