Dunkermoteren PLG75EP Series Planetary Gearbox

The Dunkermotoren PLG 75 EP Series Planetary Gearbox is a high-torque, industry-ready gearbox engineered for precision, durability, and quiet performance. Designed for use in heavy-duty automation, robotics, and mobile machinery, this gearbox features a hardened steel ring gear, double ball-bearing output shaft, and helical gearing in the first ...

Read More

The Dunkermotoren PLG 75 EP Series Planetary Gearbox is a high-torque, industry-ready gearbox engineered for precision, durability, and quiet performance. Designed for use in heavy-duty automation, robotics, and mobile machinery, this gearbox features a hardened steel ring gear, double ball-bearing output shaft, and helical gearing in the first stage to ensure low-noise, high-efficiency operation.

Offering a broad reduction ratio range from 4:1 to 507.5:1 across 1-, 2-, and 3-stage configurations, the PLG 75 EP supports continuous torque up to 90 Nm and acceleration torque up to 130 Nm. It also offers emergency stop torque up to 175 Nm, making it ideal for demanding applications with dynamic motion profiles. Its mechanical efficiency reaches 90% in single-stage versions and 73% in 3-stage models.

With a compact footprint and weight ranging from 1.5 kg to 3.7 kg, the gearbox delivers powerful output while maintaining space efficiency. It can handle axial and radial loads of up to 1000 N and is available with IP50 protection. Factory-filled with lifetime lubrication, and available in food-grade and low-temperature variants, it is a maintenance-free solution for long-term deployment.

The PLG 75 EP Series offers a reliable, high-performance planetary drive solution that combines quiet operation, high load capacity, and adaptability to fit a wide variety of industrial motion control systems.

Show Less
Unit Price
—
or send a quick enquiry about this product only

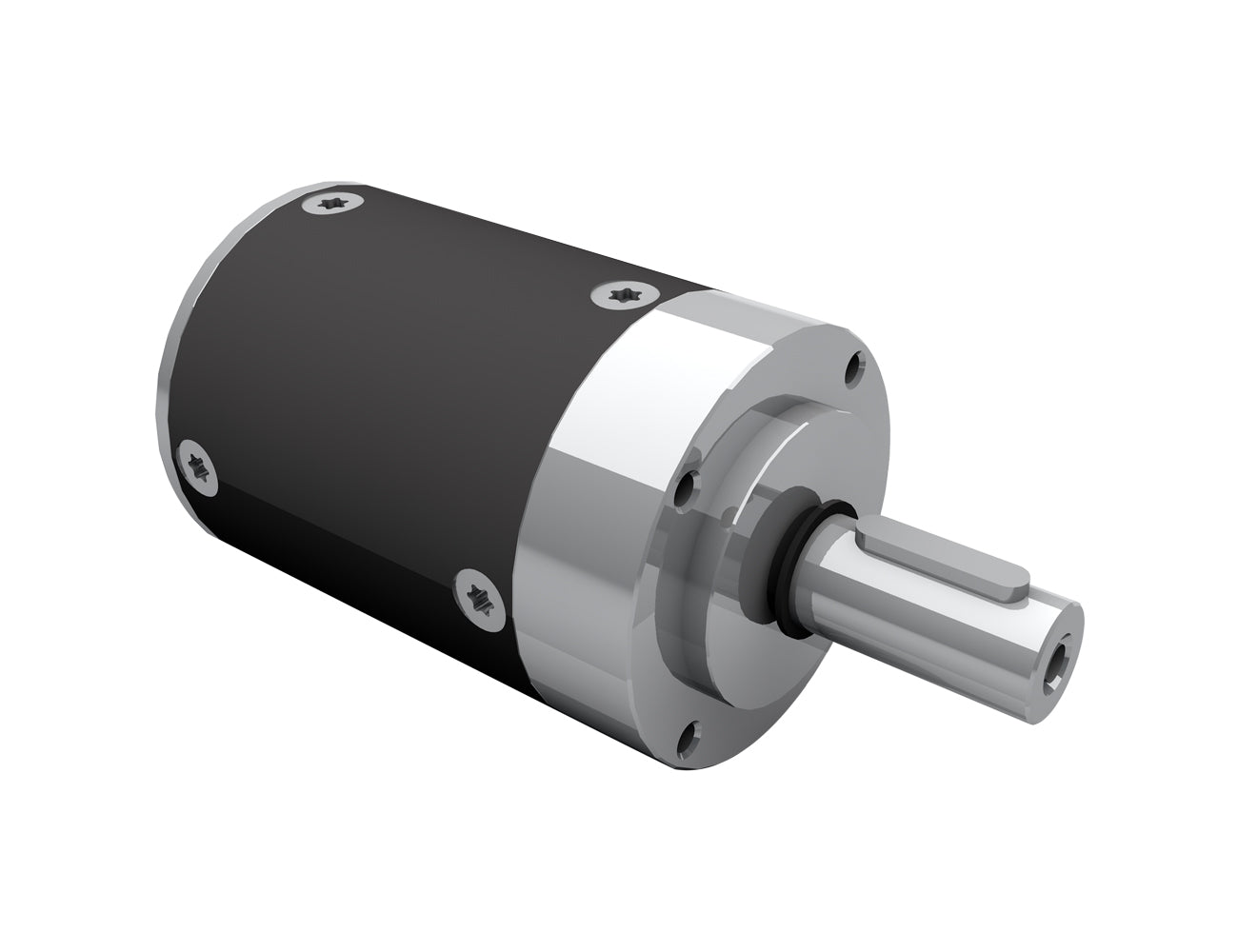

Dunkermoteren-PLG75EP-Series-Planetary-Gearbox
Features
  • High Torque Output: Delivers up to 90 Nm of continuous torque and 130 Nm for acceleration, with emergency stop capacity up to 175 Nm, ideal for heavy-duty applications.
  • Quiet Helical Gear Input Stage: Equipped with helical gearing in the first stage for reduced noise and vibration, making it suitable for precision systems and sensitive environments.
  • Broad Reduction Ratio Range: Supports gear ratios from 4:1 to 507.5:1 in 1-, 2-, and 3-stage versions, offering excellent flexibility for torque and speed customisation.
  • Rugged Load Handling: Double ball-bearing output shaft supports axial and radial loads up to 1000 N, ensuring stable performance under heavy mechanical stress.
  • Maintenance-Free Reliability: Factory-filled with lifetime lubrication and designed for long operating life, minimising downtime and servicing in continuous use scenarios.
  • Optional Low-Temp and Food-Grade Lubricants: Available with special lubrication options for cold environments or hygienic applications, expanding usability across industry sectors.
Specifications
PLG75EP Specifications
Reduction Ratio - 4 5.5 7* 10 14.5 16.8 23.1 27.5 29.4* 35* 42 50 60.9
Efficiency % 90 81
Number of Stages - 1 2
Continuous Torque Nm 10 8 6 5 2 38 30 36 24 27 19 22.5 7.5
Acceleration torque** Nm 16 15 12 10 4 60 56 67 48 54 40 47 15
Emergency stop torque Nm 24 22 18 15 6 92 83 99 72 81 60 72 30
Operating mode - S1 / S8
Max. backlash arcmin 39 42 43 46 50 35 36 36 36 36 37 37 38
Weight of Gearbox kg 1.5 2.6
Axial load/ radial load (middle of key) N 1000 / 1000 1000 / 1000
PLG75EP Specifications
Reduction Ratio - 70.56 84 100 115.5 147* 175* 210 250 304.5 350 362.5 426.3 507.5
Efficiency % 73
Number of Stages - 3
Continuous Torque Nm 90 85 90 34 90 40 47 56
Acceleration torque** Nm 130 68 130 81 95 113
Emergency stop torque Nm 175 120 175 150 175 175
Operating mode - S1 / S8
Max. backlash arcmin 34 34 34 35 35 35 35 35 35 34 35 35 35
Weight of Gearbox kg 3.7
Axial load/ radial load (middle of key) N 1000 / 1000
** Acceleration torque for max. 1 second
