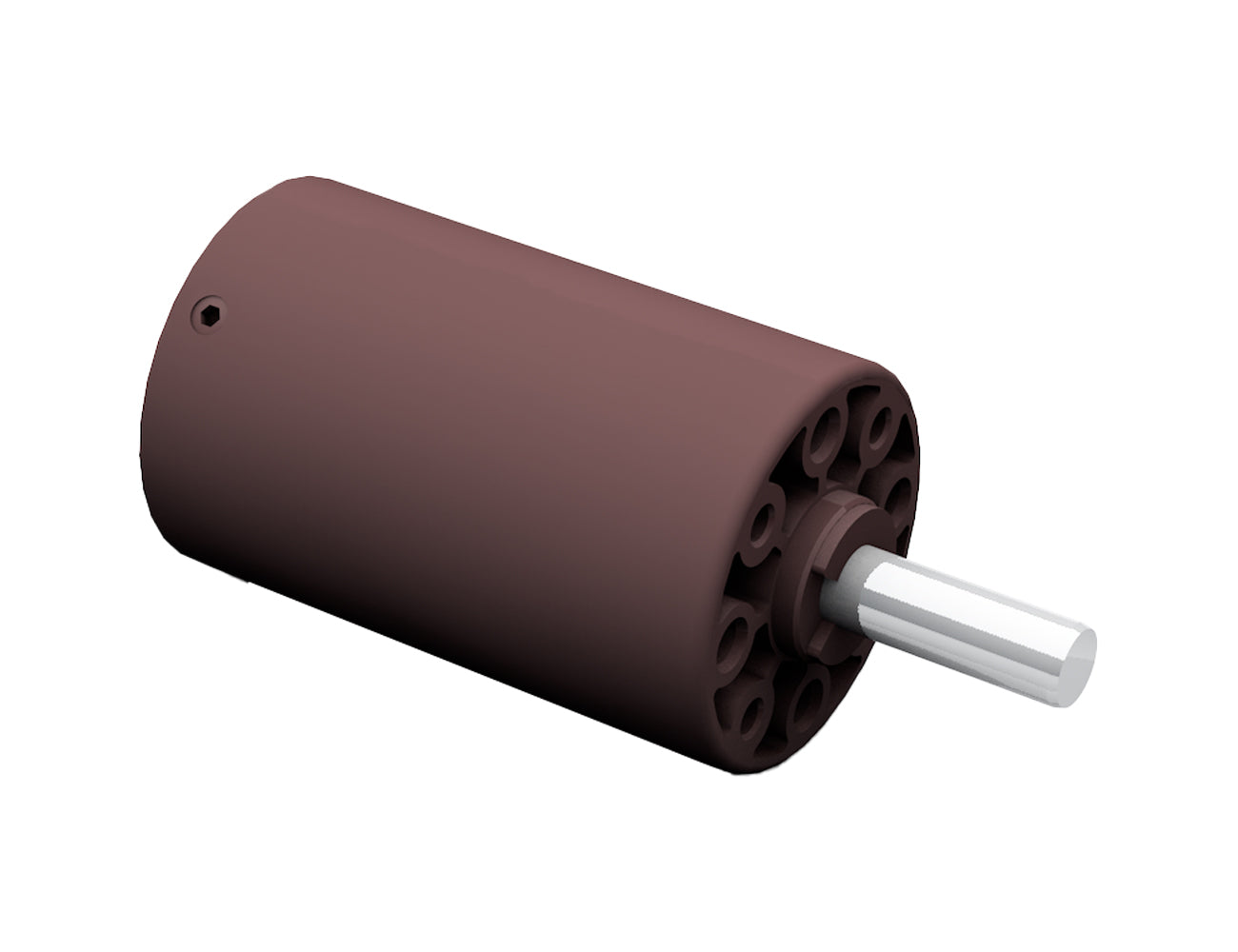

The Dunkermotoren PLG 30 Series Planetary Gearbox is a compact and efficient transmission solution, engineered for precision applications requiring reliable torque output in tight spaces. With continuous torque ratings up to 1.8 Nm and reduction ratios from 4.5:1 to 400:1, this gearbox is ideal for light-duty automation, medical devices, and laboratory equipment.

Key features include a high-efficiency design with up to 90% performance in single-stage configurations. The gearbox incorporates a steel planetary carrier and sun gear, while the ring gear and planetary gears are made from high-grade engineered materials to ensure durability and smooth operation. All gear stages use straight toothing, and the output shaft is supported by dual sleeve bearings for enhanced stability.

Available in 1-, 2-, or 3-stage versions, the PLG 30 Series supports axial loads up to 10 N and radial loads up to 24 N. With an IP50 protection rating, lifetime lubrication, and optional food-grade and low-temperature lubrication variants, it offers quiet, maintenance-free operation in controlled environments.

For compact, low-torque applications where performance and longevity matter, the Dunkermotoren PLG 30 Series Planetary Gearbox provides a reliable and adaptable solution.
