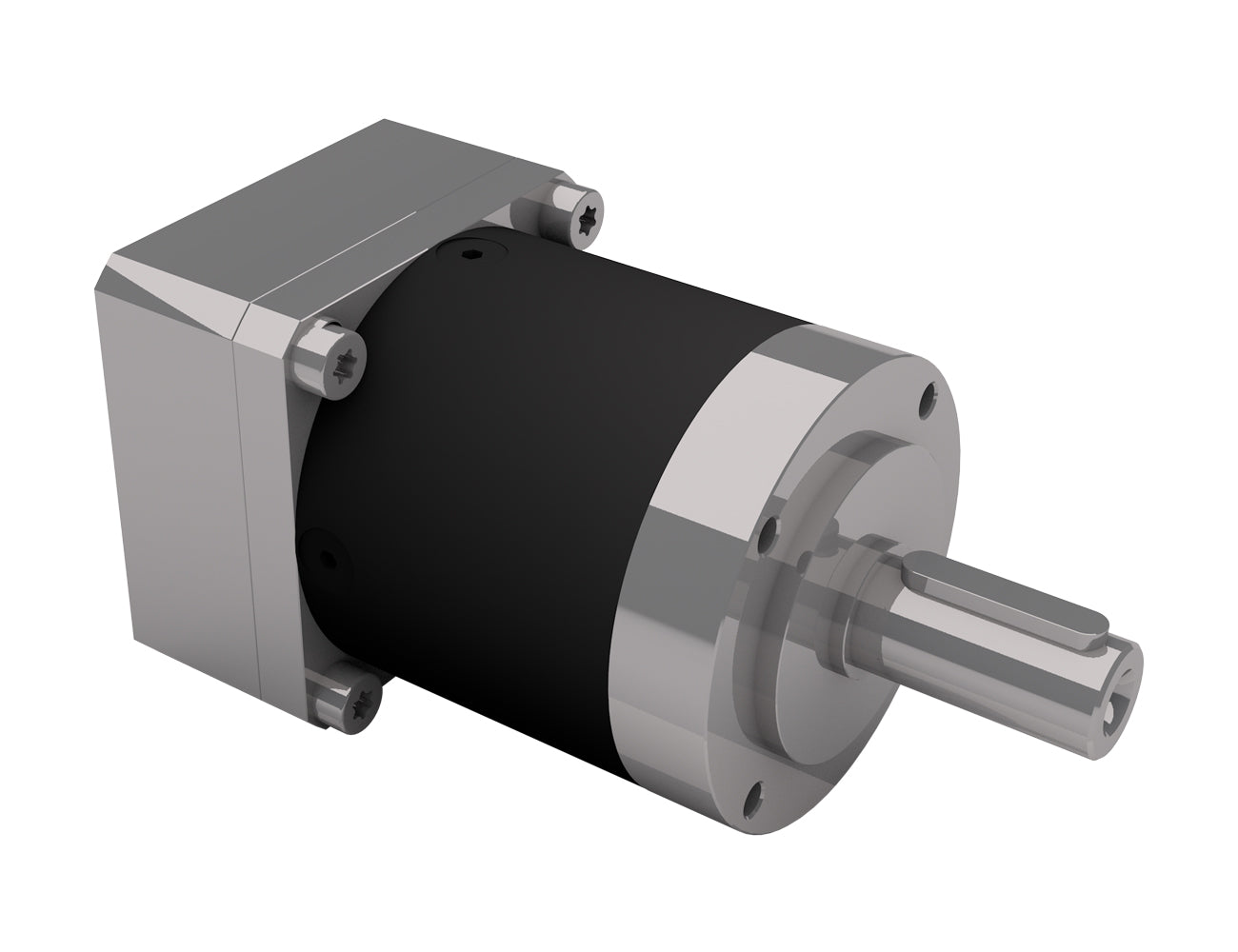

Dunkermoteren PLG60LB Series Planetary Gearbox

The Dunkermotoren PLG 60 LB Series Planetary Gearbox is a heavy-duty, high-efficiency gearbox engineered for dynamic applications requiring robust torque transmission, long operating life, and compact installation. Featuring a steel ring gear and needle-bearing supported planetary wheels, the PLG 60 LB is designed for smooth, low-backlash performance in industrial automation, mobile machinery, and precision motion systems.

Read More

View Models
Dunkermoteren-PLG60LB-Series-Planetary-Gearbox

Features

  • High Continuous Torque Output: Delivers up to 25 Nm of continuous torque and 44 Nm for acceleration, ideal for demanding motion control and automation systems.
  • Durable Steel Construction: Equipped with a robust steel ring gear and needle-bearing planetary wheels for long-lasting, low-backlash performance.
  • Broad Reduction Ratio Range: Supports reduction ratios from 3:1 to 120:1 across 1-, 2-, and 3-stage designs, offering exceptional speed and torque flexibility.
  • High Efficiency Performance: Achieves mechanical efficiency up to 97% in single-stage configurations—reducing energy loss in continuous operation.
  • Long Service Life and Low Maintenance: Factory-lubricated for life with up to 20,000 hours of service—engineered for maintenance-free reliability in harsh environments.
  • Compact and Load-Tolerant Design: Compact housing handles axial loads up to 130 N and radial loads up to 390 N, supported by dual ball bearings on the output shaft.
Specifications
PLG60LB Specifications
Reduction Ratio - 3 4 5 7 8 10 9 12 15 16 20 25 32 40 64
Efficiency % 97 95
Number of Stages - 1 2
Continuous Torque¹ Nm 2 25 25 21 15 13 25 25 25 25 25 25 25 25 15
Continuous Torque² ⁵ Nm 28 38 40 25 18 15 44 44 44 44 44 40 44 40 18
Acceleration torque³ Nm 28 38 40 25 18 15 44 44 44 44 44 40 44 40 18
Emergency stop torque⁴ Nm 48 64 80 80 80 80 88 88 88 88 88 80 88 80 80
Max. backlash arcmin 10 12
Weight of Gearbox kg 0.9 1.1
Axial load/ radial load (13 mm off mounting
surface)⁵		 N 130 / 390



PLG60LB Specifications
Reduction Ratio - 60 80 100 120
Efficiency % 91
Number of Stages - 3
Continuous Torque¹ Nm 25
Continuous Torque² ⁵ Nm 44
Acceleration torque³ Nm 44
Emergency stop torque⁴ Nm 88
Max. backlash arcmin 15
Weight of Gearbox kg 1.3
Axial load/ radial load (13 mm off mounting
surface)⁵		 N 130 / 390
1) S8 Operation mode (alternating load) motor speed = 3000 rpm/ S8 Betriebsart (wechselnde Belastung) Motordrehzahl = 3000 rpm
2) S1 Operation mode (swelling load) gearbox output speed = 100 rpm; service lifetime check by application consulting required/
S1 Betriebsart (schwellende Belastung) Getriebeabtriebsdrehzahl = 100 rpm; Prüfung der Lebensdauer durch Applikationsberatung erforderlich
3) S8 Operating mode (alternating load); within max. 1 second/ S8 Betriebsart (wechselnde Belastung); innerhalb max. 1 Sekunde
4) Statically 100 times alternating/ Statisch 100-mal wechselnd
5) Related to gearbox output speed = 100 rpm/ Bezogen auf Getriebeabtriebsdrehzahl = 100 rpm



Downloads
plg_60_lb_Gearbox_Datasheet.pdf
PLG60LB Specifications
Reduction Ratio - 3 4 5 7 8 10 9 12 15 16 20 25 32 40 64
Efficiency % 97 95
Number of Stages - 1 2
Continuous Torque¹ Nm 2 25 25 21 15 13 25 25 25 25 25 25 25 25 15
Continuous Torque² ⁵ Nm 28 38 40 25 18 15 44 44 44 44 44 40 44 40 18
Acceleration torque³ Nm 28 38 40 25 18 15 44 44 44 44 44 40 44 40 18
Emergency stop torque⁴ Nm 48 64 80 80 80 80 88 88 88 88 88 80 88 80 80
Max. backlash arcmin 10 12
Weight of Gearbox kg 0.9 1.1
Axial load/ radial load (13 mm off mounting
surface)⁵		 N 130 / 390



PLG60LB Specifications
Reduction Ratio - 60 80 100 120
Efficiency % 91
Number of Stages - 3
Continuous Torque¹ Nm 25
Continuous Torque² ⁵ Nm 44
Acceleration torque³ Nm 44
Emergency stop torque⁴ Nm 88
Max. backlash arcmin 15
Weight of Gearbox kg 1.3
Axial load/ radial load (13 mm off mounting
surface)⁵		 N 130 / 390
1) S8 Operation mode (alternating load) motor speed = 3000 rpm/ S8 Betriebsart (wechselnde Belastung) Motordrehzahl = 3000 rpm
2) S1 Operation mode (swelling load) gearbox output speed = 100 rpm; service lifetime check by application consulting required/
S1 Betriebsart (schwellende Belastung) Getriebeabtriebsdrehzahl = 100 rpm; Prüfung der Lebensdauer durch Applikationsberatung erforderlich
3) S8 Operating mode (alternating load); within max. 1 second/ S8 Betriebsart (wechselnde Belastung); innerhalb max. 1 Sekunde
4) Statically 100 times alternating/ Statisch 100-mal wechselnd
5) Related to gearbox output speed = 100 rpm/ Bezogen auf Getriebeabtriebsdrehzahl = 100 rpm



plg_60_lb_Gearbox_Datasheet.pdf

Find the Right Model

Model Number Reduction Ratio Continuous Torque (Nm) Number of Stages
product variant PLG60LB-3 3 23 1
product variant PLG60LB-4 4 25 1
product variant PLG60LB-5 5 25 1
product variant PLG60LB-7 7 21 1
product variant PLG60LB-8 8 15 1
product variant PLG60LB-10 10 13 1
product variant PLG60LB-9 9 25 2
product variant PLG60LB-12 12 25 2
product variant PLG60LB-15 15 25 2
product variant PLG60LB-16 16 25 2
product variant PLG60LB-20 20 25 2
product variant PLG60LB-25 25 25 2
product variant PLG60LB-32 32 25 2
product variant PLG60LB-40 40 25 2
product variant PLG60LB-64 64 15 2
product variant PLG60LB-60 60 25 3
product variant PLG60LB-80 80 25 3
product variant PLG60LB-100 100 25 3
product variant PLG60LB-120 120 25 3
