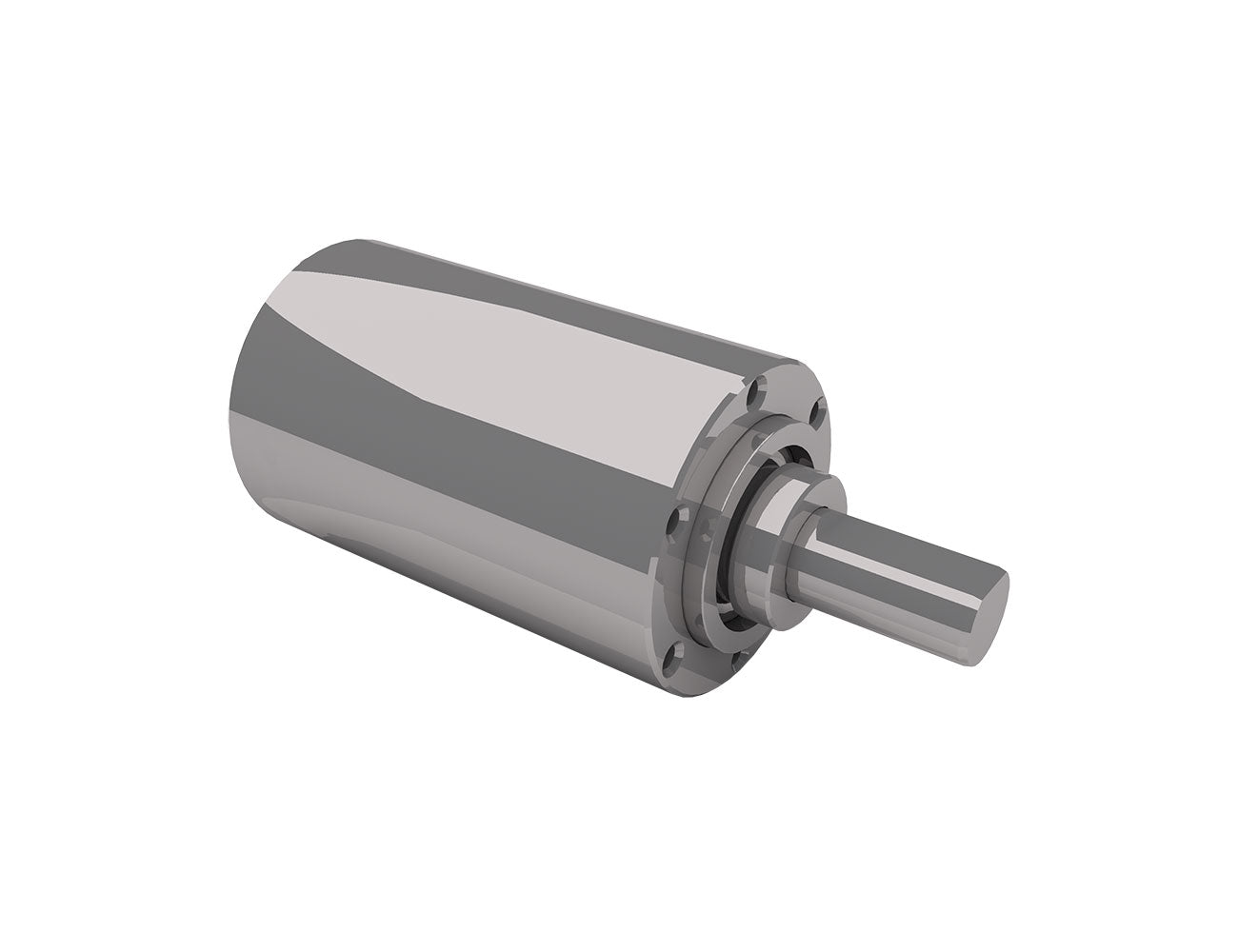

Dunkermoteren PLG 22 HT Series Planetary Gearbox

Features

• Compact High-Torque Design: Engineered for tight spaces without compromising performance, the PLG 22 HT delivers continuous torque up to 2.10 Nm and peak acceleration torque up to 2.30 Nm in a compact housing.
• Wide Reduction Ratio Range: Available in 1 to 5-stage configurations, the gearbox offers an extensive range of reduction ratios from 3.75:1 to 3188.65:1, making it suitable for everything from high-speed automation to low-speed precision control.
• Steel Planetary Gears: Built for durability and strength, the PLG 22 HT uses hardened steel planetary gears for increased wear resistance and long service life under continuous or dynamic loads.
• Optional Low-Backlash Version: For precision-critical applications, a low-backlash variant is available on request—ideal for positioning tasks in robotics, optical systems, and CNC machinery.

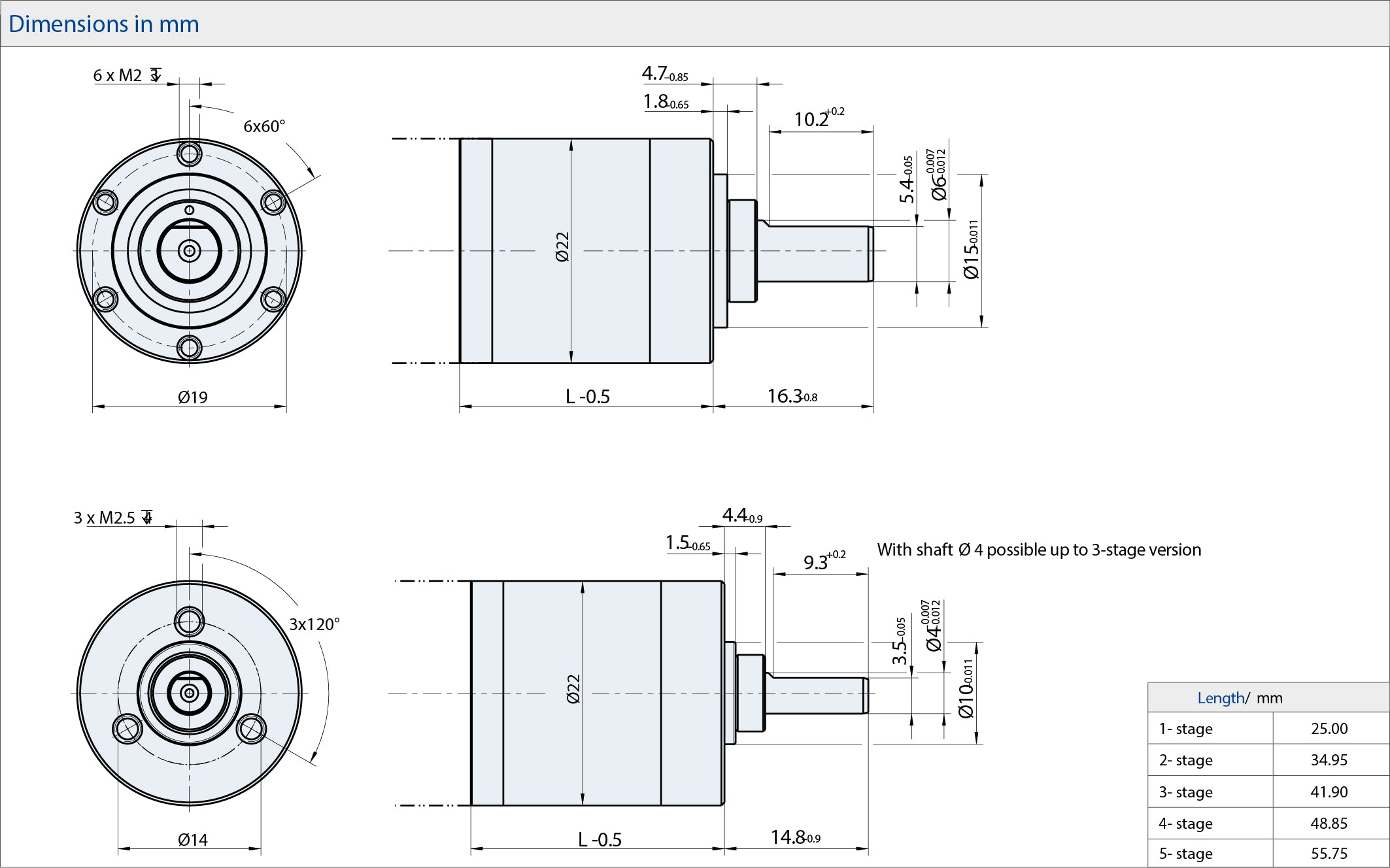

• Versatile Mounting and Shaft Options: Supports both 4 mm and 6 mm shaft diameters (up to 3-stage), with axial and radial load capacities up to 45 N and 135 N respectively, offering flexible integration into your mechanical system.
• Maintenance-Free Operation: Pre-lubricated for life, the PLG 22 HT is designed for maintenance-free operation, with optional food-grade and low-temperature lubrication options for specialised environments.
