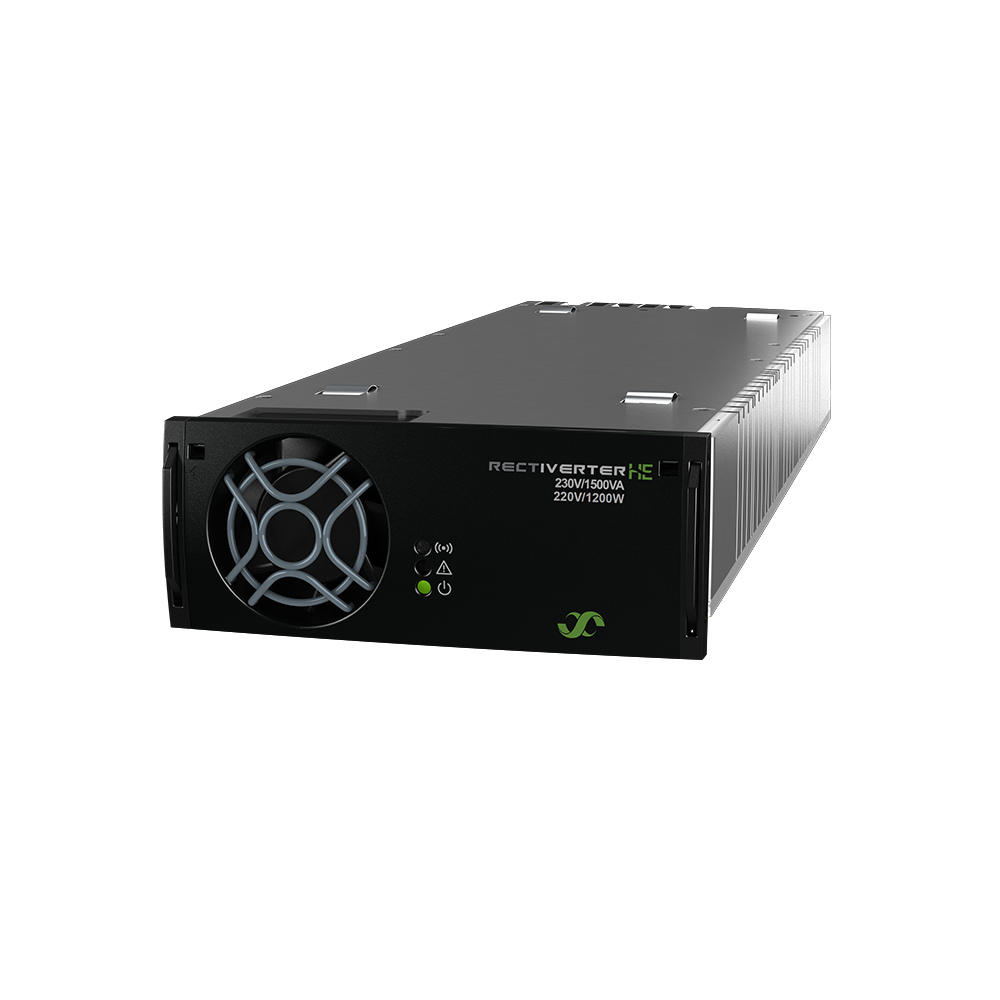

Delta Eltek Rectiverter 220Vdc Modules (230Vac@1500W / 115Vac@750W)
The Eltek Rectiverter 220V 1200W HE is a high-efficiency power module designed for power utilities and industrial applications using 220V DC battery systems. Combining rectifier, inverter, and automatic power transfer in a single unit, it ensures continuous AC and DC power availability for mission-critical systems. With up to 1200W DC output and 1500VA AC output, the Rectiverter enables simultaneous AC and DC load operation without compromising battery backup.
Read More
Features
- Three-in-one design: rectifier, inverter, and power source transfer in one unit
- Reliable backup power: Ensures uninterrupted operation during mains failure
- Modular and hot-swappable design for scalable and redundant deployment
- Delivers up to 1200W DC output and 1500VA AC output simultaneously
- Optimised for power utilities and industrial applications using 220V DC systems
Specifications
Downloads
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Manufacturer Part Number | 241123.14 | 241123.140L |
| Compatible Delta Eltek Systems | Designed for use within Delta Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 94% (Inverter Mode) | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Voltage (Default) | 245Vdc | |
| Adjustable Range | 194...290Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 216Vdc) | 5.56A¹ | 2.78A¹ |
| Hold Up Time (Maximum Output Power) | > 10ms: Vout > 190Vdc (only in rectifier mode) | |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 1Vpp , 30 MHz bandwidth | |
| Protection | Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.99 at 50% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 204...290Vdc | |
| DC Input Voltage (Extended Range⁴) | 180...204Vdc | |
| Max. DC Current | 6.67A / 9A During Overload (15s) | 3.2A / 4.5A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Cooling | Fan Assisted | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.85 kVDC - ACIN/OUT to PE, 3.55 kVDC - ACIN/OUT to DC, 4.25 kVDC - ACIN/OUT to CAN/SYNC, 2.2 kVDC - DC to PE, 3.5 kVDC - DC to CAN/SYNC | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, CSA C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006 (C1 emissions, C2/C3 immunity), FCC CFR 47 Part 15 EN50121 -2:2017+A1:2019, -4:2016+A1:2019, -5:2017+A1:2019⁵ | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Manufacturer Part Number | 241123.14 | 241123.140L |
| Compatible Delta Eltek Systems | Designed for use within Delta Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 94% (Inverter Mode) | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Voltage (Default) | 245Vdc | |
| Adjustable Range | 194...290Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 216Vdc) | 5.56A¹ | 2.78A¹ |
| Hold Up Time (Maximum Output Power) | > 10ms: Vout > 190Vdc (only in rectifier mode) | |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 1Vpp , 30 MHz bandwidth | |
| Protection | Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.99 at 50% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 204...290Vdc | |
| DC Input Voltage (Extended Range⁴) | 180...204Vdc | |
| Max. DC Current | 6.67A / 9A During Overload (15s) | 3.2A / 4.5A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_220/1200 | Rectiverter 115/750_220/600 |
| Cooling | Fan Assisted | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.85 kVDC - ACIN/OUT to PE, 3.55 kVDC - ACIN/OUT to DC, 4.25 kVDC - ACIN/OUT to CAN/SYNC, 2.2 kVDC - DC to PE, 3.5 kVDC - DC to CAN/SYNC | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, CSA C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006 (C1 emissions, C2/C3 immunity), FCC CFR 47 Part 15 EN50121 -2:2017+A1:2019, -4:2016+A1:2019, -5:2017+A1:2019⁵ | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
Rectiverter 230/1500_220/1200 | Adj. 185 - 275Vac / LV disconnect 170Vac | 245Vdc (Adj. 194 - 290Vdc) | 1200W | |
|
|
Rectiverter 115/750_220/600 | Adj. 95 - 140Vac / LV disconnect 85Vac | 245Vdc (Adj. 194 - 290Vdc) | 600W |
