Delta Eltek Rectiverter 48Vdc Modules (230Vac@1500W / 115Vac@750W)

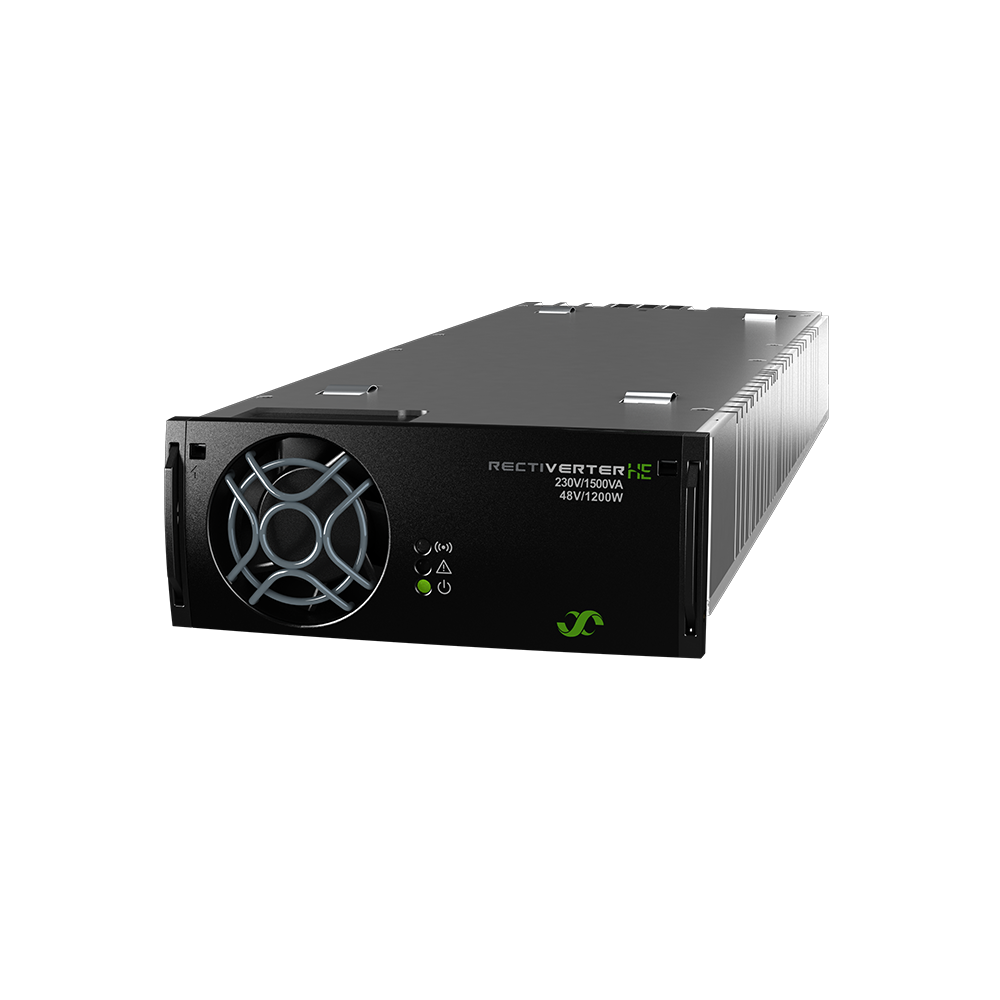

The Eltek Rectiverter 48V 1200W HE is a high-efficiency power module that combines a rectifier, inverter, and automatic power source transfer in a single unit. Built on Eltek’s Flatpack2 HE technology, it delivers simultaneous AC and DC power backup, ensuring uninterrupted operation for critical infrastructure. With up to 1200W DC output and 1500VA AC output, the Rectiverter is a flexible solution for a range of applications.
Read More
Features
- Modular and scalable design for flexible deployment and redundant operation
- Three-in-one design: rectifier, inverter, and power source transfer in one unit
- Delivers up to 1200W DC output and 1500VA AC output simultaneously
- Suitable for telecommunications, railway, and power utility backup applications
- Designed for use with Flatpack2 rackmount power systems for scalable deployment
Specifications
Downloads
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Manufacturer Part Number | 241123.1 | 241123.100L |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶, 74...76Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 94% (Inverter Mode) | > 92% (Mains Mode) / > 91% (Inverter Mode) |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/16.6A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 40 VDC) ⁶Implemented since product release, please check with Sales Support for required HW/FW revisions |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Voltage (Default) | 53.5Vdc | |
| Adjustable Range | 43...58Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 48Vdc) | 25A¹ | 12.5A¹ |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 200 mVPP , 30 MHz bandwidth | |
| Protection | Short Circuit Proof, Over Voltage Shutdown, Reversed Polarity, Reversed Polarity and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/16.6A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 40 VDC) ⁶Implemented since product release, please check with Sales Support for required HW/FW revisions |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.985 at 50% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot Pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 45...58Vdc | |
| DC Input Voltage (Extended Range⁴) | 40...45Vdc | |
| Max. DC Current | 32A / 45A During Overload (15s) | 16A / 22.5A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Cooling | Fan Assisted | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >260 000 (@ T ambient: 25 °C) | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.6kVDC - AC Ports to PE; 3kVAC - AC Ports to DC Port / CAN; 710Vdc - DC Port to PE; 60Vdc - DCPort to CAN | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006, EN50121-4:2016+A1:2019, -5:2017+A1:2019 ETSI EN 300 386 V.2.1.1, FCC CFR 47 Part 15 | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Manufacturer Part Number | 241123.1 | 241123.100L |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶, 74...76Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 94% (Inverter Mode) | > 92% (Mains Mode) / > 91% (Inverter Mode) |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/16.6A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 40 VDC) ⁶Implemented since product release, please check with Sales Support for required HW/FW revisions |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Voltage (Default) | 53.5Vdc | |
| Adjustable Range | 43...58Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 48Vdc) | 25A¹ | 12.5A¹ |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 200 mVPP , 30 MHz bandwidth | |
| Protection | Short Circuit Proof, Over Voltage Shutdown, Reversed Polarity, Reversed Polarity and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/16.6A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 40 VDC) ⁶Implemented since product release, please check with Sales Support for required HW/FW revisions |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.985 at 50% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot Pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 45...58Vdc | |
| DC Input Voltage (Extended Range⁴) | 40...45Vdc | |
| Max. DC Current | 32A / 45A During Overload (15s) | 16A / 22.5A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_48/1200 | Rectiverter 115/750_48/600 |
| Cooling | Fan Assisted | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >260 000 (@ T ambient: 25 °C) | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.6kVDC - AC Ports to PE; 3kVAC - AC Ports to DC Port / CAN; 710Vdc - DC Port to PE; 60Vdc - DCPort to CAN | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006, EN50121-4:2016+A1:2019, -5:2017+A1:2019 ETSI EN 300 386 V.2.1.1, FCC CFR 47 Part 15 | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
Rectiverter 230/1500_48/1200 | 230Vac (Adj. 200 - 240Vac) | 53.5Vdc (Adj. 43 - 58Vdc) | 1200W | |
|
|
Rectiverter 115/750_48/600 | 115Vac (Adj. 100 - 127Vac) | 53.5Vdc (Adj. 43 - 58Vdc) | 600W |
