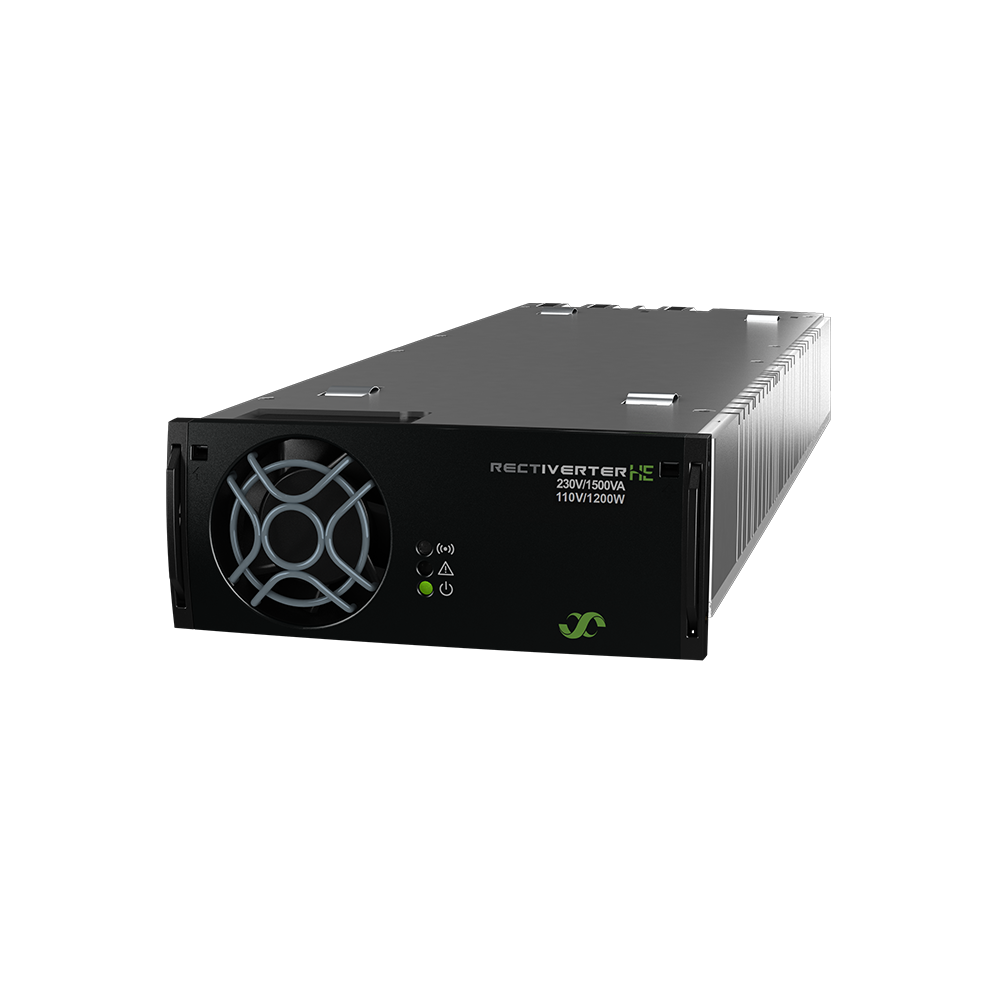

Delta Eltek Rectiverter 110Vdc Modules (230Vac@1500W / 115Vac@750W)
The Eltek Rectiverter 110V 1200W HE is a high-efficiency power module designed for power utilities and industrial applications, where 110V DC battery banks are standard. Combining rectifier, inverter, and automatic power source transfer in a single unit, it ensures continuous AC and DC power availability for mission-critical systems. With up to 1200W DC output and 1500VA AC output, the Rectiverter is ideal for environments that require both AC and DC loads to be powered simultaneously, without compromising battery backup integrity.
Read More
Features
- Three-in-one design: rectifier, inverter, and power source transfer in one unit
- Delivers up to 1200W DC output and 1500VA AC output simultaneously
- Optimised for power utilities and industrial applications using 110V DC systems
- Ensures reliable backup for switch tripping, SCADA, and control systems
- Modular and hot-swappable design for scalable and redundant deployment
- Compatible with standalone Rectiverter shelves and integrated Rectiverter power systems
Specifications
Downloads
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Manufacturer Part Number | 241123.13 | 241123.130L |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 95% (Inverter Mode) | > 93% (Mains Mode) / > 92% (Inverter Mode) |
| Notes |
¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Voltage (Default) | 122.5Vdc | |
| Adjustable Range | 97...145Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 108Vdc) | 11.11A¹ | 5.55A¹ |
| Hold Up Time (Maximum Output Power) | > 10ms: Vout > 95Vdc (only in rectifier mode) | |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 500 mVPP , 30 MHz bandwidth | |
| Protection | Short circuit proof, Over voltage shutdown, Reversed polarity, ORing FET and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.999 at 70% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot Pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 102...145Vdc | |
| DC Input Voltage (Extended Range⁴) | 90...102Vdc | |
| Max. DC Current | 12.5A / 18A During Overload (15s) | 6.3A / 9A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Cooling | Fan Assisted | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >260 000 (@ T ambient: 25 °C) | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.85 kVDC - ACIN/OUT to PE; 3.55 kVDC - ACIN/OUT to DC; 4.25 kVDC - ACIN/OUT to CAN/SYNC; 1.75 kVDC - DC to PE; 3.5 kVDC - DC to CAN/SYNC | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, CSA C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006 (C1 emissions, C2/C3 immunity), FCC CFR 47 Part 15 EN50121 -2:2017+A1:2019, -4:2016+A1:2019, -5:2017+A1:2019⁵ | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
| MANUFACTURER PART NUMBER | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Manufacturer Part Number | 241123.13 | 241123.130L |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Standalone Rectiverter Shelf or Integrated Rectiverter systems. Contact Powerbox for further details. | |
| AC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Voltage (Default) | 230Vac | 115Vac |
| Adjustable Range | 200...240Vac | 100...127Vac |
| Frequency (Default Inverter Mode) | 50Hz (adaptive) | 60Hz (adaptive) |
| Frequency (Set-able Inverter Mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive), 94...106Hz⁶ | |
| Max. Power (Continuous / Overload (<15s)) | 1200W (1500VA) / 2000VA | 600W (750VA) / 1000VA |
| Load Sharing | ±5% of active power from 10 to 100% load | |
| Max. Current (Continuous / Overload (<15s)) | 6.5Arms | 8.7Arms |
| Current (Max.) Quick Trip (20ms) | 32A (6 x nominal) | |
| THD | < 1.5 % at resistive load | |
| Protection | Fuse in L, Hot Pluggable, Varistor | |
| Efficiency | > 96% (Mains Mode) / > 95% (Inverter Mode) | > 93% (Mains Mode) / > 92% (Inverter Mode) |
| Notes |
¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. |
|
| DC OUTPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Voltage (Default) | 122.5Vdc | |
| Adjustable Range | 97...145Vdc | |
| Max. Power (@Nominal Input) | 1200W¹ | 600W¹ |
| Max. Current (@Vout ≤ 108Vdc) | 11.11A¹ | 5.55A¹ |
| Hold Up Time (Maximum Output Power) | > 10ms: Vout > 95Vdc (only in rectifier mode) | |
| Current Sharing (10 - 100% Load) | ±5% of maximum current from 10 to 100% load | |
| Static Voltage Regulation (10 - 100% load) | ±0.5% | |
| Dynamic Voltage Regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms | |
| Ripple | < 500 mVPP , 30 MHz bandwidth | |
| Protection | Short circuit proof, Over voltage shutdown, Reversed polarity, ORing FET and Fuse | |
| Notes | ¹ AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 800W/7.4A at full AC power and nominal input for 230VAC. ³ If no DC load connected, DC port must still be considered a bi-directional port; voltage will present if mains powered ⁴Reduced performance - no over load support, and for 200 - 240 VAC output THD will increased and maximum output power de-rates (to 970W for 230 VAC @ 90 VDC) ⁵ to meet surge requirement of 4kV external surge protection is needed on AC ports ⁶required FW version ≥ 1.20/1.20 |
|
| INPUT DATA | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| AC Mains Input Voltage Range | 185...275Vac | 95...140Vac |
| Low Voltage Disconnect | 170Vac | 85Vac |
| Max. AC Current | 11.5Arms | 11.3Arms |
| Frequency (Default: Sync Range) | 47 - 53Hz / 57 - 63Hz | |
| Frequency (Set-able: Sync Range) | 47 - 53Hz, 57 - 63Hz or both (adaptive) | |
| Power Factor | > 0.999 at 70% load or more | |
| THD | < 3.5% | |
| AC Input Protection | Fuse in L and N, Hot Pluggable, Varistor | |
| DC Input Voltage (Nominal Working Range) | 102...145Vdc | |
| DC Input Voltage (Extended Range⁴) | 90...102Vdc | |
| Max. DC Current | 12.5A / 18A During Overload (15s) | 6.3A / 9A During Overload (15s) |
| DISPLAYS / ALARMS | ||
|---|---|---|
| Alarms: | Via Red LED: Low and high mains input voltage shutdown, High and low temperature shutdown, Rectiverter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure, Sync bus lost and Sync fail Alarm Relay [NO max. 75 Vdc / 100 mA] (AC output OR DC output alarms) |
|
| Warnings: | Via Yellow LED: Rectiverter in power de-rate mode or in power or current limit mode on DC or AC port, Remote output current limit activated, Loss of CAN communication with controller | |
| Normal Operation: | AC output and/or DC output on and ok, indicated Via Green LED | |
| ENVIRONMENTAL | ||
|---|---|---|
| Model | Rectiverter 230/1500_110/1200 | Rectiverter 115/750_110/600 |
| Cooling | Fan Assisted | |
| MTBF (Telcordia SR-332 Issue I method III (a)) | >260 000 (@ T ambient: 25 °C) | |
| Operating Temp. (5-95% RH n.cond. hum.) | -40 to + 75°C | |
|
Operating Temperature (°C)
|
0...55°C: 100% Rated Power (1200W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
0...55°C: 100% Rated Power (600W) > 55°C: D-Rated to 480W @ 75°C (AC and DC Outputs - total power 2000W to 800W) |
| Storage Temperature (°C) | -40 to +85°C; Humidity: 0 - 99% RH non-condensing | |
| MECHANICAL | ||
|---|---|---|
| Dimensions [WxHxD] | 109 x 41.5 x 327mm | |
| Weight | < 1.95Kg | |
| DESIGN STANDARDS | ||
|---|---|---|
| Isolation | 3.85 kVDC - ACIN/OUT to PE; 3.55 kVDC - ACIN/OUT to DC; 4.25 kVDC - ACIN/OUT to CAN/SYNC; 1.75 kVDC - DC to PE; 3.5 kVDC - DC to CAN/SYNC | |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC/EN 62040-1:2008+A1:2013 UL 60950-1:2014, UL1778:2014, CSA C22.2 No. 107.3-14 | |
| EMC | EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, IEC 61000-6-5:2015 EN 62040-2:2006 (C1 emissions, C2/C3 immunity), FCC CFR 47 Part 15 EN50121 -2:2017+A1:2019, -4:2016+A1:2019, -5:2017+A1:2019⁵ | |
| Environment | EU 2015/863 (RoHS) & 2012/19/EU (WEEE) / ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | |
