DC/AC Inverters and DC Power Systems

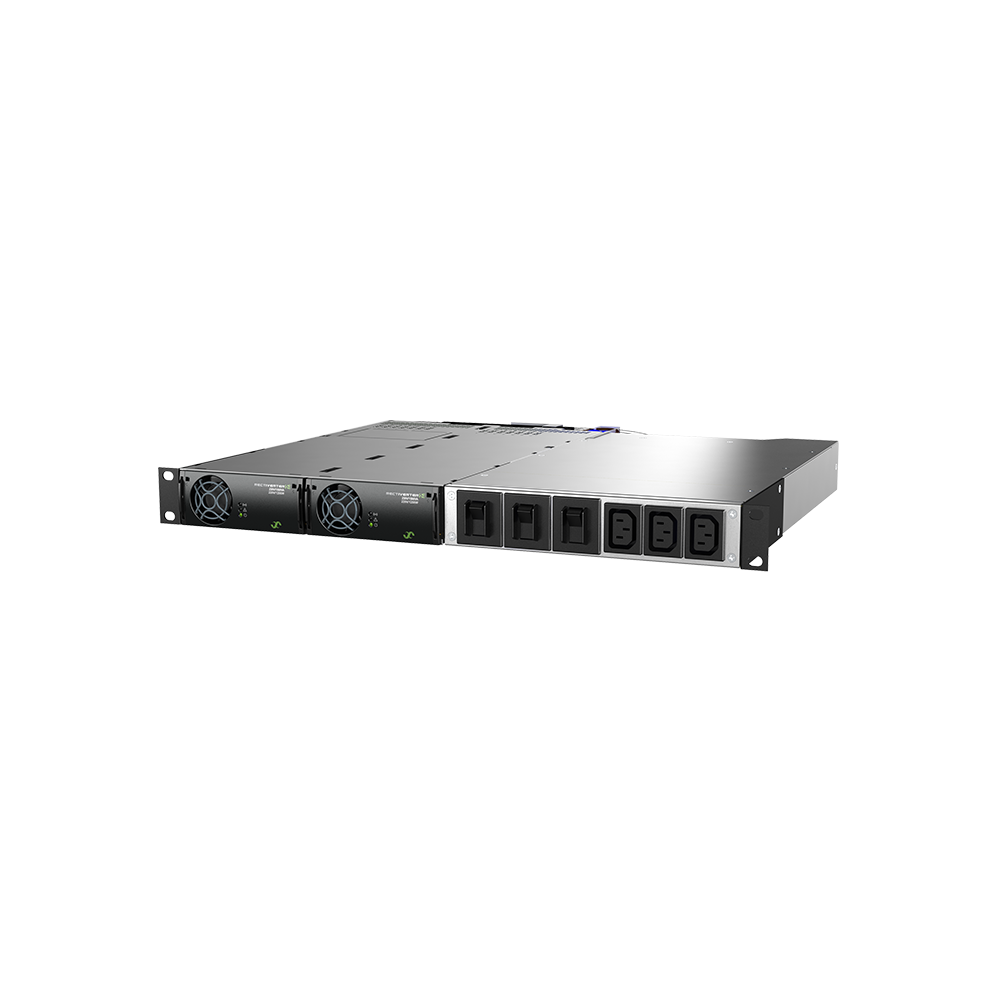

Delta Eltek Rectiverter 1U Standalone Powercore (48Vdc,3kVA,1ph)
The Eltek Rectiverter 1U Standalone Powercore is a high-efficiency inverter with integrated UPS functionality, designed to provide reliable AC power from a 48Vdc power source. With a 3kVA AC output capacity and up to 2.4kW DC output, it ensures uninterrupted power for critical loads during mains failures.
Read More
Features
- Designed to be used in conjunction with a range of 48Vdc Eltek DC systems, including Flatpack2 and Flatpack S
- Provides up to 2.4kW (3,000 VA) single-phase AC output
- Includes protected AC Output distribution via 3 x front-access IEC sockets
- Modular, hot-swappable design
- Advanced monitoring & control via the DC System’s controller (Smartpack2, SmartpackS)
Specifications
Downloads
| MANUFACTURER PART NUMBER | ||||
|---|---|---|---|---|
| Model | 1 Slot Powercore | 2 Slot Powercore | 4 Slot Powercore | DC-DC Powercore (1 Slot) |
| Manufacturer Part Number | 241120.900 | 241120.901 | 241120.902 |
241120.905 |
| MANUFACTURER PART NUMBER | ||||
|---|---|---|---|---|
| Model | 1 Slot Powercore | 2 Slot Powercore | 4 Slot Powercore | DC-DC Powercore (1 Slot) |
| Manufacturer Part Number | 241120.900 | 241120.901 | 241120.902 |
241120.905 |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Max. Output Power (W / kW) | ||
|---|---|---|---|---|---|
|
Rectiverter 1U Standalone Powercore (4kW/230Vac) | Adj. 185 - 275Vac / LV disconnect 170Vac | 53.5Vdc (Adj. 43 - 58Vdc) | 2400W | |
|
|
Rectiverter 1U Standalone Powercore (2kW/115Vac) | Adj. 95 - 140Vac / LV disconnect 85Vac | 53.5Vdc (Adj. 43 - 58Vdc) | 1200W |
Need help finding the right product model?
