Delta Eltek Smartpack 2 Touch Controller

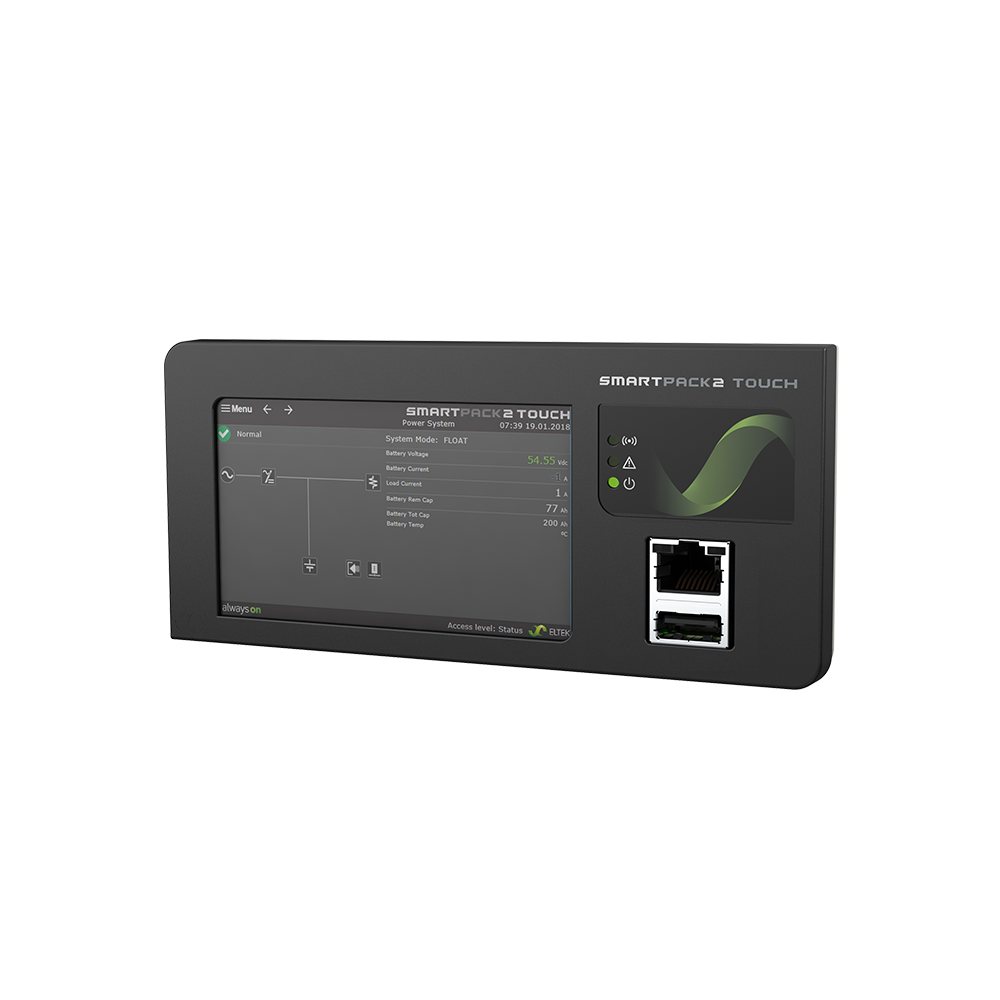

The Eltek Smartpack 2 Touch Controller is an advanced distributed power system controller designed for medium to large Eltek power systems, providing precise monitoring, control, and configuration capabilities.

Read More

View Models
Delta Eltek Smartpack 2 Touch Controller

Features

  • Forms an integral part of medium to large Eltek power systems
  • 4.4” high-resolution colour touchscreen display for easy system navigation
  • Ethernet and SNMP support for remote monitoring and control
  • Multi-protocol support including MODBUS, RS-232, and RS-485 for third-party integration
  • Comprehensive battery management with automatic monitoring and testing
  • Distributed control architecture for system scalability and redundancy
Specifications
MANUFACTURER PART NUMBER
Model Smartpack2 Touch
Manufacturer Part Number 242100.510
Compatible Delta Eltek Systems 12Vdc to 380Vdc, Positive / Negative / Floating Distribution. Panel Mount
INPUT DATA
Voltage DC (operating range) 20 - 420Vdc
ELECTRICAL
Power Consumption 5.4 W
MTBF 1300000 h
SYSTEM CONNECTION
Voltage 1 or 3
Current 1 or 2
Battery (2) midpoint
Load Ground fault detection
OUTPUT
Output Form-C Dry Contact (NO-C-NC) Max 75V
CONFIGURABLE INPUTS
Number of Configurable Inputs 6
Digital Configurations #1-6: Open/Closed
Number of Analogue Configurations 3
Analogue Configurations Temperature: NTC probe Analog:+/-0-10V 4-20mA current sensing
LVD
Loads 2
PORTS
Available Ports CAN;Ethernet;I2C;RS-282;RS-485;USB
DISPLAY
Size 4,4 "
Resolution 480 x RGB x 272
BATTERY DISTRIBUTION
LVBD Yes
DC LOAD DISTRIBUTION
LVLD Yes
OPERATING TEMPERATURE
Operating Temperature -20 - 65 °C
Storing Temperature -40 - 85 °C
Insulation Yes
DIMENSIONS
Dimensions WxHxD (mm) 174 x 78 x 41 mm
Dimensions WxHxD (inch) 6,8 x 3,1 x 1,6 "
DESIGN STANDARDS
Ingress Protection (IP) 22
CERTIFICATIONS
Marine IEC 60945/DNVGL CG-0339
SOFTWARE FUNCTIONALITY
Remote Monitoring DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems pComm (Windows Config/Monitoring Tool) via Modem & IP IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
Rectifier Functions/Monitoring Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm) RectifierGroup Monitoring (A+B Systems) Individual Group Current Share control (A+B Systems) Individual Group Charge Regulation (A+B Systems)
Rectiverter Functions/Monitoring Adjustable output frequency Adjustable output AC voltage Adjustable frequency hold-in range/hysteresis for inverter mode Adjustable DC Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm) Rectiverter AC Output Frequency Monitoring (4-level Alarm) Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm) Rectiverter DC Output Current Total Monitoring (2-level Alarm) Rectiverter Error Monitoring (2-level Alarm) Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm) Rectiverter AC Capacity Monitoring (2-level Alarm) Rectiverter DC Capacity Monitoring (2-level Alarm) Rectiverter Temperature (4-level Alarm) Rectiverter Communication Error Monitoring (2-level Alarm)
Solar Charger Functions/Monitoring Charger module built in MPPT Voltage Input Value Solar Charger Current Monitoring (2-level Alarm) Solar Charger Error Monitoring (2-level Alarm) Solar Charger Communication Error Monitoring (2-level Alarm) Solar Charger Panel Unbalance Monitorting (2-level Alarm)
Wind Charger Functions/Monitoring Configurable Power-Voltage Characteristics Curve in charger module Wind Charger Current Monitoring (2-level Alarm) Wind Charger Error Monitoring (2-level Alarm) Wind Charger Communication Error Monitoring (2-level Alarm)
Battery Management/Monitoring Temperature Compensation Symmetry - Midpoint measurement 12V, 24V, 30V, 36V, 54V, 108, 110V, 168V Symmetry - Double midpoint measurement Symmetry - Block measurement 6V, 12V, 24V Symmetry - Cell measurement 2V, 6V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Battery Discontinuance Testing -simple or advanced (based on shunt in each string) Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm) Individual Battery Fuse Monitoring (1-level alarm) Individual Battery String Current Monitoring (2-level alarm) FIAMM SONICK Battery BMS communication SAFT Evolion Battery BMS communication Narada Battery BMS communication Leoch Battery BMS communication Sacred Sun Battery BMS Battery BMS communication Northstar ACE Battery(Gateway) communication Eltek Generic Battery communiction protocol LVBD (voltage, temperature, mains controllable)
Mains/Grid Monitoring Phase Failure Monitoring (2-level Alarm) Phase Voltage Monitoring (4-level Alarm) Frequency Monitoring (2-level Alarm)* Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)* Power Factor Monitoring 3 phases (2-level Alarm)* Mains Current Monitoring 3 phases (2-level Alarms)* *Require AC Mains Monitor CAN Node
Load Management/Monitoring LVLD Coldstart LVLD Load Fuse Monitoring (1-level alarm) Load Current Monitoring (2- level alarm) Individual Load Fuse Monitoring (1-level alarm) Individual Load Current Monitoring (2- level alarm) Individual Load Power Monitoring Individual Load Energy logging Individual Load Energy cost logging
Programmable Logic OR function of multiple alarms/events AND function of multiple alarms/events Inversion of logical signals Task Scheduler (hourly, daily, weekly, monthly) of any commands/events Alarm Grouping
Hybrid Functionality/Monitoring SoC Controlled Gen Set start/stop Voltage Conrolled Gen Set start/stop Daily Schedule Controlled Gen Set start/stop Soruce Limitation for Gen Set Testing Priorty Solar Charger Priority Wind Charger Fuel Tank level Monitoring (2-level Alarm)
Available Logs Energy Logging (mains, rectifier, rectiverter, grid inverter, solar charger, wind, battery, load) - hourly, dailiy, weekly Data Logging (10 parameters, various trigger intervals and event triggers) BHL/HAA-loggs Account login log Change log Inventory Export
Climate Control & Monitoring Fan control, linear speed vs. temp / max speed* Fan Speed Deviation Monitoring* Humidity Reduction* Intervall Preasure Test* *Require I/O Montior T3
Various Controllers Security setup (open/close UDP/TCP ports) User Account Setup Programmable Buzzer Remote Software Upgrade - maincontroller over IP Remote Software Upgrade - CAN Nodes through maincontroler via FTP Controller/Power Module LED Test Programmable LED Panel (16 LED / 4 color + 4 Push Button) Programmable Viritual Inputs XML Configurations - full parameter flexibility XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
