Delta Eltek Smartpack S Controller (Slot)

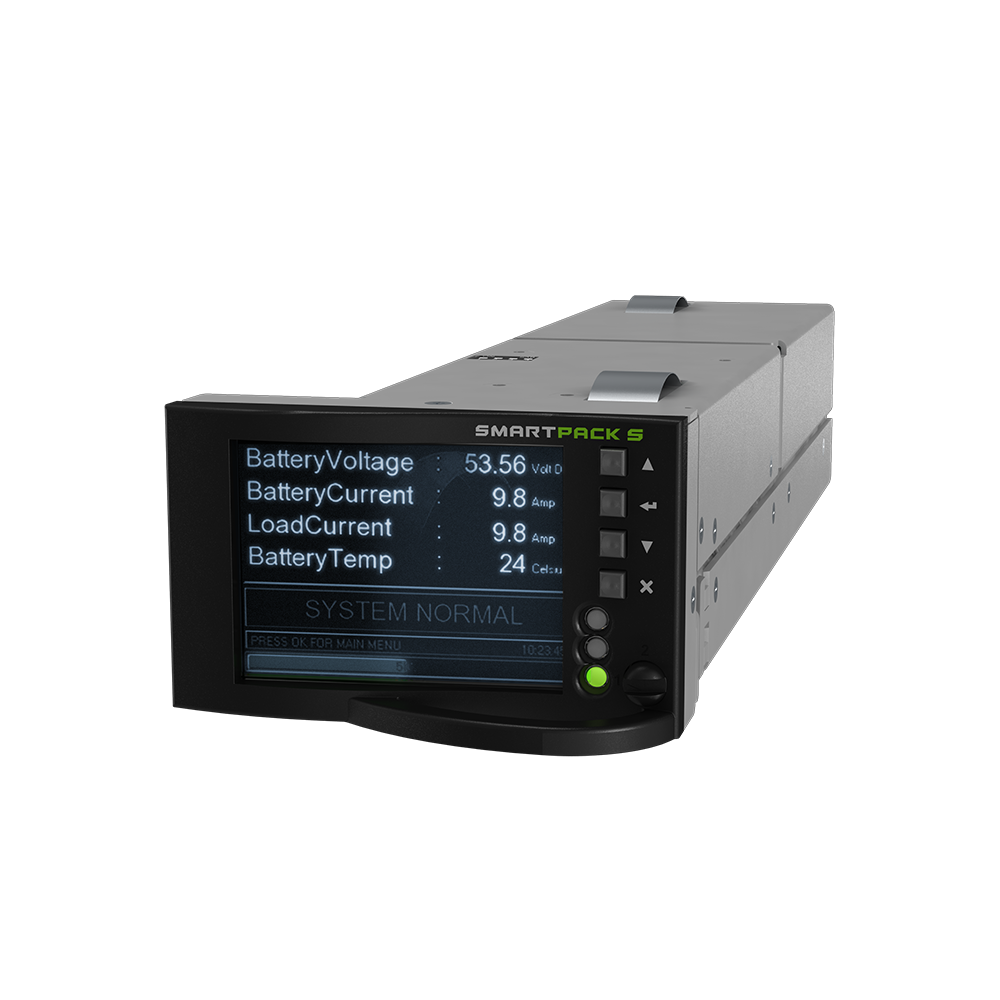

The Eltek Smartpack S Controller is a compact, feature-rich power system controller designed specifically for Eltek Flatpack S systems. It provides advanced monitoring, control, and protection for 24V and 48V DC power systems, ensuring optimal performance and reliability in telecommunications, industrial, railway, and process automation applications.
Read More
Features
- Designed exclusively for use within Eltek Flatpack S power systems
- 2.2” high-contrast colour display for local monitoring and configuration
- Ethernet interface with web-based remote monitoring and SNMP support
- Automatic battery monitoring and testing for enhanced power reliability
- 6 programmable relay outputs and 6 multi-purpose digital or analog inputs
- Compact, hot-swappable design for easy in-field maintenance
Specifications
Downloads
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Smartpack S |
| Manufacturer Part Number | 242100.410 |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Flatpack S systems |
| INPUT DATA | |
|---|---|
| Voltage (Nominal) | 10...75Vdc |
| Power Consumption | 3.1W (Display = Sleep) 5.5W (Display = Awake) |
| SYSTEM CONNECTIONS - SYSTEM MONITORS | |
|---|---|
| Voltage Sense (System Voltage Support) | 12Vdc, 24Vdc, 48Vdc, 60Vdc |
| Current Sense (Shunt Support) | 0...20mV and 0...60mV |
| Battery Fuse Monitoring | Auxiliary switch NO/NC, Pull up/down |
| Load Fuse Monitoring | Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Ground Fault Detection | Simple bridge circuit detection |
| SYSTEM CONNECTIONS - LVD CONTROL | |
|---|---|
| Battery Disconnect | 1 (supports latched or non-latched configuration) |
| Load Disconnect | 1 (supports latched or non-latched configuration) |
| INPUTS & OUTPUTS | |
|---|---|
| Digital Configurations (Inputs #1 - 6) | Auxiliary switch: NO/NC |
| Analog Configurations (Inputs #1 - 4) | Analog Voltage [±0 - 10V] ±4-20mA current measurement (through external 470kΩ resistor) Temperature (for NTC probe) |
| Analog Configurations (Inputs #5 - 6) | Analog Voltage [0-75V] Symmetry Measurement |
| Output Configurations - Alarms (Outputs #1 - 6) | 6x Relay–Dry/Form C Configurable Normally Open/Closed [Max capacity 75V/2A/60W] |
| USER INTERFACE | |
|---|---|
| Local | 2.2” TFT 65k Colour display QVGA resolution 4 keys |
| Ethernet Port | 10/100 BASE-T HP Auto MDI/MDI-X IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite) |
| Serial Port | RS-232 and RS-485 on RJ11 connector Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions (WxHxD) | 72.2 x 43.0 x 220.7mm |
| Operating Temperature Range | -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS | |
|---|---|
| Electrical safety | UL 60950-1-3rd edition, EN 60950-1-3rd edition |
| EMC | ETSI EN 300 386 V.1.4.1 EN 61000-6-1 / -2 / -3 / -4 FCC Part 15 Subpart 109 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) ROHS compliant |
| Marine | DNVGL-CG-0339¹ |
| Notes | ¹ Only valid for part number 242100.410M |
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Smartpack S |
| Manufacturer Part Number | 242100.410 |
| Compatible Delta Eltek Systems | Designed for use within Delta_Eltek Flatpack S systems |
| INPUT DATA | |
|---|---|
| Voltage (Nominal) | 10...75Vdc |
| Power Consumption | 3.1W (Display = Sleep) 5.5W (Display = Awake) |
| SYSTEM CONNECTIONS - SYSTEM MONITORS | |
|---|---|
| Voltage Sense (System Voltage Support) | 12Vdc, 24Vdc, 48Vdc, 60Vdc |
| Current Sense (Shunt Support) | 0...20mV and 0...60mV |
| Battery Fuse Monitoring | Auxiliary switch NO/NC, Pull up/down |
| Load Fuse Monitoring | Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Ground Fault Detection | Simple bridge circuit detection |
| SYSTEM CONNECTIONS - LVD CONTROL | |
|---|---|
| Battery Disconnect | 1 (supports latched or non-latched configuration) |
| Load Disconnect | 1 (supports latched or non-latched configuration) |
| INPUTS & OUTPUTS | |
|---|---|
| Digital Configurations (Inputs #1 - 6) | Auxiliary switch: NO/NC |
| Analog Configurations (Inputs #1 - 4) | Analog Voltage [±0 - 10V] ±4-20mA current measurement (through external 470kΩ resistor) Temperature (for NTC probe) |
| Analog Configurations (Inputs #5 - 6) | Analog Voltage [0-75V] Symmetry Measurement |
| Output Configurations - Alarms (Outputs #1 - 6) | 6x Relay–Dry/Form C Configurable Normally Open/Closed [Max capacity 75V/2A/60W] |
| USER INTERFACE | |
|---|---|
| Local | 2.2” TFT 65k Colour display QVGA resolution 4 keys |
| Ethernet Port | 10/100 BASE-T HP Auto MDI/MDI-X IP protocols: HTTP / SSL, SNMP v3, MODBUS TCP and pComm UDP (PowerSuite) |
| Serial Port | RS-232 and RS-485 on RJ11 connector Serial protocols: MODBUS RTU, Modem Call-Back/SMS reporting (PSTN or GSM), COMLI, CSCP and pComm (PowerSuite) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions (WxHxD) | 72.2 x 43.0 x 220.7mm |
| Operating Temperature Range | -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS | |
|---|---|
| Electrical safety | UL 60950-1-3rd edition, EN 60950-1-3rd edition |
| EMC | ETSI EN 300 386 V.1.4.1 EN 61000-6-1 / -2 / -3 / -4 FCC Part 15 Subpart 109 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) ROHS compliant |
| Marine | DNVGL-CG-0339¹ |
| Notes | ¹ Only valid for part number 242100.410M |
