Delta Eltek Compack Controller

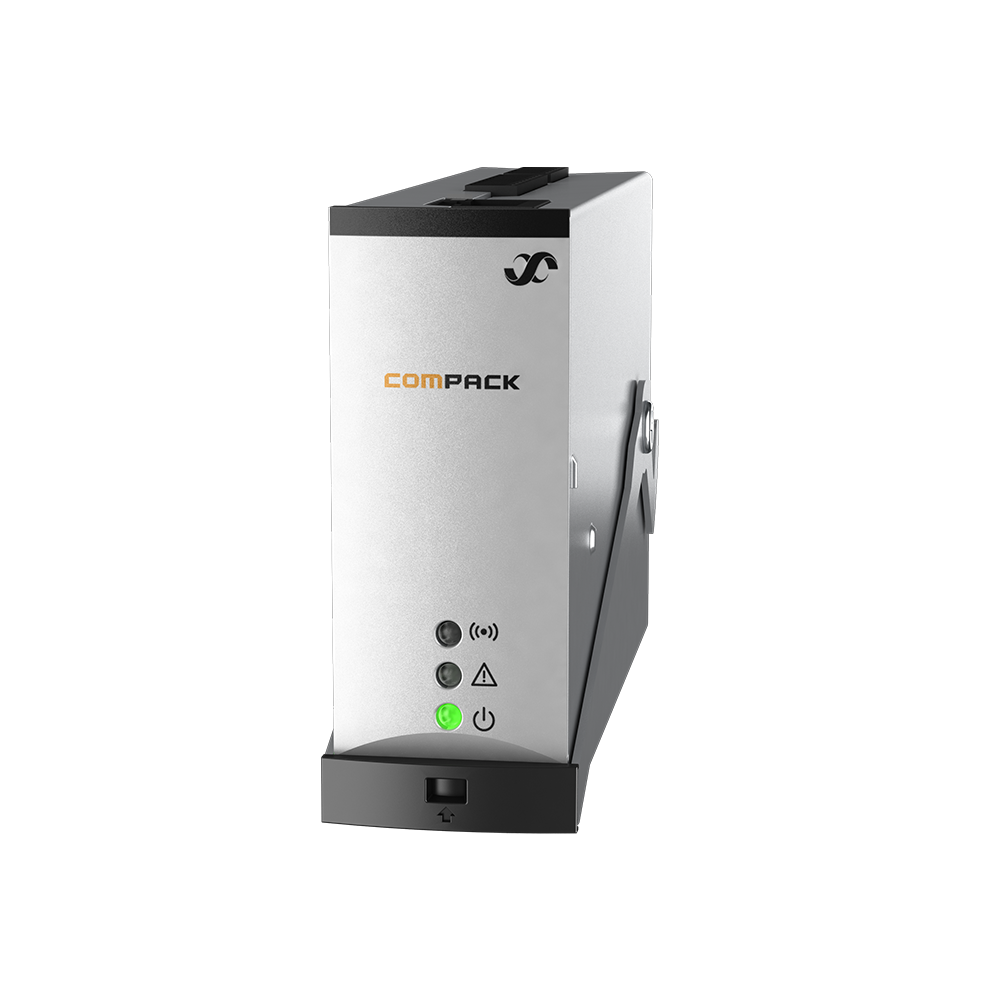

The Eltek Compack Controller is a compact, all-in-one power system controller designed specifically for use within an Eltek MicroPack system. It provides comprehensive monitoring and control capabilities for small to medium DC power systems, ensuring reliable operation across telecommunications, industrial, and critical infrastructure applications.
Read More
Features
- Designed for use within an Eltek MicroPack system
- Ethernet connectivity with SNMP support for remote monitoring and control
- Three configurable relays and three multipurpose inputs for flexible system integration
- Comprehensive battery management with automatic testing and capacity estimation
- Integrated low-voltage disconnect (LVBD/LVLD) for battery protection
- Compact plug-in design for easy installation in space-constrained environments
Specifications
Downloads
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Compack |
| Manufacturer Part Number | 242100.4 |
| Compatible Delta Eltek Systems | Designed for use within Delta Eltek Micropack systems |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 9...75Vdc* (shutdown will occur when voltage < 8.5Vdc) |
| Operating Temperature Range | Nominal: -20 to +60˚C (Reduced accuracy from -40 to +70˚C) |
| Power Consumption | 3W |
| MTBF | > 550, 000 hours Telcordia SR-332 Issue I, method III (a) (Tambient : 25°C |
| Ethernet Port | 10/100 BASE-T HP Auto MDI/MDI-X |
| Relay Outputs (1.5mm²) |
3 x configurable Form-C (dry contact NO-C-NC), Max 75V/2A/60W breaking capacity
|
| Configurable Inputs (1.5mm²) | x3 including - Temperature: External NTC, “Digital”: open/closed, Analog: 0-75V, Battery Symmetry: 0-75V |
| Note | * 12V support from HW rev. HW1.3. HW version 1.0 – 1.2 input voltage range: 17 – 75 VDC |
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions (WxHxD) | 75 x 30 x 115mm |
| Weight | 240G |
| CONTROL FEATURES | |
|---|---|
| Remote Monitoring | Remote Monitoring enabled via Ethernet. Includes support for SNMP (V3, V2C, V1), Web Pages and Email (Logs and alarms) |
| Control System | - Output Voltage Measurement - Load Current Calculation - Energy Calculation - Load/Battery Disconnect - Real Time Clock with Battery Backup - Stored Site Text/ID and Messages - Output Voltage Measuremen to Position (long/lat) for auto placement - Generator start/stop control setup - Test of Relay Outputs - Alarm grouping of events for relay outputs - Boolean AND of alarm groups |
| Battery | - Battery Current Measurement - Battery Temperature Measurement - Battery Testing (acc. to discharge table or set time limit) - Setup of Battery Data/Table - Battery Capacity Indication - Battery Boost Charging: Auto – Ah discharge or voltage threshold; Interval or Manual - Temperature Compensated Charging - Charge Current Limitation - Battery Low Voltage Disconnect (BLVD) |
| Rectifier | - Available information about each rectifier: e.g. serial number, version, internal temperature - Individual Rectifier Current Measurement - Individual Rectifier Input Voltage - Energy calculation - Efficiency Management - Emergency Voltage - Startup delay - Detailed internal alarms summary |
| ALARMS / EVENTS AVAILABLE | |
|---|---|
| Power & Control System | - AC Mains Low (2-level) - AC Phase Voltage x3 (2-level) - “Digital” Inputs (programmable descriptions) - Events trigger by inputs - Service mode (block relays), Generator running, Lower charge current limit, Battery test, Boost Inhibit, Emergency low voltage , Clear manual reset alarms. |
| Load | - Load Disconnect: Voltage or Timer (from mains failure) based; Mains independent (optional) - Load Fuse - Load Current |
| Battery | - Battery Voltage (4-level, optional 8-level) - Battery Temperature (2-level) - Battery Used Capacity (2-level) [Ah or %] - Battery Remaining Capacity (2-level) [Ah or %] - Battery Fuse - Symmetry Failure (2-level) - Battery Quality after test (2-level) - Battery Current (4-level) - Battery Life Time (2-level) [from temperature log] |
| Rectifier/Converter | - Rectifier Failure (2-level) - Rectifier Capacity (2-level) - Rectifier Current (2-level) - Rectifier Avg. Temperature (2-level) - Rectifier Current Share (2-level) |
| Note | Alarms can be set up with monitoring of minor and major levels. Hysteresis and time delay is user configurable. All average and peak levels on analogue values are auto logged. |
| DATA LOGGING | |
|---|---|
| Control System | Event log, Data log (configurable up to 20 monitors), Configuration Change log, Account Access log |
| Energy | Energy delivered from Rectifiers, Solar Charger and Battery, and consumed energy by the load for the last 52 hours, 52 days and 52 weeks |
| Battery | 10 last battery tests detailed, number of battery cycles for the last 52 hours, 52 days and 52 weeks |
| Generator | Run time in minutes and fuel consumption for the last 52 hours, 52 days and 52 weeks |
| MANUFACTURER PART NUMBER | |
|---|---|
| Model | Compack |
| Manufacturer Part Number | 242100.4 |
| Compatible Delta Eltek Systems | Designed for use within Delta Eltek Micropack systems |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 9...75Vdc* (shutdown will occur when voltage < 8.5Vdc) |
| Operating Temperature Range | Nominal: -20 to +60˚C (Reduced accuracy from -40 to +70˚C) |
| Power Consumption | 3W |
| MTBF | > 550, 000 hours Telcordia SR-332 Issue I, method III (a) (Tambient : 25°C |
| Ethernet Port | 10/100 BASE-T HP Auto MDI/MDI-X |
| Relay Outputs (1.5mm²) |
3 x configurable Form-C (dry contact NO-C-NC), Max 75V/2A/60W breaking capacity
|
| Configurable Inputs (1.5mm²) | x3 including - Temperature: External NTC, “Digital”: open/closed, Analog: 0-75V, Battery Symmetry: 0-75V |
| Note | * 12V support from HW rev. HW1.3. HW version 1.0 – 1.2 input voltage range: 17 – 75 VDC |
| GENERAL SPECIFICATIONS | |
|---|---|
| Dimensions (WxHxD) | 75 x 30 x 115mm |
| Weight | 240G |
| CONTROL FEATURES | |
|---|---|
| Remote Monitoring | Remote Monitoring enabled via Ethernet. Includes support for SNMP (V3, V2C, V1), Web Pages and Email (Logs and alarms) |
| Control System | - Output Voltage Measurement - Load Current Calculation - Energy Calculation - Load/Battery Disconnect - Real Time Clock with Battery Backup - Stored Site Text/ID and Messages - Output Voltage Measuremen to Position (long/lat) for auto placement - Generator start/stop control setup - Test of Relay Outputs - Alarm grouping of events for relay outputs - Boolean AND of alarm groups |
| Battery | - Battery Current Measurement - Battery Temperature Measurement - Battery Testing (acc. to discharge table or set time limit) - Setup of Battery Data/Table - Battery Capacity Indication - Battery Boost Charging: Auto – Ah discharge or voltage threshold; Interval or Manual - Temperature Compensated Charging - Charge Current Limitation - Battery Low Voltage Disconnect (BLVD) |
| Rectifier | - Available information about each rectifier: e.g. serial number, version, internal temperature - Individual Rectifier Current Measurement - Individual Rectifier Input Voltage - Energy calculation - Efficiency Management - Emergency Voltage - Startup delay - Detailed internal alarms summary |
| ALARMS / EVENTS AVAILABLE | |
|---|---|
| Power & Control System | - AC Mains Low (2-level) - AC Phase Voltage x3 (2-level) - “Digital” Inputs (programmable descriptions) - Events trigger by inputs - Service mode (block relays), Generator running, Lower charge current limit, Battery test, Boost Inhibit, Emergency low voltage , Clear manual reset alarms. |
| Load | - Load Disconnect: Voltage or Timer (from mains failure) based; Mains independent (optional) - Load Fuse - Load Current |
| Battery | - Battery Voltage (4-level, optional 8-level) - Battery Temperature (2-level) - Battery Used Capacity (2-level) [Ah or %] - Battery Remaining Capacity (2-level) [Ah or %] - Battery Fuse - Symmetry Failure (2-level) - Battery Quality after test (2-level) - Battery Current (4-level) - Battery Life Time (2-level) [from temperature log] |
| Rectifier/Converter | - Rectifier Failure (2-level) - Rectifier Capacity (2-level) - Rectifier Current (2-level) - Rectifier Avg. Temperature (2-level) - Rectifier Current Share (2-level) |
| Note | Alarms can be set up with monitoring of minor and major levels. Hysteresis and time delay is user configurable. All average and peak levels on analogue values are auto logged. |
| DATA LOGGING | |
|---|---|
| Control System | Event log, Data log (configurable up to 20 monitors), Configuration Change log, Account Access log |
| Energy | Energy delivered from Rectifiers, Solar Charger and Battery, and consumed energy by the load for the last 52 hours, 52 days and 52 weeks |
| Battery | 10 last battery tests detailed, number of battery cycles for the last 52 hours, 52 days and 52 weeks |
| Generator | Run time in minutes and fuel consumption for the last 52 hours, 52 days and 52 weeks |
