SecurBox - Integrated Security Cabinet

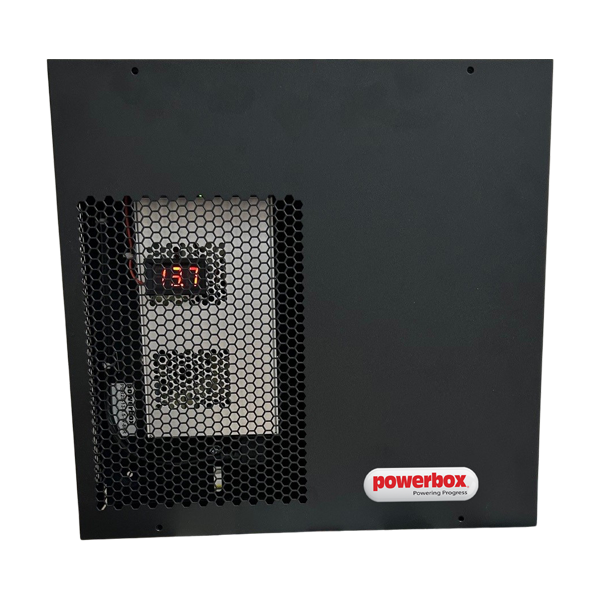

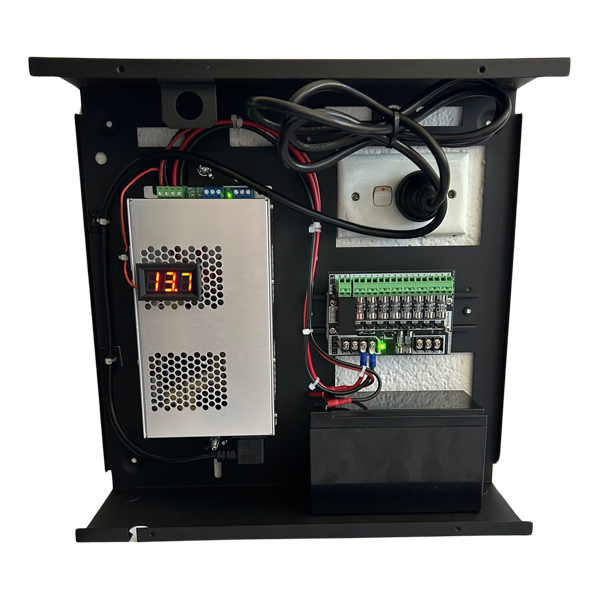

The Powerbox SecurBox is a wall-mounted enclosure for commercial and industrial security applications, offering reliable 12Vdc & 24Vdc power with battery backup. It includes the PBB2S Battery Charger with advanced protections and status indicators while the digital voltmeter provides quick & simple indication of system voltage.
The pre-configured Power Distribution Module comes in two versions: one distribution module with self-healing fuses and the other distribution module combines Fire Trip Alarm Monitoring, ensuring safety and system reliability.
Features
- High-Performance Battery Charger: 12Vdc or 24Vdc output with 240VAC input, available in 3.5A and 7A current ratings for versatile power needs.
- Advanced Power Distribution Module (PDM): Individually fused outputs with status LEDs, offering selectable fire power or standard modes for enhanced safety and operational flexibility.
- Voltmeter: Conveniently located behind the front cover avoiding any intrusion while providing quick and simple system voltage.
- Tamper-Proof Security: Dual tamper switches provide an additional layer of protection against unauthorised access.
- Easy Installation with IEC Mains Plug: Ensures simple and efficient connection to mains power.
- Comprehensive Alarm Monitoring: Includes mains fail and low battery alarms for uninterrupted system performance.
Specifications
Downloads
| SELECTION TABLE |
|||||
|---|---|---|---|---|---|
| MODEL | PBSC-123-8FRM | PBSC-243-8FRM | PBSC-123-10DM | PBSC-127-10DM | PBSC-127-20DM |
| Wall Mounted Ventilated Enclosure |
Yes | Yes | Yes | Yes | Yes |
| Pre-Configured | Mounting & wiring | Mounting & wiring | Mounting & wiring | Mounting & wiring | Mounting & wiring |
| Battery Charger | 12Vdc | 3.5A | 24Vdc | 3.5A | 12Vdc | 3.5A | 12Vdc | 7A | 12Vdc | 7A |
| Power Distribution Module | 8 way selectable outputs. Fire or standard power |
8 way selectable outputs. Fire or standard power |
10 way self-healing fuses | 10 way self-healing fuses | 2 x 10 way self-healing fuses |
| Voltage Meter | Yes | Yes | Yes | Yes | Yes |
| Tamper Proof Switches | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) |
| GPO Cut-Outs | x2 | x2 | x2 | x2 | x2 |
| IEC Mains Plug & Lead | 2m | 2m | 2m | 2m | 2m |
| Internal Wiring | Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
| *Battery excluded | |||||
| ENCLOSURE | |
|---|---|
| Dimensions | 375 x 362 x 111.5mm |
| Tamper Switches | x2 included (cover and back box) |
| Wall Mount | 4 x wall mounting points |
| Ventilated Enclosure | Yes |
| Battery Configurations | 1 x 12V 7Ah (150 x 65 x 101mm) 1 x 12V 12Ah (155 x 98 x 101mm) 1 x 12V 17Ah (181 x 76 x 176mm) 2 x 12V 7Ah |
| Cable Access | Side & rear |
| Mains Connection | IEC mains plug & lead (2m) |
| GPO’s | Facility for 2 x GPO’s |
| BATTERY CHARGER SYSTEM | |
|---|---|
| Nominal Voltage | 240Vac |
| Output Voltage | 13.8 / 27.6 Vdc |
| Output Current | 3.5A |
| Mains/DC OK | Green LED: ON = OK |
| Battery OK | Green LED |
| Battery Fuse Fail | Red LED: ON = FAIL |
| FIRE TRIP POWER DISTRIBUTION MODULE | |
|---|---|
| Input Voltage Range | 0-28Vdc |
| Fire Relay Coil Voltage | 12-24Vdc (or dry contact) |
| Max Standard Power Current | 8A |
| Max Fire Power Current | 8A |
| Fused Outputs | 8 |
| COMPACT POWER DISTRIBUTION MODULE | |
|---|---|
| Input Voltage Range | 12-28Vdc |
| Fire Relay Coil Voltage | 12-28Vdc |
| Max. Standard Power Current | 10A |
| Self-Healing Fuse Outputs | 10 |
| SELECTION TABLE |
|||||
|---|---|---|---|---|---|
| MODEL | PBSC-123-8FRM | PBSC-243-8FRM | PBSC-123-10DM | PBSC-127-10DM | PBSC-127-20DM |
| Wall Mounted Ventilated Enclosure |
Yes | Yes | Yes | Yes | Yes |
| Pre-Configured | Mounting & wiring | Mounting & wiring | Mounting & wiring | Mounting & wiring | Mounting & wiring |
| Battery Charger | 12Vdc | 3.5A | 24Vdc | 3.5A | 12Vdc | 3.5A | 12Vdc | 7A | 12Vdc | 7A |
| Power Distribution Module | 8 way selectable outputs. Fire or standard power |
8 way selectable outputs. Fire or standard power |
10 way self-healing fuses | 10 way self-healing fuses | 2 x 10 way self-healing fuses |
| Voltage Meter | Yes | Yes | Yes | Yes | Yes |
| Tamper Proof Switches | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) | x2 (cover & back box) |
| GPO Cut-Outs | x2 | x2 | x2 | x2 | x2 |
| IEC Mains Plug & Lead | 2m | 2m | 2m | 2m | 2m |
| Internal Wiring | Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
Battery charger to power distribution module & battery* |
| *Battery excluded | |||||
| ENCLOSURE | |
|---|---|
| Dimensions | 375 x 362 x 111.5mm |
| Tamper Switches | x2 included (cover and back box) |
| Wall Mount | 4 x wall mounting points |
| Ventilated Enclosure | Yes |
| Battery Configurations | 1 x 12V 7Ah (150 x 65 x 101mm) 1 x 12V 12Ah (155 x 98 x 101mm) 1 x 12V 17Ah (181 x 76 x 176mm) 2 x 12V 7Ah |
| Cable Access | Side & rear |
| Mains Connection | IEC mains plug & lead (2m) |
| GPO’s | Facility for 2 x GPO’s |
| BATTERY CHARGER SYSTEM | |
|---|---|
| Nominal Voltage | 240Vac |
| Output Voltage | 13.8 / 27.6 Vdc |
| Output Current | 3.5A |
| Mains/DC OK | Green LED: ON = OK |
| Battery OK | Green LED |
| Battery Fuse Fail | Red LED: ON = FAIL |
| FIRE TRIP POWER DISTRIBUTION MODULE | |
|---|---|
| Input Voltage Range | 0-28Vdc |
| Fire Relay Coil Voltage | 12-24Vdc (or dry contact) |
| Max Standard Power Current | 8A |
| Max Fire Power Current | 8A |
| Fused Outputs | 8 |
| COMPACT POWER DISTRIBUTION MODULE | |
|---|---|
| Input Voltage Range | 12-28Vdc |
| Fire Relay Coil Voltage | 12-28Vdc |
| Max. Standard Power Current | 10A |
| Self-Healing Fuse Outputs | 10 |
Find the Right Model
| Model Number | ||||
|---|---|---|---|---|
|
PBSC-123-8FRM | 12Vdc | 3.5A | 8 way selectable outputs. Fire or standard power | |
|
|
PBSC-243-8FRM | 24Vdc | 3.5A | 8 way selectable outputs. Fire or standard power | |
|
|
PBSC-123-10DM | 12Vdc | 3.5A | 10 way self-healing fuses | |
|
|
PBSC-127-10DM | 12Vdc | 7A | 10 way self-healing fuses | |
|
|
PBSC-127-20DM | 12Vdc | 7A | 2 x 10 way self-healing fuses |
Need help finding the right product model?
