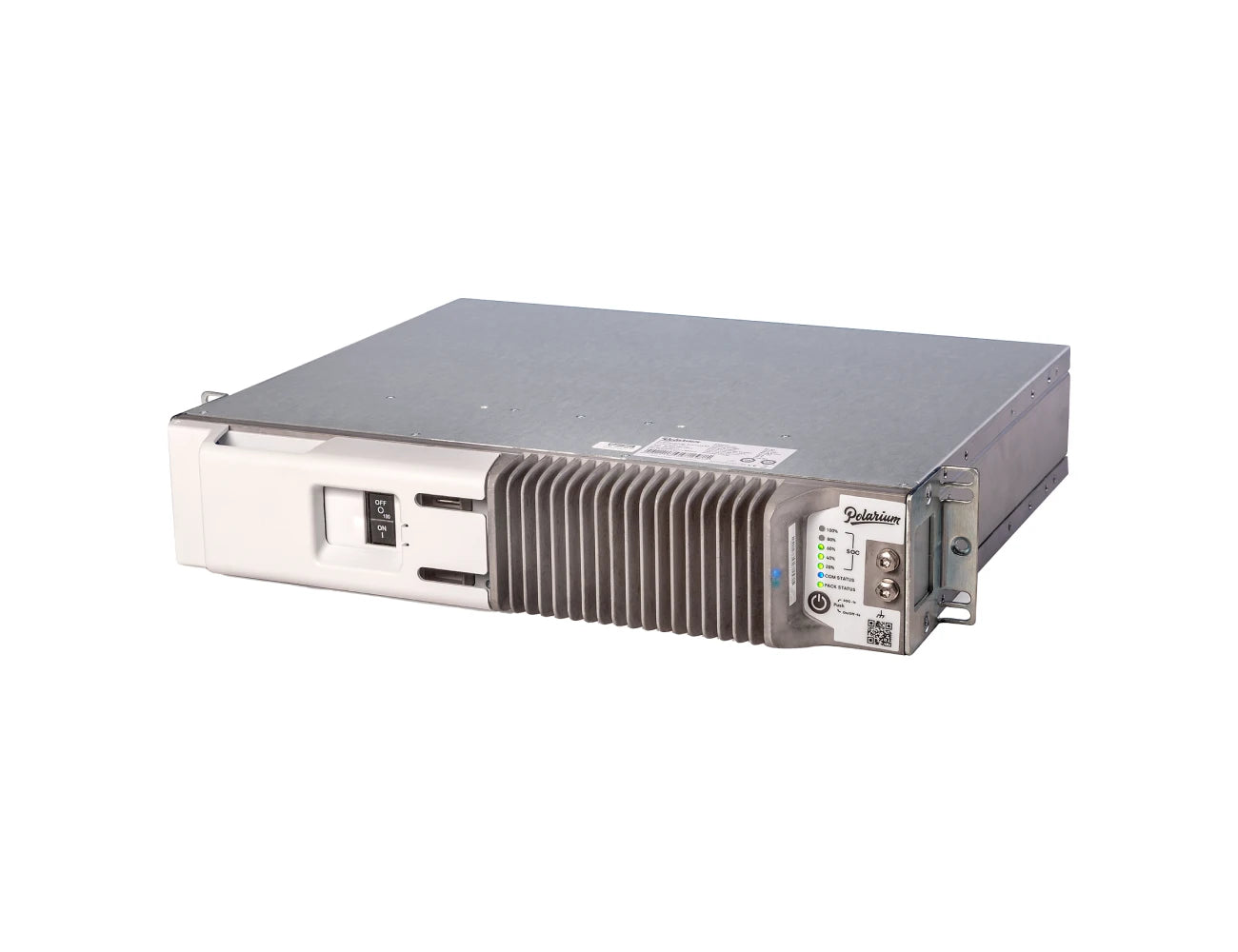

Polarium SLB48-050-124-2 Battery
The Polarium SLB48-050-124-2 is a 48V 50Ah NMC lithium-ion battery designed for telecommunications infrastructure, backup power and energy storage applications. With a rated energy of 2520Wh and peak discharge power of 6kW for 60 seconds, it delivers reliable high-density energy in a compact 2U 19-inch rack mount form factor at just 382mm depth....
Read MoreThe Polarium SLB48-050-124-2 is a 48V 50Ah NMC lithium-ion battery designed for telecommunications infrastructure, backup power and energy storage applications. With a rated energy of 2520Wh and peak discharge power of 6kW for 60 seconds, it delivers reliable high-density energy in a compact 2U 19-inch rack mount form factor at just 382mm depth.
Built around nickel manganese cobalt (NMC) cell chemistry, the Polarium SLB48-050-124-2 provides an exceptional calendar life of 20 years at 80% state of charge. This longevity makes it a strong fit for always-on telecom sites, remote installations and hybrid or off-grid power systems where battery replacement access is limited or costly.
The battery is certified to IEC62619, IEC62368 and UN38.3, covering operational safety, equipment safety and safe transport. Its integrated BMS-controlled circuit breaker, automatic cell balancing and anti-theft device add layers of protection suited to unattended or remote deployments. The 48Vdc nominal voltage aligns with standard telecom DC bus architectures and pairs directly with Polarium's wider SLB48 battery series for scalable capacity.
The 19-inch 2U form factor fits standard rack cabinets, keeping deployment flexible across indoor telecom shelters and equipment rooms. RS485 and Modbus communication allow full local monitoring through Polarium's PC Studio software, with remote management over Modbus for sites that require visibility without truck rolls.
Powerbox Australia provides local engineering support for the Polarium SLB48-050-124-2 and the full Polarium lithium battery range, including system sizing, integration guidance and ongoing technical assistance. Browse the complete Polarium product range or explore the full lithium-ion battery and energy storage collections for complementary products.
Show Less
Features
- Compact design in 19” mounting
- Lithium Chemistry NMC
- 2U height and 395 mm depth
- Rated Capacity 50 Ah
- Rated Energy 2520 Wh
- Peak Discharge Power 6kW for 60 seconds
- Exceptional life; 20 years or 6000 cycles at 80% DoD
- Safe every step of the way – from transportation to implementation and maintenance
Specifications
| TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Enclosure Size | 19" 2U | ||||||||||||||||||||||||||||||||||||||||||||||||
| Lithium chemistry | NMC | ||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Voltage | 48 V | ||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Capacity Ah (0.2C, 25°C to 42 V) | 50 Ah | ||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Energy Wh (0.2C, 25°C to 42 V) | 2520 Wh | ||||||||||||||||||||||||||||||||||||||||||||||||
| Calendar Life @ 80% SOC | 20 years | ||||||||||||||||||||||||||||||||||||||||||||||||
| Peak Discharge Power | 6kW for 60 seconds | ||||||||||||||||||||||||||||||||||||||||||||||||
| Discharge Cutoff Current | 100 A | ||||||||||||||||||||||||||||||||||||||||||||||||
| End-of-Discharge Voltage (LVBD)** | 42 V | ||||||||||||||||||||||||||||||||||||||||||||||||
| Charge Current Limitation (CLD)* | 50 A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Charge Voltage for 100% SOC | 58.8 V | ||||||||||||||||||||||||||||||||||||||||||||||||
| Charge Voltage for 80% SOC | 56 V | ||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature Charging | 0 to +55°C (32 to 131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature Discharging | -20 to +60°C (-4 to 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Relative Humidity | According to ETSI 300 019-1-3 class 3.2 (0-95%) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -20 to +60°C (-4 to 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | Approx. 23.5 Kg (51.8 lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions mm (in") |
W 440 D 382 H 87 (W 17.3” D 15.0” H 3.4”) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Circuit breaker | 100 A, BMS Controlled, single pole | ||||||||||||||||||||||||||||||||||||||||||||||||
| IP class | IP20 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Protocols | RS485, RJ45 (2) ports, Modbus | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Standards | IEC62619, IEC62368, UN38.3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Management & Monitoring | Software for PC (Incell Studio) included for full local monitoring and management. Remote connection via Modbus | ||||||||||||||||||||||||||||||||||||||||||||||||
*If the recharge current is 50A or higher, the battery will automatically reduce the charge current to 6-12A temporarily
** Cut off when one cell reaches 3.0V, 14 cells in series Data subject to change without notice

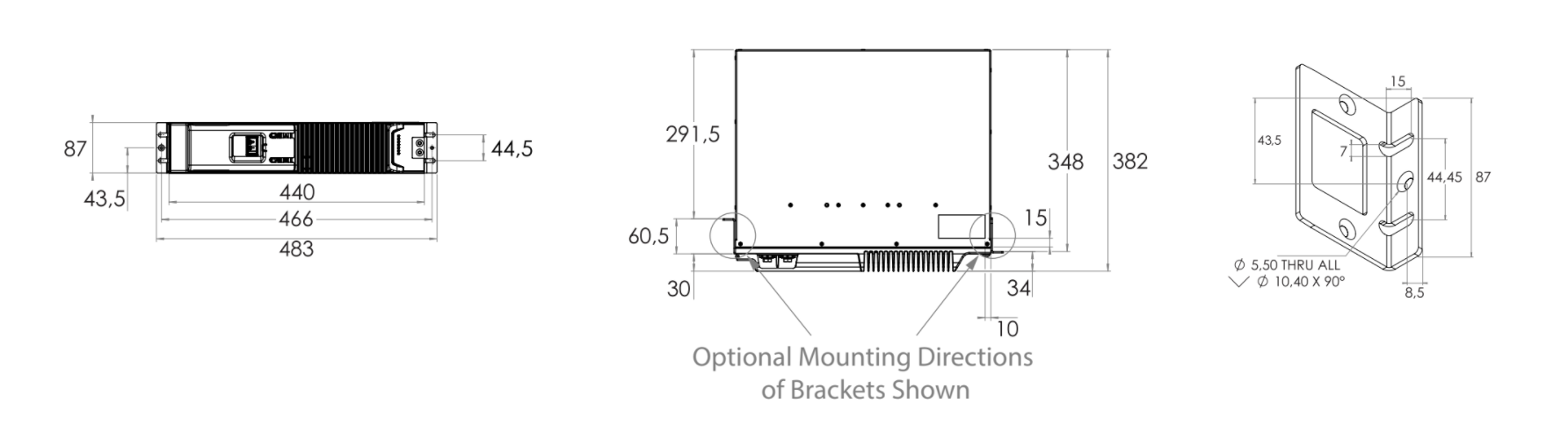

Technical Drawings
