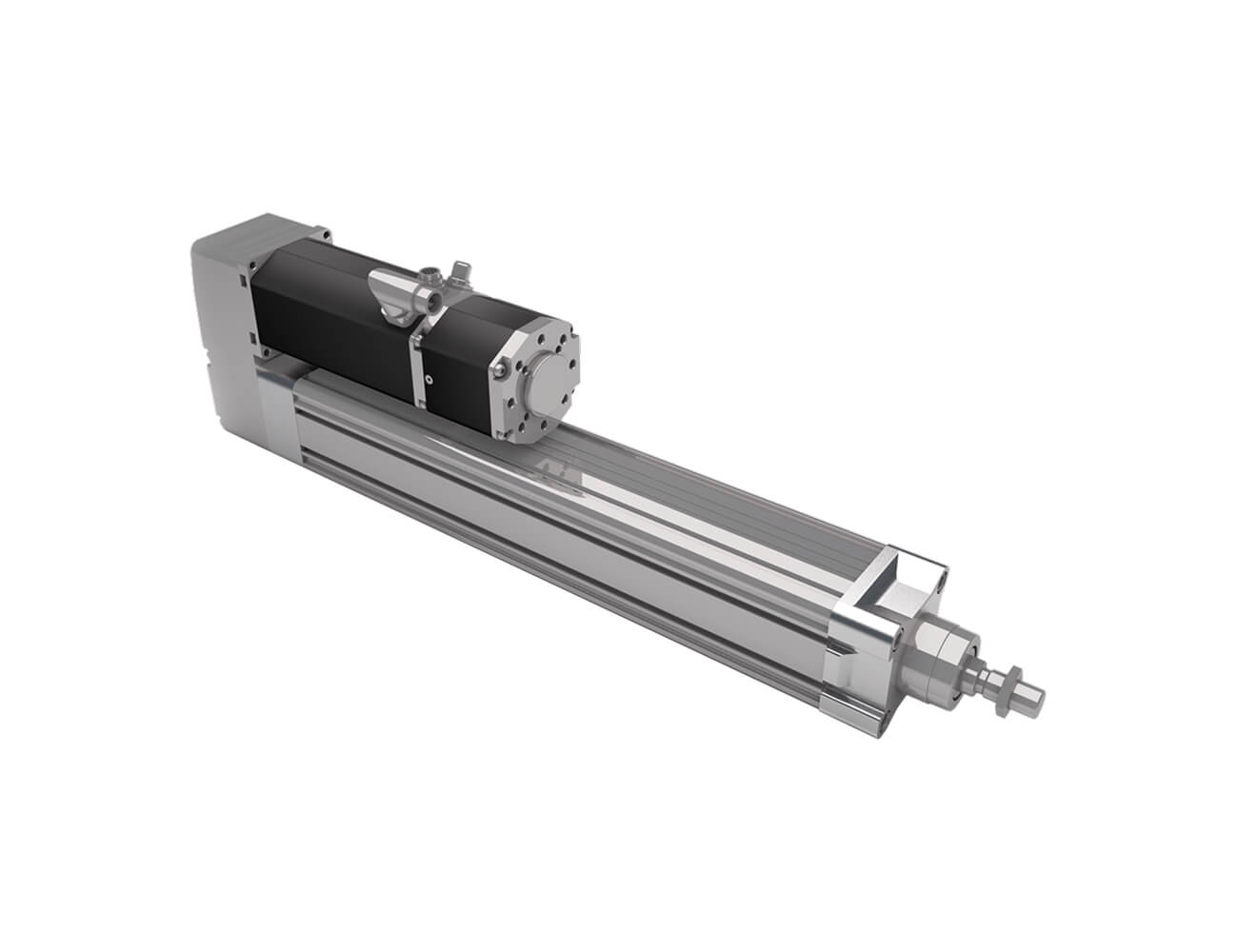

Dunkermotoren CASM-63-BG75 CASM Electric Cylinder

The Dunkermotoren CASM-63-BG75 Electric Cylinder is a powerful and high-performance linear motion solution, designed to handle demanding industrial applications with precision and reliability. With stroke lengths up to 800 mm and peak forces reaching 1885 N, this electric cylinder is a versatile replacement for pneumatic cylinders in automation, robotics, and material handling systems.

Read More

View Models
Dunkermotoren CASM-63-BG75

Features

  • Motor Type: BG 75x75
  • Nominal Voltage: 40-48VDC
  • Nominal Current: 12.7A
  • Constant Force: 292~692N
Selection Table
Data CASM-63
Motor type BG 75x75
Nominal voltage VDC 40-48
Nominal current A 12.7
Peak current (2 sec.) A 50
Spindle version - LS BN BF
Spindle pitch mm 4 10 20
Constant force N 692 583 292
Peak force N 1000 1885 942
Max. traverse speed mm/s 70 530 1060
Max. acceleration m/s² 1 6
Repeatability mm +/- 0.07 +/- 0.01
Lifetime L₁₀ km 100 Siehe Diagramm
Stroke length mm 100 / 200 / 300 / 400 / 500 / 800
LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw
Downloads
casm_63_Datasheet.pdf
Data CASM-63
Motor type BG 75x75
Nominal voltage VDC 40-48
Nominal current A 12.7
Peak current (2 sec.) A 50
Spindle version - LS BN BF
Spindle pitch mm 4 10 20
Constant force N 692 583 292
Peak force N 1000 1885 942
Max. traverse speed mm/s 70 530 1060
Max. acceleration m/s² 1 6
Repeatability mm +/- 0.07 +/- 0.01
Lifetime L₁₀ km 100 Siehe Diagramm
Stroke length mm 100 / 200 / 300 / 400 / 500 / 800
LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw
casm_63_Datasheet.pdf

Find the Right Model

Model Number Constant Force (n) Max. Speed (m/s) Repeatability (µm)
product variant CASM-63-LS-40-BG75x75 692n 1m/s 0.07
product variant CASM-63-LS-48-BG75x75 692n 1m/s 0.07
product variant CASM-63-BN-40-BG75x75 583n 6m/s 0.01
product variant CASM-63-BN-48-BG75x75 583n 6m/s 0.01
product variant CASM-63-BF-40-BG75x75 292n 6m/s 0.01
product variant CASM-63-BF-48-BG75x75 292n 6m/s 0.01
