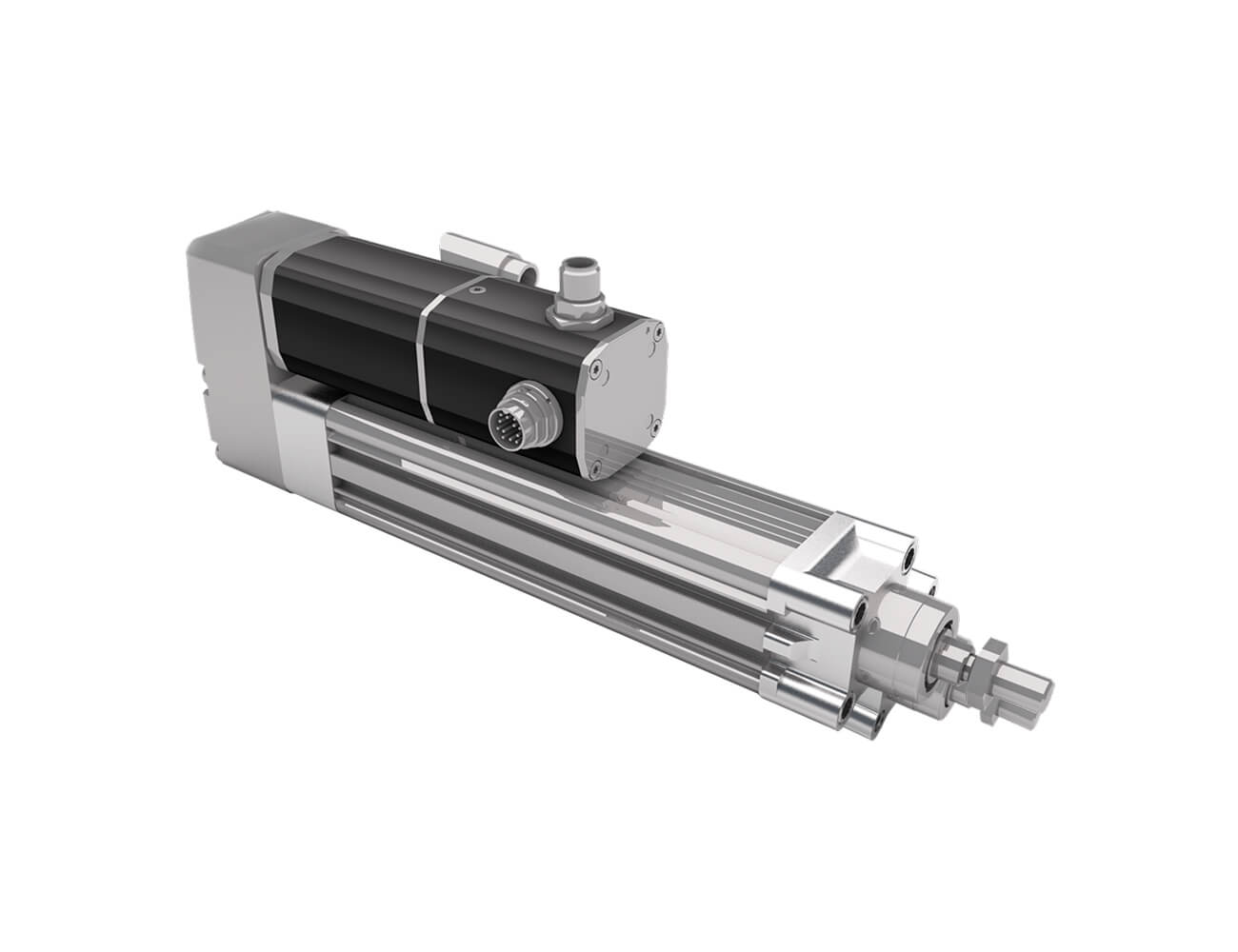

Dunkermotoren CASM-32-BG45 CASM Electric Cylinder
The Dunkermotoren CASM-32-BG45 CASM Electric Cylinder is a compact and efficient linear motion solution, offering exceptional precision and force for demanding industrial applications. With stroke lengths up to 400mm and peak forces reaching 700N, this electric cylinder is an ideal alternative to pneumatic cylinders in automation systems, roboti...
Read MoreThe Dunkermotoren CASM-32-BG45 CASM Electric Cylinder is a compact and efficient linear motion solution, offering exceptional precision and force for demanding industrial applications. With stroke lengths up to 400mm and peak forces reaching 700N, this electric cylinder is an ideal alternative to pneumatic cylinders in automation systems, robotics, and precision machinery.
Key features include a choice of lead or ball screw designs for optimal performance and a twist-protected thrust rod for added stability. The CASM-32 is available in in-line or parallel motor configurations, providing flexibility for diverse setups. Equipped with a BG45x30 brushless DC motor, it ensures high efficiency, low noise operation, and maintenance-free performance. Integration options include multiple BUS interfaces such as CANopen, enhancing connectivity and control.
The CASM-32 Electric Cylinder supports easy configuration of up to 14 positions with PI motors, making it a versatile solution for precise motion control. Its lightweight and compact design facilitates effortless integration into space-constrained environments while ensuring durability with an IP54 protection class.
For reliable and customisable linear motion, the Dunkermotoren CASM-32-BG45 CASM Electric Cylinder delivers exceptional performance and adaptability.
Show Less
Features
- Nominal Voltage: 24VDC
- Nominal Current: 4.9A
- Constant Force: 131 - 327N
Selection Table
| Data | CASM-32 | |||
|---|---|---|---|---|
| Motor type | BG 45x30 | |||
| Nominal voltage | VDC | 24 | ||
| Nominal current | A | 4.9 | ||
| Peak current (2 sec.) | A | 15 | ||
| Spindle version | - | LS | BS | BN |
| Spindle pitch | mm | 1.5 | 3 | 10 |
| Constant force | N | 300 | 327 | 131 |
| Peak force | N | 300 | 700 | 462 |
| Max. traverse speed | mm/s | 60 | 150 | 500 |
| Max. acceleration | m/s² | 1 | 6 | |
| Repeatability | mm | +/- 0.07 | +/- 0.01 | |
| Lifetime L₁₀ | km | 70 | Siehe Diagramm | |
| Stroke length | mm | 50 / 100 / 150 / 200 / 300 / 400 | ||
LS: Lead screw/ Not applicable for motions on mechanical stop.
BS / BN: Ball screw
