Dunkermotoren CASM-40 CASM Electric Cylinder

The Dunkermotoren CASM-40-BG75 Electric Cylinder is a robust and high-performance linear motion solution, capable of handling demanding industrial applications with precision and reliability. With stroke lengths up to 600mm and peak forces reaching 2375N, this electric cylinder is ideal for automation, robotics, and material handling systems.

Read More

View Models

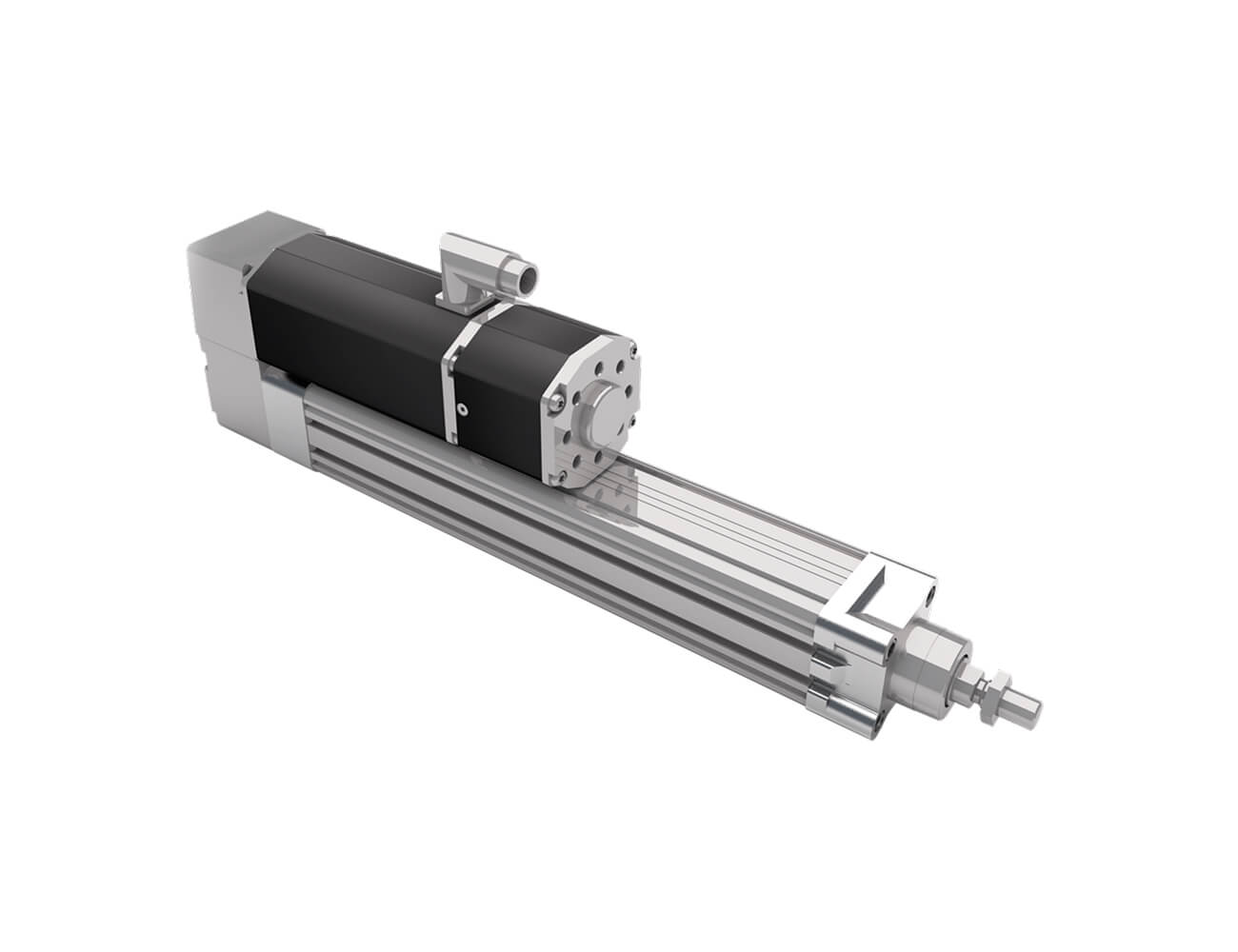

Dunkermotoren CASM-40-BG75

Features

  • Nominal Voltage: 40-48VDC
  • Nominal Current: 7A~12.7A
  • Constant Force: 198N~1020N
Selection Table
Data   CASM-40
Motor type   BG 65Sx50 BG 75x75
Nominal voltage VDC 40-48 40-48
Nominal current A 7 12.7
Peak current (2 sec.) A 20 50
Spindle version - LS BS BN LS BS BN
Spindle pitch mm 2.5 5 12.7 2.5 5 12.7
Constant force N 465 440 198 600 1020 459
Peak force N 600 1170 526 600 2375 1484
Max. traverse speed mm/s 70 300 825 70 300 825
Max. acceleration m/s² 1 6   1 6
Repeatability mm +/- 0.07 +/- 0.01 +/- 0.07 +/- 0.01
Lifetime L₁₀ km 100 Siehe Diagramm 100 Siehe Diagramm
Stroke length mm 100 / 200 / 300 / 400 / 500 / 600

LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw

Downloads
casm_40_Datasheet.pdf
Data   CASM-40
Motor type   BG 65Sx50 BG 75x75
Nominal voltage VDC 40-48 40-48
Nominal current A 7 12.7
Peak current (2 sec.) A 20 50
Spindle version - LS BS BN LS BS BN
Spindle pitch mm 2.5 5 12.7 2.5 5 12.7
Constant force N 465 440 198 600 1020 459
Peak force N 600 1170 526 600 2375 1484
Max. traverse speed mm/s 70 300 825 70 300 825
Max. acceleration m/s² 1 6   1 6
Repeatability mm +/- 0.07 +/- 0.01 +/- 0.07 +/- 0.01
Lifetime L₁₀ km 100 Siehe Diagramm 100 Siehe Diagramm
Stroke length mm 100 / 200 / 300 / 400 / 500 / 600

LS: Lead screw/ Not applicable for motions on mechanical stop. BS / BN: Ball screw

casm_40_Datasheet.pdf

Find the Right Model

Model Number Constant Force (n) Max. Speed (m/s) Repeatability (µm)
product variant CASM-40-LS-40-BG65Sx50 465n 1m/s 0.07
product variant CASM-40-LS-48-BG65Sx50 465n 1m/s 0.07
product variant CASM-40-BS-40-BG65Sx50 440n 6m/s 0.01
product variant CASM-40-BS-48-BG65Sx50 440n 6m/s 0.01
product variant CASM-40-BN-40-BG65Sx50 198n 6m/s 0.01
product variant CASM-40-BN-48-BG65Sx50 198n 6m/s 0.01
product variant CASM-40-LS-40-BG75x75 600n 1m/s 0.07
product variant CASM-40-LS-48-BG75x75 600n 1m/s 0.07
product variant CASM-40-BS-40-BG75x75 1020n 6m/s 0.01
product variant CASM-40-BS-48-BG75x75 1020n 6m/s 0.01
product variant CASM-40-BN-40-BG75x75 459n 6m/s 0.01
product variant CASM-40-BN-48-BG75x75 459n 6m/s 0.01
