Brushless DC Motors

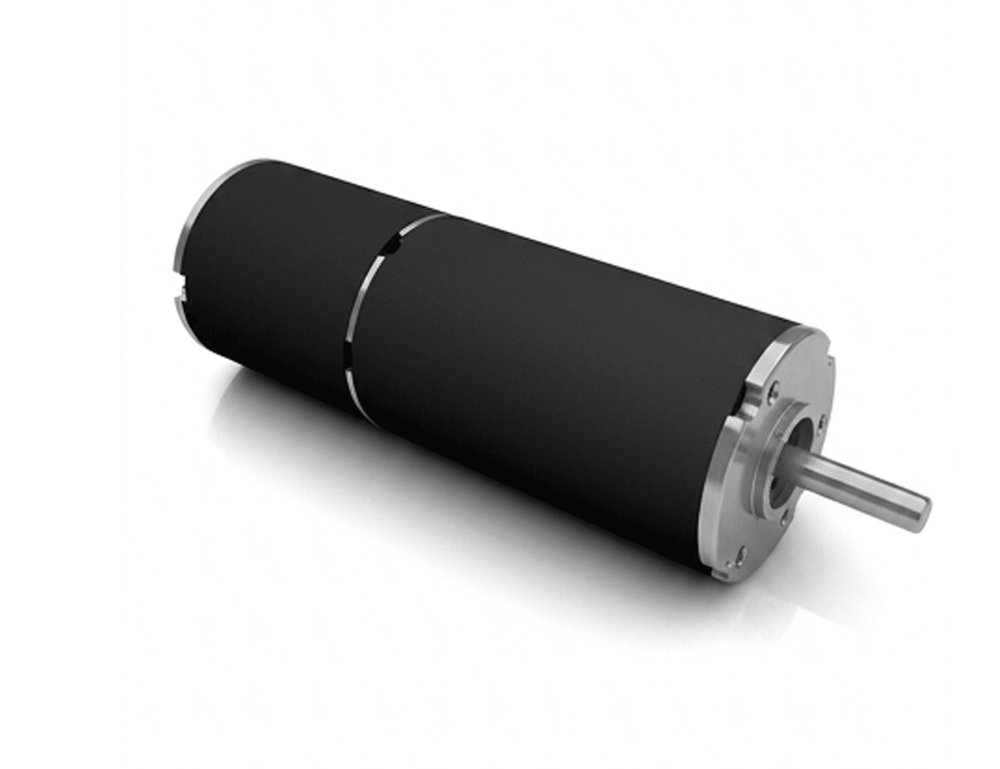

Dunkermotoren BGA 22 dGo Brushless DC Motor

The Dunkermotoren BGA 22 dGo is a 3-phase BLDC motor with high-quality rare-earth magnets and integrated commutation electronics, designed for compact motion applications that need high power density and strong overload capability. Its coreless construction helps eliminate cogging torque while also supporting low-noise operation and a weight-optimised motor design.

Read More

View Models
  • bga_22_dgo_IMG

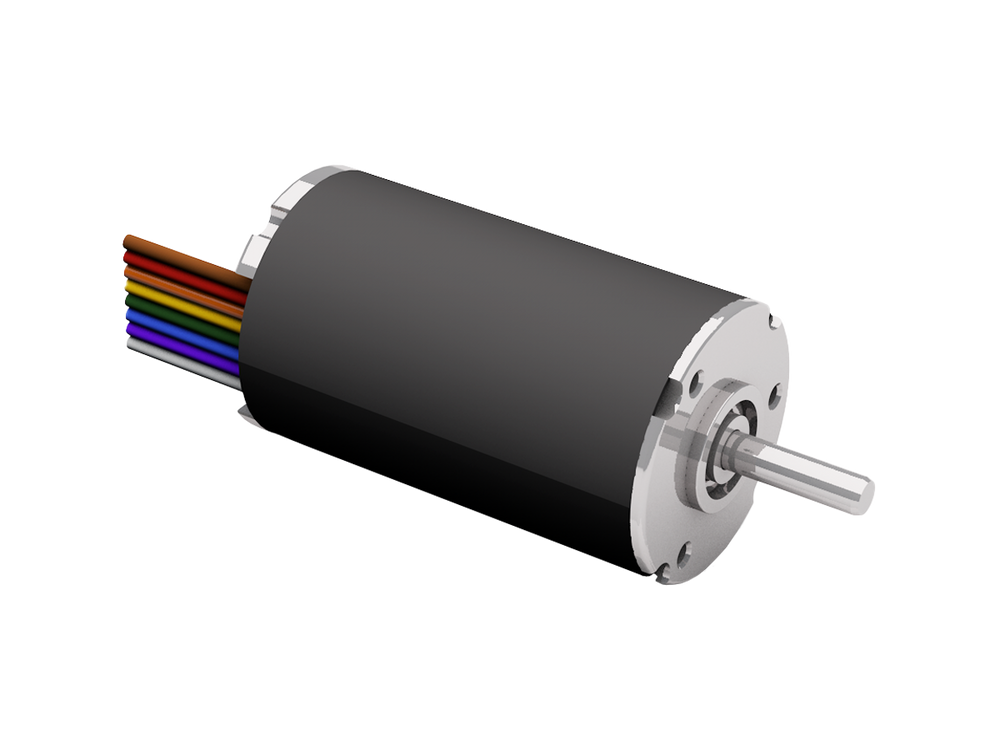

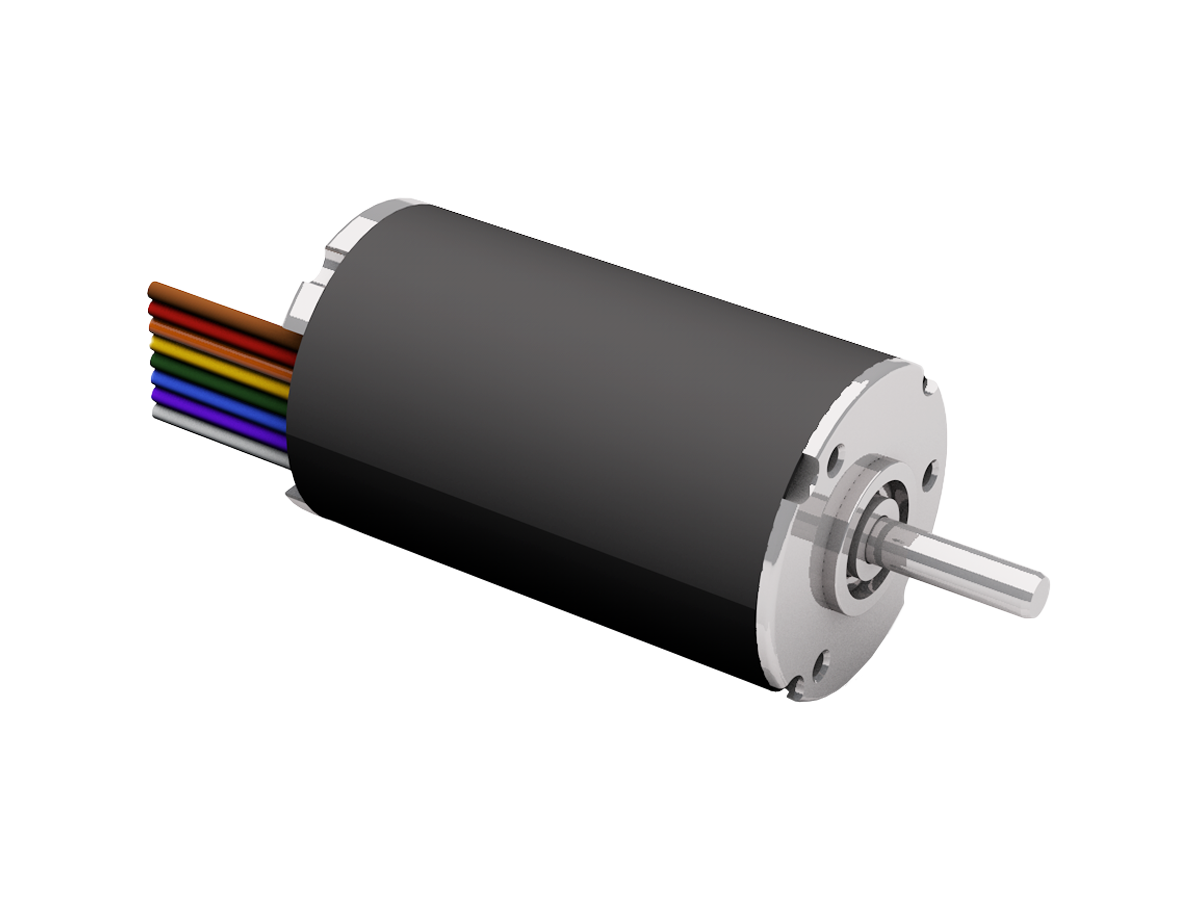

  • BGA22x22

Features

  • 3-phase BLDC motor with high-quality rare-earth magnets and integrated commutation electronics.
  • Coreless design with no cogging torque.
  • High power density and overload capability.
  • Low noise level.
  • DC voltage supplied via 2 wires.
  • 2-/3-wire reversible-polarity versions and 6-wire control versions available.
Specifications
BGA 22x22 dGo Specifications
Parameter Units BGA 22x22
6V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
24V		 BGA 22x22
24V
Nominal voltage Vdc 6 12 12 12 24 24
Nominal current A* 2.08 0.94 2.12 2.66 0.96 1.27
Nominal Torque Nm* 0.02 0.0182 0.0193 0.0168 0.0174 0.0173
Nominal speed rpm* 2990 2950 8940 13120 8820 13160
Stall torque Nm** 0.059 0.054 0.072 0.051 0.107 0.109
No load speed rpm* 5500 5330 11030 14550 10700 14490
Nominal output power W** 6.2 5.6 18 23 16 23.8
Maximum output power W** 34 30 132 220 119 236
Torque constant Nm A⁻¹ 0.011 0.0223 0.0105 0.008 0.022 0.0162
Peark current A** 8 8 8 8 8 8
Rotor inertia gcm² 15
Weight of motor kg 0.065
For projects 50 pieces on; *) Δϑw = 100 K; **) ϑR = 20°C
*Not available as 2-/3 wire-version
Downloads
Datasheet_bga_22_dgo.pdf
BGA 22x22 dGo Specifications
Parameter Units BGA 22x22
6V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
12V		 BGA 22x22
24V		 BGA 22x22
24V
Nominal voltage Vdc 6 12 12 12 24 24
Nominal current A* 2.08 0.94 2.12 2.66 0.96 1.27
Nominal Torque Nm* 0.02 0.0182 0.0193 0.0168 0.0174 0.0173
Nominal speed rpm* 2990 2950 8940 13120 8820 13160
Stall torque Nm** 0.059 0.054 0.072 0.051 0.107 0.109
No load speed rpm* 5500 5330 11030 14550 10700 14490
Nominal output power W** 6.2 5.6 18 23 16 23.8
Maximum output power W** 34 30 132 220 119 236
Torque constant Nm A⁻¹ 0.011 0.0223 0.0105 0.008 0.022 0.0162
Peark current A** 8 8 8 8 8 8
Rotor inertia gcm² 15
Weight of motor kg 0.065
For projects 50 pieces on; *) Δϑw = 100 K; **) ϑR = 20°C
*Not available as 2-/3 wire-version
Datasheet_bga_22_dgo.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BGA 22x22-6-34 dGo 6Vdc 0.02Nm 2990rpm
product variant BGA 22x22-12-30 dGo 12Vdc 0.0182Nm 2950rpm
product variant BGA 22x22-12-132 dGo 12Vdc 0.0193Nm 8940rpm
product variant BGA 22x22-12-220 dGo 12Vdc 0.0168Nm 13120rpm
product variant BGA 22x22-24-119 dGo 24Vdc 0.0174Nm 8820rpm
product variant BGA 22x22-24-236 dGo 24Vdc 0.0173Nm 13160rpm
