Cosel PBB7A-D SERIES AC/DC Power Supply
The Cosel PBB7A-D Series AC/DC Power Supply is a compact and reliable solution designed for PCB-mounted applications. With power outputs of 10W and voltage options of 5V, 12V, and 24V, this series ensures consistent and efficient performance across a range of industrial, medical, and IT systems. Key features include a wide input voltage range (8...
Read MoreThe Cosel PBB7A-D Series AC/DC Power Supply is a compact and reliable solution designed for PCB-mounted applications. With power outputs of 10W and voltage options of 5V, 12V, and 24V, this series ensures consistent and efficient performance across a range of industrial, medical, and IT systems.
Key features include a wide input voltage range (85–264VAC or 120–370VDC) for flexible deployment and efficiency ratings of up to 87% to reduce energy consumption. Its lightweight design, measuring just 33 x 15 x 22 mm and weighing only 25g, is perfect for compact installations. The PBB7A-D Series operates reliably in temperatures from -40°C to +85°C (with derating) and includes safety features such as overcurrent and overvoltage protection. Compliance with UL60950-1, C-UL, and EN60950-1 standards ensures dependable operation, while noise compliance to FCC-B, VCCI-B, and CISPR-B minimises interference.
This RoHS and ErP-compliant power supply is backed by a 5-year manufacturer’s warranty, making it an eco-friendly and durable choice for a wide range of applications. Whether for industrial automation, medical equipment, or sensitive electronics, the PBB7A-D Series delivers performance you can trust.
Show Less
Features
- 10W AC/DC Module
- PCB Mounting
- Small Footprint
- ErP compliant
- Meets Class II
- High efficiency
- Wide operating temperature -40 to 85C
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 85–264Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input current | 200Vac: 0.14A typ (lo=100%) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47– 63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current | Limited by external components | ||||||||||||||||||||||||||||||||||||||||||||||||
| Leakage current | 0.40/0.75mA max. (ACIN 100V/240V, 60Hz, lo=100%, according to IEC60950-1) | ||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | 5Vdc, 12Vdc, 24Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power | 10W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Current | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Line regulation |
5V: 20mV max 12V: 48mV max 24V: 96mV max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation |
5V: 40mV max 12V: 100mV max 24V: 150mV max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple |
For 30% - 100% load 5V: 120mV max 12V: 160mV max 24V: 200mV max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Regulation |
For 0 to +85°C 5V: 100mV max 12V: 180mV max 24V: 360mV max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 85% typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overcurrent Protection | Works over 105% of rating and recover automatically | ||||||||||||||||||||||||||||||||||||||||||||||||
| Overvoltage Protection |
5V: 5.50 - 8.00V 12V: 13.20 - 19.20V 24V: 26.40 - 38.40V |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature | -40 to +85°C (some derating required, ask sales office) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20%-95%RH non condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| Altitude | 3,000m (10,000 feet) max | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Convection/forced air | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General | UL60950-1, C-UL (CSA60950-1), EN60950-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Conducted Noise | FCC-B,VCCI-B,CISPR-B,EN55022-B | ||||||||||||||||||||||||||||||||||||||||||||||||
| Harmonic Attenuator | IEC61000-3-2 (Class A) | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 33 x 15 x 22mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 25g | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|
| PBB7A-5D | 5V | 2A | 10W |
| PBB7A-12D | 12V | 0.9A | 10W |
| PBB7A-24D | 24V | 0.45A | 10W |

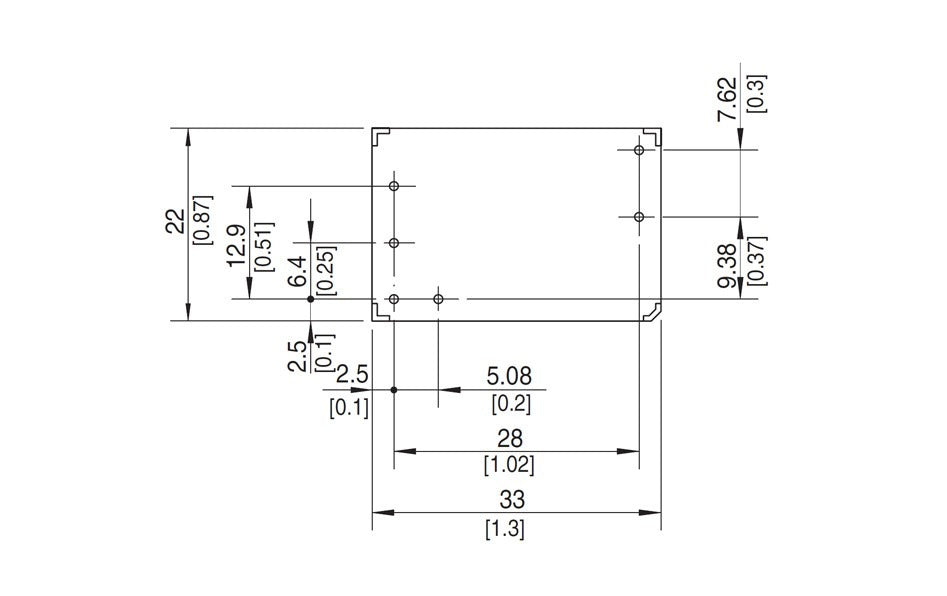

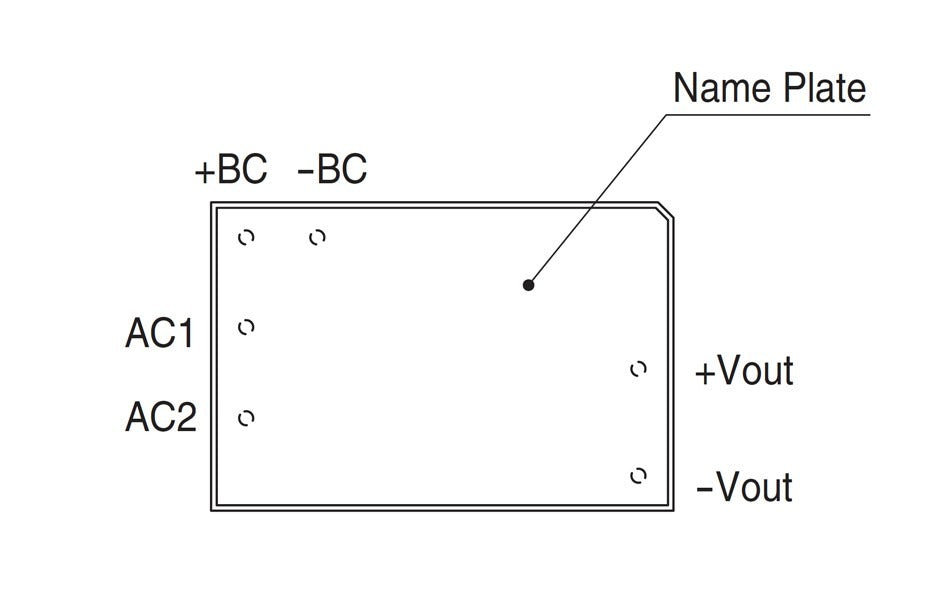

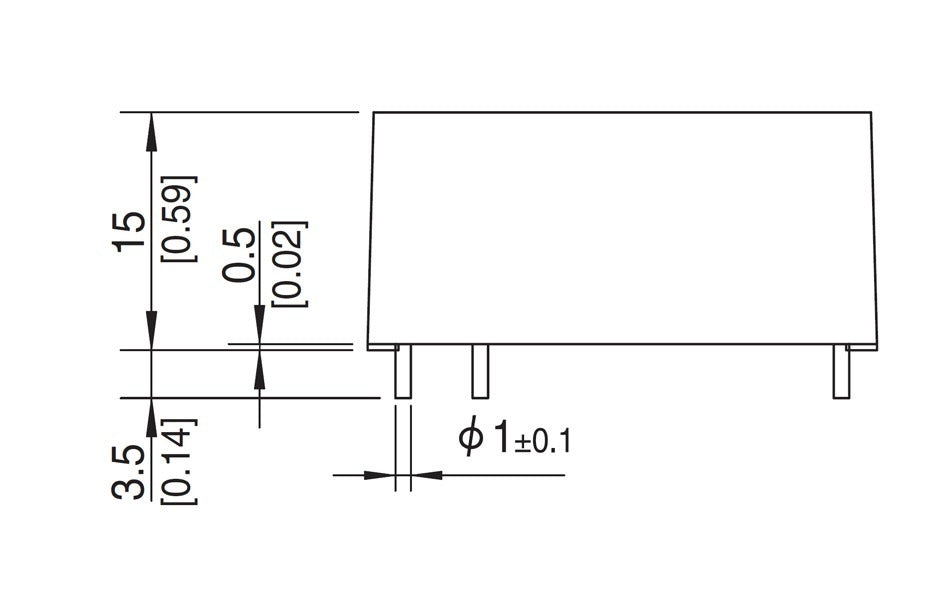

Technical Drawings
