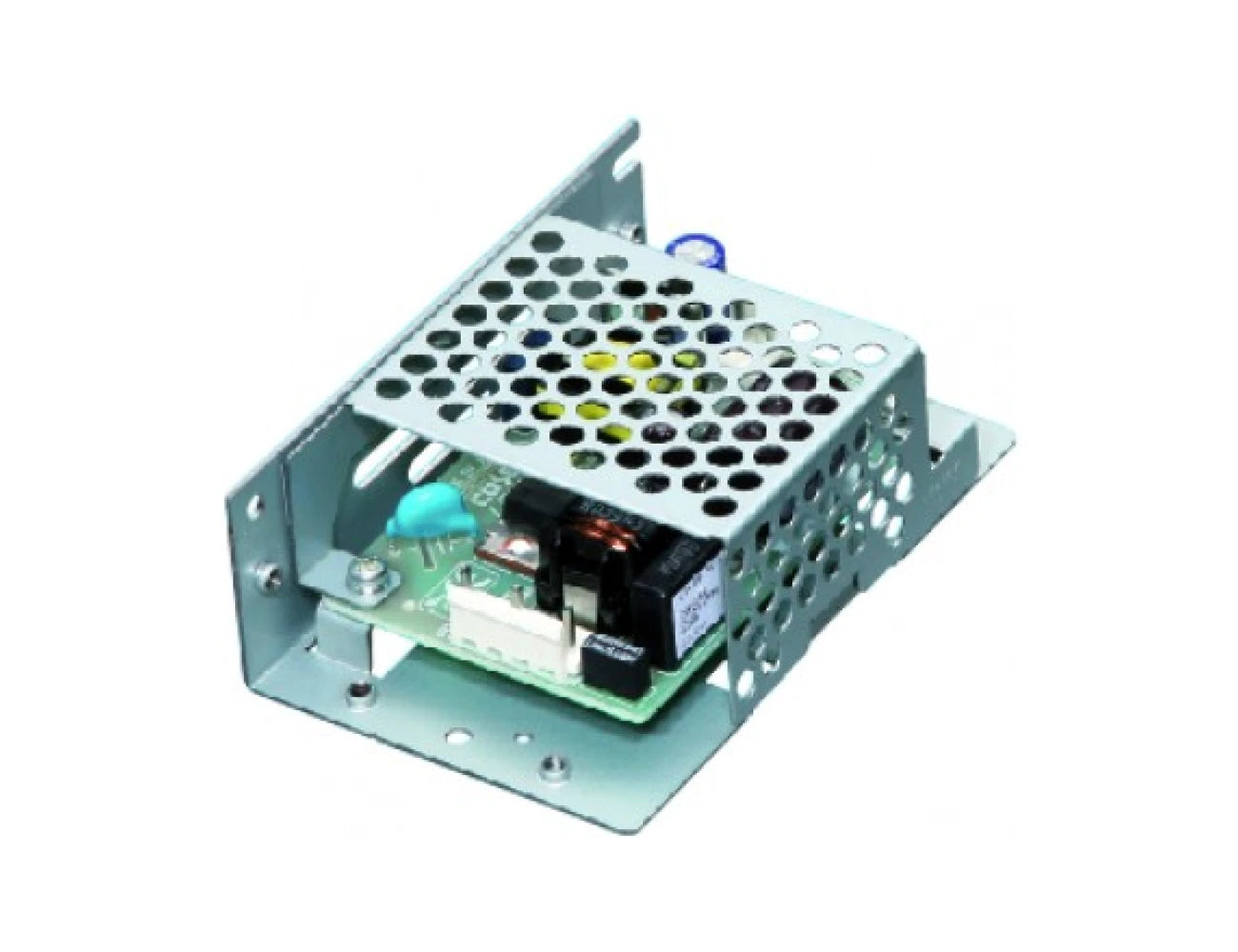

Cosel PBB13C SERIES AC/DC Power Supply

The Cosel PBB13C Series AC/DC Power Supply is a compact and reliable single-output solution, delivering power outputs ranging from 7W to 300W. With an extensive range of models and output voltage options (from 3.3V to 48V), it is tailored to meet the needs of medical, ITE, communication and industrial applications.

Read More

View Models
Cosel PBB13C SERIES AC/DC Power Supply

Features

  • 7 - 300W
  • AC/DC POWER SUPPLY
  • CHASSIS MOUNTING
  • MOLEX STYLE CONNECTORS
  • PFC ON 100-300W MODELS
  • APPLICATIONS: MEDICAL & AUDIO/VISUAL
Specifications
INPUT
Input Voltage 85-264Vac
Frequency 47-63Hz
Inrush current 30A typical at 200V AC.
Power factor 0-90 typ., 50-300W
OUTPUT
Output voltage See Selection Table
Voltage adjustment Typically ±10%
Output current See Selection Table.
Minimum load Unit will operate with zero load
Hold up time 20mS typical (AC in 100V)
Regulation Line: 20-192mv Model Dependant
Load: 40-240mv Model Dependant
Ripple and noise Typ. 150mVp-p
Temperature drift 20-192mv Model Dependant
Efficiency Typ. 80%
PROTECTION
Safety isolation Input-Output AC 3,000V 1 minute
Input - FG AC 2,000V 1 minute
Output - FGAC 500V 1 minute
Overvoltage protection At 115%–140% of rated.
Overcurrent protection Operates over 105% of rating and recovers
automatically
ENVIRONMENTAL
Operating temperature -10°C to 70°C.
Derating 2.5%/C after 50C
Cooling Convection.
Vibration 10Hz–55Hz, 2G, 3 mins period for 60 minutes along X, Y and Z axis.
Impact 20G, 11mS, once each along X, Y and Z axis.
STANDARDS AND APPROVALS
Safety standards UL60950-1, CSA 60950-1, EN60950-1, EN50178,
C-tick AS/NZS CISPR11 Group 1 Class A.
EMC EN61204-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
MECHANICAL
Case size PBB13C-D-SNY 60 x32 x 93.5mm PBB13C-F-SNY 60 x 32 x 107.5mm PBB13C-H-SNY 60 x 36 x 125mm PBB13C-J-SNY 60 x 36 x 132m PBB13C-L-SNY 60 x 33.5 x 162mm PBB13C-M-SNY 72 x 45 x 185mm PBB13C-R-SNY 85 X 47 X 188mm PBB13C-E-SNY 98 X 59 X 212mm PBB13C-T-SNY 95 X 49 X 222mm

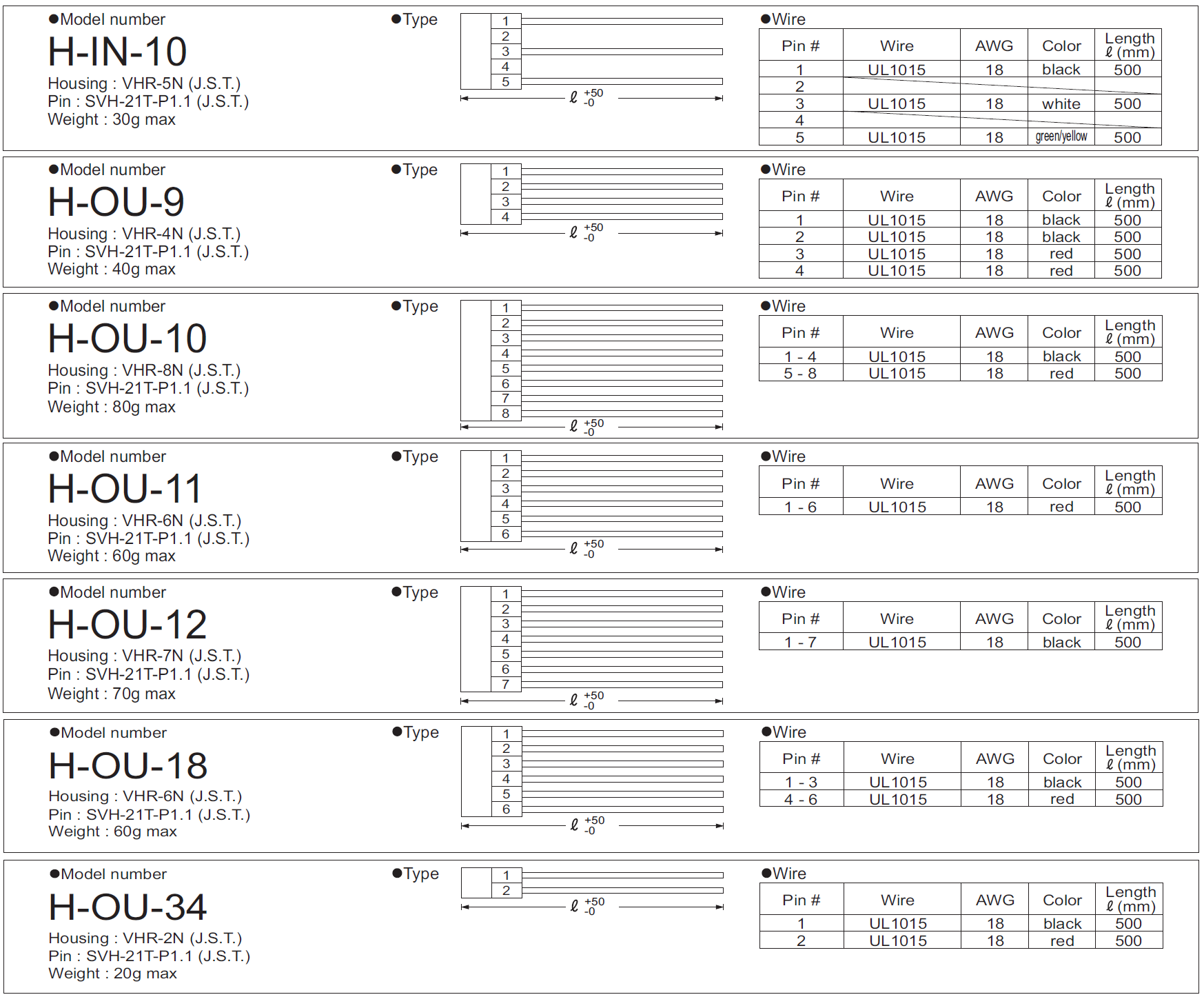

Cable harness

Input/output harness supplied with PSU
Input and output harness supplied, RoHS compliant
CN1: Input Connector; Harness: H-IN-10-R
CN2: Output Connector; Harness:
PBB13C-D,F 10-15W, H-OU-34-R
PBB13C-H,J 30-50W, H-OU-9-R
PBB13C-L, 75W, H-OU-18-R
PBB13C-M, 100W, H-OU-10-R
PBB13C-R, 150W, H-OU-11-R, H-OU-12-R

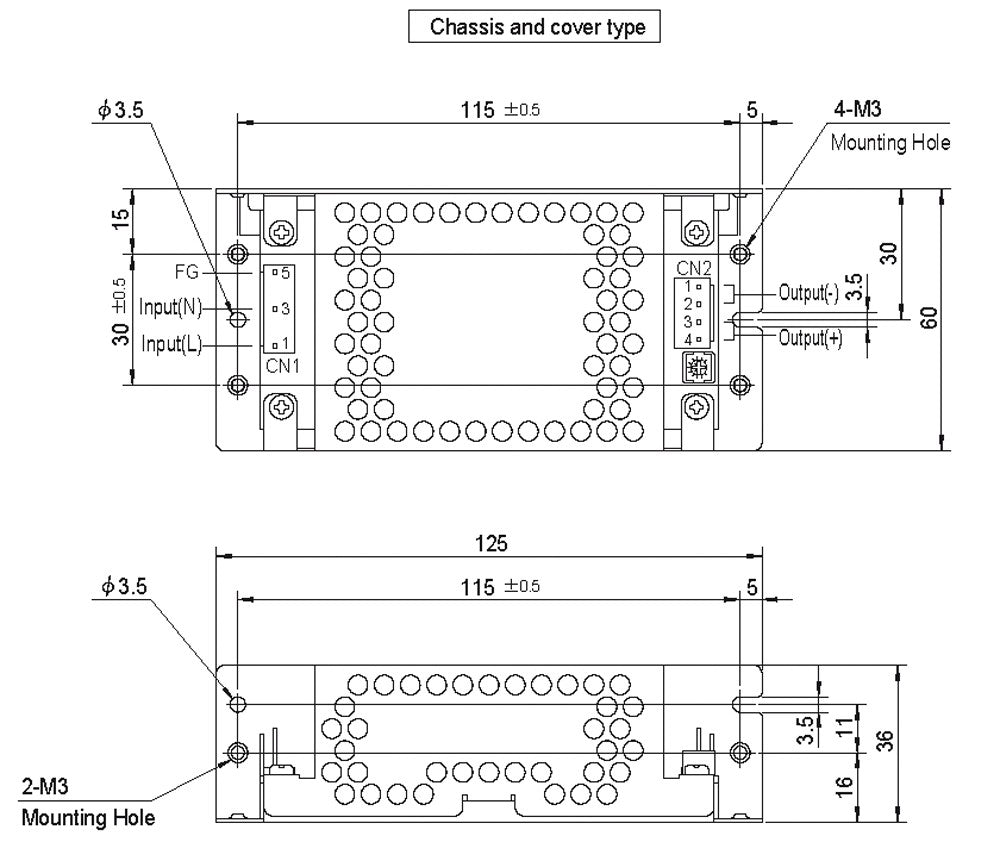

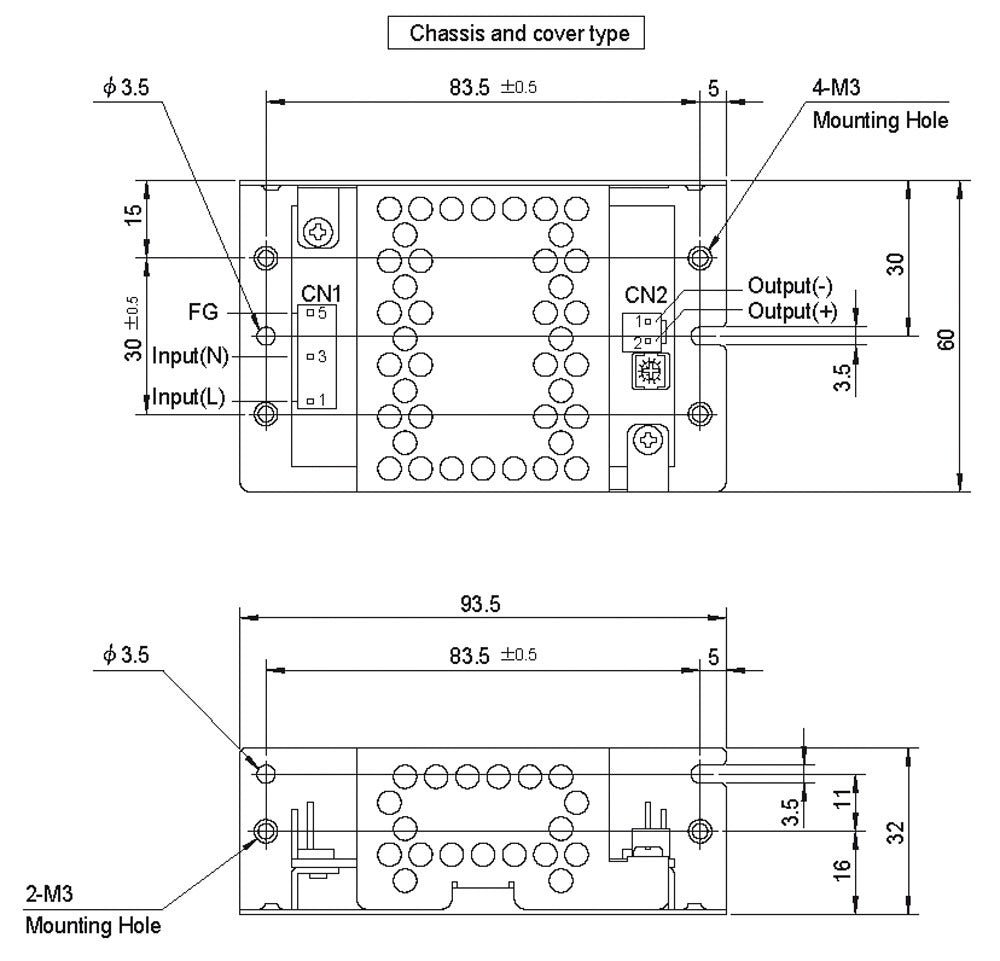

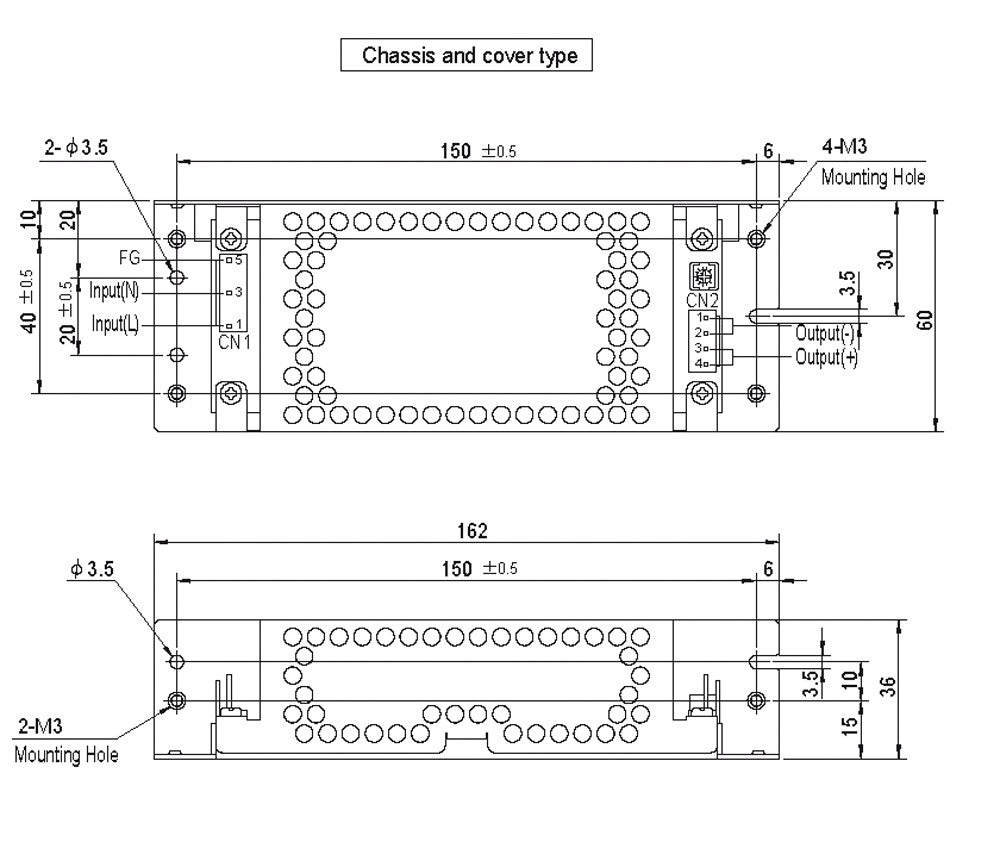

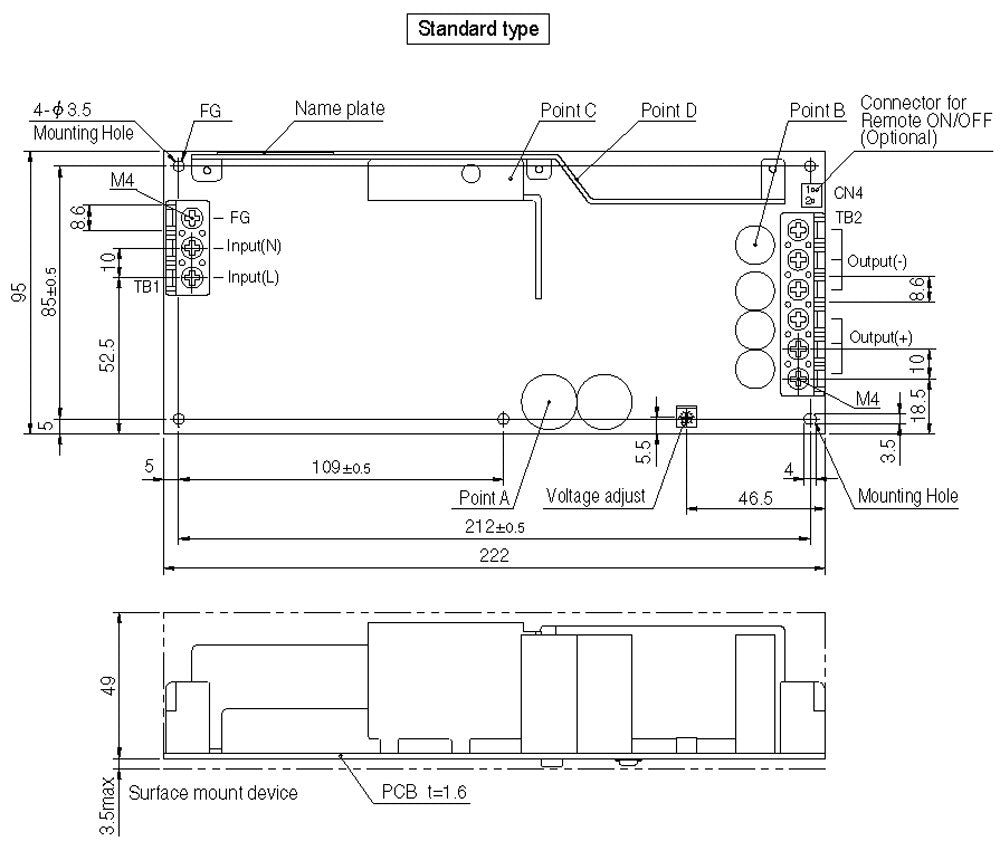

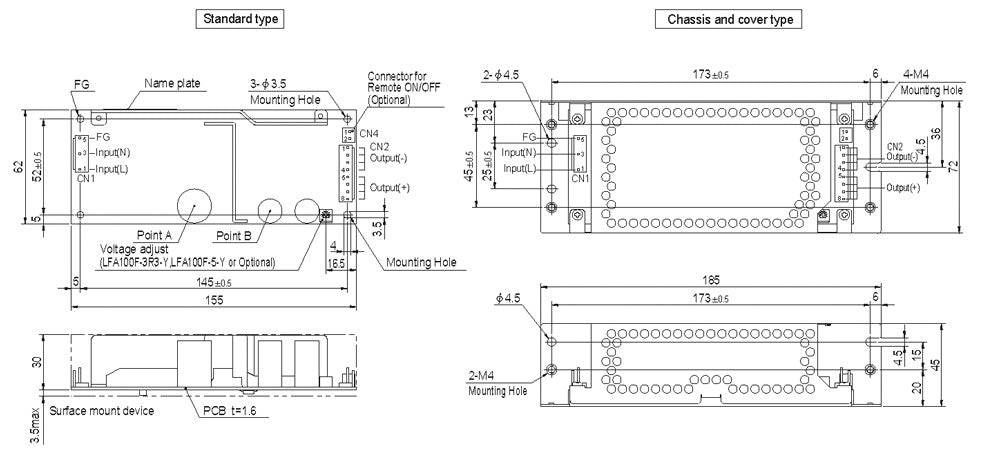

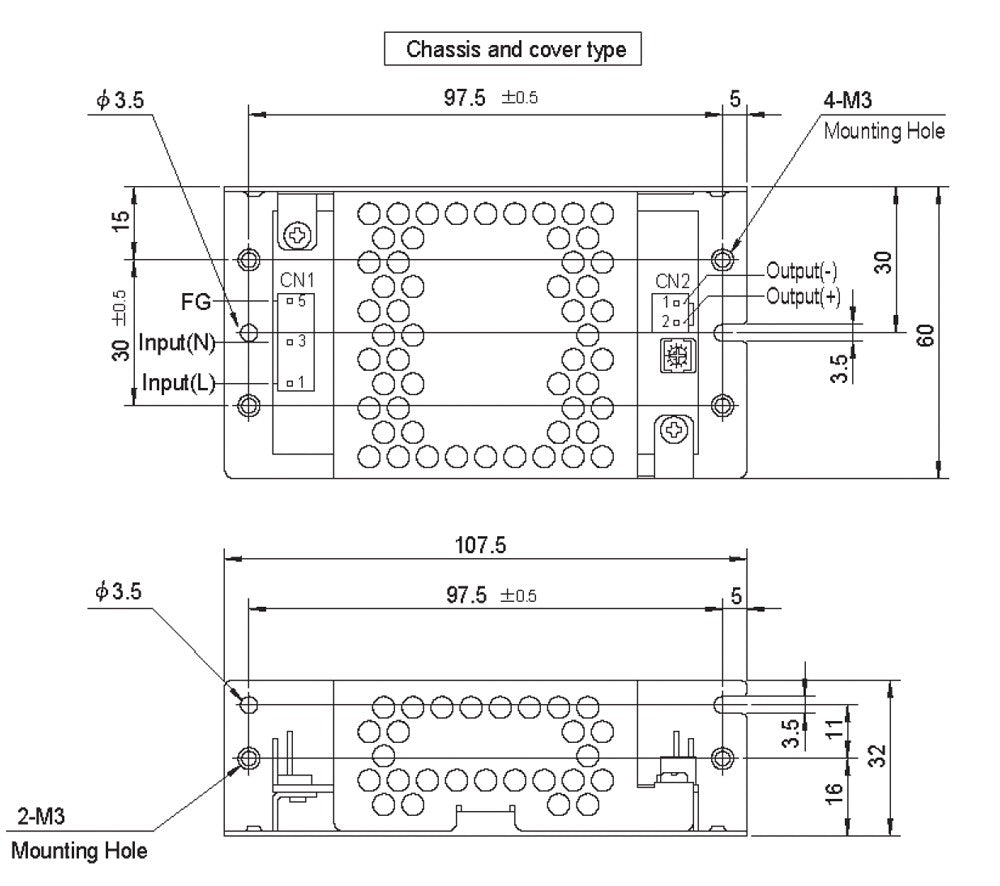

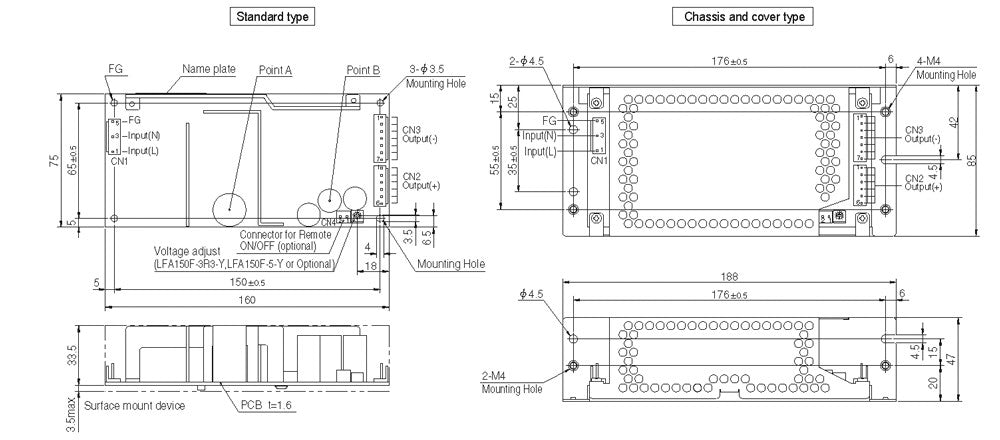

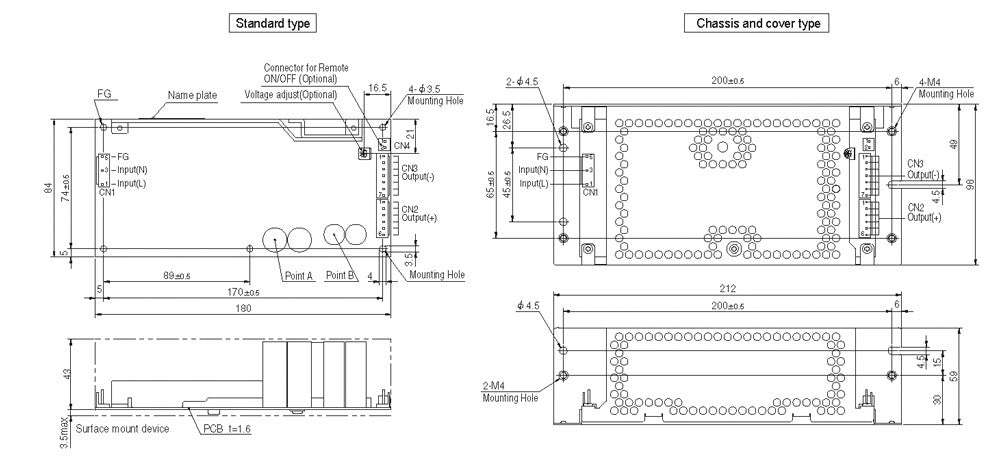

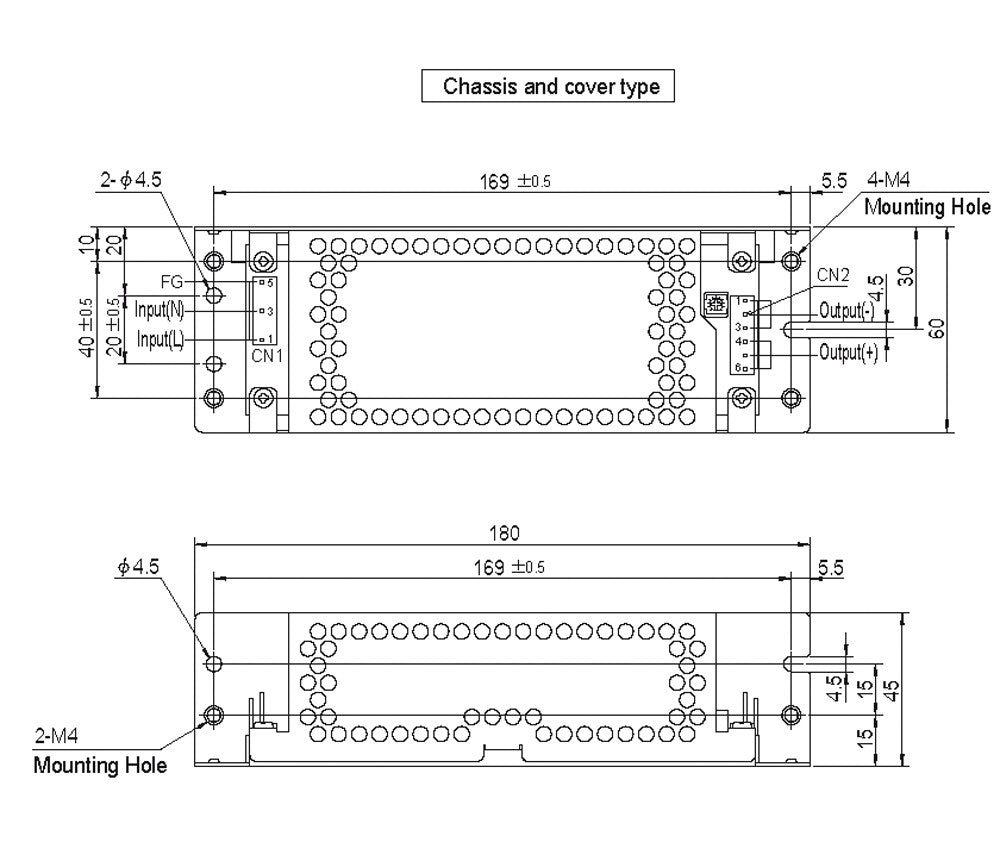

See Technical Illustration
Selection Table
MODEL NUMBER

OUTPUT

VOLTAGE

OUTPUT

CURRENT

 POWER
PBB13C-3.3D-SNY 3.3V 2A 7W
PBB13C-5D-SNY 5V 2A 10W
PBB13C-12D-SNY 12V 0.9A 11W
PBB13C-15D-SNY 15V 0.7A 11W
PBB13C-24D-SNY 24V 0.5A 12W
PBB13C-3.3F-SNY 3.3V 3A 10W
PBB13C-5F-SNY 5V 3A 15W
PBB13C-12F-SNY 12V 1.3A 15W
PBB13C-15F-SNY 15V 1A 15W
PBB13C-24F-SNY 24V 0.7A 17W
PBB13C-3.3H-SNY 3.3V 6A 20W
PBB13C-5H-SNY 5V 6A 30W
PBB13C-12H-SNY 12V 2.5A 30W
PBB13C-15H-SNY 15V 2A 30W
PBB13C-24H-SNY 24V 1.3A 31W
PBB13C-3.3J-SNY 3.3V 10A 33W
PBB13C-5J-SNY 5V 10A 50W
PBB13C-12J-SNY 12V 4.3A 52W
PBB13C-15J-SNY 15V 3.5A 52W
PBB13C-24J-SNY 24V 2.1A 50W
PBB13C-36J-SNY 36V 1.4A 40W
PBB13C-48J-SNY 48V 1.1A 53W
PBB13C-3.3L-SNY 3.3V 15A 49W
PBB13C-5L-SNY 5V 15A 75W
PBB13C-12L-SNY 12V 6.3A 76W
PBB13C-15L-SNY 15V 5A 75W
PBB13C-24L-SNY 24V 3.2A 77W
PBB13C-36L-SNY 36V 2.1A 76W
PBB13C-48L-SNY 48V 1.6A 76W
PBB13C-3.3M-SNY 3.3V 20A 66W
PBB13C-5M-SNY 5V 20A 100W
PBB13C-12M-SNY 12V 8.5A 102W
PBB13C-15M-SNY 15V 6.7A 100W
PBB13C-24M-SNY 24V 4.3A 103W
PBB13C-24MH-SNY 24V 4.3A (5.0A PK) 103W (120W)
PBB13C-36M-SNY 36V 2.8A 100W
PBB13C-48M-SNY 48V 2.1A 100W
PBB13C-3.3R-SNY 3.3V 30A 99W
PBB13C-5R-SNY 5V 30A 150W
PBB13C-12R-SNY 12V 12.5A 150W
PBB13C-15R-SNY 15V 10A 150W
PBB13C-24R-SNY 24V 6.3A 151W
PBB13C-24RH-SNY 24V 6.3A (7.5A PK) 151W (180W)
PBB13C-36R-SNY 36V 4.2A 151W
PBB13C-48R-SNY 48V 3.2A 154W
PBB13C-24E-SNY 24V 10A 240W
PBB13C-24EH-SNY 24V 10A (12.5A PK) 240W (300W)
PBB13C-36E-SNY 36V 6.7A 241W
PBB13C-48E-SNY 48V 5A 240W
PBB13C-5T-SNY 5V 40A 300W
PBB13C-12T-SNY 12V 17A 324W
PBB13C-15T-SNY 15V 14A 330W
PBB13C-24T-SNY 24V 12.5A 336W
PBB13C-24TH-SNY 24V 12.5A (18.8A PK) 336W (456W)
PBB13C-36T-SNY 36V 8.4A 338W
PBB13C-48T-SNY 48V 6.3A 336W
Technical Illustrations
Downloads
PBB13C.pdf
INPUT
Input Voltage 85-264Vac
Frequency 47-63Hz
Inrush current 30A typical at 200V AC.
Power factor 0-90 typ., 50-300W
OUTPUT
Output voltage See Selection Table
Voltage adjustment Typically ±10%
Output current See Selection Table.
Minimum load Unit will operate with zero load
Hold up time 20mS typical (AC in 100V)
Regulation Line: 20-192mv Model Dependant
Load: 40-240mv Model Dependant
Ripple and noise Typ. 150mVp-p
Temperature drift 20-192mv Model Dependant
Efficiency Typ. 80%
PROTECTION
Safety isolation Input-Output AC 3,000V 1 minute
Input - FG AC 2,000V 1 minute
Output - FGAC 500V 1 minute
Overvoltage protection At 115%–140% of rated.
Overcurrent protection Operates over 105% of rating and recovers
automatically
ENVIRONMENTAL
Operating temperature -10°C to 70°C.
Derating 2.5%/C after 50C
Cooling Convection.
Vibration 10Hz–55Hz, 2G, 3 mins period for 60 minutes along X, Y and Z axis.
Impact 20G, 11mS, once each along X, Y and Z axis.
STANDARDS AND APPROVALS
Safety standards UL60950-1, CSA 60950-1, EN60950-1, EN50178,
C-tick AS/NZS CISPR11 Group 1 Class A.
EMC EN61204-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
MECHANICAL
Case size PBB13C-D-SNY 60 x32 x 93.5mm PBB13C-F-SNY 60 x 32 x 107.5mm PBB13C-H-SNY 60 x 36 x 125mm PBB13C-J-SNY 60 x 36 x 132m PBB13C-L-SNY 60 x 33.5 x 162mm PBB13C-M-SNY 72 x 45 x 185mm PBB13C-R-SNY 85 X 47 X 188mm PBB13C-E-SNY 98 X 59 X 212mm PBB13C-T-SNY 95 X 49 X 222mm
Cable harness

Input/output harness supplied with PSU
Input and output harness supplied, RoHS compliant
CN1: Input Connector; Harness: H-IN-10-R
CN2: Output Connector; Harness:
PBB13C-D,F 10-15W, H-OU-34-R
PBB13C-H,J 30-50W, H-OU-9-R
PBB13C-L, 75W, H-OU-18-R
PBB13C-M, 100W, H-OU-10-R
PBB13C-R, 150W, H-OU-11-R, H-OU-12-R
See Technical Illustration
MODEL NUMBER

OUTPUT

VOLTAGE

OUTPUT

CURRENT

 POWER
PBB13C-3.3D-SNY 3.3V 2A 7W
PBB13C-5D-SNY 5V 2A 10W
PBB13C-12D-SNY 12V 0.9A 11W
PBB13C-15D-SNY 15V 0.7A 11W
PBB13C-24D-SNY 24V 0.5A 12W
PBB13C-3.3F-SNY 3.3V 3A 10W
PBB13C-5F-SNY 5V 3A 15W
PBB13C-12F-SNY 12V 1.3A 15W
PBB13C-15F-SNY 15V 1A 15W
PBB13C-24F-SNY 24V 0.7A 17W
PBB13C-3.3H-SNY 3.3V 6A 20W
PBB13C-5H-SNY 5V 6A 30W
PBB13C-12H-SNY 12V 2.5A 30W
PBB13C-15H-SNY 15V 2A 30W
PBB13C-24H-SNY 24V 1.3A 31W
PBB13C-3.3J-SNY 3.3V 10A 33W
PBB13C-5J-SNY 5V 10A 50W
PBB13C-12J-SNY 12V 4.3A 52W
PBB13C-15J-SNY 15V 3.5A 52W
PBB13C-24J-SNY 24V 2.1A 50W
PBB13C-36J-SNY 36V 1.4A 40W
PBB13C-48J-SNY 48V 1.1A 53W
PBB13C-3.3L-SNY 3.3V 15A 49W
PBB13C-5L-SNY 5V 15A 75W
PBB13C-12L-SNY 12V 6.3A 76W
PBB13C-15L-SNY 15V 5A 75W
PBB13C-24L-SNY 24V 3.2A 77W
PBB13C-36L-SNY 36V 2.1A 76W
PBB13C-48L-SNY 48V 1.6A 76W
PBB13C-3.3M-SNY 3.3V 20A 66W
PBB13C-5M-SNY 5V 20A 100W
PBB13C-12M-SNY 12V 8.5A 102W
PBB13C-15M-SNY 15V 6.7A 100W
PBB13C-24M-SNY 24V 4.3A 103W
PBB13C-24MH-SNY 24V 4.3A (5.0A PK) 103W (120W)
PBB13C-36M-SNY 36V 2.8A 100W
PBB13C-48M-SNY 48V 2.1A 100W
PBB13C-3.3R-SNY 3.3V 30A 99W
PBB13C-5R-SNY 5V 30A 150W
PBB13C-12R-SNY 12V 12.5A 150W
PBB13C-15R-SNY 15V 10A 150W
PBB13C-24R-SNY 24V 6.3A 151W
PBB13C-24RH-SNY 24V 6.3A (7.5A PK) 151W (180W)
PBB13C-36R-SNY 36V 4.2A 151W
PBB13C-48R-SNY 48V 3.2A 154W
PBB13C-24E-SNY 24V 10A 240W
PBB13C-24EH-SNY 24V 10A (12.5A PK) 240W (300W)
PBB13C-36E-SNY 36V 6.7A 241W
PBB13C-48E-SNY 48V 5A 240W
PBB13C-5T-SNY 5V 40A 300W
PBB13C-12T-SNY 12V 17A 324W
PBB13C-15T-SNY 15V 14A 330W
PBB13C-24T-SNY 24V 12.5A 336W
PBB13C-24TH-SNY 24V 12.5A (18.8A PK) 336W (456W)
PBB13C-36T-SNY 36V 8.4A 338W
PBB13C-48T-SNY 48V 6.3A 336W
PBB13C.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant PBB13C-3.3D-SNY 85...264Vac 50/60Hz 3.3Vdc 2A
product variant PBB13C-5D-SNY 85...264Vac 50/60Hz 5Vdc 2A
product variant PBB13C-12D-SNY 85...264Vac 50/60Hz 12Vdc 0.9A
product variant PBB13C-15D-SNY 85...264Vac 50/60Hz 15Vdc 0.7A
product variant PBB13C-24D-SNY 85...264Vac 50/60Hz 24Vdc 0.5A
product variant PBB13C-3.3F-SNY 85...264Vac 50/60Hz 3.3Vdc 3A
product variant PBB13C-5F-SNY 85...264Vac 50/60Hz 5Vdc 3A
product variant PBB13C-12F-SNY 85...264Vac 50/60Hz 12Vdc 1.3A
product variant PBB13C-15F-SNY 85...264Vac 50/60Hz 15Vdc 1A
product variant PBB13C-24F-SNY 85...264Vac 50/60Hz 24Vdc 0.7A
product variant PBB13C-3.3H-SNY 85...264Vac 50/60Hz 3.3Vdc 6A
product variant PBB13C-5H-SNY 85...264Vac 50/60Hz 5Vdc 6A
product variant PBB13C-12H-SNY 85...264Vac 50/60Hz 12Vdc 2.5A
product variant PBB13C-15H-SNY 85...264Vac 50/60Hz 15Vdc 2A
product variant PBB13C-24H-SNY 85...264Vac 50/60Hz 24Vdc 1.3A
product variant PBB13C-3.3J-SNY 85...264Vac 50/60Hz 3.3Vdc 10A
product variant PBB13C-5J-SNY 85...264Vac 50/60Hz 5Vdc 10A
product variant PBB13C-12J-SNY 85...264Vac 50/60Hz 12Vdc 4.3A
product variant PBB13C-15J-SNY 85...264Vac 50/60Hz 15Vdc 3.5A
product variant PBB13C-24J-SNY 85...264Vac 50/60Hz 24Vdc 2.1A
product variant PBB13C-36J-SNY 85...264Vac 50/60Hz 36Vdc 1.4A
product variant PBB13C-48J-SNY 85...264Vac 50/60Hz 48Vdc 1.1A
product variant PBB13C-3.3L-SNY 85...264Vac 50/60Hz 3.3Vdc 15A
product variant PBB13C-5L-SNY 85...264Vac 50/60Hz 5Vdc 15A
product variant PBB13C-12L-SNY 85...264Vac 50/60Hz 12Vdc 6.3A
product variant PBB13C-15L-SNY 85...264Vac 50/60Hz 15Vdc 5A
product variant PBB13C-24L-SNY 85...264Vac 50/60Hz 24Vdc 3.2A
product variant PBB13C-36L-SNY 85...264Vac 50/60Hz 36Vdc 2.1A
product variant PBB13C-48L-SNY 85...264Vac 50/60Hz 48Vdc 1.6A
product variant PBB13C-3.3M-SNY 85...264Vac 50/60Hz 3.3Vdc 20A
product variant PBB13C-5M-SNY 85...264Vac 50/60Hz 5Vdc 20A
product variant PBB13C-12M-SNY 85...264Vac 50/60Hz 12Vdc 8.5A
product variant PBB13C-15M-SNY 85...264Vac 50/60Hz 15Vdc 6.7A
product variant PBB13C-24M-SNY 85...264Vac 50/60Hz 24Vdc 4.3A
product variant PBB13C-24MH-SNY 85...264Vac 50/60Hz 24Vdc 4.3A (Peak = 5A)
product variant PBB13C-36M-SNY 85...264Vac 50/60Hz 36Vdc 2.8A
product variant PBB13C-48M-SNY 85...264Vac 50/60Hz 48Vdc 2.1A
product variant PBB13C-3.3R-SNY 85...264Vac 50/60Hz 3.3Vdc 30A
product variant PBB13C-5R-SNY 85...264Vac 50/60Hz 5Vdc 30A
product variant PBB13C-12R-SNY 85...264Vac 50/60Hz 12Vdc 12.5A
product variant PBB13C-15R-SNY 85...264Vac 50/60Hz 15Vdc 10A
product variant PBB13C-24R-SNY 85...264Vac 50/60Hz 24Vdc 6.3A
product variant PBB13C-24RH-SNY 85...264Vac 50/60Hz 24Vdc 6.3A (Peak = 7.5A)
product variant PBB13C-36R-SNY 85...264Vac 50/60Hz 36Vdc 4.2A
product variant PBB13C-48R-SNY 85...264Vac 50/60Hz 48Vdc 3.2A
product variant PBB13C-24E-SNY 85...264Vac 50/60Hz 24Vdc 10A
product variant PBB13C-24EH-SNY 85...264Vac 50/60Hz 24Vdc 10A (Peak = 12.5A)
product variant PBB13C-36E-SNY 85...264Vac 50/60Hz 36Vdc 6.7A
product variant PBB13C-48E-SNY 85...264Vac 50/60Hz 48Vdc 5A
product variant PBB13C-5T-SNY 85...264Vac 50/60Hz 5Vdc 40A
product variant PBB13C-12T-SNY 85...264Vac 50/60Hz 12Vdc 17A
product variant PBB13C-15T-SNY 85...264Vac 50/60Hz 15Vdc 14A
product variant PBB13C-24T-SNY 85...264Vac 50/60Hz 24Vdc 12.5A
product variant PBB13C-24TH-SNY 85...264Vac 50/60Hz 24Vdc 12.5A (Peak = 18.8A)
product variant PBB13C-36T-SNY 85...264Vac 50/60Hz 36Vdc 8.4A
product variant PBB13C-48T-SNY 85...264Vac 50/60Hz 48Vdc 6.3A
