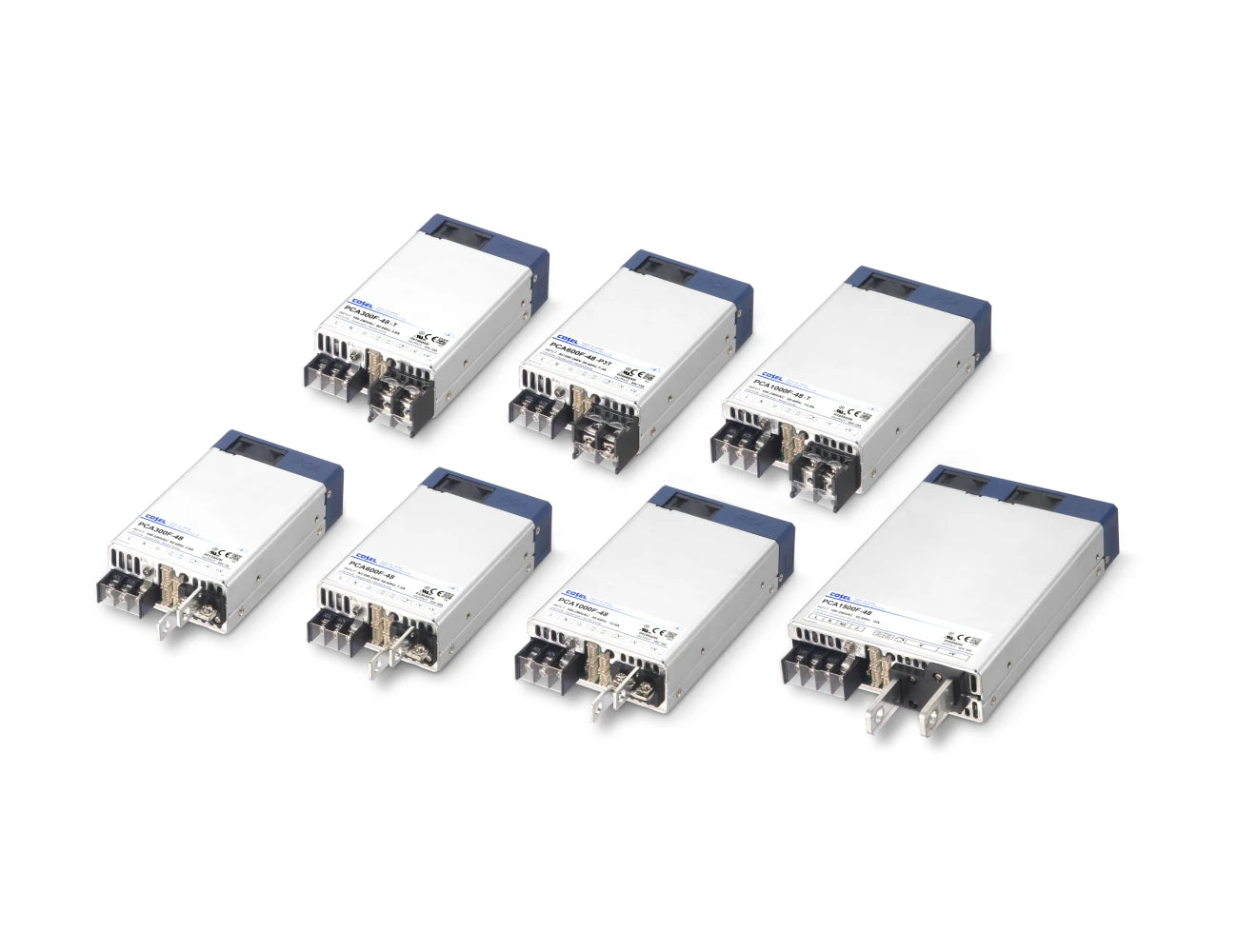

Cosel PBB30C SERIES AC/DC Power Supply
The Cosel PBB30C Series AC/DC Power Supply is a versatile and high-performance solution for demanding applications. Delivering power outputs up to 600W, it is available in a range of output voltages (5V, 12V, 15V, 24V, 32V, and 48V) with advanced features to ensure reliable operation across industrial, medical, and IT systems.
Read More
Features
- 600W AC/DC Power Supply
- Very small and lightweight
- For medical electric equipment
- ANSI/AAMI ES60601-1; EN60601-1 3rd; IEC60601-1-2 4th Ed.
- With AUX output
- Constant current regulation
Specifications
Selection Table
Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Voltage | 85~264Vac |
| Current | 3.2A @ 230Vac |
| Frequency | 45-66Hz. |
| Power factor | 0.95 Typ (Io=100%) at AC in 230Vac |
| Inrush current | 40A typ (Io=100%) at AC in 230Vac |
| Leakage current | 0.5max (ACIN 240V 60Hz, Io=100%, According to IEC60601-1) |
| OUTPUT | |
|---|---|
| DC Output | 5V, 12V, 15V, 24V 32V, 48VDC See selection table |
| Voltage Adjustment | See selection table |
| Output Power | Typically 600W See selection table |
| Minimum Load | Unit will operate with zero load. |
| Output Ripple | 240mVp-p (0 to 50°C) |
| Ripple Noise | 300mVp-p (0 to 50°C) |
| Line regulation | Typically 0.4% |
| Load regulation | Typically 0.8% |
| Temperature drift | Typically 0.4% |
| Start up time | Model dependent 600ms max |
| Holdup time | 400ms typ |
| Efficiency | Typ. 92% @ 230Vac |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -20°C to 71°C |
| Cooling | Internal fan cooling. |
| Humidity | 20%-90% non-condensing. |
| Vibration | 10Hz-55Hz at 2G |
| Impact | 20G 11ms X, Y, Z axis |
| PROTECTION | |
|---|---|
| Over Voltage | See selection table |
| Over Current Protection | Works at approximately 105% of rated current with auto recovery |
| Remote sensing | Provided |
| Remote on/off (RC) | Provided |
| DC_OK Lamp | LED (Blue) |
| Alarm Lamp | LED (Orange) |
| Communication function | Provided (Extended UART) |
| Isolation Input - Output | AC 4,000V 1minute, Cutoff current = 10mA, DC500V 50MΩ min (At Room Temperature) 2MOPP |
| Isolation Input - Case | AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MΩ min (At Room Temperature) 1MOP |
| Isolation Output - Case | AC500V 1minute, Cutoff current = 100mA, DC500V 50MΩ min (At Room Temperature |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | UL60950-1, C-UL(CSA60950-1), EN60950-1, ANSI/AAMI ES60601-1, EN60601-1 3rd,Complies with IEC60601-1-2 4th Ed |
| Conducted noise | Complies with FCC Part15 classB, VCCI-B, CISPR32-B, EN55011-B, EN55032-B |
| Harmonic Attenuator | Complies with IEC61000-3-2 (class A) |
| MECHANICAL | |
|---|---|
| Connector | P2 - Bus Style TP2 - Terminal block styel See techical illustrations |
| Dimensions | 89 x 41 x 152mm |
| Weight | 840g |
| MODEL NUMBER | OUTPUT VOLTAGE | VOLTAGE ADJ | OVER VOLTAGE PROTECTION | OUTPUT CURRENT | MAX POWER | CONNECTOR OPTION |
|---|---|---|---|---|---|---|
| PBB30C-5X-P2 | 5V | 3 - 6V | 6.25 - 7.00V | 120A | 600W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-12X-P2 | 12V | 7.2 - 14.4V | 15.00 - 16.80V | 53A | 636W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-15X-P2 | 15V | 9.0 - 18.0V | 18.75 - 21.00V | 43A | 645W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-24X-P2 | 24V | 14.4 - 28.8V | 30.00 - 33.60V | 27A | 648W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-32X-P2 | 32V | 19.2 - 38.4V | 40.00 - 44.80V | 20A | 640W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-48X-P2 | 48V | 28.8 - 57.6V | 60.00 - 67.20V | 13A | 624W | Bus Bar Style (P2) or Terminal Block (TP2) |
| INPUT | |
|---|---|
| Voltage | 85~264Vac |
| Current | 3.2A @ 230Vac |
| Frequency | 45-66Hz. |
| Power factor | 0.95 Typ (Io=100%) at AC in 230Vac |
| Inrush current | 40A typ (Io=100%) at AC in 230Vac |
| Leakage current | 0.5max (ACIN 240V 60Hz, Io=100%, According to IEC60601-1) |
| OUTPUT | |
|---|---|
| DC Output | 5V, 12V, 15V, 24V 32V, 48VDC See selection table |
| Voltage Adjustment | See selection table |
| Output Power | Typically 600W See selection table |
| Minimum Load | Unit will operate with zero load. |
| Output Ripple | 240mVp-p (0 to 50°C) |
| Ripple Noise | 300mVp-p (0 to 50°C) |
| Line regulation | Typically 0.4% |
| Load regulation | Typically 0.8% |
| Temperature drift | Typically 0.4% |
| Start up time | Model dependent 600ms max |
| Holdup time | 400ms typ |
| Efficiency | Typ. 92% @ 230Vac |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -20°C to 71°C |
| Cooling | Internal fan cooling. |
| Humidity | 20%-90% non-condensing. |
| Vibration | 10Hz-55Hz at 2G |
| Impact | 20G 11ms X, Y, Z axis |
| PROTECTION | |
|---|---|
| Over Voltage | See selection table |
| Over Current Protection | Works at approximately 105% of rated current with auto recovery |
| Remote sensing | Provided |
| Remote on/off (RC) | Provided |
| DC_OK Lamp | LED (Blue) |
| Alarm Lamp | LED (Orange) |
| Communication function | Provided (Extended UART) |
| Isolation Input - Output | AC 4,000V 1minute, Cutoff current = 10mA, DC500V 50MΩ min (At Room Temperature) 2MOPP |
| Isolation Input - Case | AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MΩ min (At Room Temperature) 1MOP |
| Isolation Output - Case | AC500V 1minute, Cutoff current = 100mA, DC500V 50MΩ min (At Room Temperature |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | UL60950-1, C-UL(CSA60950-1), EN60950-1, ANSI/AAMI ES60601-1, EN60601-1 3rd,Complies with IEC60601-1-2 4th Ed |
| Conducted noise | Complies with FCC Part15 classB, VCCI-B, CISPR32-B, EN55011-B, EN55032-B |
| Harmonic Attenuator | Complies with IEC61000-3-2 (class A) |
| MECHANICAL | |
|---|---|
| Connector | P2 - Bus Style TP2 - Terminal block styel See techical illustrations |
| Dimensions | 89 x 41 x 152mm |
| Weight | 840g |
| MODEL NUMBER | OUTPUT VOLTAGE | VOLTAGE ADJ | OVER VOLTAGE PROTECTION | OUTPUT CURRENT | MAX POWER | CONNECTOR OPTION |
|---|---|---|---|---|---|---|
| PBB30C-5X-P2 | 5V | 3 - 6V | 6.25 - 7.00V | 120A | 600W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-12X-P2 | 12V | 7.2 - 14.4V | 15.00 - 16.80V | 53A | 636W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-15X-P2 | 15V | 9.0 - 18.0V | 18.75 - 21.00V | 43A | 645W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-24X-P2 | 24V | 14.4 - 28.8V | 30.00 - 33.60V | 27A | 648W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-32X-P2 | 32V | 19.2 - 38.4V | 40.00 - 44.80V | 20A | 640W | Bus Bar Style (P2) or Terminal Block (TP2) |
| PBB30C-48X-P2 | 48V | 28.8 - 57.6V | 60.00 - 67.20V | 13A | 624W | Bus Bar Style (P2) or Terminal Block (TP2) |
