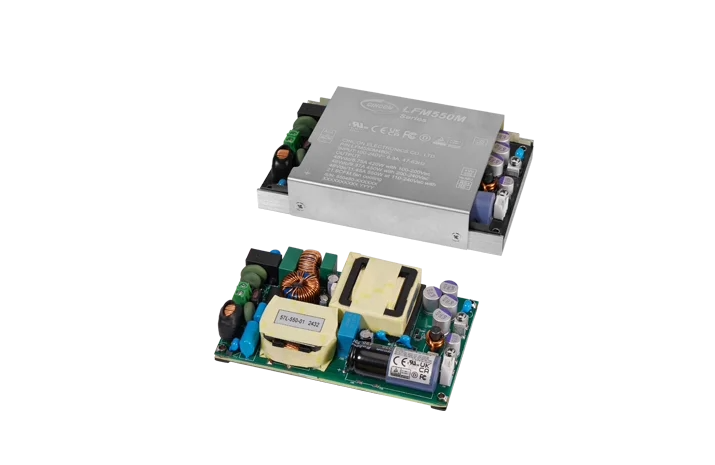

Cincon LFM550M Series 550W Medical AC/DC Power Supply

The Cincon LFM550M Series is a 550W medical AC-DC power supply with active PFC, efficiency up to 94%, and a compact 25.4mm low-profile package. The series supports Class I and Class II installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335-1.

Read More

Features

  • Wide Universal AC Input Range: 85–264Vac input enabling global operation across a wide range of AC power systems.
  • Multiple Output Voltage Options: Available in 12V, 15V, 24V, 28V, 30V, 36V, 48V and 54V single output models for flexible system design.
  • High Output Current Capability: Provides up to 45.83A output current depending on model, supporting high-power medical equipment.
  • High Power Density 550W Design: Delivers up to 550W output power in a compact 25.4mm low-profile form factor.
  • Safety: IEC/EN/UL 62368-1 Ed.3.0 | Meets IEC/EN 60335-1 | ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1 Ed. 3.2, Class I, Class II
  • High Efficiency: Up to 94% (230Vac, full load, 25°C)
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions Device Min. Typ. Max. Units
Input Voltage Safety approvals only to the AC input All 85
115
  264
370
Vac
Vdc
Operating Temperature See derating curve All -40   80
Operating Case Temperature At the center of base plate
(Tc = Case temperature)
All -40   90
Storage Temperature   All -40   90
Operating Altitude   All     5000 m
INPUT CHARACTERISTICS
Parameter Notes and Conditions Device Min. Typ. Max. Units
Operating Input Voltage All 100 240 Vac
Input Frequency Range All 47 63 Hz
Maximum Input Current 100% Load, Vin=100Vac All 6.3 A
Leakage Current  ​Contact leakage current
Earth leakage current
All 100
300
uA
Inrush Current Vin=240Vac, Cold Start @25℃ All 45 A
Power Factor 230Vac @ Full load All 0.96 0.98
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions Device Min. Typ. Max. Units
Output Voltage Set Point Vin=Nominal Vin, Io=Io max., Tc=25℃ LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
11.88
14.85
23.76
27.72
29.7
35.64
47.52
53.46
12
15
24
28
30
36
48
54
12.12
15.15
24.24
28.28
30.3
36.36
48.48
54.54
Vdc
Operating Output Current Range Vin=85Vac~264Vac, see derating curve LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
0
0
0
0
0
0
0
0
  45.83
36.66
22.91
19.64
18.33
15.27
11.45
10.18
A
Holdup Time Vin=115Vac All 8 12   ms
Output Voltage Regulation
Load Regulation 10% Load to full load All     ±0.5 %
Line Regulation Vin=High line to low line All     ±0.3 %
Output Voltage Adjustment Po≦max. rated power, Io≦Io max. LFM550M280
Others
0
-5
  +5
+5
%
Over Voltage Protection Latch off (AC recycle to reset) LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
    16
20
32
35
35
45
55
60
Vdc
Over Current Protection Auto recovery (output is rated load) All 120 140 160 %
Short Circuit Protection Auto recovery All
Over Temperature Protection Auto recovery All
Output Ripple and Noise 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output
2. Oscilloscope is 20MHz band width
3. Ambient Temperature=25℃
LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
    120
150
200
200
200
200
200
200
mV
Load Capacitance 1. Vin=115Vac and 230Vac
2. Output is max. load
3. Ambient temperature=25℃
LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
    27200
22400
14100
11600
10600
9020
7200
6000
uF
Efficiency 1. Input Voltage is 230Vac
2. Output is rated load
3. Ambient temperature=25℃
LFM550M120
LFM550M150
LFM550M240
LFM550M280
LFM550M300
LFM550M360
LFM550M480
LFM550M540
  92
93
93
93
93
94
94
94
  %
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions Device Min. Typ. Max. Units
Input to Output 1 Minute (without dielectric breakdown) All     4250 Vac
Input to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Output to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Isolation Resistance Input to output All 100
FEATURE CHARACTERISTICS
Parameter Notes and Conditions Device Min. Typ. Max. Units
Switching Frequency   All   65   kHz
GENERAL SPECIFICATIONS
Parameter Notes and Conditions Device Min. Typ. Max. Units
MTBF Io=100%; Ta=25℃ per MIL-HDBK-217F
Io=100%; Ta=25℃ per Telcordia SR332
All 400
1300
k hours
Life Time (Detail refer to Application Note) Conduction cooling @75% Load, 40℃
Fan cooling @75% Load, 40℃
All 97
150
k hours
Humidity Non-condensing All   ​93 % RH
Shock Meet MIL-STD-810F Table 516.5, Table 516.5-I 10ms, each axis 3 times (±X, ±Y, ±Z axis) All   ​75 g
Vibration Meet MIL-STD-810F Table 514.5C-VIII, 15~2000Hz, X, Y, Z axis, 1 hour (each axis), total 3 hrs. All   ​4 g
Weight Baseplate versions
Covered versions
LFM550MXXXB
LFM550MXXXC
380
535
grams
Dimensions Baseplate versions
Covered versions
LFM550MXXXB
LFM550MXXXC
5.00x3.00x1.00 Inches (127.0x76.2x25.4 mm)
5.09x3.29x1.00 Inches (129.4x83.5x25.4 mm)
Safety

Class I, Class II
ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1

Class I, IEC/EN/UL 62368-1

​Ed. 3.2

Ed. 3.0

EMC Emission EN 55011 Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18
EN 55032, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 15

Conducted Disturbance EN 55011, EN 55032, 47 CFR FCC Part 18 & Part 15
​Class B
Radiated Disturbance EN 55011, 47 CFR FCC Part 18 (Class II only meets Class A)
EN 55032, 47 CFR FCC Part 15
​Class B
Harmonic Current Emissions IEC/EN 61000-3-2 Class
A, C, D
Voltage Fluctuations & Flicker EN 61000-3-3 ​Criterion A
EMC Immunity EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11
EN 55035, EN 61000-6-2, EN 61204-3
​Ed. 4.1
Electrostatic Discharge (ESD) IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV ​Criterion A
Radio-Frequency, Continuous Radiated Disturbance IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m ​Criterion A
Electrical Fast Transient (EFT) EN 61000-4-4, Level 3: ±2KV ​Criterion A
Surge EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV ​Criterion A
Conducted Disturbances, Induced by RF Fields EN 61000-4-6, Level 3: 0.15~80MHz, 10V ​Criterion A
Power Frequency Magnetic Field EN 61000-4-8, Level 4: 30A/m ​Criterion A
Voltage Dips IEC/EN 61000-4-11, Dip: 30% Reduction
IEC/EN 61000-4-11, Dip >95% Reduction
​Criterion A
Voltage Interruptions IEC/EN 61000-4-11, >95% Reduction ​Criterion B
Application Note Link                                                                                                         LFM550M Series App Notes
Technical Illustrations

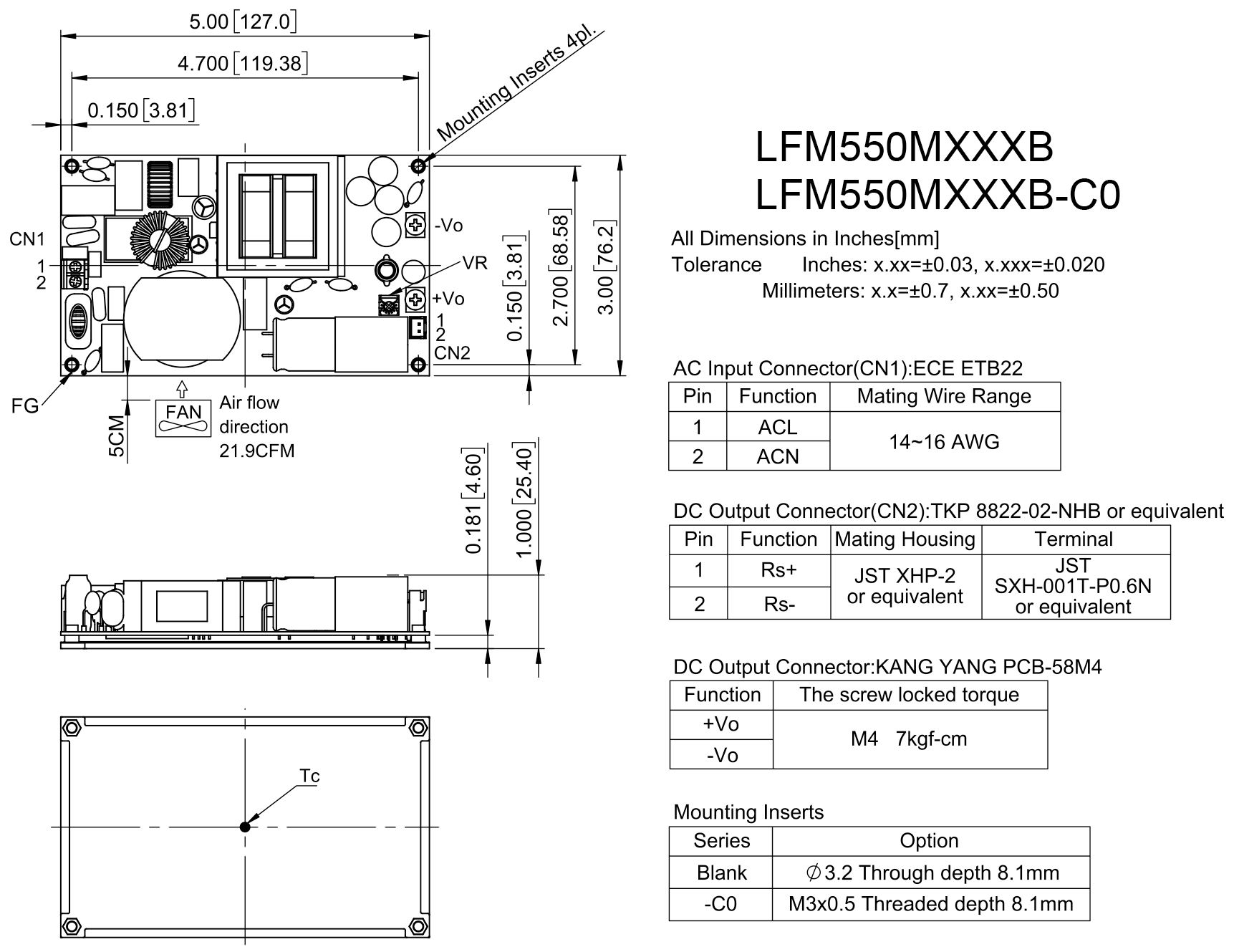

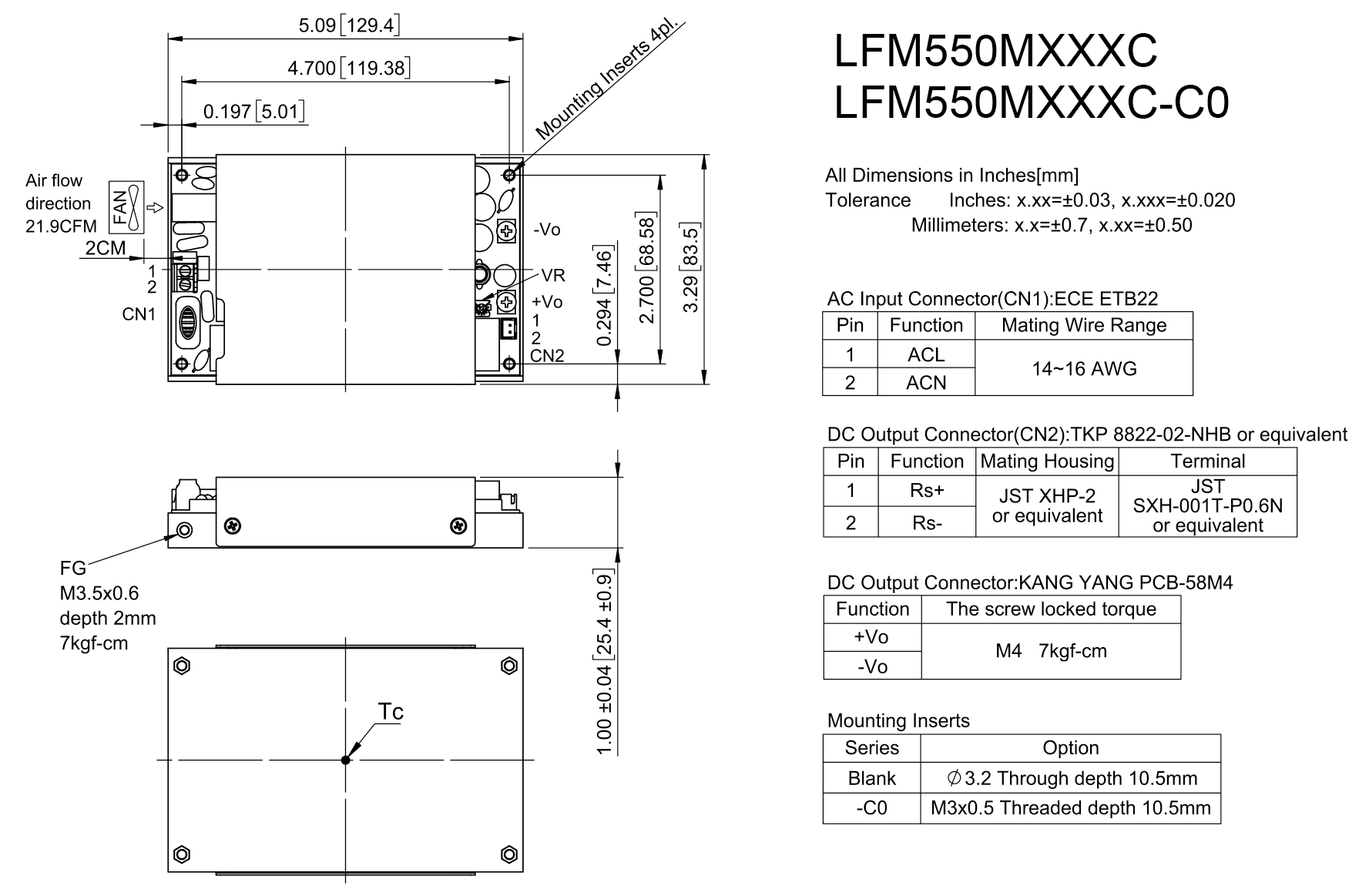

GA_Drawing_LFM550M-series-1 GA_Drawing_LFM550M-series-2
Downloads
Datasheet-LFM550M-series.pdf
