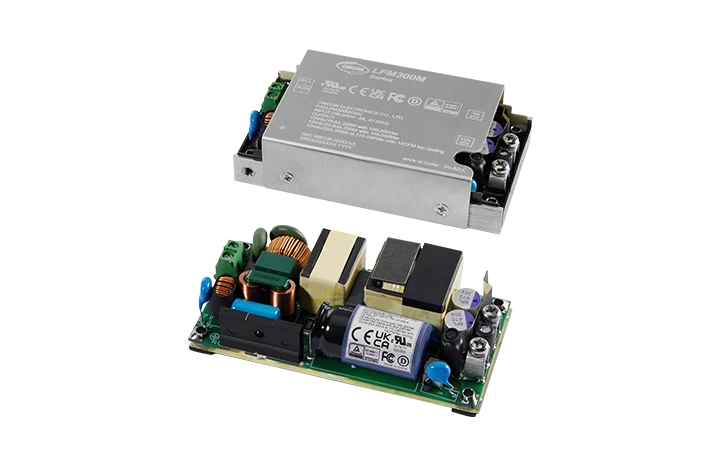

Cincon LFM300M Series 300W Medical AC/DC Power Supply

The Cincon LFM300M Series is a 300W medical AC-DC power supply with active PFC, high efficiency up to 94%, and a compact 25.4mm low-profile package. The series supports Class I and Class II installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335-1.

Read More

Features

  • Wide Universal AC Input Range: 85–264Vac input supporting global AC mains operation across medical and industrial environments.
  • Multiple Output Voltage Options: Available in 12V, 15V, 24V, 28V, 30V, 48V and 54V single output models to support a wide range of system requirements.
  • High Output Current Capability: Delivers up to 25A depending on the selected output voltage model, enabling reliable power delivery for demanding applications.
  • High Power Density 300W Design: Compact AC-DC power supply delivering up to 300W output in a low-profile 25.4mm package.
  • Safety: IEC/EN/UL 62368-1 Ed.3.0 | Meets IEC/EN 60335-1 | ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1 Ed. 3.2
  • High Efficiency: Up to 94% (230Vac, full load, 25°C)
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input Voltage   All 85   264 Vac
Operating Temperature See derating curve All -40   80
Operating Case Temperature At the center of base plate
(T꜀ = Case temperature)
All -40   90
Storage Temperature   All -40   90
Operating Altitude   All     5000 m
INPUT CHARACTERISTICS
Parameter Notes and Conditions
Device Min.
Typ.
Max.
Units
Operating Input Voltage   All 100   240 Vac
Input Frequency Range   All 47   63 Hz
Maximum Input Current 100% Load, Vᵢₙ=100Vac All     5.0 A
Leakage Current   All     300 uA
Inrush Current Vᵢₙ=240Vac, Cold Start @25℃ All     105 A
Power Factor 230Vac @ Full load All   0.92
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ. Max.
Units
Output Voltage Set Point

Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃

LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540

11.88
14.85
23.76
27.72
29.7
47.52
53.46
12
15
24
28
30
48
54

12.12
15.15
24.24
28.28
30.3
48.48
54.54

Vdc
Operating Output Current Range Vᵢₙ=85Vac-264Vac, see derating curve LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540

0
0
0
0
0
0
0

  25.0
20.0
12.5
10.7
10.0
6.25
5.56
A
Holdup Time Vᵢₙ=115Vac All   12   ms
Output Voltage Regulation
Load Regulation 10% Load to full load All     ±0.5 %
Line Regulation Vᵢₙ=High line to low line All     ±0.3 %
Output Voltage Adjustment Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. All -5   +5 %
Over Voltage Protection Latch off (AC recycle to reset) LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    16
20
32
35
36
59
63
Vdc
Over Current Protection Auto recovery (output is rated load) All 110 120 150 %
Short Circuit Protection Auto recovery All
Over Temperature Protection Auto recovery All
Output Ripple and Noise 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output
2. Oscilloscope is 20MHz band width.
3. Ambient Temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    150
150
240
280
300
480
540
mV
Load Capacitance 1. Vᵢₙ=115Vac and 230Vac
2. Output is max. load
3. Ambient temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    15400
12200
7800
6600
6200
3870
3400
uF
Efficiency 1. Input Voltage is 230Vac
2. Output is rated load
3. Ambient temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
  93
93
94
94
94
94
93
  %
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input to Output 1 Minute (without dielectric breakdown) All     4250 Vac
Input to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Output to Earth (Ground) 1 Minute (without dielectric breakdown)

All

    2000 Vac
Isolation Resistance Input to output All 100



FEATURE CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Switching Frequency Pₒᵤₜ=max. rated power

All

  100   kHz
GENERAL CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
MTBF Iₒ=100%; Ta=25℃ per MIL-HDBK-217F
Iₒ=100%; Ta=25℃ per Telcordia SR332

All

500
1690
    k hours
Life Time (Detail refer to Application Note) Conduction cooling @75% Load, 40℃
Fan cooling @75% Load, 40℃
All   112
159
  k hours
Humidity Non-condensing All     93 % RH
Shock Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X、±Y、±Z axis) All   75   g
Vibration Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X、Y、Z axis, 1 hour (each axis),. Total 3 hrs. All   4   g
Weight Baseplate versions
Covered versions
LFM300MXXXB
LFM300MXXXC
  200
280
  grams
Dimensions Baseplate versions
Covered versions
LFM300MXXXB
LFM300MXXXC
4.04x2.00x1.00 Inches (102.6x50.8x25.4 mm)
4.09x2.28x1.00 Inches (104.0x57.9x25.4 mm)
Safety Class I, Class II
ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1

Class I, IEC/EN/UL 62368-1
Ed. 3.2


Ed. 3.0
EMC Emission EN 55011 Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18
EN 55032, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 15

Conducted Disturbance EN 55011, EN 55032, CFR FCC Part 18 & Part 15 Class B
Radiated Disturbance EN 55011, CFR FCC Part 18 (Class II Only Meets Class A),
EN 55032, CFR FCC Part 15
Class B
Harmonic Current Emissions IEC/EN 61000-3-2 Class A, D
Voltage Fluctuations & Flicker EN 61000-3-3 Criterion A
EMC Immunity EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11

EN 55035, EN 61000-6-2, EN 61204-3
Ed 4.1


Electrostatic Discharge (ESD) IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV Criterion A
Radio-Frequency, Continuous Radiated Disturbance

IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m Criterion A
Electrical Fast Transient (EFT) EN 61000-4-4, Level 3: ±2kV Criterion A
Surge EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV Criterion A
Conducted Disturbances, Induced by RF Fields EN 61000-4-6, Level 3: 0.15~80MHz, 10V Criterion A
Power Frequency Magnetic Field EN 61000-4-8, Level 4: 30A/m Criterion A
Voltage Dips IEC/EN 61000-4-11, Dip: 30% Reduction
IEC/EN 61000-4-11, Dip >95% Reduction
Criterion A
Voltage Interruptions IEC/EN 61000-4-11, >95% Reduction Criterion B
Application Note Link                                                                                                              LFM300M Series App Notes
Selection Table
MODEL NUMBER OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE NOTE1 VOLTAGE ACCURACY NOTE2 VOLTAGE ADJ. RANGE LINE REGULATION NOTE3 LOAD REGULATION NOTE4 % EFF. (Typ.) NOTE5
With Fan NOTE6 With Conduction Cooling NOTE7
Baseplate Cover
LFM300M120

12 Vdc

25 A 14.2 A 20.83 A 150 mV ±1% 11.4-12.6 V ±0.3% ±0.5% 93%

LFM300M150

15 Vdc

20A 11.35 A 16.6 A 150 mV ±1% 14.25-15.75 V ±0.3% ±0.5% 93%
LFM300M240

24 Vdc

12.5 A 7.1 A 10.4 A 240 mV ±1% 22.8-25.2 V ±0.3% ±0.5% 94%
LFM300M280

28 Vdc

10.7 A 6.07 A 8.90 A 280 mV ±1% 26.6-29.4 V ±0.3% ±0.5% 94%
LFM300M300

30 Vdc

10 A 5.67 A 8.33 A 300 mV ±1%

28.5-31.5 V

±0.3% ±0.5% 94%
LFM300M480

48 Vdc

6.25 A 3.54 A 5.20 A 480 mV ±1% 45.6-50.4 V ±0.3% ±0.5% 94%
LFM300M540

54 Vdc

5.56 A 3.15 A 4.63 A 540 mV ±1% 51.3-56.7 V ±0.3% ±0.5% 93%

NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.
2. Voltage accuracy is set at full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230 Vac and full load at 25℃.
6. Forced air convection with 14CFM above 115Vac.
7. With addition cooling conduction plate, 22.8 by 22.8 cm with min. 0.2 cm thick, as below.



PART NUMBER

SERIES NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE TYPE MOUNTING INSERTS
LFM300 O XXX X -YZ
LFM300

M:Medical

120 : 12Vdc
150 : 15Vdc
240 : 24Vdc
280 : 28Vdc
300 : 30Vdc
480 : 48Vdc
540 ; 54Vdc

B:With Baseplate
C:With Cover
Blank:Through Hole
C0:Threaded Hole

Part Number Example:
LFM300M120C-C0: With Cover 300W, Single 12Vdc Output, Threaded Hole
LFM300M1200B: With Baseplate 300W, Single 12Vdc Output, Through Hole



Technical Illustrations

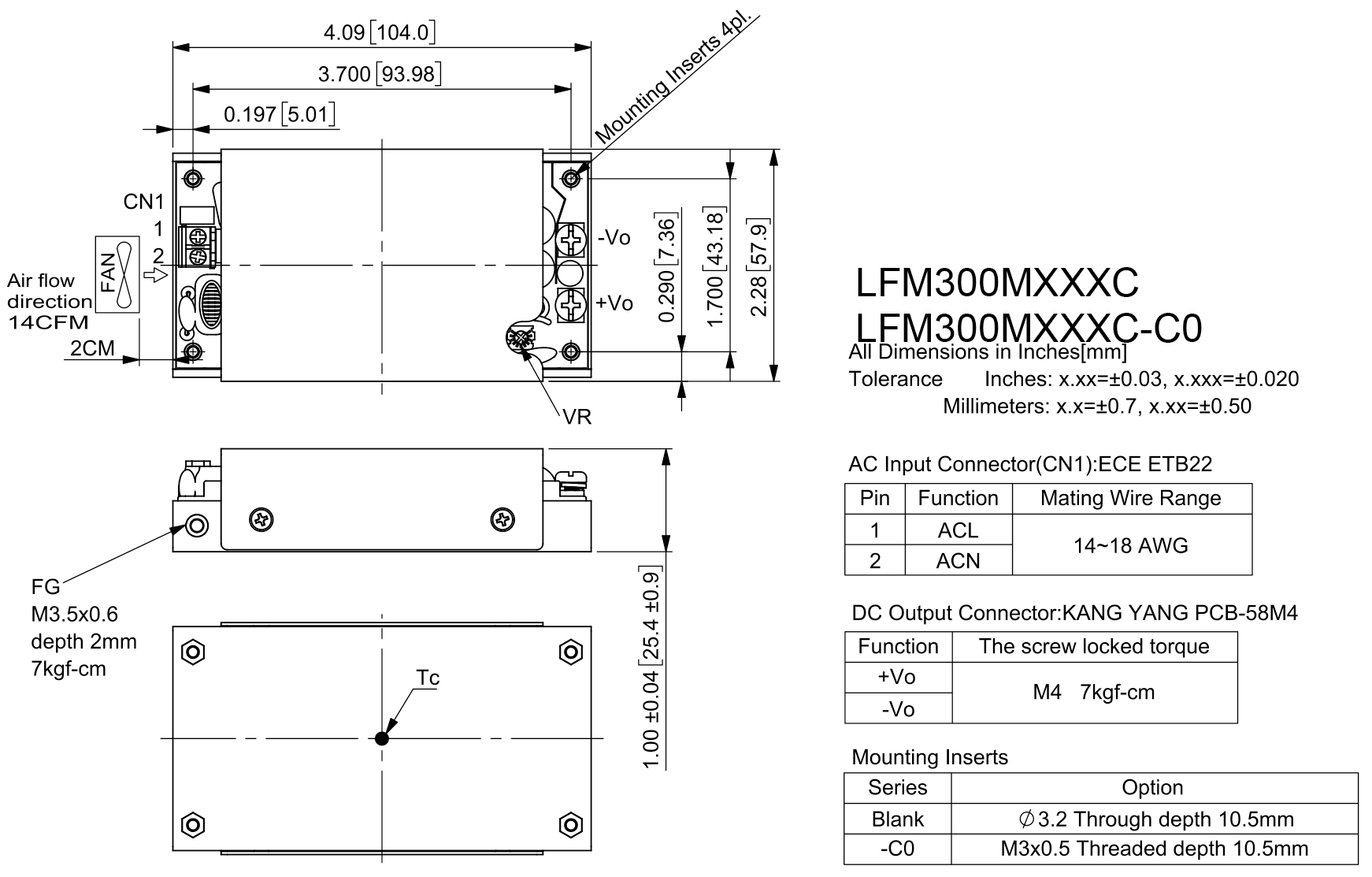

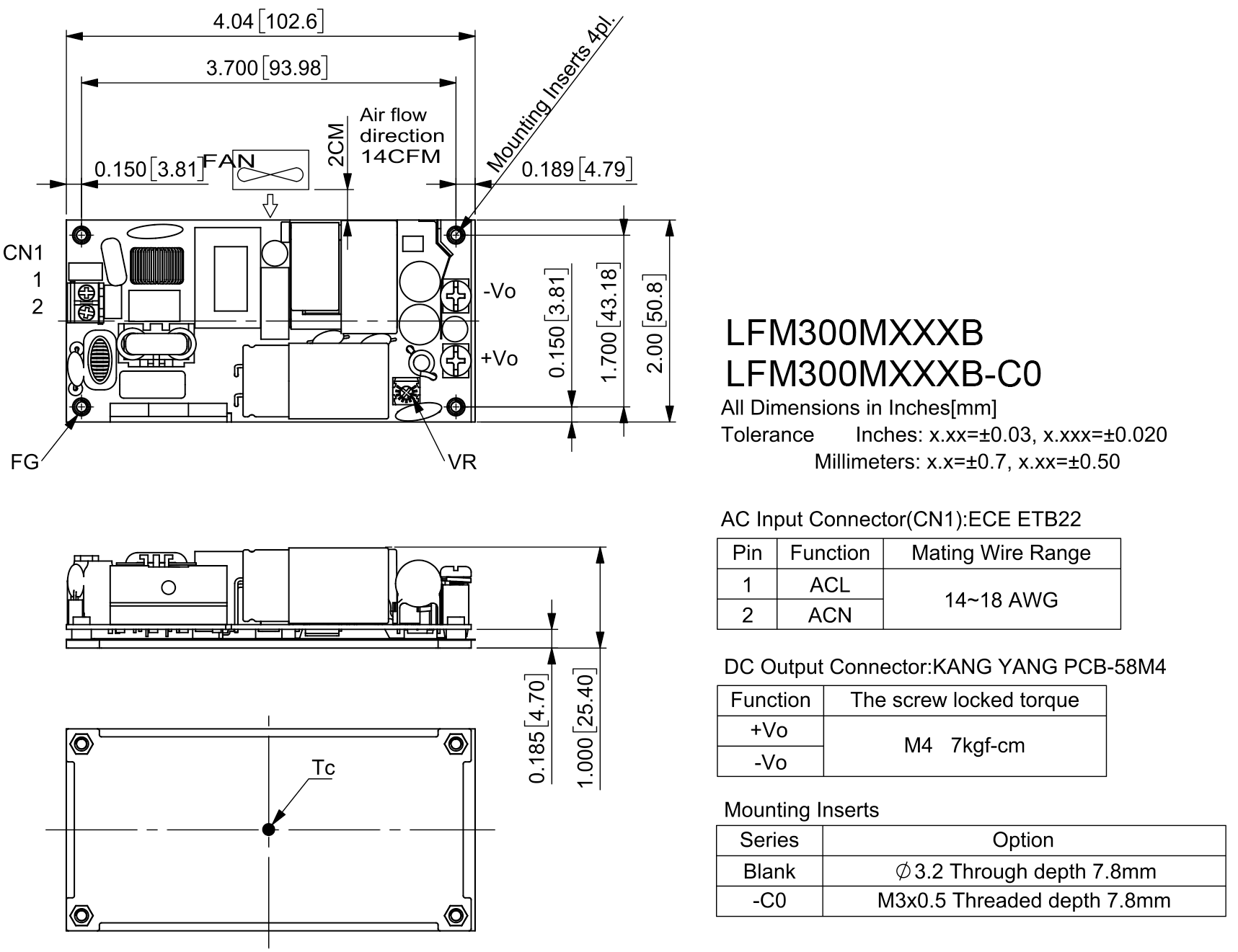

GA_Drawing_LFM300M-series-1 GA_Drawing_LFM300M-series-2
Downloads
Datasheet-LFM300M-series.pdf

ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input Voltage   All 85   264 Vac
Operating Temperature See derating curve All -40   80
Operating Case Temperature At the center of base plate
(T꜀ = Case temperature)
All -40   90
Storage Temperature   All -40   90
Operating Altitude   All     5000 m
INPUT CHARACTERISTICS
Parameter Notes and Conditions
Device Min.
Typ.
Max.
Units
Operating Input Voltage   All 100   240 Vac
Input Frequency Range   All 47   63 Hz
Maximum Input Current 100% Load, Vᵢₙ=100Vac All     5.0 A
Leakage Current   All     300 uA
Inrush Current Vᵢₙ=240Vac, Cold Start @25℃ All     105 A
Power Factor 230Vac @ Full load All   0.92
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ. Max.
Units
Output Voltage Set Point

Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃

LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540

11.88
14.85
23.76
27.72
29.7
47.52
53.46
12
15
24
28
30
48
54

12.12
15.15
24.24
28.28
30.3
48.48
54.54

Vdc
Operating Output Current Range Vᵢₙ=85Vac-264Vac, see derating curve LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540

0
0
0
0
0
0
0

  25.0
20.0
12.5
10.7
10.0
6.25
5.56
A
Holdup Time Vᵢₙ=115Vac All   12   ms
Output Voltage Regulation
Load Regulation 10% Load to full load All     ±0.5 %
Line Regulation Vᵢₙ=High line to low line All     ±0.3 %
Output Voltage Adjustment Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. All -5   +5 %
Over Voltage Protection Latch off (AC recycle to reset) LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    16
20
32
35
36
59
63
Vdc
Over Current Protection Auto recovery (output is rated load) All 110 120 150 %
Short Circuit Protection Auto recovery All
Over Temperature Protection Auto recovery All
Output Ripple and Noise 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output
2. Oscilloscope is 20MHz band width.
3. Ambient Temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    150
150
240
280
300
480
540
mV
Load Capacitance 1. Vᵢₙ=115Vac and 230Vac
2. Output is max. load
3. Ambient temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
    15400
12200
7800
6600
6200
3870
3400
uF
Efficiency 1. Input Voltage is 230Vac
2. Output is rated load
3. Ambient temperature=25℃
LFM300M120
LFM300M150
LFM300M240
LFM300M280
LFM300M300
LFM300M480
LFM300M540
  93
93
94
94
94
94
93
  %
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input to Output 1 Minute (without dielectric breakdown) All     4250 Vac
Input to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Output to Earth (Ground) 1 Minute (without dielectric breakdown)

All

    2000 Vac
Isolation Resistance Input to output All 100



FEATURE CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Switching Frequency Pₒᵤₜ=max. rated power

All

  100   kHz
GENERAL CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
MTBF Iₒ=100%; Ta=25℃ per MIL-HDBK-217F
Iₒ=100%; Ta=25℃ per Telcordia SR332

All

500
1690
    k hours
Life Time (Detail refer to Application Note) Conduction cooling @75% Load, 40℃
Fan cooling @75% Load, 40℃
All   112
159
  k hours
Humidity Non-condensing All     93 % RH
Shock Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X、±Y、±Z axis) All   75   g
Vibration Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X、Y、Z axis, 1 hour (each axis),. Total 3 hrs. All   4   g
Weight Baseplate versions
Covered versions
LFM300MXXXB
LFM300MXXXC
  200
280
  grams
Dimensions Baseplate versions
Covered versions
LFM300MXXXB
LFM300MXXXC
4.04x2.00x1.00 Inches (102.6x50.8x25.4 mm)
4.09x2.28x1.00 Inches (104.0x57.9x25.4 mm)
Safety Class I, Class II
ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1

Class I, IEC/EN/UL 62368-1
Ed. 3.2


Ed. 3.0
EMC Emission EN 55011 Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18
EN 55032, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 15

Conducted Disturbance EN 55011, EN 55032, CFR FCC Part 18 & Part 15 Class B
Radiated Disturbance EN 55011, CFR FCC Part 18 (Class II Only Meets Class A),
EN 55032, CFR FCC Part 15
Class B
Harmonic Current Emissions IEC/EN 61000-3-2 Class A, D
Voltage Fluctuations & Flicker EN 61000-3-3 Criterion A
EMC Immunity EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11

EN 55035, EN 61000-6-2, EN 61204-3
Ed 4.1


Electrostatic Discharge (ESD) IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV Criterion A
Radio-Frequency, Continuous Radiated Disturbance

IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m Criterion A
Electrical Fast Transient (EFT) EN 61000-4-4, Level 3: ±2kV Criterion A
Surge EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV Criterion A
Conducted Disturbances, Induced by RF Fields EN 61000-4-6, Level 3: 0.15~80MHz, 10V Criterion A
Power Frequency Magnetic Field EN 61000-4-8, Level 4: 30A/m Criterion A
Voltage Dips IEC/EN 61000-4-11, Dip: 30% Reduction
IEC/EN 61000-4-11, Dip >95% Reduction
Criterion A
Voltage Interruptions IEC/EN 61000-4-11, >95% Reduction Criterion B
Application Note Link                                                                                                              LFM300M Series App Notes
MODEL NUMBER OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE NOTE1 VOLTAGE ACCURACY NOTE2 VOLTAGE ADJ. RANGE LINE REGULATION NOTE3 LOAD REGULATION NOTE4 % EFF. (Typ.) NOTE5
With Fan NOTE6 With Conduction Cooling NOTE7
Baseplate Cover
LFM300M120

12 Vdc

25 A 14.2 A 20.83 A 150 mV ±1% 11.4-12.6 V ±0.3% ±0.5% 93%

LFM300M150

15 Vdc

20A 11.35 A 16.6 A 150 mV ±1% 14.25-15.75 V ±0.3% ±0.5% 93%
LFM300M240

24 Vdc

12.5 A 7.1 A 10.4 A 240 mV ±1% 22.8-25.2 V ±0.3% ±0.5% 94%
LFM300M280

28 Vdc

10.7 A 6.07 A 8.90 A 280 mV ±1% 26.6-29.4 V ±0.3% ±0.5% 94%
LFM300M300

30 Vdc

10 A 5.67 A 8.33 A 300 mV ±1%

28.5-31.5 V

±0.3% ±0.5% 94%
LFM300M480

48 Vdc

6.25 A 3.54 A 5.20 A 480 mV ±1% 45.6-50.4 V ±0.3% ±0.5% 94%
LFM300M540

54 Vdc

5.56 A 3.15 A 4.63 A 540 mV ±1% 51.3-56.7 V ±0.3% ±0.5% 93%

NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.
2. Voltage accuracy is set at full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230 Vac and full load at 25℃.
6. Forced air convection with 14CFM above 115Vac.
7. With addition cooling conduction plate, 22.8 by 22.8 cm with min. 0.2 cm thick, as below.



PART NUMBER

SERIES NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE TYPE MOUNTING INSERTS
LFM300 O XXX X -YZ
LFM300

M:Medical

120 : 12Vdc
150 : 15Vdc
240 : 24Vdc
280 : 28Vdc
300 : 30Vdc
480 : 48Vdc
540 ; 54Vdc

B:With Baseplate
C:With Cover
Blank:Through Hole
C0:Threaded Hole

Part Number Example:
LFM300M120C-C0: With Cover 300W, Single 12Vdc Output, Threaded Hole
LFM300M1200B: With Baseplate 300W, Single 12Vdc Output, Through Hole



GA_Drawing_LFM300M-series-1 GA_Drawing_LFM300M-series-2
Datasheet-LFM300M-series.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant LFM300M120 85–264Vac 12Vdc 25.00A
product variant LFM300M150 85–264Vac 15Vdc 20.00A
product variant LFM300M240 85–264Vac 24Vdc 12.50A
product variant LFM300M280 85–264Vac 28Vdc 10.70A
product variant LFM300M300 85–264Vac 30Vdc 10.00A
product variant LFM300M480 85–264Vac 48Vdc 6.25A
product variant LFM300M540 85–264Vac 54Vdc 5.56A
