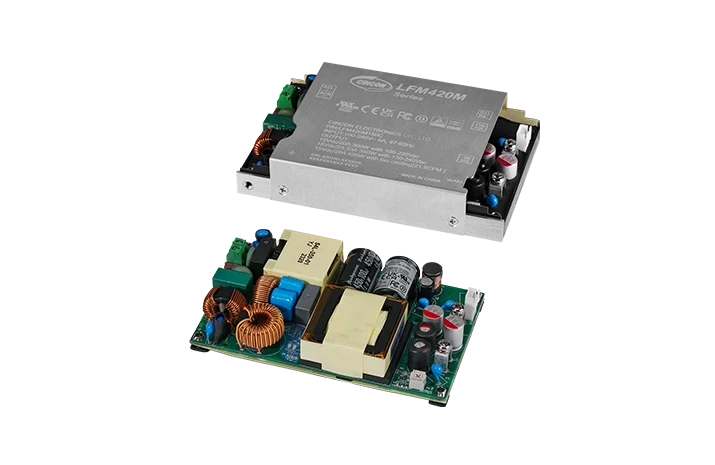

Cincon LFM420M Series 420W Medical AC/DC Power Supply

The Cincon LFM420M Series is a 420W medical AC-DC power supply with active PFC, efficiency up to 94.5%, constant-current over-current protection, and a 25.4mm low-profile package. The series is designed for Class I installations and is approved to ANSI/AAMI ES 60601-1, IEC 60601-1 and EN 60601-1 Ed. 3.2 for 2 MOPP, as well as IEC/EN/UL 62368-1 Ed. 3.0, and meets IEC/EN 60335-1.

Read More

Features

  • Wide Universal AC Input Range: 85–264Vac input allowing reliable operation across global AC power systems.
  • Multiple Output Voltage Options: Available in 12V, 15V, 24V, 28V, 30V, 36V, 48V and 54V output models for flexible system integration.
  • High Output Current Capability: Provides up to 35A output current depending on model, supporting higher power medical and industrial equipment.
  • 420W High Power Density Design: Delivers up to 420W output power within a compact 25.4mm low-profile package.
  • Safety: IEC/EN/UL 62368-1 Ed.3.0 | Meets IEC/EN 60335-1 | ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1 Ed. 3.2, Class I
  • High Efficiency: Up to 94.5% (230Vac, full load, 25°C)
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input Voltage Safety approvals only to the AC input
No safety approvals
All 85
120
  264
370
Vac
Vdc
Operating Temperature See derating curve All -40   80
Operating Case Temperature At the center of base plate
(T꜀ = Case temperature)
All -40   85
Storage Temperature   All -40   85
Operating Altitude   All     5000 m
INPUT CHARACTERISTICS
Parameter Notes and Conditions
Device Min.
Typ.
Max.
Units
Operating Input Voltage   All 100   240 Vac
Input Frequency Range   All 47   63 Hz
Maximum Input Current 100% Load, Vᵢₙ=100Vac All     6 A
Leakage Current (Earth)   All     300 uA
Leakage Current (Touch)   All     100 uA
Inrush Current Vᵢₙ=240Vac, Cold Start @25℃ All   30   A
Under Voltage Protection   All 65   75 Vac
Power Factor 230Vac @ Full load All   0.95
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ. Max.
Units
Output Voltage Set Point

Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃

LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540

11.88
14.85
23.76
27.72
29.70
35.64
47.52
53.46
12
15
24
28
30
36
48
54

12.12
15.15
24.24
28.28
30.30
36.36
48.48
54.54

Vdc
Operating Output Current Range Vᵢₙ=85Vac-264Vac, see derating curve LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540



  35.00A
28.00A
17.50A
15.00A
14.00A
11.67A
8.75A
7.78A
A
Holdup Time Vᵢₙ=115Vac load:350W
Ambient temperature=25℃

Vᵢₙ=115Vac Load:420W
Ambient temperature=25℃
All

12


8

  ms
Output Voltage Regulation
Load Regulation 10% Load to full load All     ±1.0 %
Line Regulation Vᵢₙ=High line to low line All     ±0.5 %
Output Voltage Adjustment Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
LFM420M280
LFM420M540
Others
0
-5
-5
  +5
+2
+5
%
Over Voltage Protection Latch off (reset after about one minute after the input is turned off) LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    16
20
30
35
35
50
63
63
Vdc
Over Current Protection Constant current, auto recovery
(see application note)
All 110   180 %
Short Circuit Protection Auto recovery All
Over Temperature Protection Auto recovery
If conduction convection with external baseplate is used or the recommended temperature curve is exceeded, the Tc temperature must be maintained <85℃
All
Output Ripple and Noise 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output
2. Oscilloscope is 20MHz band width.
3. Ambient Temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    120
150
240
280
300
360
480
540
mV
Load Capacitance 1. Vᵢₙ=115Vac and 230Vac
2. Output is max. load
3. Ambient temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    29100
23300
14500
12500
11600
9700
7200
6400
uF
Efficiency 1. Input Voltage is 230Vac
2. Output is rated load
3. Ambient temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
  92.5
93.0
94.0
94.0
94.0
94.0
94.0
94.5
  %
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input to Output 1 Minute (without dielectric breakdown) All     4250 Vac
Input to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Output to Earth (Ground) 1 Minute (without dielectric breakdown)

All

    2000 Vac
Isolation Resistance Input to output All 100



FEATURE CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Switching Frequency Pₒᵤₜ=max. rated power

All

  65   kHz
GENERAL CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
MTBF Iₒ=100%; Ta=25℃ per MIL-HDBK-217F
Iₒ=100%; Ta=25℃ per Telcordia SR332

All


1600
400   k hours
Life Time (Detail refer to Application Note) Conduction cooling @75% Load, 40℃
Fan cooling @75% Load, 40℃
All   119
288
  k hours
Humidity Non-condensing All     93 % RH
Shock Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X ±Y ±Z axis) All   75   g
Vibration Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X Y Z axis, 1 hour (each axis),. Total 3 hrs. All   4   g
Weight Baseplate versions
Covered versions
All   350
470
  grams
Dimensions

Baseplate versions


Covered versions

All 5.00x3.00x1.00 Inches (127x76.2x25.40mm)

5.09x3.29x1.00 Inches (129.4x83.5x25.4mm)
Safety

Class I,
ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1

Class I, IEC/EN/UL 62368-1

Ed. 3.2

Ed. 3.0

EMC Emission

EN 55011, Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18


EN 55032 (Class B), EN 61000-6-3, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3
47 CFR FCC Part 15 Subpart B


Conducted Disturbance EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 Class B
Radiated Disturbance EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 Class B
Harmonic Current Emissions IEC/EN 61000-3-2 Class A, C, D
Voltage Fluctuations & Flicker EN 61000-3-3
EMC Immunity EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11
EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61204-3
Ed 4.1
Electrostatic Discharge (ESD) IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV Criterion A
Radio-Frequency, Continuous Radiated Disturbance

IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m Criterion A
Electrical Fast Transient (EFT) EN 61000-4-4, Level 3: ±2KV Criterion A
Surge EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV Criterion A
Conducted Disturbances, Induced by RF Fields IEC/EN 61000-4-6, Level 3: 0.15~80MHz, 10V Criterion A
Power Frequency Magnetic Field EN 61000-4-8, Level 4: 30A/m Criterion A
Voltage Dips IEC/EN 61000-4-11, Dip: 30% Reduction
IEC/EN 61000-4-11, Dip >95% Reduction
Criterion A
Voltage Interruptions IEC/EN 61000-4-11, >95% Reduction Criterion B
Application Note Link                                                                                                    LFM420M Series App Notes
Selection Table
MODEL NUMBER OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE NOTE1 VOLTAGE ACCURACY NOTE2 VOLTAGE ADJ. RANGE LINE REGULATION NOTE3 LOAD REGULATION NOTE4 % EFF. (Typ.) NOTE5
With Fan NOTE6 With Conduction Cooling NOTE7
Baseplate Cover
LFM420M120

12 Vdc

35 A 26.25 A 29.17 A 120 mV ±1% 11.4-12.6 V ±0.5% ±1% 92.5%

LFM420M150

15 Vdc

28 A 21 A 23.33 A 150 mV ±1% 14.25-15.75 V ±0.5% ±1% 93%
LFM420M240

24 Vdc

17.5 A 13.13 A 14.58 A 240 mV ±1% 22.8-25.2 V ±0.5% ±1% 94%
LFM420M280

28 Vdc

15 A 11.25 A 12.50 A 280 mV ±1% 28-29.4 V ±0.5% ±1% 94%
LFM420M300

30 Vdc

14 A 10.50 A 11.67 A 300 mV ±1%

28.5-31.5 V

±0.5% ±1% 94%
LFM420M360

36 Vdc

11.67 A 8.75 A 9.72 A 360 mV ±1%

34.2-37.8 V

±0.5% ±1% 94%
LFM420M480

48 Vdc

8.75 A 6.56 A 7.29 A 480 mV ±1% 45.6-50.4 V ±0.5% ±1% 94%
LFM420M540

54 Vdc

7.78 A 5.83 A 6.48 A 540 mV ±1% 51.3-55.0 V ±0.5% ±1% 94.5%

NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.
2. Voltage accuracy is set at full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230 Vac and full load at 25℃.
6. Forced air convection with 21.9CFM above 100Vac.
7. Conduction convection with external baseplate, 24.8*48.0cm with min.0.12cm thick @115Vac.



PART NUMBER

SERIES NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE TYPE MOUNTING INSERTS
LFM420 O XXX X -YZ
LFM420

M:Medical

120 : 12Vdc
150 : 15Vdc
240 : 24Vdc
280 : 28Vdc
300 : 30Vdc
360 : 36Vdc
480 : 48Vdc
540 ; 54Vdc

B:With Baseplate
C:With Cover
Blank:Through Hole
C0:Threaded Hole

Part Number Example:
LFM420M120C: With Cover, 420W, 12Vdc Output, Through Hole



Technical Illustrations

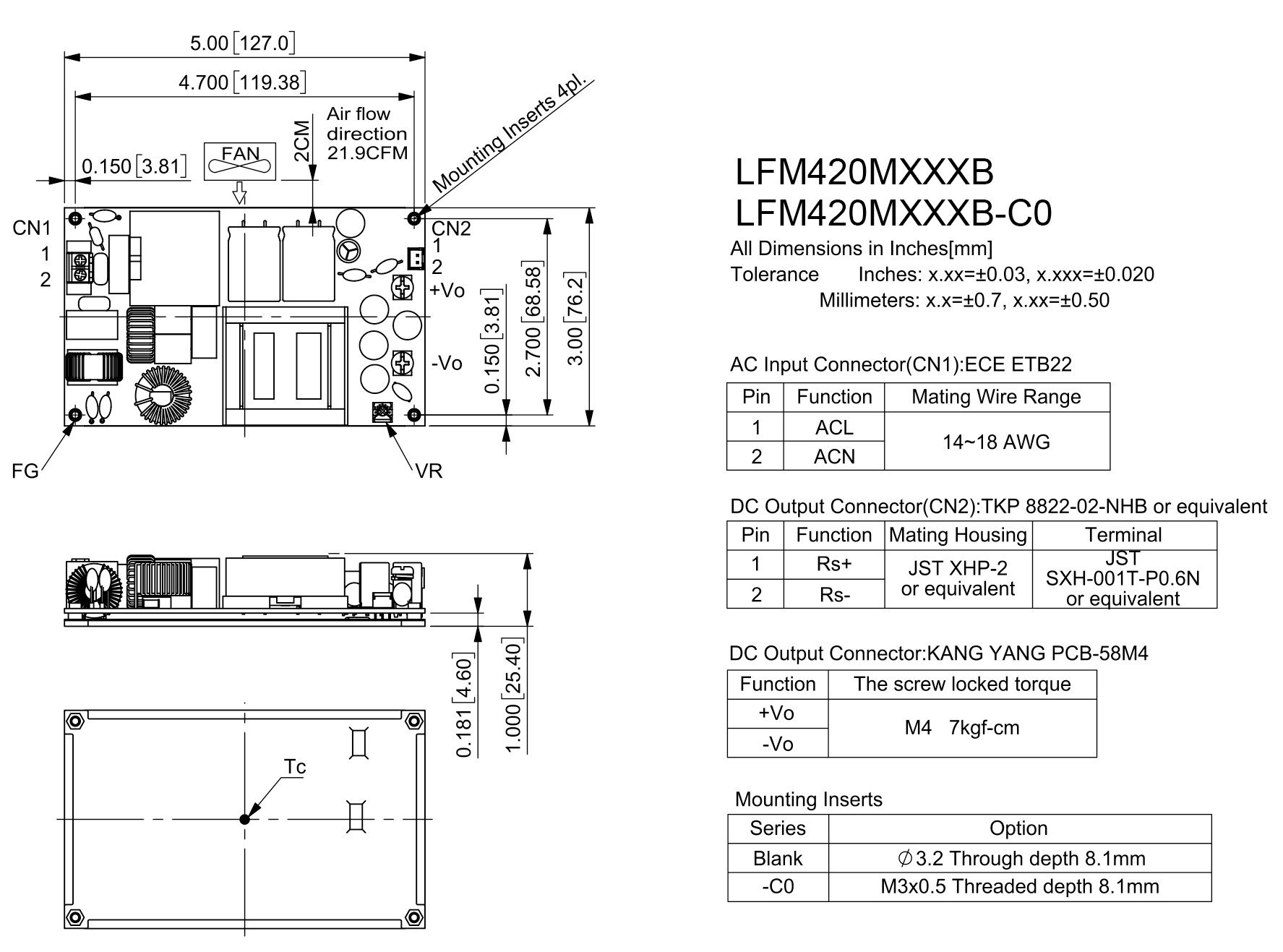

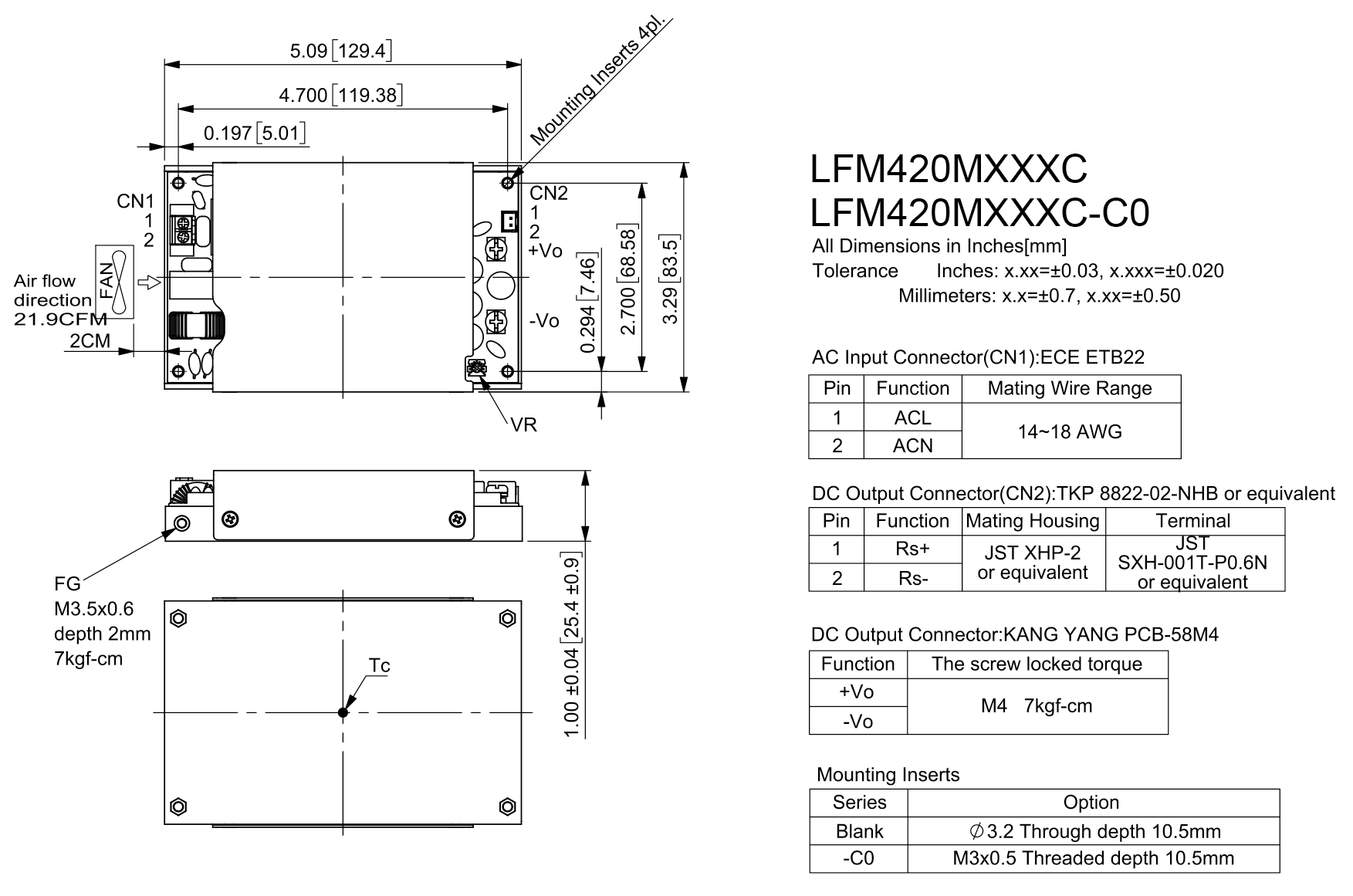

GA_Drawing_LFM420M-series-1 GA_Drawing_LFM420M-series-2
Downloads
Datasheet-LFM420M-series.pdf

ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input Voltage Safety approvals only to the AC input
No safety approvals
All 85
120
  264
370
Vac
Vdc
Operating Temperature See derating curve All -40   80
Operating Case Temperature At the center of base plate
(T꜀ = Case temperature)
All -40   85
Storage Temperature   All -40   85
Operating Altitude   All     5000 m
INPUT CHARACTERISTICS
Parameter Notes and Conditions
Device Min.
Typ.
Max.
Units
Operating Input Voltage   All 100   240 Vac
Input Frequency Range   All 47   63 Hz
Maximum Input Current 100% Load, Vᵢₙ=100Vac All     6 A
Leakage Current (Earth)   All     300 uA
Leakage Current (Touch)   All     100 uA
Inrush Current Vᵢₙ=240Vac, Cold Start @25℃ All   30   A
Under Voltage Protection   All 65   75 Vac
Power Factor 230Vac @ Full load All   0.95
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ. Max.
Units
Output Voltage Set Point

Vᵢₙ=Nominal Vᵢₙ, Iₒ= Iₒ_ₘₐₓ., T꜀=25℃

LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540

11.88
14.85
23.76
27.72
29.70
35.64
47.52
53.46
12
15
24
28
30
36
48
54

12.12
15.15
24.24
28.28
30.30
36.36
48.48
54.54

Vdc
Operating Output Current Range Vᵢₙ=85Vac-264Vac, see derating curve LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540



  35.00A
28.00A
17.50A
15.00A
14.00A
11.67A
8.75A
7.78A
A
Holdup Time Vᵢₙ=115Vac load:350W
Ambient temperature=25℃

Vᵢₙ=115Vac Load:420W
Ambient temperature=25℃
All

12


8

  ms
Output Voltage Regulation
Load Regulation 10% Load to full load All     ±1.0 %
Line Regulation Vᵢₙ=High line to low line All     ±0.5 %
Output Voltage Adjustment Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
LFM420M280
LFM420M540
Others
0
-5
-5
  +5
+2
+5
%
Over Voltage Protection Latch off (reset after about one minute after the input is turned off) LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    16
20
30
35
35
50
63
63
Vdc
Over Current Protection Constant current, auto recovery
(see application note)
All 110   180 %
Short Circuit Protection Auto recovery All
Over Temperature Protection Auto recovery
If conduction convection with external baseplate is used or the recommended temperature curve is exceeded, the Tc temperature must be maintained <85℃
All
Output Ripple and Noise 1. Add a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor to output
2. Oscilloscope is 20MHz band width.
3. Ambient Temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    120
150
240
280
300
360
480
540
mV
Load Capacitance 1. Vᵢₙ=115Vac and 230Vac
2. Output is max. load
3. Ambient temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
    29100
23300
14500
12500
11600
9700
7200
6400
uF
Efficiency 1. Input Voltage is 230Vac
2. Output is rated load
3. Ambient temperature=25℃
LFM420M120
LFM420M150
LFM420M240
LFM420M280
LFM420M300
LFM420M360
LFM420M480
LFM420M540
  92.5
93.0
94.0
94.0
94.0
94.0
94.0
94.5
  %
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input to Output 1 Minute (without dielectric breakdown) All     4250 Vac
Input to Earth (Ground) 1 Minute (without dielectric breakdown) All     2000 Vac
Output to Earth (Ground) 1 Minute (without dielectric breakdown)

All

    2000 Vac
Isolation Resistance Input to output All 100



FEATURE CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Switching Frequency Pₒᵤₜ=max. rated power

All

  65   kHz
GENERAL CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
MTBF Iₒ=100%; Ta=25℃ per MIL-HDBK-217F
Iₒ=100%; Ta=25℃ per Telcordia SR332

All


1600
400   k hours
Life Time (Detail refer to Application Note) Conduction cooling @75% Load, 40℃
Fan cooling @75% Load, 40℃
All   119
288
  k hours
Humidity Non-condensing All     93 % RH
Shock Meet MIL-STD-810F Table 516.5,Table 516.5-I 10ms, each axis 3 times(±X ±Y ±Z axis) All   75   g
Vibration Meet MIL-STD-810F Table 514.5C-VIII,15~2000Hz, X Y Z axis, 1 hour (each axis),. Total 3 hrs. All   4   g
Weight Baseplate versions
Covered versions
All   350
470
  grams
Dimensions

Baseplate versions


Covered versions

All 5.00x3.00x1.00 Inches (127x76.2x25.40mm)

5.09x3.29x1.00 Inches (129.4x83.5x25.4mm)
Safety

Class I,
ANSI/AAMI ES 60601-1, IEC 60601-1, EN 60601-1

Class I, IEC/EN/UL 62368-1

Ed. 3.2

Ed. 3.0

EMC Emission

EN 55011, Class B, IEC/EN 61000-3-2, EN 61000-3-3, 47 CFR FCC Part 18


EN 55032 (Class B), EN 61000-6-3, EN 61000-6-4, EN 61204-3, EN 61000-3-2, EN 61000-3-3
47 CFR FCC Part 15 Subpart B


Conducted Disturbance EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 Class B
Radiated Disturbance EN 55011, EN 55032 47, CFR FCC Part 18 & Part 15 Class B
Harmonic Current Emissions IEC/EN 61000-3-2 Class A, C, D
Voltage Fluctuations & Flicker EN 61000-3-3
EMC Immunity EN 60601-1-2, IEC/EN 61000-4-2, 3, 4, 5, 6, 8, 11
EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61204-3
Ed 4.1
Electrostatic Discharge (ESD) IEC 61000-4-2, Level 4: Air Discharge: ±15kV, Contact Discharge: ±8kV Criterion A
Radio-Frequency, Continuous Radiated Disturbance

IEC/EN 61000-4-3, Level 3: 80~2700MHz, 10V/m Criterion A
Electrical Fast Transient (EFT) EN 61000-4-4, Level 3: ±2KV Criterion A
Surge EN 61000-4-5, Level 4: L-N: ±2kV, L-E (Ground): ±4kV Criterion A
Conducted Disturbances, Induced by RF Fields IEC/EN 61000-4-6, Level 3: 0.15~80MHz, 10V Criterion A
Power Frequency Magnetic Field EN 61000-4-8, Level 4: 30A/m Criterion A
Voltage Dips IEC/EN 61000-4-11, Dip: 30% Reduction
IEC/EN 61000-4-11, Dip >95% Reduction
Criterion A
Voltage Interruptions IEC/EN 61000-4-11, >95% Reduction Criterion B
Application Note Link                                                                                                    LFM420M Series App Notes
MODEL NUMBER OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE NOTE1 VOLTAGE ACCURACY NOTE2 VOLTAGE ADJ. RANGE LINE REGULATION NOTE3 LOAD REGULATION NOTE4 % EFF. (Typ.) NOTE5
With Fan NOTE6 With Conduction Cooling NOTE7
Baseplate Cover
LFM420M120

12 Vdc

35 A 26.25 A 29.17 A 120 mV ±1% 11.4-12.6 V ±0.5% ±1% 92.5%

LFM420M150

15 Vdc

28 A 21 A 23.33 A 150 mV ±1% 14.25-15.75 V ±0.5% ±1% 93%
LFM420M240

24 Vdc

17.5 A 13.13 A 14.58 A 240 mV ±1% 22.8-25.2 V ±0.5% ±1% 94%
LFM420M280

28 Vdc

15 A 11.25 A 12.50 A 280 mV ±1% 28-29.4 V ±0.5% ±1% 94%
LFM420M300

30 Vdc

14 A 10.50 A 11.67 A 300 mV ±1%

28.5-31.5 V

±0.5% ±1% 94%
LFM420M360

36 Vdc

11.67 A 8.75 A 9.72 A 360 mV ±1%

34.2-37.8 V

±0.5% ±1% 94%
LFM420M480

48 Vdc

8.75 A 6.56 A 7.29 A 480 mV ±1% 45.6-50.4 V ±0.5% ±1% 94%
LFM420M540

54 Vdc

7.78 A 5.83 A 6.48 A 540 mV ±1% 51.3-55.0 V ±0.5% ±1% 94.5%

NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.
2. Voltage accuracy is set at full load.
3. Line regulation is measured from 100Vac to 240Vac with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230 Vac and full load at 25℃.
6. Forced air convection with 21.9CFM above 100Vac.
7. Conduction convection with external baseplate, 24.8*48.0cm with min.0.12cm thick @115Vac.



PART NUMBER

SERIES NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE TYPE MOUNTING INSERTS
LFM420 O XXX X -YZ
LFM420

M:Medical

120 : 12Vdc
150 : 15Vdc
240 : 24Vdc
280 : 28Vdc
300 : 30Vdc
360 : 36Vdc
480 : 48Vdc
540 ; 54Vdc

B:With Baseplate
C:With Cover
Blank:Through Hole
C0:Threaded Hole

Part Number Example:
LFM420M120C: With Cover, 420W, 12Vdc Output, Through Hole
