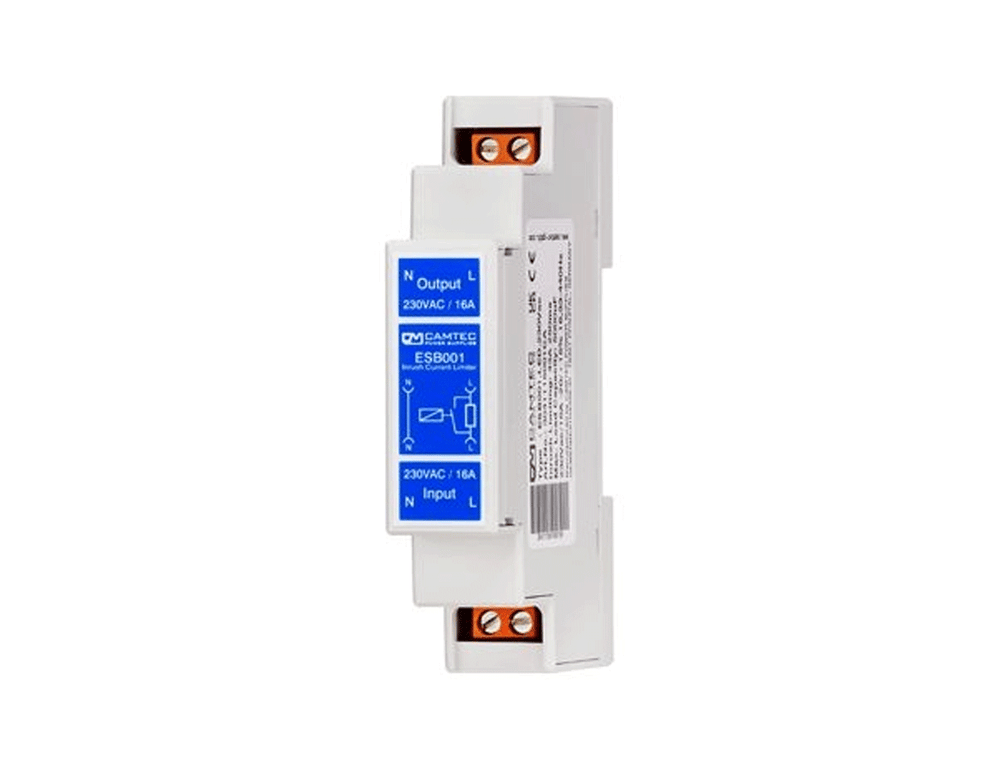

Camtec ESB001 Series Inrush Current Limiter
The Camtec ESB001 is a precision inrush current limiter designed for capacitive loads on 230Vac 16A networks, operating across a wide frequency range of 16⅓Hz to 440Hz. Built for LED applications, complex automation systems, and machine building environments, the ESB001 effectively eliminates nuisance tripping of pre-installed circuit breakers a...
Read MoreThe Camtec ESB001 is a precision inrush current limiter designed for capacitive loads on 230Vac 16A networks, operating across a wide frequency range of 16⅓Hz to 440Hz. Built for LED applications, complex automation systems, and machine building environments, the ESB001 effectively eliminates nuisance tripping of pre-installed circuit breakers and prevents damage to relay and line switch contacts, without relying on a simple NTC solution. It features an integrated bypass relay that seamlessly transitions the load to direct AC connection after the limiting period, and an internal thermal fuse that protects against overheating and fire.
Available in two variants, the ESB001.24.230Vac (24A peak, 2,200µF max capacitive load) and the ESB001.LED.230Vac (43A peak, 5,000µF max capacitive load), the ESB001 is self-powered, requiring no external supply. It draws just 1.1W at 230Vac and operates reliably from -40°C to +55°C. The compact DIN-rail and wall-mountable IP20 housing (17.9 × 89.5 × 62.8mm, 1TE wide) fits standard TS35mm rails and DIN/VDE0603 cutout boxes. Spring-type terminals accept conductors up to 4mm² / 12AWG for fast, tool-free installation.
Certified to EN62368-1 and compliant with EN55032 Class B EMI, EN61000-6-2 EMS, and RoHS/REACH directives, the ESB001 is a fully compliant, field-proven solution for protecting AC distribution networks in commercial and industrial installations.
Features
- Peak and RMS inrush current limiter
- 184-264Vac input range, 16A continuous
- Self-powering — no external supply required
- DIN-Rail TS35mm mount (1TE = 18mm)
- IP20 UL94V-0 housing DIN43880
- Spring-type terminals 4mm² / 12AWG
- Integrated bypass relay
- Integrated thermal protection
- EN62368-1, EN55032 Class B, EN61000-6-2
- Operating temperature -40°C to +55°C
Specifications
| GENERAL | ||
|---|---|---|
| Parameter | ESB001.24.230Vac | ESB001.LED.230Vac |
| Peak Current Limiting ±6% | 24A | 43A |
| R.M.S Current Limiting ±6% | 17A | 30.1A |
| Maximum Allowed Capacitive Load | 2,200uF | 5,000uF |
| Limiting Time (Ton Power On) | 250ms (±50ms) | |
| Release Time (Toff Low Voltage) | 500ms (±50ms) | |
| Limiting Interval (Tinterval for AC cont.) | ≥ 1000ms | |
| Advisable Circuit breaker at 30°C | B6A – B16A | B13A – B16A |
| AC Input Range | 184-264Vac | |
| AC Continuous Input Range | 230Vac | |
| Line Frequency | 16⅓ Hz – 440Hz | |
| Switch-On Voltage | 154Vac | |
| AC Lower Margin | 52Vac (AC dump / drop out voltage) | |
| AC Current | 16A continuous load current | |
| Power Supply | No external power supply required, item is self-powering | |
| Power consumption | 1.1W @ 230Vac | |
| Limiting Cycles | Between each limiting action shall be a break of 20 sec., to let the device cool down until the next limiting starts | |
| Internal Protection | Thermal fuse protects from overheat & fire | |
| Cooling | Natural convection | |
| Operation Temp. | Ambient temperature -40°C ... +55°C continuous (see operations temperature list for details in this manual) | |
| Storage Temp. | -40°C ... +85°C for 2 years | |
| EMI | EN55032 class B, EN61000-6-3 | |
| EMS | EN61000-6-2 | |
| Safety Norms | EN61010-1, EN61010-2-201, EN62368-1, EN60950-1 applicable | |
| Safety Class | Class II | |
| ROHS conformity | ROHS Directive 2011/65/EU | |
| REACH conformity | REACH Directive 1907/2006 | |
| MTBF Calculation | 380,000h (IEC/EN61709, Siemens SN29500) | |
| MTTF Calculation | 412,000h (+30°C) (IEC/EN61709, Siemens SN29500) | |
| Humidity | 95% (+25°C) not condensing | |
| Pollution Degree | 2 (IEC/EN50178) | |
| Environmental | Thermal environment 3K3, mechanics 3M4 (IEC/EN60721) | |
| Altitude max. | 4000m (13123 ft.) above sea level | |
| Dimensions (WxHxD) | (Wide=1TE), 17.9x89.5x62.8mm | |
| Housing Parameters | UL94V-0 housing for DIN/VDE0603 cutout box | |
| DIN-Rail | DIN-Rail TS35mm DIN/EN60715 (TS35/7.5 und TS35/15) | |
| Weight | 0.07kg / 0.15lbs | |
| Connections | Spring-type terminal block solid max. 0.13...4mm² 26—12AWG according with IEC/EN60664-1, IEC/EN61984. Use copper conductors only. Wire stripping length 6mm. Tightening torque per terminal block is 0.5 - 0.6 Nm / 4.5 - 5.3 lbf-in | |

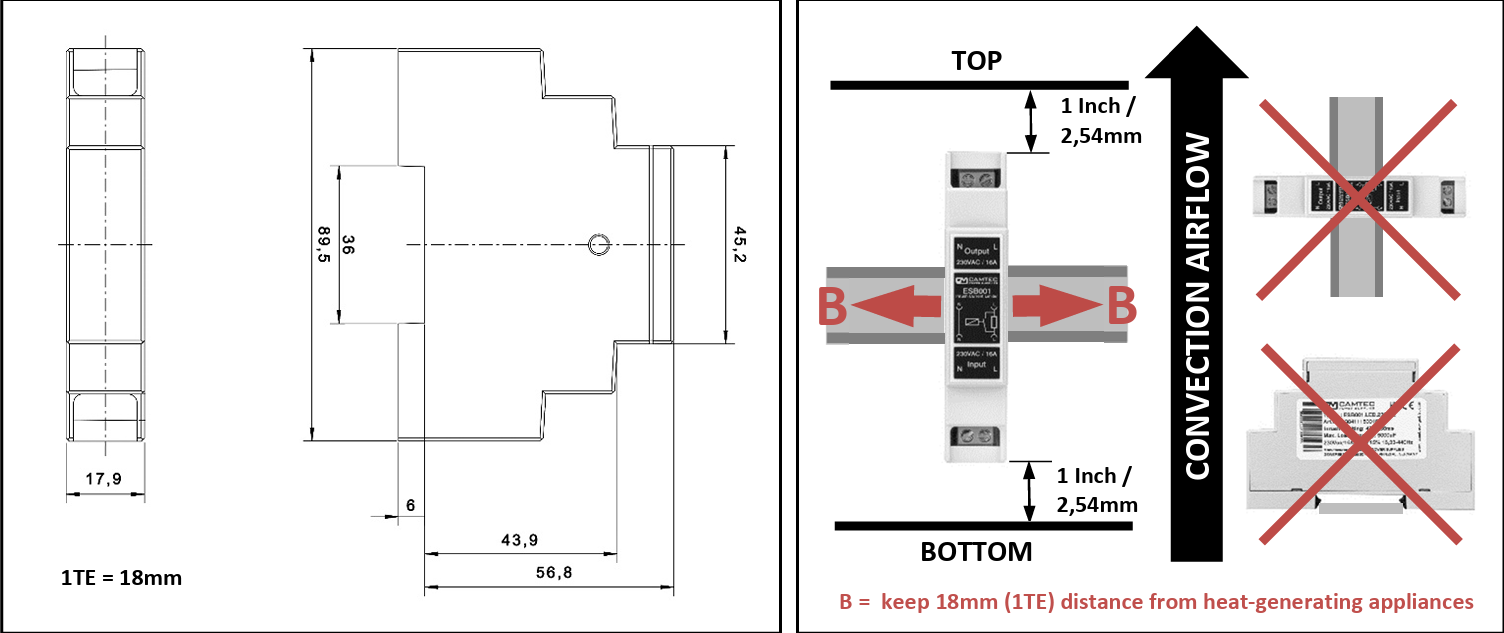

Technical Drawings
