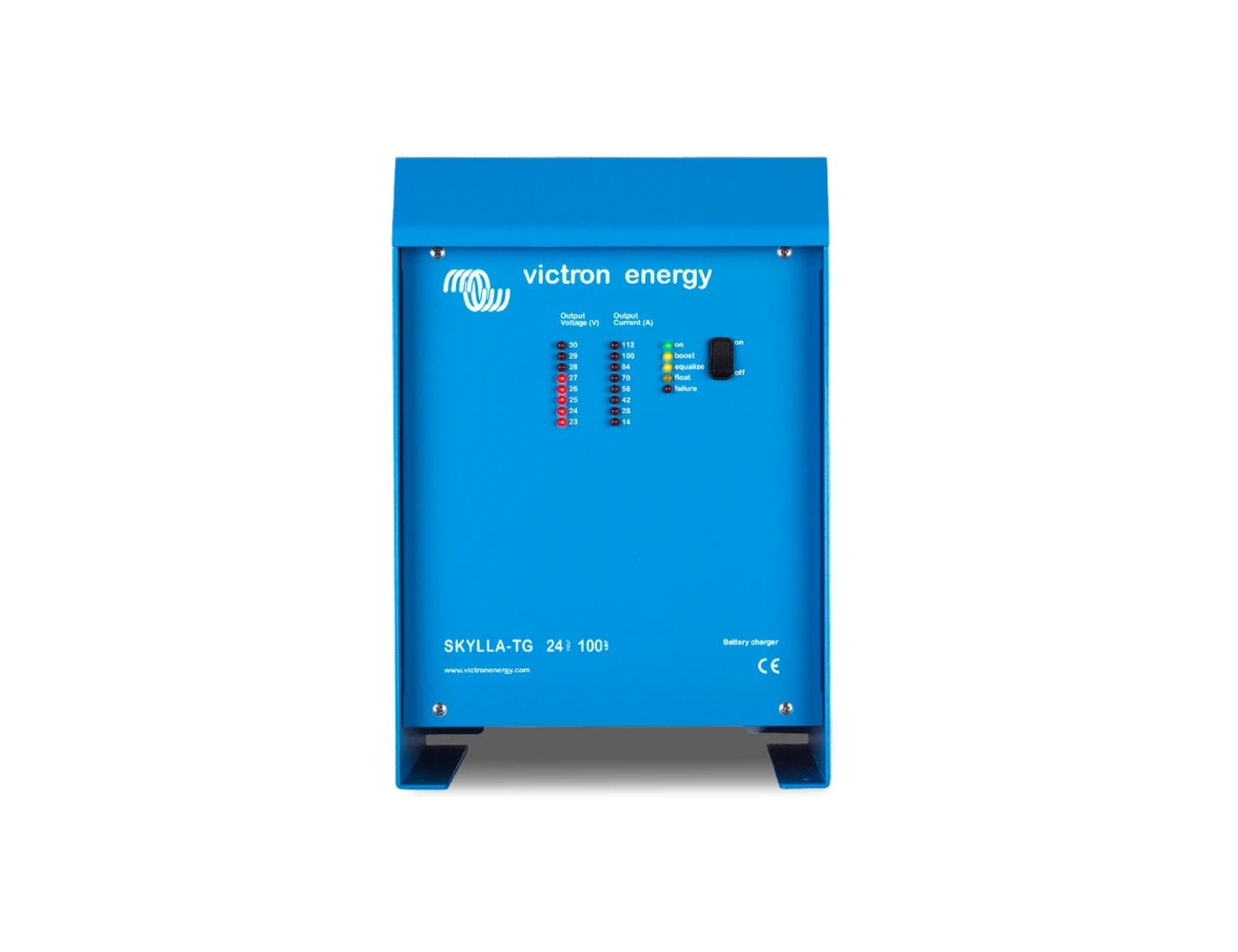

Victron SKYLLA TG SERIES Battery Charger

The Victron Skylla TG Series Battery Charger delivers precision charging for a wide range of battery types, ensuring long-term reliability and performance. With its advanced features and rugged design, the Skylla TG series is perfect for marine, industrial, and automotive applications where dependable power is critical.

Read More

View Models
Victron SKYLLA TG SERIES Battery Charger

Features

  • Precise Charging for Any Battery Type: Adjustable charge voltage ensures optimal charging for sealed or unsealed batteries, preventing overcharging and extending battery life.
  • Three-Step Charging Process: Microprocessor-controlled IUoUo charging delivers faster and more efficient charging compared to conventional methods.
  • Dual Outputs (24V Models): Provides a main charging output and a secondary isolated output (up to 4A) for maintaining starter batteries.
  • Temperature Compensation: Includes a battery temperature sensor to prevent overcharging by reducing charge voltage as battery temperature increases.
  • Voltage Sensing: Compensates for cable resistance to ensure the battery receives accurate charging voltage.
  • DC and AC Supply Compatibility: Operates with AC or DC input (excluding 3-phase models), enhancing versatility for various power setups.
Specifications
INPUT
Input voltage 1ph: 185-264Vac, 3ph: 320-450Vac 180-400Vdc
Input frequency 45 - 65Hz
Power factor 1
BATTERY CHARGING OUTPUT
Battery Charging Optimum absorption charge and float charge voltages for Flooded Lead-acid, Gel-Cell or AGM batteries. Selectable by dip switch
Absorption Charge voltage 28.5Vdc and 57Vdc See selection table
Float Charge voltage 26.5Vdc and 53Vdc See selection table
Two Outputs Two outputs to charge 2 battery banks (24V models only). The TG chargers feature 2 isolated outputs. The second output is limited to approx 4A and with a slightly lower output voltage. It is intended to top up a starter battery See selection table
Total output ammeter Yes.
Charge characteristic Accurately controls the charging in 3 steps. Charges more rapidly than other processes
Temperature sensor Battery temperature sensor supplied. When connected charge voltage will automatically decrease with increasing battery temperature.

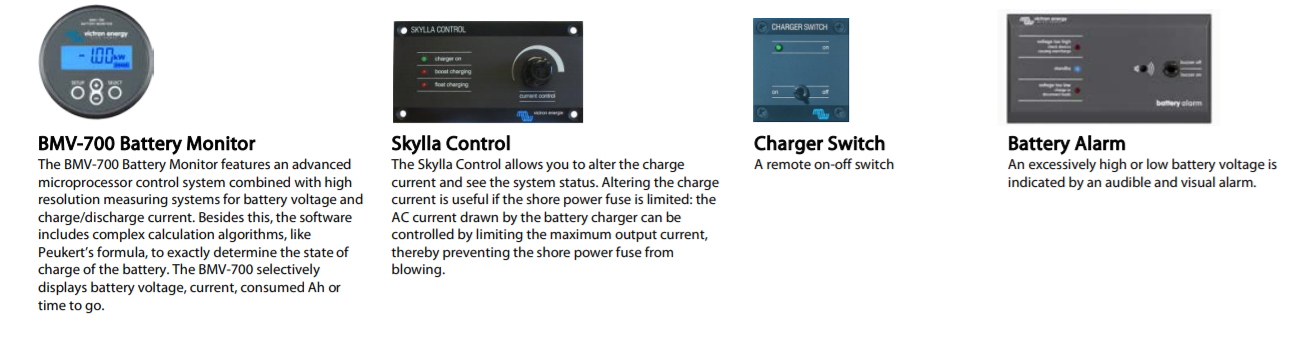

Battery Monitor The BMV 600S battery monitor features an advanced control and measuring system for battery voltage and charge/discharge current. The battery monitor selectively displays battery voltage, current, consumed AH or time to go
Skylla Control The Skylla Control allows you to alter the charge current and see the system status
Charger switch A remote on-off switch
Remote alarm Potential free contacts 60V / 1A (1 x NO & 1 x NC)
PROTECTION
Short circuit Yes. output short circuit protection
Battery connection Yes, battery reverse polarity detection
Battery voltage Yes, battery voltage too high
Over temperature Yes, temperature too high protection
STANDARDS AND APPROVALS
Safety EN60335-1, EN60335-2-29.
Emission EN55014, EN61000-3-2
Immunity EN55014-2, EN61000-3-3
C-tick AS/NZS CISPR11: Group 1, Class A.
ENVIRONMENTAL
Operating temperature -20°C to 60°C.
Derating Full load up to 40C ambient, Output will reduce to approximately 80% of nominal at 50C and 60% of nominal at 60C
Cooling Temperature and current controlled fan.
Humidity 95% max (non condensing).
MECHANICAL
AC connection Screw-clamp 2-5mm² (AWG 6)
Battery connection M8 studs
Protection category IP21.
Material & colour Aluminum epoxy powder coated cases (blue RAL 5012), Stainless steel fixings
Size & Weight 24/30TG-24/50TG: 365x250x147mm, 5.5Kg 24/50TG 3Phase: 365x250x257mm, 13Kg 24/80TG: 365x250x257mm, 10Kg 24/100TG: 365x250x257mm, 10Kg 24/100TG 3Phase: 515x260x265mm, 23Kg 48/25TG: 365x250x147mm, 5.5Kg 48/50TG: 365x250x257mm, 10Kg
Selection Table
MODEL DESCRIPTION ABSORPTION CHARGE VOLTAGE FLOAT CHARGE VOLTAGE OUTPUT CURRENT BATTERY CONNECTION RECOMMENDED BATTERY SIZE
Skylla-TG 24/30(1+1) 230V 28.5V 26.5V 30A M8 Studs 150-500Ah
Skylla-TG 24/50(1+1) 230V 28.5V 26.5V 50A M8 Studs 150-500Ah
Skylla-TG 24/50(1+1) 3-Phase 400V 28.5V 26.5V 50A M8 Studs 250-500Ah
Skylla-TG 24/80(1+1) 230V 28.5V 26.5V 80A M8 Studs 400-800Ah
Skylla-TG 24/100(1+1) 230V 28.5V 26.5V 100A M8 Studs 500-1000Ah
Skylla TG 24/100 3-Phase 28.55V 26.5V 100A M8 Studs 500-1000Ah
Skylla-TG 48/25(1) 230V 57V 53V 25A M8 Studs 125-250Ah
Skylla-TG 48/50(1) 230V 57V 53V 50A M8 Studs 250-500Ah
Technical Illustrations
Downloads
Datasheet-Skylla-TG_Charger-EN.pdf
INPUT
Input voltage 1ph: 185-264Vac, 3ph: 320-450Vac 180-400Vdc
Input frequency 45 - 65Hz
Power factor 1
BATTERY CHARGING OUTPUT
Battery Charging Optimum absorption charge and float charge voltages for Flooded Lead-acid, Gel-Cell or AGM batteries. Selectable by dip switch
Absorption Charge voltage 28.5Vdc and 57Vdc See selection table
Float Charge voltage 26.5Vdc and 53Vdc See selection table
Two Outputs Two outputs to charge 2 battery banks (24V models only). The TG chargers feature 2 isolated outputs. The second output is limited to approx 4A and with a slightly lower output voltage. It is intended to top up a starter battery See selection table
Total output ammeter Yes.
Charge characteristic Accurately controls the charging in 3 steps. Charges more rapidly than other processes
Temperature sensor Battery temperature sensor supplied. When connected charge voltage will automatically decrease with increasing battery temperature.
Battery Monitor The BMV 600S battery monitor features an advanced control and measuring system for battery voltage and charge/discharge current. The battery monitor selectively displays battery voltage, current, consumed AH or time to go
Skylla Control The Skylla Control allows you to alter the charge current and see the system status
Charger switch A remote on-off switch
Remote alarm Potential free contacts 60V / 1A (1 x NO & 1 x NC)
PROTECTION
Short circuit Yes. output short circuit protection
Battery connection Yes, battery reverse polarity detection
Battery voltage Yes, battery voltage too high
Over temperature Yes, temperature too high protection
STANDARDS AND APPROVALS
Safety EN60335-1, EN60335-2-29.
Emission EN55014, EN61000-3-2
Immunity EN55014-2, EN61000-3-3
C-tick AS/NZS CISPR11: Group 1, Class A.
ENVIRONMENTAL
Operating temperature -20°C to 60°C.
Derating Full load up to 40C ambient, Output will reduce to approximately 80% of nominal at 50C and 60% of nominal at 60C
Cooling Temperature and current controlled fan.
Humidity 95% max (non condensing).
MECHANICAL
AC connection Screw-clamp 2-5mm² (AWG 6)
Battery connection M8 studs
Protection category IP21.
Material & colour Aluminum epoxy powder coated cases (blue RAL 5012), Stainless steel fixings
Size & Weight 24/30TG-24/50TG: 365x250x147mm, 5.5Kg 24/50TG 3Phase: 365x250x257mm, 13Kg 24/80TG: 365x250x257mm, 10Kg 24/100TG: 365x250x257mm, 10Kg 24/100TG 3Phase: 515x260x265mm, 23Kg 48/25TG: 365x250x147mm, 5.5Kg 48/50TG: 365x250x257mm, 10Kg
MODEL DESCRIPTION ABSORPTION CHARGE VOLTAGE FLOAT CHARGE VOLTAGE OUTPUT CURRENT BATTERY CONNECTION RECOMMENDED BATTERY SIZE
Skylla-TG 24/30(1+1) 230V 28.5V 26.5V 30A M8 Studs 150-500Ah
Skylla-TG 24/50(1+1) 230V 28.5V 26.5V 50A M8 Studs 150-500Ah
Skylla-TG 24/50(1+1) 3-Phase 400V 28.5V 26.5V 50A M8 Studs 250-500Ah
Skylla-TG 24/80(1+1) 230V 28.5V 26.5V 80A M8 Studs 400-800Ah
Skylla-TG 24/100(1+1) 230V 28.5V 26.5V 100A M8 Studs 500-1000Ah
Skylla TG 24/100 3-Phase 28.55V 26.5V 100A M8 Studs 500-1000Ah
Skylla-TG 48/25(1) 230V 57V 53V 25A M8 Studs 125-250Ah
Skylla-TG 48/50(1) 230V 57V 53V 50A M8 Studs 250-500Ah
Datasheet-Skylla-TG_Charger-EN.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant Skylla-TG 24/30(1+1) 120-240V 95...264Vac 50/60Hz 26.5Vdc (Default Float Value) 30A
product variant Skylla-TG 24/50(1+1) 230V 185...264Vac 50/60Hz 26.5Vdc (Default Float Value) 50A
product variant Skylla-TG 24/80(1+1) 230V 185...264Vac 50/60Hz 26.5Vdc (Default Float Value) 80A
product variant Skylla-TG 24/100(1+1) 230V 185...264Vac 50/60Hz 26.5Vdc (Default Float Value) 100A
product variant Skylla-TG 48/25(1) 230V 185...264Vac 50/60Hz 53Vdc (Default Float Value) 25A
product variant Skylla-TG 48/50(1) 230V 185...264Vac 50/60Hz 53Vdc (Default Float Value) 50A
product variant Skylla-TG 24/50(1+1) 3-Phase 400V 3 x 400Vac 50/60Hz 26.5Vdc (Default Float Value) 50A
product variant Skylla-TG 24/100(1+1) 3-Phase 400V 3 x 400Vac 50/60Hz 26.5Vdc (Default Float Value) 100A
