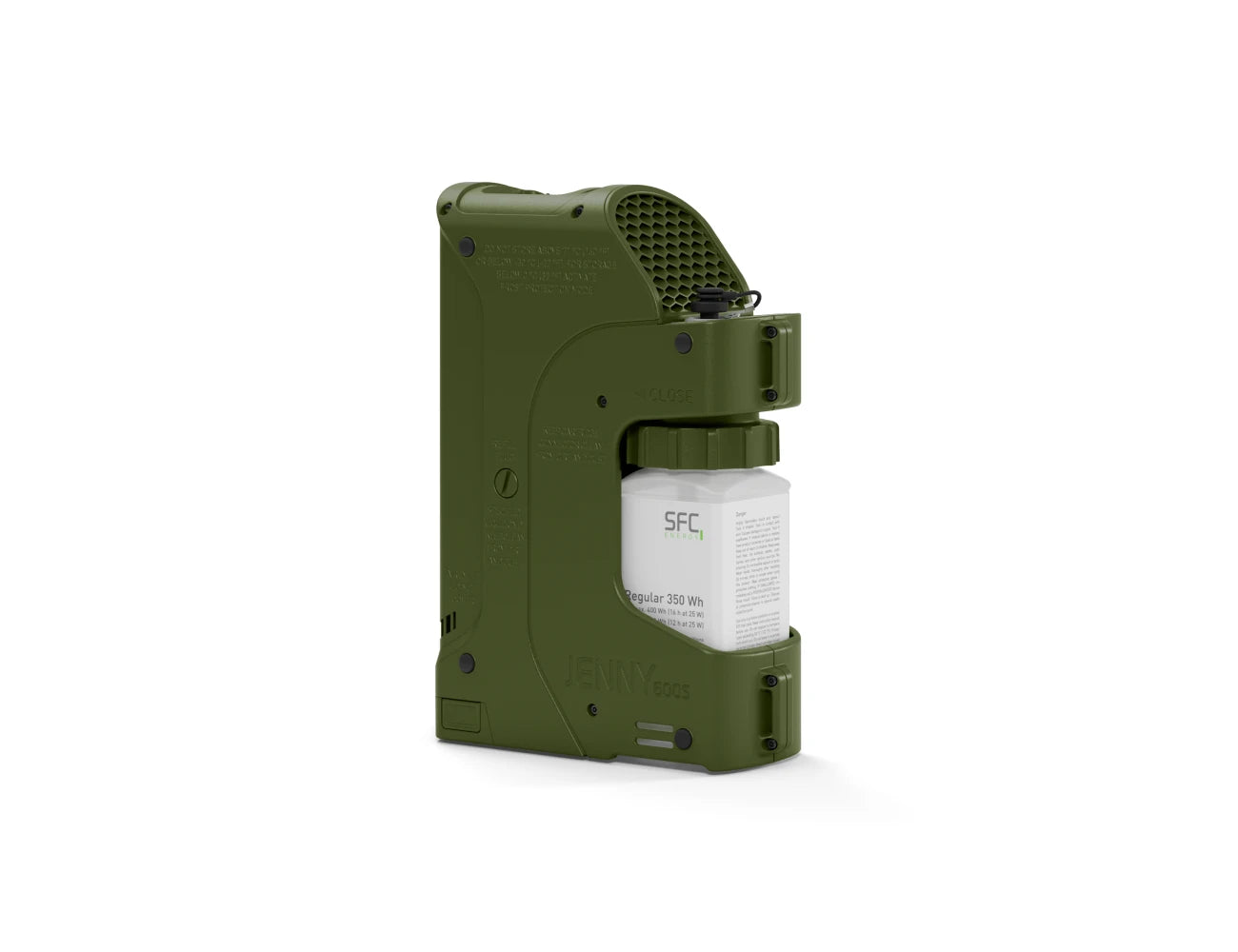

SFC Energy JENNY 600S Fuel Cell
The SFC Energy JENNY 600S Fuel Cell is a tactical power solution engineered specifically for military field operations, delivering reliable, silent, and low-profile energy for critical off-grid applications. Leveraging advanced methanol fuel cell technology, the JENNY 600S provides extended operational power with minimal thermal and acoustic signatures, making it ideal for covert missions. Designed to support soldiers in the field, its lightweight, rugged build ensures rapid deployment and resilience across harsh terrains and extreme conditions. With long-lasting, low-maintenance operation, the JENNY 600S is purpose-built to sustain troops and mission-critical equipment in the most demanding environments.
Features
- Stealthy Power: Operates silently with minimal heat output to maintain mission discretion.
- Lightweight Design: Easily portable, ideal for rapid deployment in tactical situations.
- Extended Operation: Delivers long-lasting energy, reducing the need for frequent refueling.
- Low Maintenance: Designed for sustained performance with minimal upkeep requirements.
- Rugged and Reliable: Built to endure harsh environments and challenging field conditions.
- Eco-friendly Fuel Source: Utilises methanol fuel, providing clean power with low emissions. Fuel cartridges are approved for air transport in accordance with UN3473.
| TECHNICAL DATA | |
|---|---|
| Max. charging power per day | 600 Wh |
| Nominal power | 25 W |
| Voltage range | 10 – 30 V DC[1] |
| Nominal voltage | 30 V DC[2] |
|
Nominal charging current at 16.5 V / 30 V |
1.52 A / 0.83 A |
| Recommended battery type | 3 to 7 cells / Lithium Ion |
| Weight | 1.7 kg |
| Dimensions L x W x H | 183.6 x 74.4 x 252.3 mm |
| Nominal consumption | < 1.0 l / kWh @ 25 W[3] |
| User interface | LCD Display with full text messages |
| Data interface | SMBus (compliant with SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7SC |
| Slide-on battery |
SAFT 2S1PMP144350 with SMBus (Ref.-Nr. 07552X) Nominal voltage: 7.5 V Nominal capacity: 2.6 Ah End of charge: 8.4 V +/- 0.08 V Max. charge / discharge: 2.6 A /5 A |
| Warranty period | 1500 operating hours [8] |
[1] Voltage is self adjusting via SMBus communication or can be manually adjusted
[2] Factory setting
[3] Effective consumption depends on operating conditions
[4] For temperature range below 0 °C the heating pouch should be used
[5] At temperatures from +50 °C … +55 °C operation is possible for limited time only
[6] Start-up is possible down to -20 °C with optional heat pouch
[7] Frost protection mode needs to be activated manually when putting the fuel cell in the off state
[8] A routine service check is required after 750 operating hours
[9] Fuel cell does not produce power when being submersed; operation with power generation is possible in heavy rainfall
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
-32 °C to +35 °C on Regular Fuel[4] +10 °C to +55 °C on Desert Fuel[5] |
||||||||||||||||||||||||||||||||||||||||||||||||
| Start-up temperature |
+1 °C to +55 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature |
+1 °C to +71 °C -32 °C to +71 °C in Frost-Protection Mode[7]
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
0 to 100 % |
||||||||||||||||||||||||||||||||||||||||||||||||
| Water protection |
MIL-STD 810F method 506.4, procedure I blowing rain Operation in heavy rainfall |
||||||||||||||||||||||||||||||||||||||||||||||||
| Submergibility |
Submergible at 30 cm (1 ft) for 1 min, during operation[9] Submergible at 60 cm (2 ft) for 1 min in standby or in off-state In off-state JENNY 600S can be transported down to 30 m water depth (submarine exit) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Sand and dust |
MIL-STD 810F method 510.4, procedure I |
||||||||||||||||||||||||||||||||||||||||||||||||
| Vibration |
MIL-STD 810F method 514.5, category 5, 8 and 20 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drop |
MIL-STD 810F method 516.5, procedure I & IV |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating altitude |
Up to 4000 m |
||||||||||||||||||||||||||||||||||||||||||||||||
| Noise |
< 37 dB(A) at 1 m |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the lateral / roll axis |
Permanent max +/- 95° |
||||||||||||||||||||||||||||||||||||||||||||||||
| Fuel cell |
Item number |
NSN Number |
|---|---|---|
| Fuel Cell JENNY 600S, including | 303 000 005 (sand) | 6116-12-389-4618 |
| *Service Fluid 20 ml | 303 000 017 (Olive green) | |
| *User manual (EN) | ||
| *Transport battery and fuel cartridge |
| Accessories and spare parts |
Item number |
NSN Number |
|---|---|---|
| Service Fluid, 20 ml | 303 903 001 | 6810-12-376-4718 |
| Air filter, color sand (olive green) | 303 090 011 (019) | 4130-12-381-7926 |
| Slide-on battery, color sand (olive green) | 303 079 006 (009) | 6140-12-381-8100 |
| Transport battery | 303 079 008 | 6160-12-383-5894 |
| Battery charger | 303 906 021 | 6130-12-381-8071 |
| M2.5 Adapter | 303 905 076 | 6116-12-381-8396 |
| JENNY ND Terra Kit (case, without fuel cell) | 303 002 012 | 8145-12-388-3971 |
| Transport case | 303 902 009 | - |
| Summer pouch, sand | 303 902 022 | 8465-12-389-9057 |
| Winter pouch, sand | 303 902 024 | 8465-12-389-9417 |
| Optional cables |
Item number |
NSN Number |
|---|---|---|
| Li-145 Y-cable | 905 906 072 | 6150-12-377-3236 |
| Li-145 charging cable | 905 906 073 | - |
| BB-2590 Y-cable | 905 906 074 | 6150-12-389-4598 |
| BB-2590 charging cable | 905 906 075 | - |
| PM3G Cable | 905 906 165 | 6150-12-381-8016 |
| MicroSun Y-cable | 905 906 078 | - |
| Fuel Cartridges |
M0.35 Regular |
M0.35 Desert |
M2.5 Regular |
M2.5 Desert | |
|---|---|---|---|---|---|
| Item number | 303 905 088 | 303 905 089 | 303 905 069 | 303 905 070 | |
| NSN Number | 6810-12-376-4753 | 6180-12-376-4699 | 6810-12-381-8735 | 6810-12-381-8737 | |
| Volume | 350 ml | 350 ml | 2500 ml | 2500 ml | |
| Content | 100 % methanol |
60 % methanol, 40 % water |
100 % methanol |
60 % methanol, 40 % water |
|
| Weight | 371 g | 410 g | 2200 g | 2300 g | |
| Nominal capacity | Max 400 Wh | Max 285 Wh | Max 2800 Wh | Max 1700 Wh | |
| Operating temperature | -32 °C to +35 °C | +10 °C to +55 °C | -32 °C to +35 °C | +10 °C to +55 °C | |
| Dimensions L x W x H | 165 x 60 x 60 mm | 165 x 60 x 60 mm | 231 x 153 x 115 mm | 231 x 153 x 115 mm |
| TECHNICAL DATA | |
|---|---|
| Max. charging power per day | 600 Wh |
| Nominal power | 25 W |
| Voltage range | 10 – 30 V DC[1] |
| Nominal voltage | 30 V DC[2] |
|
Nominal charging current at 16.5 V / 30 V |
1.52 A / 0.83 A |
| Recommended battery type | 3 to 7 cells / Lithium Ion |
| Weight | 1.7 kg |
| Dimensions L x W x H | 183.6 x 74.4 x 252.3 mm |
| Nominal consumption | < 1.0 l / kWh @ 25 W[3] |
| User interface | LCD Display with full text messages |
| Data interface | SMBus (compliant with SMBus v 1.0 or higher) |
| Electrical interface | Glenair # 804-005-07ZNU6-7SC |
| Slide-on battery |
SAFT 2S1PMP144350 with SMBus (Ref.-Nr. 07552X) Nominal voltage: 7.5 V Nominal capacity: 2.6 Ah End of charge: 8.4 V +/- 0.08 V Max. charge / discharge: 2.6 A /5 A |
| Warranty period | 1500 operating hours [8] |
[1] Voltage is self adjusting via SMBus communication or can be manually adjusted
[2] Factory setting
[3] Effective consumption depends on operating conditions
[4] For temperature range below 0 °C the heating pouch should be used
[5] At temperatures from +50 °C … +55 °C operation is possible for limited time only
[6] Start-up is possible down to -20 °C with optional heat pouch
[7] Frost protection mode needs to be activated manually when putting the fuel cell in the off state
[8] A routine service check is required after 750 operating hours
[9] Fuel cell does not produce power when being submersed; operation with power generation is possible in heavy rainfall
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
-32 °C to +35 °C on Regular Fuel[4] +10 °C to +55 °C on Desert Fuel[5] |
||||||||||||||||||||||||||||||||||||||||||||||||
| Start-up temperature |
+1 °C to +55 °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature |
+1 °C to +71 °C -32 °C to +71 °C in Frost-Protection Mode[7]
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
0 to 100 % |
||||||||||||||||||||||||||||||||||||||||||||||||
| Water protection |
MIL-STD 810F method 506.4, procedure I blowing rain Operation in heavy rainfall |
||||||||||||||||||||||||||||||||||||||||||||||||
| Submergibility |
Submergible at 30 cm (1 ft) for 1 min, during operation[9] Submergible at 60 cm (2 ft) for 1 min in standby or in off-state In off-state JENNY 600S can be transported down to 30 m water depth (submarine exit) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Sand and dust |
MIL-STD 810F method 510.4, procedure I |
||||||||||||||||||||||||||||||||||||||||||||||||
| Vibration |
MIL-STD 810F method 514.5, category 5, 8 and 20 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drop |
MIL-STD 810F method 516.5, procedure I & IV |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating altitude |
Up to 4000 m |
||||||||||||||||||||||||||||||||||||||||||||||||
| Noise |
< 37 dB(A) at 1 m |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the lateral / roll axis |
Permanent max +/- 95° |
||||||||||||||||||||||||||||||||||||||||||||||||
| Fuel cell |
Item number |
NSN Number |
|---|---|---|
| Fuel Cell JENNY 600S, including | 303 000 005 (sand) | 6116-12-389-4618 |
| *Service Fluid 20 ml | 303 000 017 (Olive green) | |
| *User manual (EN) | ||
| *Transport battery and fuel cartridge |
| Accessories and spare parts |
Item number |
NSN Number |
|---|---|---|
| Service Fluid, 20 ml | 303 903 001 | 6810-12-376-4718 |
| Air filter, color sand (olive green) | 303 090 011 (019) | 4130-12-381-7926 |
| Slide-on battery, color sand (olive green) | 303 079 006 (009) | 6140-12-381-8100 |
| Transport battery | 303 079 008 | 6160-12-383-5894 |
| Battery charger | 303 906 021 | 6130-12-381-8071 |
| M2.5 Adapter | 303 905 076 | 6116-12-381-8396 |
| JENNY ND Terra Kit (case, without fuel cell) | 303 002 012 | 8145-12-388-3971 |
| Transport case | 303 902 009 | - |
| Summer pouch, sand | 303 902 022 | 8465-12-389-9057 |
| Winter pouch, sand | 303 902 024 | 8465-12-389-9417 |
| Optional cables |
Item number |
NSN Number |
|---|---|---|
| Li-145 Y-cable | 905 906 072 | 6150-12-377-3236 |
| Li-145 charging cable | 905 906 073 | - |
| BB-2590 Y-cable | 905 906 074 | 6150-12-389-4598 |
| BB-2590 charging cable | 905 906 075 | - |
| PM3G Cable | 905 906 165 | 6150-12-381-8016 |
| MicroSun Y-cable | 905 906 078 | - |
| Fuel Cartridges |
M0.35 Regular |
M0.35 Desert |
M2.5 Regular |
M2.5 Desert | |
|---|---|---|---|---|---|
| Item number | 303 905 088 | 303 905 089 | 303 905 069 | 303 905 070 | |
| NSN Number | 6810-12-376-4753 | 6180-12-376-4699 | 6810-12-381-8735 | 6810-12-381-8737 | |
| Volume | 350 ml | 350 ml | 2500 ml | 2500 ml | |
| Content | 100 % methanol |
60 % methanol, 40 % water |
100 % methanol |
60 % methanol, 40 % water |
|
| Weight | 371 g | 410 g | 2200 g | 2300 g | |
| Nominal capacity | Max 400 Wh | Max 285 Wh | Max 2800 Wh | Max 1700 Wh | |
| Operating temperature | -32 °C to +35 °C | +10 °C to +55 °C | -32 °C to +35 °C | +10 °C to +55 °C | |
| Dimensions L x W x H | 165 x 60 x 60 mm | 165 x 60 x 60 mm | 231 x 153 x 115 mm | 231 x 153 x 115 mm |
Find the Right Model
| Model Number | Nom. Voltage(s) (Vdc) | Max Output Current (A) | Max Output Power (W) | ||
|---|---|---|---|---|---|
|
JENNY 600S | 30Vdc (Adj. 10 - 30Vdc) | 1.52A @ 16.5Vdc / 0.83A @ 30Vdc | 25W |
Need help finding the right product model?
